PRODUCT DESCRIPTION

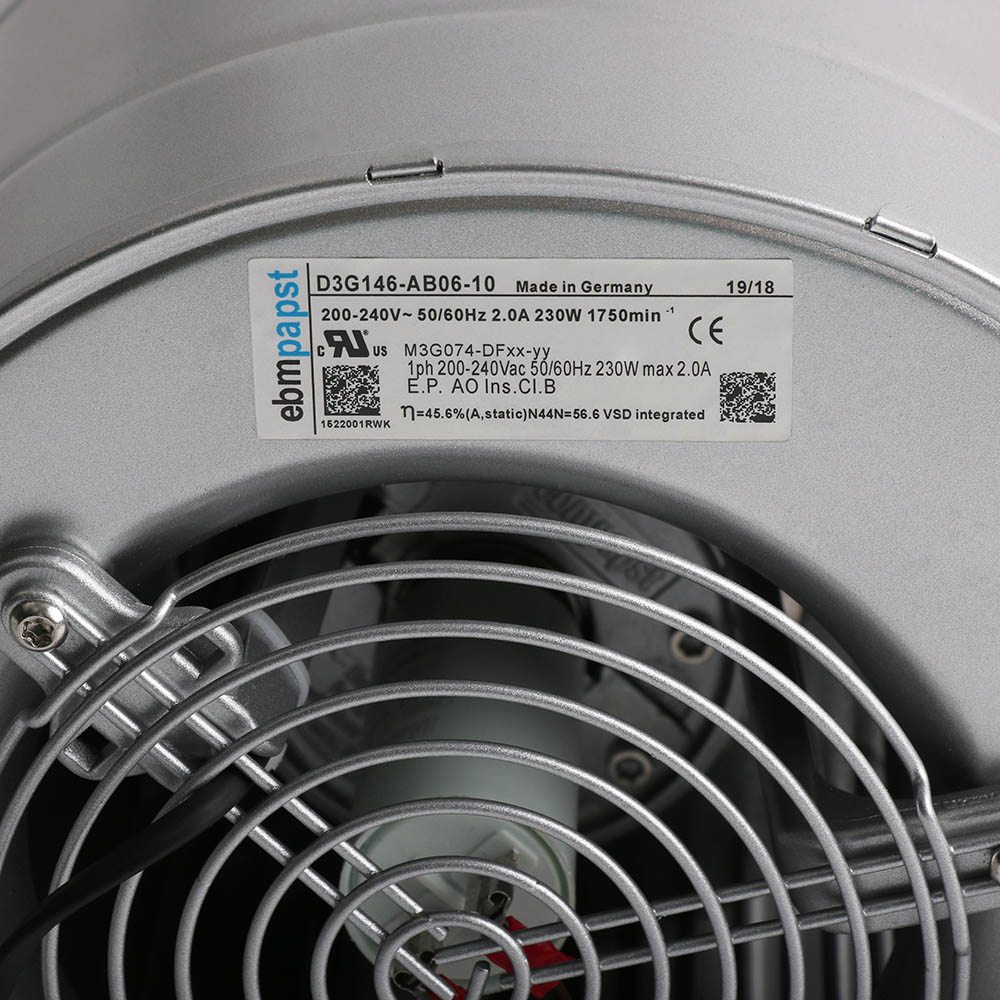

D3G146-AB06-10 42003741 EC Centrifugal Cooling Fan
D3G146-AB06-10 is an ebm-papst electronically commutated centrifugal fan listed by ABB among its long-life drive cooling spares. The existing 42003741 identifier is retained with the product record. It supports cooling in the compatible host-drive configuration rather than serving as a complete drive or process controller.
The fan has forward-curved, dual-intake impellers in a galvanized sheet-steel housing, a single-phase 230 V AC supply and an electronically protected motor. Its manufacturer data specifies 230 W, 2.0 A and 1325 m³/h at the documented 50 Hz free-air test point; actual airflow depends on installed pressure resistance.
The fan has forward-curved, dual-intake impellers in a galvanized sheet-steel housing, a single-phase 230 V AC supply and an electronically protected motor. Its manufacturer data specifies 230 W, 2.0 A and 1325 m³/h at the documented 50 Hz free-air test point; actual airflow depends on installed pressure resistance.
BEFORE YOU BUY
Confirm the complete ec centrifugal cooling fan
ACTUAL APPLICATIONS
Application context for D3G146-AB06-10 42003741
D3G146-AB06-10 supplies cooling airflow in compatible ABB drive assemblies. Host-drive applications include paper production, mining and chemical processing. The EC blower uses a 230 V AC supply; connector arrangement, airflow path and the exact ABB spare configuration determine suitability.
-
01 · PULP & PAPER
Pulp Manufacturing and Paper Production
Pulp Production and ProcessingPaper and Board Manufacturing -
02 · MINING
Mining Production and Mineral Processing
Metal Ore MiningMineral Processing and Beneficiation -
03 · CHEMICAL PROCESSING
Chemical Manufacturing and Process Production
Industrial Chemical ProductionPetrochemical Production and Processing
Technical specifications for D3G146-AB06-10 42003741
-
Product ModelD3G146-AB06-10 42003741
-
Product ParametersEC Centrifugal Cooling Fan
-
In stock2 units
-
ManufacturerABB
-
Nominal supply voltage230 V AC
-
Nominal voltage range200 to 240 V AC
-
Supply phase count1
-
Supply frequency50 / 60 Hz
-
Free-air speed1950 rpm
-
Free-air power consumption230 W
-
Free-air current draw2.0 A
-
Free-air volume flow at 230 V / 50 Hz1325 m³/h
-
Intake sound pressure at free air65 dB(A), measured at 1 m
-
Protection ratingIP54
-
Insulation classB
-
Rotation directionCounterclockwise, viewed toward rotor
-
Motor bearingsBall bearings
-
Operating modeS1 continuous duty
-
Ambient operating temperature-25 to +50 ℃
View all additional
Alternative Names
D3G146-AB06-10 42003741
D3G146-AB06-10 dual-intake EC blower
ABB drive long-life centrifugal fan
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate D3G146-AB06-10 42003741 ec centrifugal cooling fan
Match D3G146-AB06-10 to the cooling position and complete spare configuration specified for the installed ABB drive. The ABB technical note maps this fan type to its long-life centrifugal-fan replacement list.
Check the 230 V single-phase supply, 2.0 A free-air current, phase/neutral/protective-earth connector allocation and installed airflow path. Air volume and power figures apply to the stated test condition, not every pressure point.
Verify fan direction, airflow clearance and the host drive cooling response after connection. Follow the drive-specific replacement and protection requirements rather than relying on fan dimensions alone.
Features:
- 230 V AC single-phase EC blower interface
- Documented phase, neutral and protective-earth allocation
- Pressure-dependent airflow for the compatible host drive
The D3G146-AB06-10 42003741 ec centrifugal cooling fan requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify D3G146-AB06-10 42003741 ec centrifugal cooling fan
Preserve the existing D3G146-AB06-10 42003741 identity and compare the actual fan label and connector arrangement. An ABB long-life-fan list does not establish compatibility with every drive variant.
Check the forward-curved dual-intake construction, mounting flange, supply range and cooling path. Inspect vibration isolation, protective earth and the installed wiring before exchanging the blower.
After replacement, verify free rotation, correct airflow and stable host-drive temperature. Record the full spare identity and measured operating condition in the drive maintenance record.
Features:
- D3G146-AB06-10 and retained 42003741 identity
- Dual-intake housing, flange and connector comparison
- Cooling path and host-drive temperature verification
The D3G146-AB06-10 42003741 ec centrifugal cooling fan requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Exact ebm-papst nominal data and airflow curves
- Manufacturer dimensional and connection drawings
- ABB long-life fan type mapping reference
Documentation for the D3G146-AB06-10 42003741 ec centrifugal cooling fan must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size27 × 21.9 × 20.5cm
-
Shipping weight3.10kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8414599099
-
OriginSwitzerland
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about D3G146-AB06-10 42003741
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is D3G146-AB06-10 a complete ABB drive?
No. It is an ebm-papst centrifugal cooling fan used as a compatible drive spare. ABB lists the fan type in its long-life-fan mapping document. -
Which supply is specified on the EC blower datasheet?
The nominal supply is single-phase 230 V AC with a 200–240 V nominal voltage range and 50/60 Hz frequency. -
Are the stated airflow and speed valid at all back pressures?
No. The 1325 m³/h and 1950 rpm figures belong to the documented 230 V, 50 Hz free-air test point. The airflow curve defines other operating points. -
How is fan rotation identified?
The manufacturer specifies counterclockwise rotation when viewed toward the rotor. Match the installed airflow and housing orientation. -
What degree of protection and motor insulation are listed?
The fan datasheet lists IP54 protection and insulation class B. Apply the complete installed drive and electrical connection conditions. -
What protections are built into the EC motor?
The manufacturer lists electronic motor protection, thermal overload protection, power limiting, soft start and line undervoltage detection. -
What records are needed to select the drive cooling spare?
Provide the complete D3G146-AB06-10 42003741 identification, host-drive type, fan label, connector and flange photographs, quantity and destination. -
What should be inspected on delivery of this blower?
Inspect the fan label, housing, impellers, flange, motor supports and connector. Check for mechanical damage and compare the full spare configuration before fitting.
