Technical specifications for SDCS-CON-4 3ADT313900R1501
-
Product ModelSDCS-CON-4 3ADT313900R1501
-
Spare Model3ADT313900R1501
-

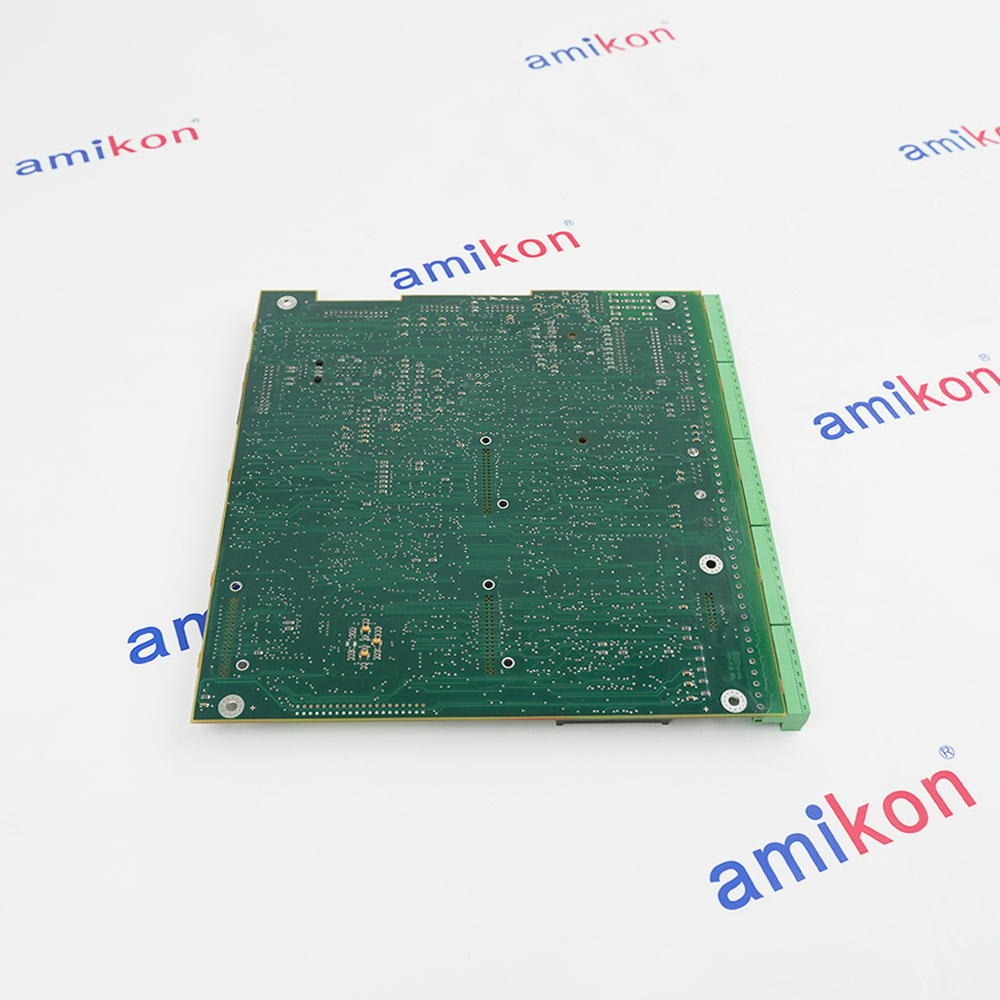

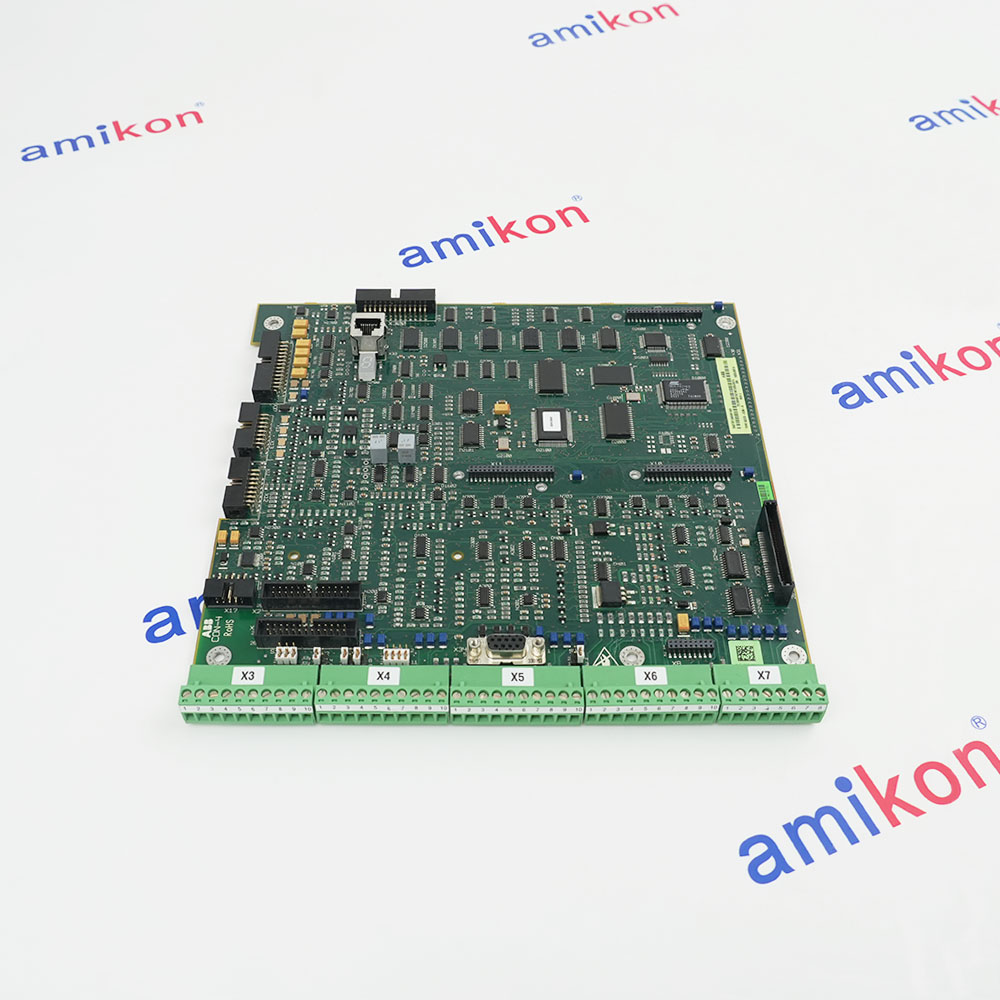

Product ParametersCONTROL BOARD
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size24x24.6x2cm
-
ManufacturerABB
-
Weight0.35 kg
-
Supply Voltage24 V DC
-
Power ConsumptionTypically 15-20 W
-
Operating Temperature0°C to +55°C
-
Storage Temperature-40°C to +70°C
-
Humidity5-95% RH (non-condensing)
Description
The ABB SDCS-CON-4 3ADT313900R1501 is an interface board. It is the main control board for ABB DCS800 series DC drives. The board is also compatible with DCS600 series drives. It serves as the central processing unit for motor control, regulation, and drive management.
The board incorporates multiple on-board power supplies. Connector X37 provides 48V at pin 3, 24V at pin 5, 15V at pin 7, -15V at pin 11, 5V encoder at pin 13, and 5V CPU at pin 23. The 5V CPU supply is monitored at 4.75V. If the voltage drops below this threshold, the CPU is forced to reset. The CPU also monitors the Powerfail signal from the power supply module (SDCS-PIN-4 or SDCS-POW-1).
The board incorporates multiple on-board power supplies. Connector X37 provides 48V at pin 3, 24V at pin 5, 15V at pin 7, -15V at pin 11, 5V encoder at pin 13, and 5V CPU at pin 23. The 5V CPU supply is monitored at 4.75V. If the voltage drops below this threshold, the CPU is forced to reset. The CPU also monitors the Powerfail signal from the power supply module (SDCS-PIN-4 or SDCS-POW-1).
Alternative Names
SDCS CON 4 3ADT313900R1501
SDCS-C0N-4 3ADT3139OOR15O1
SDCS-C0N-4 3ADT3139OOR15O1
SDCS-CON 4 3ADT3I3900RI50I
SDCS C0N 4 3ADT3139OORI50I
Information
Overview
Manuals
Technical notes
Product Applications
Safety & Installation Instructions
Features:
- Writing to FPROM is disabled
- Thyristor firing control is reset and disabled
- Digital outputs are forced low
- Programmable analogue outputs are reset to zero, 0V
- Module-Level Isolation
SDCS-CON-4 board is equipped with FlashPROM which contains the firmware plus the storedparameters. Parameters handled by DCS800 panel or DWL, PCtool or by Serial communicationparameter service are stored immediately in the FlashPROM.Parameters handled by cyclic serial communication (dataset table Group 90 - 92) are not stored in theFlash PROM. They must be stored by means of ParApplSave (16.6) service.The faultlogger entries are stored in the FlashPROM during power down (auxiliary power supply OFF).
The SDCS-CON-4 3ADT313900R1501 ABB Control Board may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB SDCS-CON-4 3ADT313900R1501 Control Board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The ABB SDCS-CON-4 (3ADT313900R1501) is a main control board for DCS800 industrial DC drives, facilitating communication between the drive, PLC, and I/O. It supports 8 digital I/O, various analog I/O, and is used for motor control in converters ranging from 20A to 5,200A. The board features FlashPROM for firmware and is commonly conformally coated for harsh environments.
- Metals Industry: Rolling mills, wire drawing, and pipe mills
- Pulp and Paper: Processing machines and winder drives
- Material Handling: Cable cars, conveyors, and lifting equipment
- Non-Motor Applications: Battery charging systems, magnets, and electrolysis plants
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
ESD Protection: This board contains components highly sensitive to electrostatic discharge. Always wear a grounding wrist band when handling it to prevent permanent damage.
Fiber Optics: If using fiber optic links (via SDCS-COM boards), do not touch the fiber ends and maintain a minimum bend radius of 35 mm.
Installation: It must be installed in the main CPU rack of a DCS800 system and is compatible with backplanes like the SDCS-PIN-46/48.
Power Caution: Never perform maintenance or work on control cables while power is applied, as externally supplied circuits may still carry dangerous
Technical notes
The board has 8 digital inputs and 8 digital outputs. The digital inputs are galvanically isolated using optocouplers. The input voltage levels support 24 to 48V DC, 115V AC, and 230V AC. The board also has 4 analog inputs and 4 analog outputs. The analog input ranges are -10V to 0V to +10V, and -20mA to +20mA. The input resistance is 200 kΩ for voltage inputs and 250 Ω for current inputs.
FAQs
-
What is the SDCS-CON-4 3ADT313900R1501 ?
+The ABB SDCS-CON-4 (3ADT313900R1501) is a primary control board for the ABB DCS800 drive system, serving as a Drive Control Unit that manages firmware, parameters, and communication . -
What is the function of the SDCS-CON-4 board?
+It serves as the main control board for ABB DCS800 drives, providing essential control functions, parameter handling via PC tools or panels, and communication, including PROFIBUS, MODBUS, and EtherNet. -
Is this product brand new?
+Yes, ABB SDCS-CON-4 3ADT313900R1501 is brand new, original, unused, and factory sealed -
Can it be used to replace older boards?
+Yes, the DCS800 series (using the SDCS-CON-4) is often used as a modern replacement for legacy systems like the DCS500 or DCS600. -
Can I test insulation resistance on the board?
+No. Do not perform insulation resistance or voltage withstand tests on the drive modules. Doing so can damage the sensitive electronics on the SDCS-CON-4.
