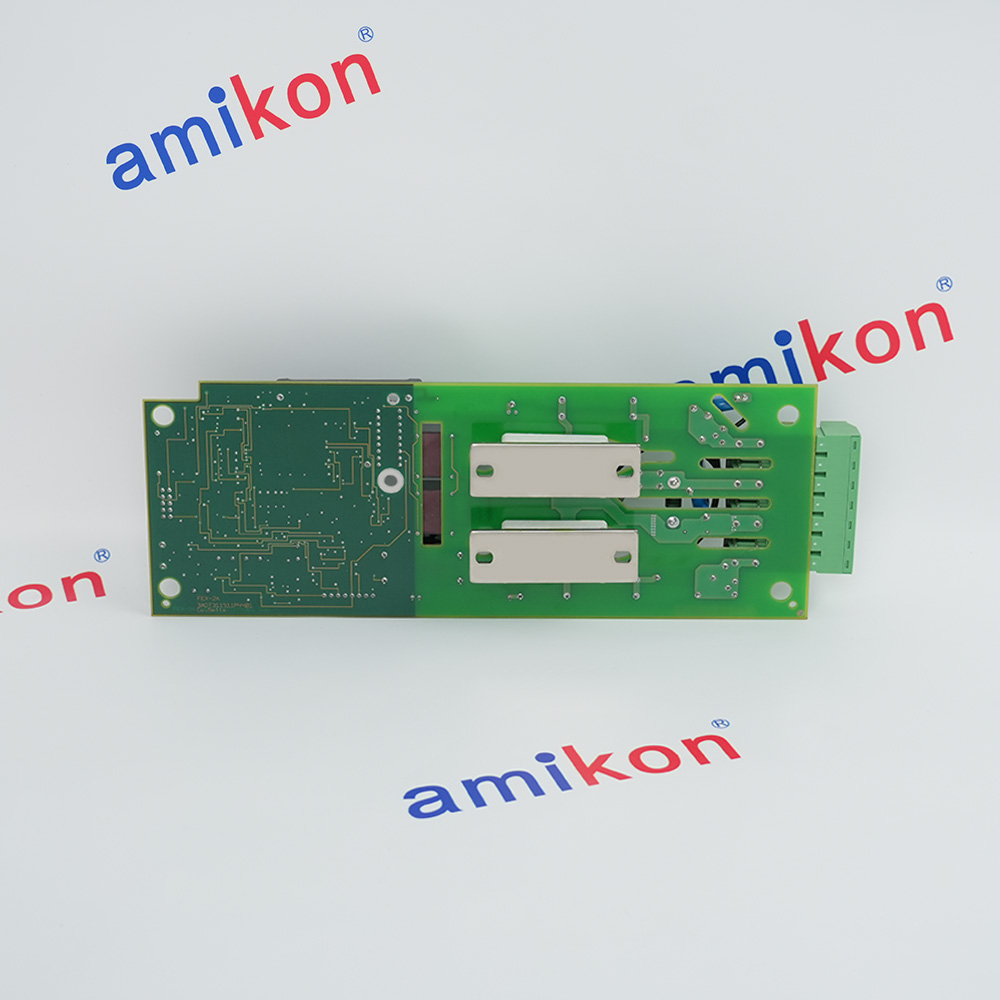

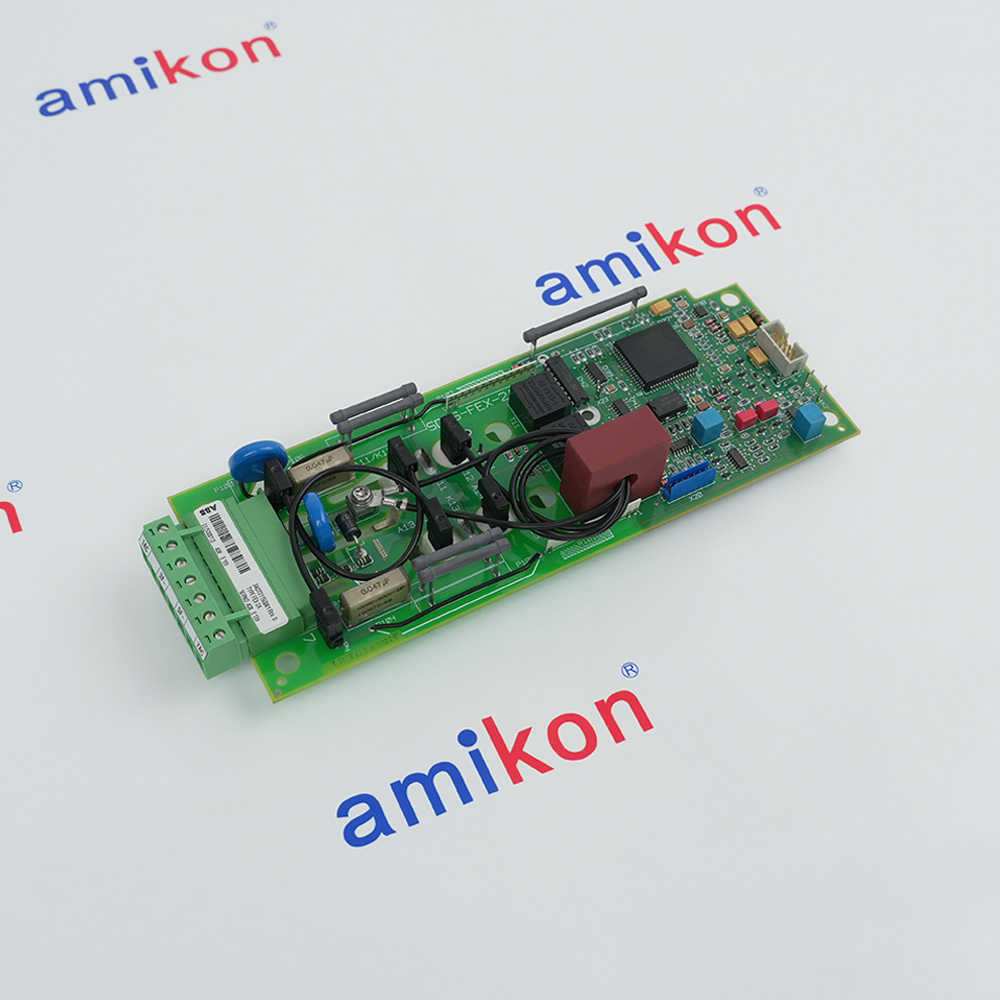

- SDCS-FEX-2A 3ADT311500R1
In Stock
Ships by Sunday, June 28
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for SDCS-FEX-2A 3ADT311500R1
-
Product ModelSDCS-FEX-2A 3ADT311500R1
-
Spare Model3ADT311500R1
-
Product ParametersField exciter board
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size25.5x9x5cm
-
ManufacturerABB
-
Weight0.35 kg
-
Operating Temperature0°C to +60°C
-
Storage Temperature-40°C to +85°C
-
Relative Humidity5-95% non-condensing
-
Input Voltage24V DC nominal
-
Output Voltage+5V DC (±1%)
-
Current Capacity10A (50W)
-
Total Power170W maximum
-
Ripple Noise<50mV p-p
Description
The ABB SDCS-FEX-2A 3ADT311500R1 is a field exciter board for ABB DCS 500 and DCS 600 DC drive systems. It regulates the field current of DC motors to ensure stable and efficient motor operation. The board consists of a power part and a control board integrated into a single assembly.
The power part is built with two power modules, each containing one diode and one thyristor, wired as a half-controlled bridge. The single-phase AC input voltage range is 110 V to 500 V, with a maximum DC output current of 8 A for armature converters rated 25 A to 75 A, and 16 A for armature converters rated 100 A to 2000 A. The control unit automatically selects a lower current range between 3 A and 16 A for smaller field currents to achieve the best resolution.
The control is based on a fully digital system using an 80C198 microcontroller with PI current control structure. The software is stored in ROM memory. All control parameters are stored in the non-volatile memory of the armature converter and transferred to the field controller during each initialization process via the RS485 link. The Node number is fixed to Node 1.
The power part is built with two power modules, each containing one diode and one thyristor, wired as a half-controlled bridge. The single-phase AC input voltage range is 110 V to 500 V, with a maximum DC output current of 8 A for armature converters rated 25 A to 75 A, and 16 A for armature converters rated 100 A to 2000 A. The control unit automatically selects a lower current range between 3 A and 16 A for smaller field currents to achieve the best resolution.
The control is based on a fully digital system using an 80C198 microcontroller with PI current control structure. The software is stored in ROM memory. All control parameters are stored in the non-volatile memory of the armature converter and transferred to the field controller during each initialization process via the RS485 link. The Node number is fixed to Node 1.
Alternative Names
SDCS-FEX-2A-3ADT311500R1
SDCS-FEX-2A 3ADT31150OR1
SDCS-FEX-2A 3ADT3115OOR1
SDCS-FEX-2A 3ADT311500RI
SDCS-FEX-2A 3AOT311500R1
SDCS-FEX-2A 3ADT3II500R1
SDCS-FEX-2A 3ADT3I15OOR1
Information
Overview
Manuals
Technical notes
Product Applications
Wiring Connections
Features:
- Integrated Field Excitation
- Dual-Current Support
- Universal AC Input Compatibility
- Fixed Voltage Output
The SDCS-FEX-2A 3ADT311500R1 ABB Diode Field Exciter board may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB SDCS-FEX-2A 3ADT311500R1 Diode Field Exciter board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The control is based on a fully digital system. Theµ-processor reads all information from the powerpart, is supplied with all needed voltage levels andcontrol signals via the flat cable X14 by the SDCSCON-2 and generates the firing pulses for the power part.The range of the single phase rated AC input voltage is 110 V to 500 V, the maximum current capability is 16 A. If this field exciter is used for smallerfield current, the control unit automatically selects alower current range between 3 A to 16 A to get thebest resolution.
- Power Generation Plants:Fail-safe overspeed protection for thermal/nuclear/hydro turbines
- Oil & Gas Refineries:Gas turbine mechanical drives for compressors/pumps
- Petrochemical Complexes:Steam turbines in combined-cycle energy recovery
- Large-Scale Industrial Manufacturing:Power islands for steel/chemical plants
- Offshore Rigs:Turbine-driven power/pumping in remote harsh environments
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Supply: Connect the supply voltage (typically 100-240V AC) to the board.Serial Link: Connect the serial cable from the FEX-2A to the armature-circuit converter. This interface allows the main drive to control, parameterize, and diagnose the field exciter.Commutating Reactor: It is highly recommended to include a commutating reactor in the field power converter's supply circuit for electromagnetic compatibility (EMC)
Technical notes
The board is mounted inside the armature converter module beside the SDCS-POW-1 electronic power supply. It is compatible with DCS module types C1, C2, and A5. Connection to the SDCS-CON-x controller is via flat cable X14. Field current measurement is performed using an AC current transformer with auto-scaled burden resistors.
FAQs
-
What is the primary function of this board?
+It serves as a power supply for a 2-phase field exciter within DC drive systems, facilitating the excitation current for DC motors. -
What is SDCS-FEX-2A?
+The ABB SDCS-FEX-2A is a internal field exciter power supply circuit board used in ABB DCS thyristor power converters. It is primarily designed for the DCS 500 and DCS 600 drive series. -
Which drive systems use this board?
+It is a standard component for DCS 500B and DCS 600 MultiDrive systems. In the drive software settings (parameter 15.05), it must be selected as the used field exciter type (typically value 2). -
What are the input and output specs?
+It typically accepts a 100-240 VAC input and outputs around 1.25 Amps at 24 VDC (30 watts), though specifics may vary depending on system integration.
