PRODUCT DESCRIPTION

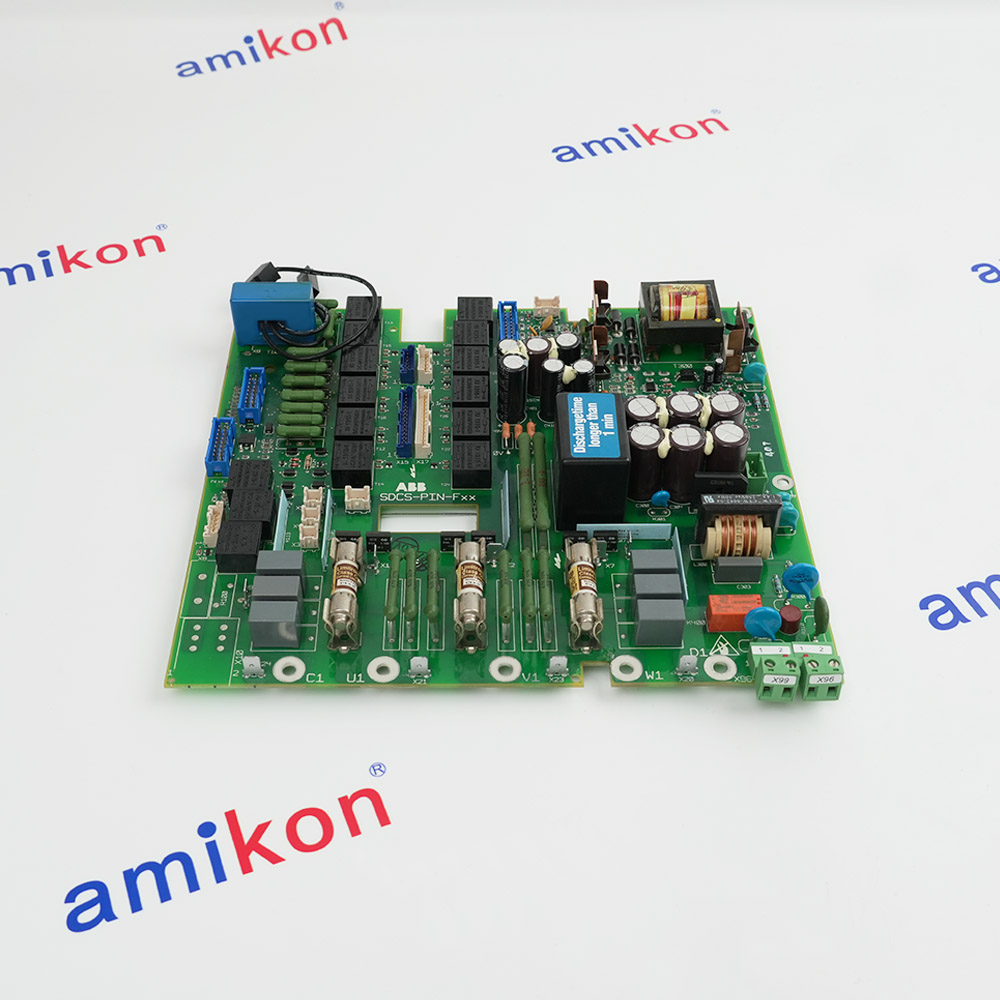

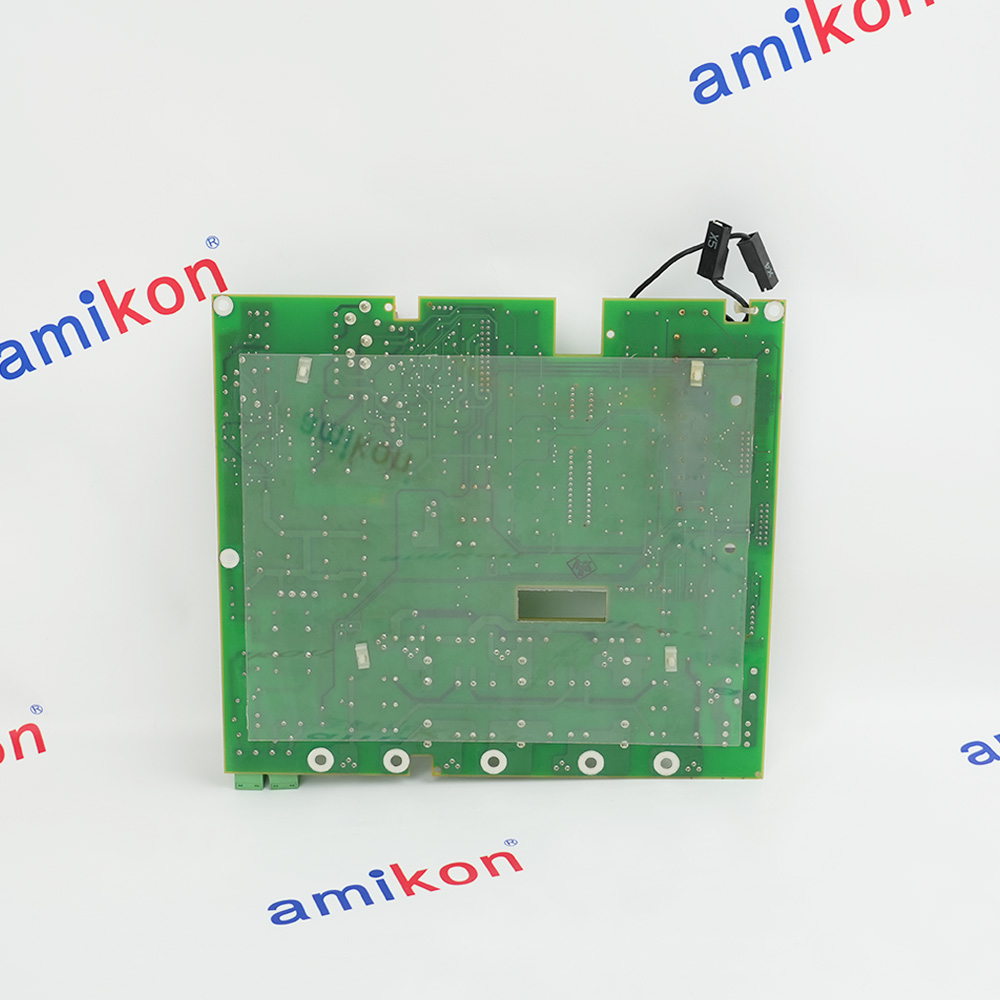

SDCS-PIN-F01A 3ADT316300R1502 Power interface board
ABB SDCS-PIN-F01A 3ADT316300R1502 is a power interface board for the DCS550 DC drive family. It links the drive power section with the SDCS-CON-F control board, supplying auxiliary power and interfacing the armature, integrated field exciter and related measurement circuits.
The board incorporates coded auxiliary-supply and relay connectors, protected input power circuitry, firing-pulse interfaces and field-current measurement components. Connector X99 accepts the documented auxiliary supply, while X96 provides the normally open relay contact controlled by digital output 8. The board also interfaces voltage, armature-current and PTC temperature measurements and includes the specified thyristor snubber arrangement.
The board incorporates coded auxiliary-supply and relay connectors, protected input power circuitry, firing-pulse interfaces and field-current measurement components. Connector X99 accepts the documented auxiliary supply, while X96 provides the normally open relay contact controlled by digital output 8. The board also interfaces voltage, armature-current and PTC temperature measurements and includes the specified thyristor snubber arrangement.
BEFORE YOU BUY
Confirm the complete power interface board
ACTUAL APPLICATIONS
Application context for SDCS-PIN-F01A 3ADT316300R1502
SDCS-PIN-F01A 3ADT316300R1502 is a power interface board in the DCS550 power interface boards range. Its compatible configurations serve pulp & paper, mining, chemical processing. Suitability depends on the complete article, matched interfaces and documented equipment configuration.
-
01 · PULP & PAPER
Industrial Pulp Production and Paper Manufacturing
Pulp Production and ProcessingPaper and Board Manufacturing -
02 · MINING
Metal Ore Mining and Mineral Processing
Metal Ore MiningMineral Processing and Beneficiation -
03 · CHEMICAL PROCESSING
Industrial Chemical and Petrochemical Production
Industrial Chemical ManufacturingPetrochemical Production and Refining
Technical specifications for SDCS-PIN-F01A DCS550 3ADT316300R1502
-
Product ModelSDCS-PIN-F01A DCS550 3ADT316300R1502
-
Spare ModelSDCS-PIN-F01A 3ADT316300R1502
-
Product ParametersPower interface board
-
In stock1 unit
-
ManufacturerABB
-
Auxiliary AC supply115 / 230 V AC
-
Auxiliary DC supply230 V DC
-
Supply tolerance−15% / +10%
-
Supply frequency45–65 Hz
-
AC input apparent power120 VA
-
Maximum power loss60 W
-
Inrush at 115 V AC20 A / 20 ms
-
Inrush at 230 V AC/DC10 A / 20 ms
-
Recommended supply fuse6 A, time-delay
-
Buffering at 115 V AC30 ms minimum
-
Buffering at 230 V AC300 ms minimum
-
Buffering at 230 V DC150 ms
-
Relay AC contact rating230 V AC, <3 A
-
Relay low-voltage DC rating24 V DC, <3 A
-
Relay high-voltage DC rating115 / 230 V DC, <0.3 A
View all additional
Alternative Names
SDCS-PIN-F01A 3ADT316300R1502
DCS550 power interface boards Power interface board
Power interface board SDCS-PIN-F01A
