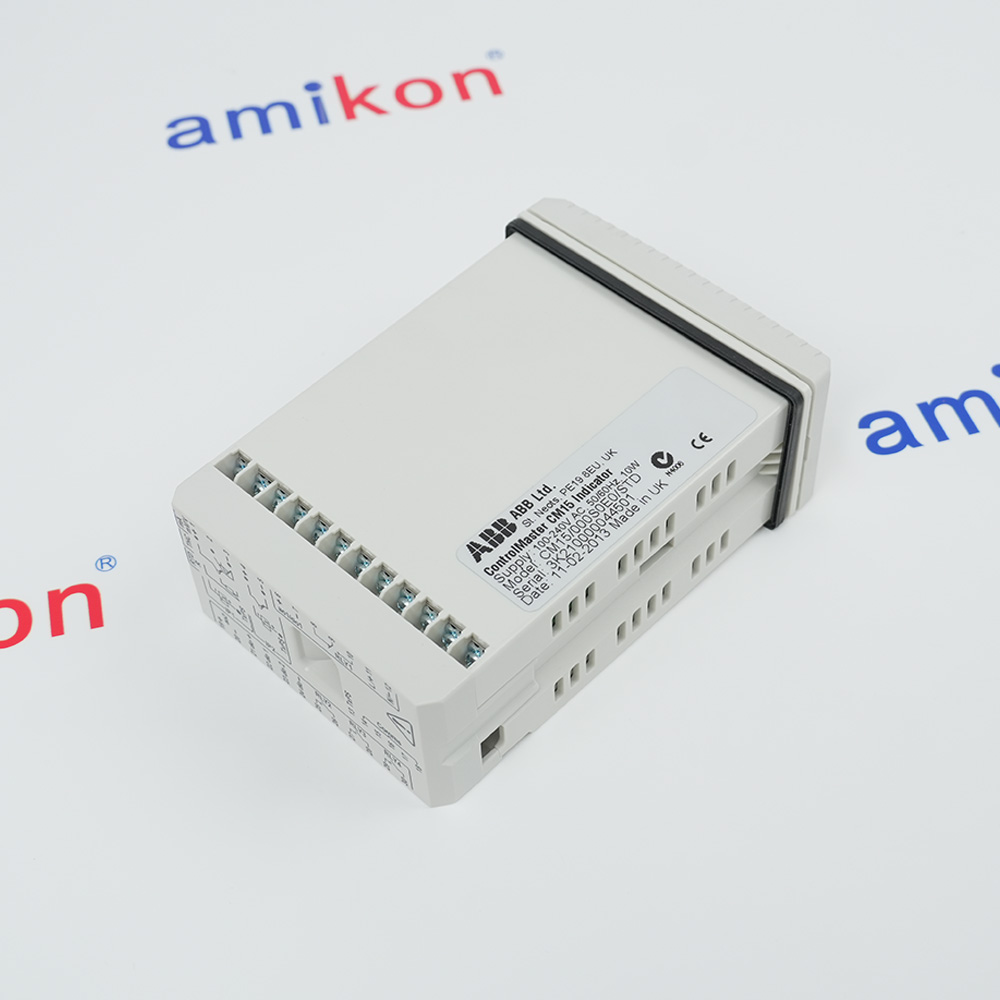

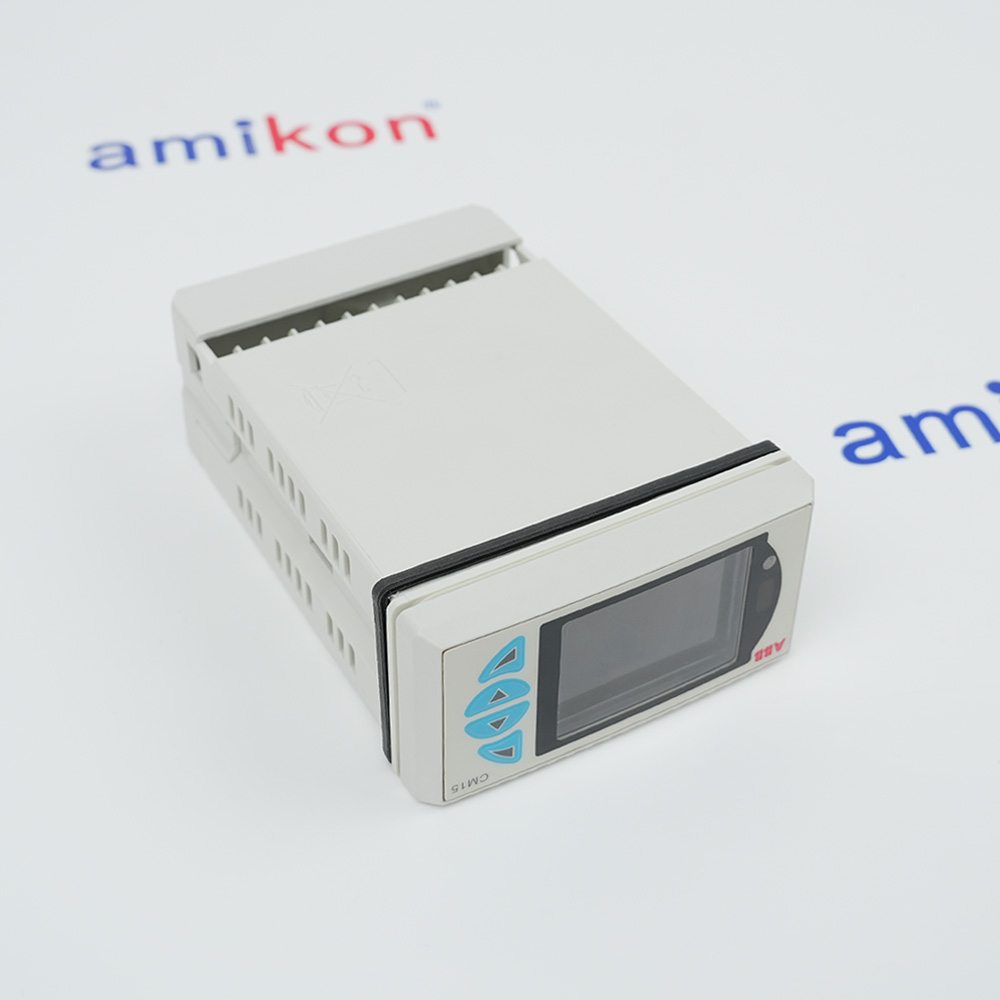

CM15/000S0E0/STD
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product Information
Product Describe
CM15000S0E0STD
UNIVERSAL PROCESS INDICATOR
100-240 VAC
50/60 HZ
10W
1/8 DIN
BASIC VERSION
2 X ANALOGUE IN
1 X ANALOG + 1 X REALY OUT
PANEL MOUNT
UNIVERSAL PROCESS INDICATOR
100-240 VAC
50/60 HZ
10W
1/8 DIN
BASIC VERSION
2 X ANALOGUE IN
1 X ANALOG + 1 X REALY OUT
PANEL MOUNT
Technical specifications for CM15/000S0E0/STD
-
Product ModelCM15/000S0E0/STD
-
Product ParametersUNIVERSAL PROCESS INDICATOR
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
Estimated Shipping Size14.2x10.7x3cm
-
ManufacturerABB
-
Weight1.2 kg
-
Output TypeRelay, Analogue
-
Product TypeProcess Indicator
-
Number of Inputs2
-
Number of Outputs2
-
Maximum Current5A
-
Minimum Operating Temperature0°C
-
Maximum Operating Temperature55°C
-
Control TypeOn-Off
-
Maximum Supply Voltage264V ac
-
Auxiliary Power Supply24 V dc
-
Maximum Voltage240V ac
-
Display TypeTFT, Multi Line, LCD
-
IP RatingIP66
-
Standards/ApprovalsNEMA 4X, EN 61010-1, cULus, CE, IEC 61326 (EMC)
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What are the primary applications for the CM15?+It is used for measuring, displaying, and controlling processes involving flow, temperature, level, and pressure. It is particularly suited for industrial applications requiring accurate, high-speed (125ms refresh rate) monitoring.
-
What are the inputs and outputs of the CM15/000S0E0/STD?+This specific part number comes with 2 universal analog inputs (for mV, V, mA, T/C, RTD, Frequency), 1 analog output, and 1 relay.
-
What is the communication capability?+The "0" in the communication spot indicates no ethernet or RS485 communication is included with this specific part number.
-
What is the environmental protection rating?+The front face is rated IP66/NEMA 4X, ensuring it is dust and water-resistant for harsh environments.
-
What is CM15/000S0E0/STD?+The ABB CM15/000S0E0/STD is a 1/8 DIN universal process indicator from the ControlMaster series, to display, totalize, and manage process signals. It is widely used in industrial applications for monitoring temperature, flow, and frequency.
Get a quick price fo CM15/000S0E0/STD
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Mechanical Installation (Panel Mounting)
Features:
- High Sampling Rate
- High Dynamic Range
- Selectable AC/DC Coupling
- IEPE Sensor Excitation
- TEDS Smart Sensor Support
- Low Distortion & Low Noise
Fully configurable via the front panel menus or ConfigPilot configuration software. The CM15 is easy to quickly install and commission.
Available as a basic indication-only model, or enhanced through plug-and-play function keys and I/O modules, the CM15 offers totalization, level, math, logic, counter and alarm functions, making it extremely flexible and able to solve many tricky application requirements. MODBUS® and Ethernet communication options ensure easy integration and connectivity to supervisory or control systems.
The CM15/000S0E0/STD ABB UNIVERSAL PROCESS INDICATOR may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB CM15/000S0E0/STD UNIVERSAL PROCESS INDICATOR Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The diagnostics and alarm status display provides detailedinformation on any active alarm or diagnostic condition. Theoperator can see, at-a-glance, the status of any alarmcondition present within the process. Additionally, diagnosticmessages are presented clearly to the operator, enabling rapidnotification and simple diagnosis of any critical instrumentstatus condition.Historical information of diagnostic messages can also beviewed in the indicator's diagnostic log.
- Food & Beverage: Monitoring and control of malting, mashing, and batch dispensing processes
- Water Treatment: Used for monitoring water quality, pressure, and flow rates
- Cold Storage: Accurate monitoring of temperature-sensitive environments
- General Manufacturing: Used for process monitoring and simple control of machinery.
- Pump Stations:Bank Control manages 6 pumps; Rotate/FIFO for wear-leveling
- Storage Tanks:20-point linearizers convert non-linear levels to accurate volume
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Supply: This model uses a 100–240V AC supply. An external disconnecting device (switch or circuit breaker) must be fitted in close proximity for safety.
Universal Inputs:
Thermocouples: Requires the Cold Junction (CJ) sensor to be fitted to the terminals if using THC inputs.
mA Inputs: For 4–20mA loops, a 2V7 Zener diode should be fitted across the input terminals to ensure loop continuity even if the indicator is powered off.
RTDs: 3-lead RTD connections must have equal lead resistance
