PRODUCT DESCRIPTION

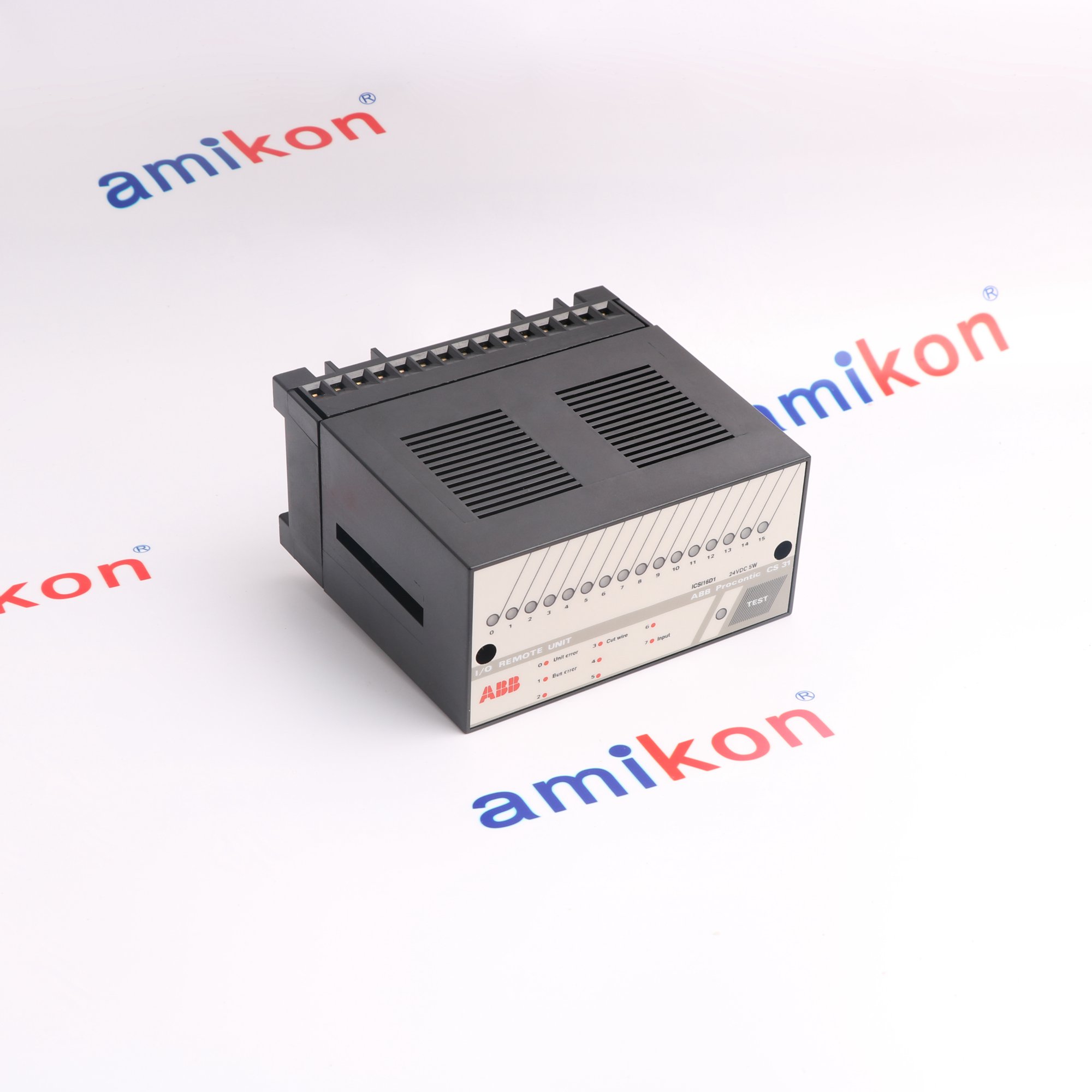

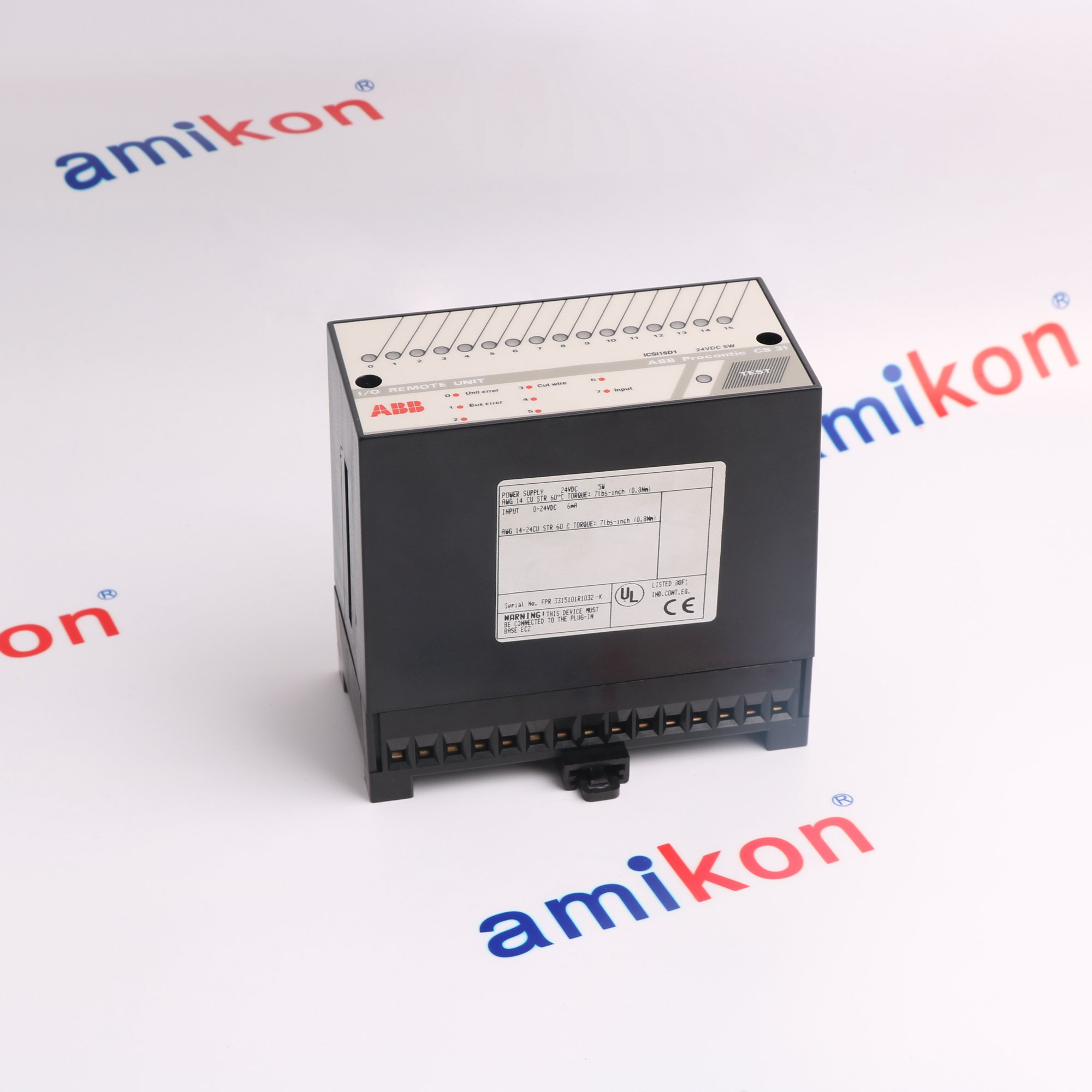

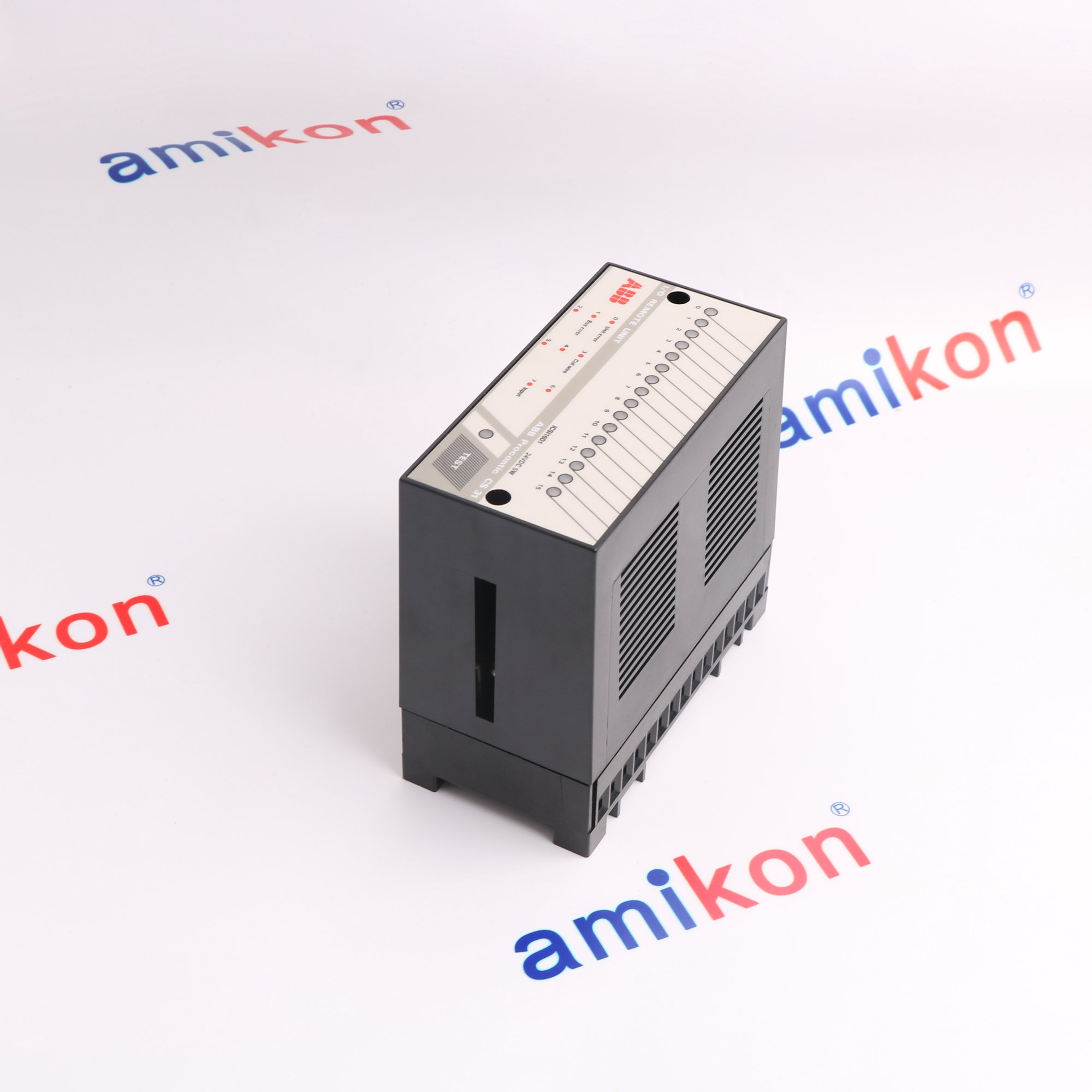

FPR3315101R1032 ICSI16D1 24 V DC Input Module
ABB FPR3315101R1032 identifies the 24 V DC version of the ICSI16D1 digital input module for Procontic CS31. It accepts sixteen binary signals and communicates through the CS31 bus. Individual input indicators and a fault indication support local inspection of channel and module status.
The module plugs into an ECZ base and provides configurable input filtering and channel-level wire-break diagnostics. Its signal inputs are not galvanically isolated, while the bus connection is isolated. The DC supply version must remain distinct from the separate 230 V AC model.
The module plugs into an ECZ base and provides configurable input filtering and channel-level wire-break diagnostics. Its signal inputs are not galvanically isolated, while the bus connection is isolated. The DC supply version must remain distinct from the separate 230 V AC model.
BEFORE YOU BUY
Confirm the complete ICSI16D1 24 V DC Input Module
ACTUAL APPLICATIONS
Relevant contexts for FPR3315101R1032
These headings describe broad process-control contexts rather than specific ICSI16D1 deployments. The CS31 controller, signal characteristics and approved installation conditions must establish suitability for the individual site.
-
01 · WATER & WASTEWATER
Municipal Water Supply and Wastewater Networks
Municipal water supply across urban communitiesWastewater collection across municipal and regional networks -
02 · OIL & GAS
Oil and Gas Across Upstream and Downstream
Upstream petroleum and natural gas activitiesDownstream petroleum and broader energy supply -
03 · POWER GENERATION
Conventional and Renewable Power Generation
Conventional generation and regional electricity supplyRenewable generation across interconnected power networks
Technical specifications for FPR3315101R1032
-
Product ModelFPR3315101R1032
-
Spare ModelICSI16D1
-
Product ParametersICSI16D1 24 V DC Input Module
-
In stock4 units
-
ManufacturerABB
-
Nominal supply24 V DC
-
Maximum supply current0.2 A
-
Maximum power dissipation4.5 W
-
Binary input channels16
-
Signal-input isolationNon-isolated
-
CS31 bus isolationGalvanically isolated
-
Low-level input voltage-3 to +5 V
-
High-level input voltage+15 to +30 V
-
Input currentApproximately 6 mA at 24 V
-
Input filter delay2-32 ms configurable; 8 ms default
-
Wire-break diagnostic resistor20-30 kohm, 0.25 W; channel configuration required
-
Configuration retentionNonvolatile storage
-
Local indication16 yellow input LEDs and 1 red fault LED
-
Base connectionECZ plug-in base; FPR3700001R0001
-
Terminal conductor capacity2 conductors per terminal, each up to 2.5 mm2 with ferrules
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Connect the 24 V DC ICSI16D1 to CS31
FPR3315101R1032 is the 24 V DC ICSI16D1 variant, with sixteen non-isolated binary inputs and an isolated CS31 bus connection. It plugs into an ECZ base, whose mechanical coding must match the supply version. The separate FPR3315101R0036 variant uses 230 V AC and must not supply the DC model ratings or wiring assumptions.
The DC wiring arrangement distinguishes the module supply from the signal reference. ABB warns against drawing sensor power from the DC variant supply-terminal arrangement or feeding UP from a second supply. The internal sensor-output information shown for the AC version must not be transferred to this 24 V DC article. Follow the applicable diagram and reference-potential requirements.
Input filtering defaults to 8 ms and can be configured from 2 to 32 ms. Channel-level wire-break diagnostics require the specified configuration and a 20-30 kohm, 0.25 W parallel resistor in the documented arrangement. Bus addressing depends on the controller; retain the applicable ECZ switch settings and distinguish input LEDs from the red module fault indication.
Features:
- Sixteen DC inputs with an isolated CS31 connection
- DC and AC supply variants kept separate
- Configurable filtering and channel diagnostics
Use the DC-variant wiring diagram. Do not apply the AC version sensor-output arrangement or introduce a second supply at UP; qualified personnel must verify the reference potentials.
INTERCHANGEABILITY
Verify FPR3315101R1032 before replacement
Read the complete FPR3315101R1032 article and ICSI16D1 designation on the module. Match the 24 V DC supply version, ECZ base coding and connector condition. The module and its base are distinct items; confirm whether the quotation includes the base rather than assuming it is supplied with every replacement.
Record the CS31 address, channel allocation, filter delays and enabled wire-break diagnostics. The module stores configuration nonvolatilely, so replacement preparation must include the intended settings, not only the visible switch positions. A new module should not inherit unverified assumptions about the preceding unit configuration.
Keep the isolated bus connection distinct from the non-isolated signal inputs when reviewing wiring. Follow the manufacturer isolation and replacement procedure, then verify channel indications, fault status and communication with the controller. The TEST facility assists diagnosis but does not replace a complete input and configuration check before return to service.
Features:
- Exact DC article and ECZ base compatibility
- Address and diagnostic settings recorded
- Input isolation and fault indications checked
The DC and AC ICSI16D1 variants are not interchangeable on appearance alone. Confirm the complete article, supply coding and base before energizing.
ABB FPR3315101R1032 ICSI16D1 24 V DC Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Features:
- Exact-model data for FPR3315101R1032
- Original ABB ICSI16D1 technical and wiring chapter
- Procontic CS31 and ABB product directories
Documentation for FPR3315101R1032 must match the complete installed product identity, the documented Procontic CS31 configuration and the supplied digital input module before service.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Reference size12.4 × 7.5 × 11.5 cm
-
Reference weight0.44 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginSweden
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about FPR3315101R1032
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
How does FPR3315101R1032 differ from FPR3315101R0036?
R1032 identifies the 24 V DC ICSI16D1 version; R0036 is the separate 230 V AC version. Their supply arrangements and related wiring information must not be mixed, even though both use the ICSI16D1 family designation. -
Are all sixteen signal inputs galvanically isolated?
No. The sixteen signal inputs are non-isolated. The CS31 bus connection is galvanically isolated; that bus property must not be presented as isolation of each input channel. -
Can the input response delay be changed from 8 ms?
Yes. The documented default is 8 ms, with a configurable range of 2-32 ms for the input delay. Preserve the approved setting during replacement; faster filtering is not automatically the appropriate choice for a particular signal. -
Which extra requirement applies to wire-break detection?
It must be enabled for the relevant channel and use the documented parallel resistance of 20-30 kohm, rated 0.25 W. The function should not be assumed active simply because the module supports it. -
Does the DC version provide the sensor output shown in the AC wiring figure?
Do not apply that figure to this article. ABB gives a separate DC arrangement and warns against using its supply-terminal arrangement as a sensor feed or applying a second supply at UP. Use the DC diagram and qualified wiring review. -
Is the ECZ base included with every replacement module?
Not necessarily. ECZ is a separate base, identified in the ordering information as FPR3700001R0001. Confirm the quoted scope, voltage coding and connector condition before deciding whether the existing base can be retained. -
Will removing power erase the diagnostic configuration?
The configured values are stored nonvolatilely. A replacement still requires the intended settings to be checked; power cycling is not a reliable way to reset or identify its prior configuration. -
Why does the nameplate show 5 W while the table lists 4.5 W?
The original nameplate marks the supply as 24 V DC, 5 W. The ABB technical chapter separately specifies 4.5 W maximum power dissipation and 0.2 A maximum supply current. These are differently defined quantities; do not replace one with another when reviewing a power budget.
