PRODUCT DESCRIPTION

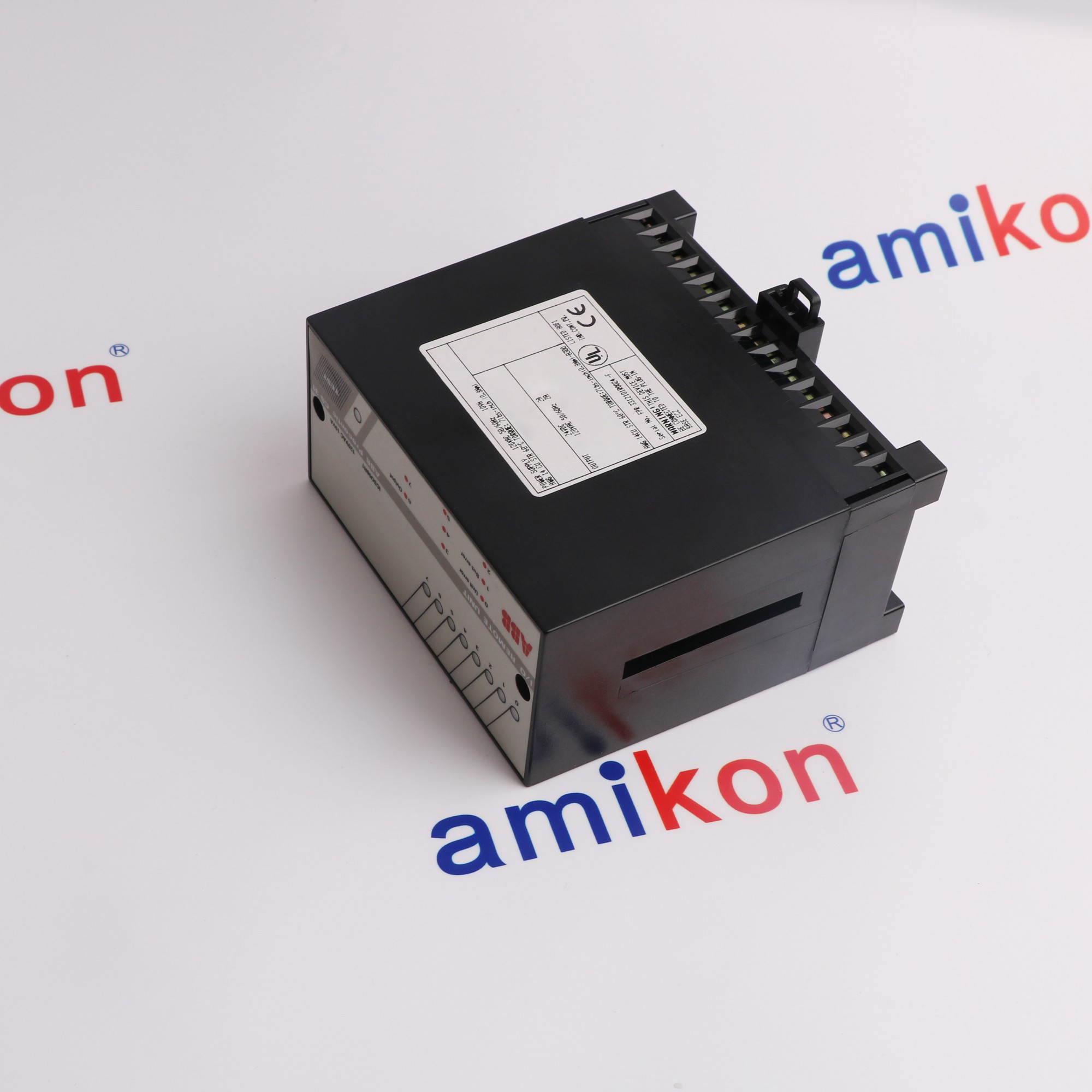

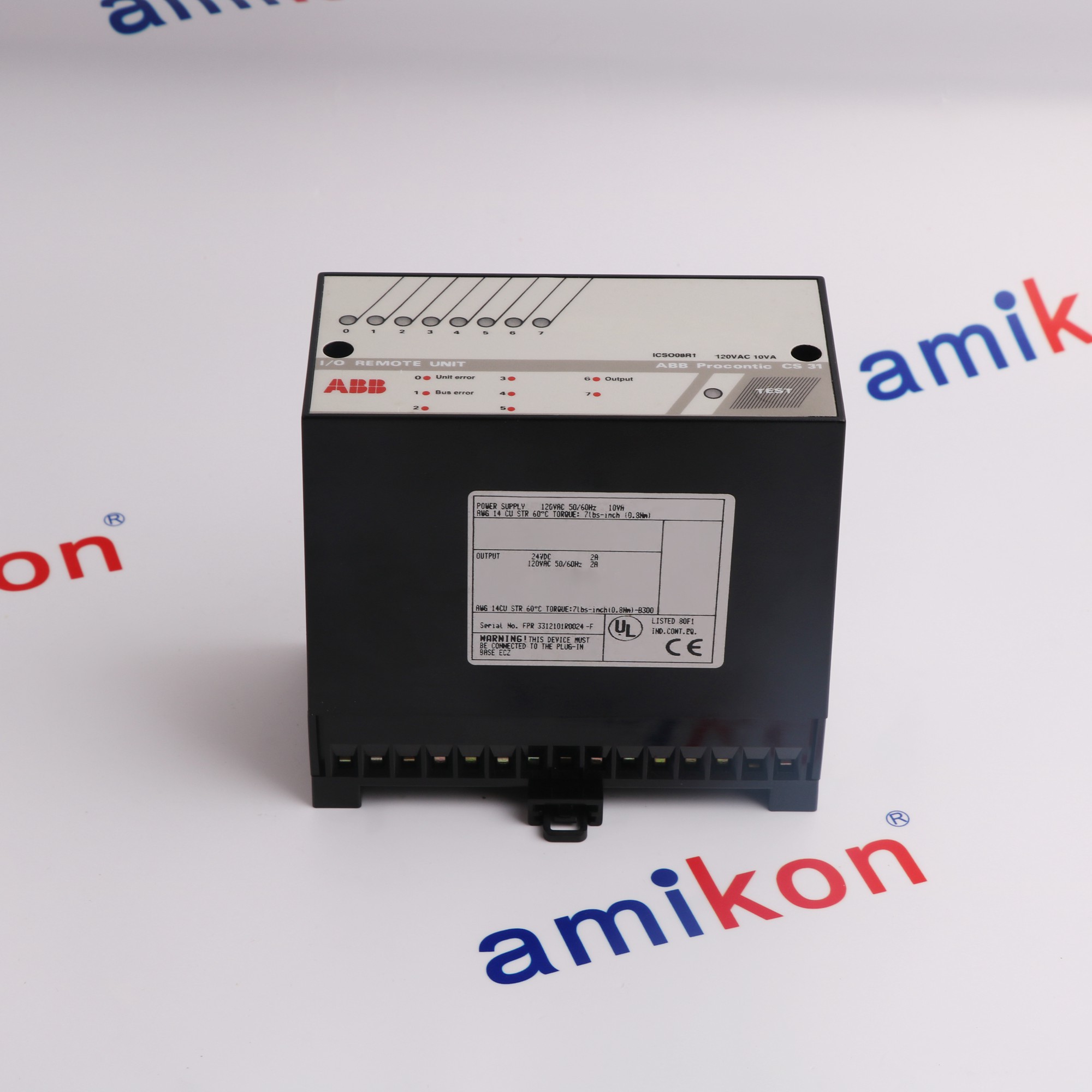

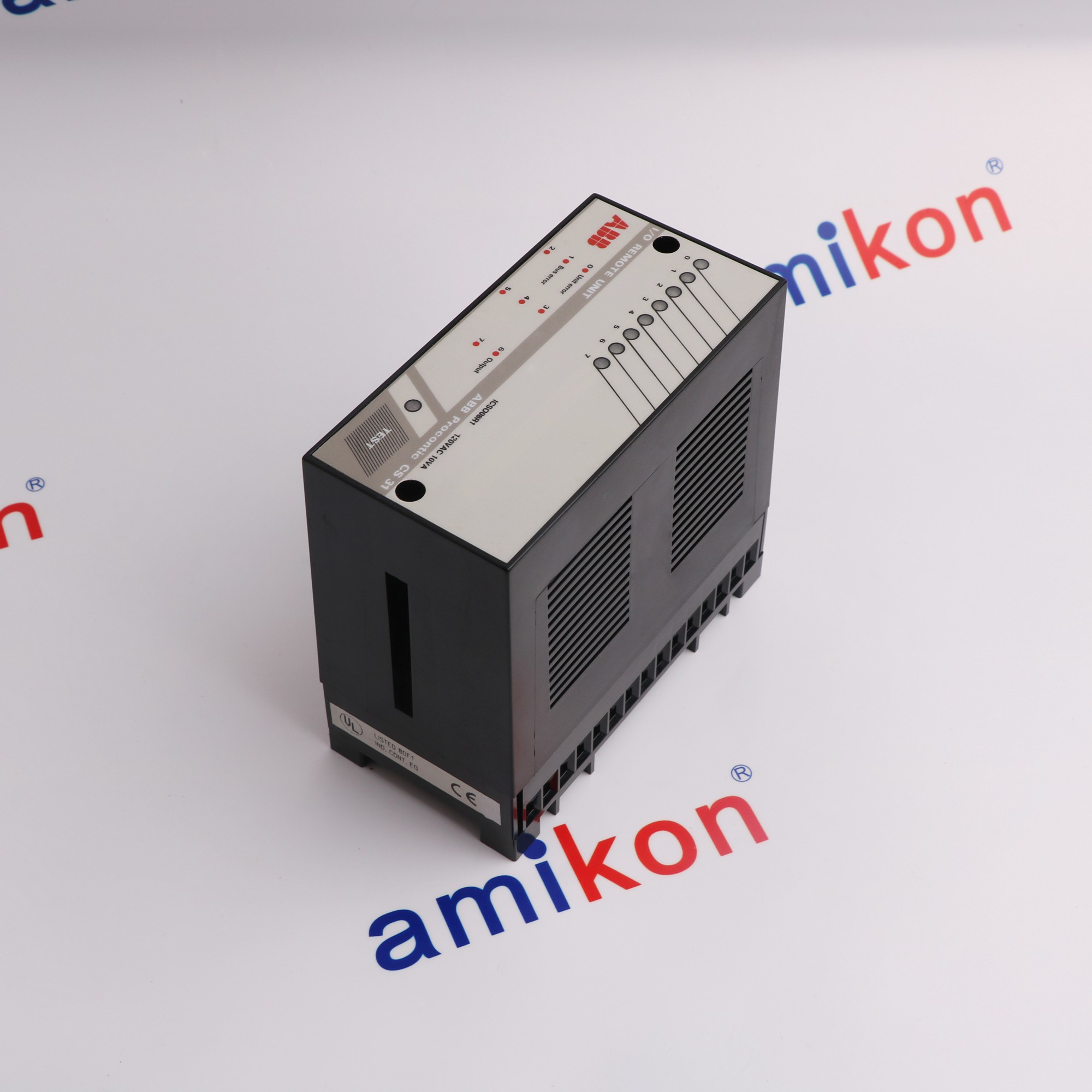

ICSO08R1 Eight Channel Relay Output Unit
ABB ICSO08R1 FPR3312101R0024 is an eight-channel relay output unit for Procontic CS31 remote I/O. The original unit marking identifies a 120 V AC, 50/60 Hz supply version, with channel indications and a front test control supporting local status checks.
The relay-output construction provides electrically separated switching channels, while the CS31 interface links the unit to the compatible bus arrangement. An ECZ plug-in base is required; supply coding, contact load and the complete article must be checked separately when matching this version.
The relay-output construction provides electrically separated switching channels, while the CS31 interface links the unit to the compatible bus arrangement. An ECZ plug-in base is required; supply coding, contact load and the complete article must be checked separately when matching this version.
BEFORE YOU BUY
Confirm the complete Eight Channel Relay Output Unit
ACTUAL APPLICATIONS
Relevant contexts for ICSO08R1
These are broad ABB portfolio contexts, not confirmation that every configuration is suitable for each setting. Select the exact product using its supported function and approved installation requirements.
-
01 · POWER GENERATION
Conventional and Renewable Power Generation
Conventional Power Generation and Energy UtilitiesRenewable Power Generation and Public Utilities -
02 · PULP & PAPER
Paper and Pulp, Printing and Packaging
Pulp and Paper, Printing and PublishingPaper and Board, Packaging and Converting -
03 · OIL & GAS
Onshore and Offshore Oil and Natural Gas
Onshore Petroleum, Natural Gas and PetrochemicalsOffshore Oil, Natural Gas and Petrochemicals
Technical specifications for ICSO08R1
-
Product ModelICSO08R1
-
Spare ModelFPR3312101R0024
-
Product ParametersEight Channel Relay Output Unit
-
In stock9 units
-
ManufacturerABB
-
Supply voltage marking120 V AC
-
Supply frequency marking50 / 60 Hz
-
Supply consumption marking10 VA
-
Output channels8 relay channels, numbered 0-7
-
Marked DC contact rating24 V DC / 2 A
-
Marked AC contact rating120 V AC, 50/60 Hz / 2 A
-
Required plug-in baseECZ
-
Connection markingAWG 14 copper stranded conductors
-
Conductor temperature marking60 degrees C
-
Terminal torque marking7 lbf-in / 0.8 Nm
-
Channel indicationEight channel LEDs
-
Test controlFront TEST push button
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Connect the marked 120 V AC relay-output version
ICSO08R1 is a CS31 remote output unit with eight relay channels. The supplied FPR3312101R0024 marking identifies the 120 V AC version; it must not be treated as the 24 V DC example shown in the family illustration.
The original label requires an ECZ plug-in base and provides terminal and contact-rating information. Compare the actual base coding and supply identification before planning connection. Supply consumption and output-contact capacity describe different circuits.
The family manual describes an isolated CS31 bus interface, relay construction and diagnostic indication. Its 24 V DC and 230 V AC supply-specific tables are not substituted for this unit, whose exact electrical markings remain the applicable evidence for the values stated here.
Features:
- Eight relay-output channels
- Exact-unit 120 V AC supply marking
- ECZ base and local diagnostic controls
Verify the full R0024 article and ECZ base coding. Do not use 24 V DC or 230 V AC supply ratings from another ICSO08R1 variant.
INTERCHANGEABILITY
Verify ICSO08R1 before replacement
Compare ICSO08R1 and FPR3312101R0024 together. R1022 and R0026 references describe other supply variants; a common module name alone does not establish correct supply compatibility.
Record the base arrangement, channel assignments and connected load conditions. Use the marked contact voltage/current combinations and the applicable original circuit information rather than a generic maximum rating from another version.
After qualified replacement, check the channel indications, bus status and required output behavior using the approved commissioning procedure. The TEST control is a diagnostic aid, not permission to operate connected loads without the required precautions.
Features:
- Full article and supply-version comparison
- Base and contact-load verification
- Bus status and output-function checks
The related manual chapter does not fully specify the R0024 supply version. Keep exact-unit label data distinct from shared family guidance.
ABB ICSO08R1 Eight Channel Relay Output Unit Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Features:
- Exact-model data for ICSO08R1
- Original ABB CS31 hardware manual; supply-version scope stated separately
- Procontic CS31 and ABB product directories
Documentation for ICSO08R1 must match the complete installed product identity, the documented Procontic CS31 configuration and the supplied relay output unit before service.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Reference size12 × 6 × 11.6 cm
-
Reference weight0.66 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS referenceConfirm with quotation
-
OriginSweden
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about ICSO08R1
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is this FPR3312101R0024 unit the 24 V DC version?
No. The original unit label states 120 V AC, 50/60 Hz and 10 VA. Do not copy the supply rating of the 24 V DC or 230 V AC variants. -
Which load ratings are actually visible on this unit?
The label gives 24 V DC at 2 A and 120 V AC, 50/60 Hz at 2 A. Those marked conditions should not be expanded to another voltage or load category. -
Does the eight-channel count mean eight transistor outputs?
No. The manufacturer family chapter identifies relay output construction. Use the supplied marking and applicable contact circuit information rather than treating it as a transistor-output unit. -
Can the module be connected without an ECZ base?
The original label requires the ECZ plug-in base. The ABB hardware chapter also describes base mounting and supply-voltage coding; compare the actual base and voltage version before installation. -
What terminal information can maintenance read from the original label?
It specifies AWG14 copper stranded conductors with a 60-degree-C marking, and 7 lbf-in (0.8 Nm) torque. Follow the exact terminal and original installation requirements. -
How do channel indication and the TEST control assist checks?
Eight channel indications and a front TEST control are visible. The ABB family chapter describes diagnostic indication; complete the applicable diagnostic procedure rather than inferring every fault from one LED. -
Must an order distinguish R0024 from R1022 or R0026?
Yes. The complete article identifies the supply version. The available family chapter lists 24 V DC and 230 V AC variants separately and does not replace the 120 V AC unit marking. -
Are the original family manual pages a complete 120 V version specification?
No. The available chapter describes related voltage versions. The page therefore separates family construction guidance from the exact 120 V unit ratings read from its label.
