          PRODUCT DESCRIPTION

          CP502-Windtec 10100775 Windtec Keypad Operator Panel

          ABB CP502-Windtec 10100775 is a keypad operator panel with a Windtec front overlay and an LCD display. The panel combines labelled command keys, navigation controls and separate serial connections in a compact assembly for local operator interaction.

          The unit uses a 24 VDC supply and has separate RS-232 and RS-422/485 connectors on its rear face. A rear LCD contrast adjustment accompanies the display, while the dedicated Windtec key legends distinguish this version from the standard CP502 panel.
          BEFORE YOU BUY

          Confirm the complete Windtec Keypad Operator Panel

          Send a label photo for review >>
          ACTUAL APPLICATIONS

          Relevant contexts for CP502-Windtec 10100775

          These broad contexts refer to the ABB automation portfolio that includes CP500 operator panels. They do not establish compatibility of this Windtec-specific version; its project and connection requirements must be confirmed separately.
          • 01 · WIND POWER

            Wind Power Generation and Energy Distribution

            Wind power generation across varied environmentsElectrical energy distribution throughout wind power
          • 02 · MARINE

            Coastal Marine and Offshore Energy

            Energy supply across coastal marine environmentsOffshore energy and maritime power distribution
          • 03 · BUILDINGS

            Building Climate and Energy Management

            Indoor climate management across building environmentsEnergy efficiency throughout diverse building environments

          Technical specifications for CP502-Windtec 10100775

          • Product Model
            CP502-Windtec 10100775
          • Spare Model
            1SBP260190R1001-A
          • Product Parameters
            Windtec Keypad Operator Panel
          • In stock
            1 unit
          • Manufacturer
            ABB
          • Rated supply voltage
            24 VDC
          • Nameplate supply current
            200 mA
          • Fuse specification
            800 mAT; 5 x 20 mm
          • Power terminal assignment
            3 positions: 1 earth; 2 negative; 3 positive
          • RS-232 connection
            9-pin male D-sub
          • RS-422/485 connection
            25-pin female D-sub
          • Display technology
            LCD
          • Display contrast adjustment
            Rear-panel adjustment access
          • Physical keypad positions
            22
          • Mounting arrangement
            Panel mounting with rear threaded studs
          View all additional
          Ask for Quote

          Alternative Names

          1SBP260190R1001-A Windtec 10100775 operator panel CP502-Windtec keypad HMI
          SYSTEM & REPLACEMENT CHECK

          Information needed before ordering

          Three direct checks to secure your system integration and minimize ordering risks.

          Information

          System integration Replacement check Manuals & support
          SYSTEM INTEGRATION

          Integrate CP502-Windtec 10100775 in the documented CP502-Windtec arrangement

          This panel carries the ABB type CP502-Windtec 10100775 and article 1SBP260190R1001-A. Its front overlay provides five red command positions, twelve labelled selection positions and five central navigation positions. Those physical legends identify the operator interface; they do not establish the commands assigned by a particular project.
          The rear face separates a 9-pin male RS-232 connector from a 25-pin female RS-422/485 connector. The power terminal is marked for 24 VDC, with positions 1, 2 and 3 identified as earth, negative and positive. These markings are not a complete serial cable pinout or a substitute for the Windtec connection drawing.
          The original ABB nameplate states 200 mA and a fuse specification of 800 mAT, 5 x 20 mm. The rear LCD contrast access is separate from the communication connectors. No serial baud rate, active protocol, memory capacity or software compatibility is asserted because those details have not been verified for this exact Windtec article.

          Features:

          • Separate RS-232 and RS-422/485 connectors
          • 24 VDC supply with labelled terminal polarity
          • Windtec keypad and rear LCD contrast adjustment
          Do not infer a serial cable pinout, protocol or project compatibility from the connector shape. Use the exact Windtec drawing and qualified electrical procedures before connection.
          INTERCHANGEABILITY

          Verify CP502-Windtec 10100775 before replacement

          Compare the complete CP502-Windtec 10100775 and 1SBP260190R1001-A identification before accepting a replacement. ABB lists the standard CP502 under article 1SBP260171R1001, which is a different order code. The similar model name does not establish that its overlay, software or electrical configuration is interchangeable.
          Check the 22-position Windtec keypad, rear connector types, supply marking and panel attachment against the unit being replaced. The photographed label carries Ver 1.02; that is a marking on the pictured unit, not a guarantee of the version supplied in every quotation or evidence of a universal firmware requirement.
          Record the project reference and serial connection requirements before removal, using the responsible maintenance procedure. After installation, verify the expected screen content and each required key action against the approved project. A powered LCD alone cannot confirm the correct Windtec program or communication setup.

          Features:

          • Windtec article distinguished from standard CP502
          • Key layout, connector and version comparison
          • Project-specific screen and key verification
          Do not substitute standard CP502 data or a different front overlay for the Windtec configuration. Match the complete article and verify the required project before return to use.
          ABB CP502-Windtec 10100775 Windtec Keypad Operator Panel Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

          Features:

          • Exact-model data for CP502-Windtec 10100775
          • Exact Windtec identity and original ABB markings
          • ABB Electrical and ABB product directories
          Documentation for CP502-Windtec 10100775 must match the complete installed product identity, the documented CP502-Windtec configuration and the supplied keypad operator panel before service.

          Also searched as

          HIEE200072R0002 1SVR427032R1000 1SVR440620R5200 1MRK000844-BB 1MRK000167-GCr00

          Important notice

          Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
          This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
          BUYER INFORMATION

          Commercial terms without hidden steps

          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
          • 01

            Shipping & delivery

            Dispatch
            Eligible stock: same / next day
            Carriers
            DHL, FedEx or UPS
            Ship from
            Xiamen, China
            Reference size
            22.7 × 15.4 × 6.4 cm
            Reference weight
            0.5 kg
          • 02

            Payment & customs

            Payment
            Bank transfer (T/T)
            Currencies
            USD · EUR · GBP · RMB
            Credit cards
            Not accepted
            HS reference
            8471609000
            Origin
            Sweden
          • 03

            Warranty & returns

            Warranty
            12 months from AMIKON
            Inspection
            Label, condition and packing checks
            Returns
            Prior RMA authorisation required
            Compatibility
            Confirm before order
            OEM warranty
            Does not apply
          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.

          • Part checked

            Full suffix recorded

          • Condition checked

            Label and appearance

          • Packing checked

            Antistatic protection

          • Tracking supplied

            Established couriers

          • Sandy Lin

            Dedicated account manager · 15+ years
          FREQUENTLY ASKED QUESTIONS

          Questions buyers ask about CP502-Windtec 10100775

          Direct answers about identity, compatibility, stock, warranty, payment and shipping.

          • Which supply is marked on CP502-Windtec 10100775?

            The original ABB nameplate states 24 VDC and 200 mA. The terminal markings identify position 1 as earth, position 2 as negative and position 3 as positive. An AC supply or a wider voltage tolerance is not established by those markings.

          • How can maintenance distinguish the two rear serial connectors?

            The 9-pin male connector is marked RS-232. The 25-pin female connector is marked RS-422/485. These are separate electrical interfaces; their shape alone does not establish the cable pin assignment or connected controller compatibility.

          • What fuse specification appears on the Windtec nameplate?

            The label states 800 mAT, 5 x 20 mm. Retain the complete current and time-delay designation when identifying the fuse; this nameplate reference is not an instruction to access or replace it while energized.

          • Can the standard CP502 article be quoted as a direct substitute?

            Not from the shared CP502 name alone. This Windtec unit is marked 1SBP260190R1001-A, whereas ABB lists the standard CP502 as 1SBP260171R1001. The Windtec overlay, project and version require separate comparison before a substitution is accepted.

          • Does the RS-422/485 marking prove that Modbus is enabled?

            No. The marking identifies a physical serial interface, not the active higher-level protocol. A compatible driver, communication settings and project must be established from the applicable Windtec documentation before a protocol claim is made.

          • Why does the Windtec front differ from a standard CP502 keypad?

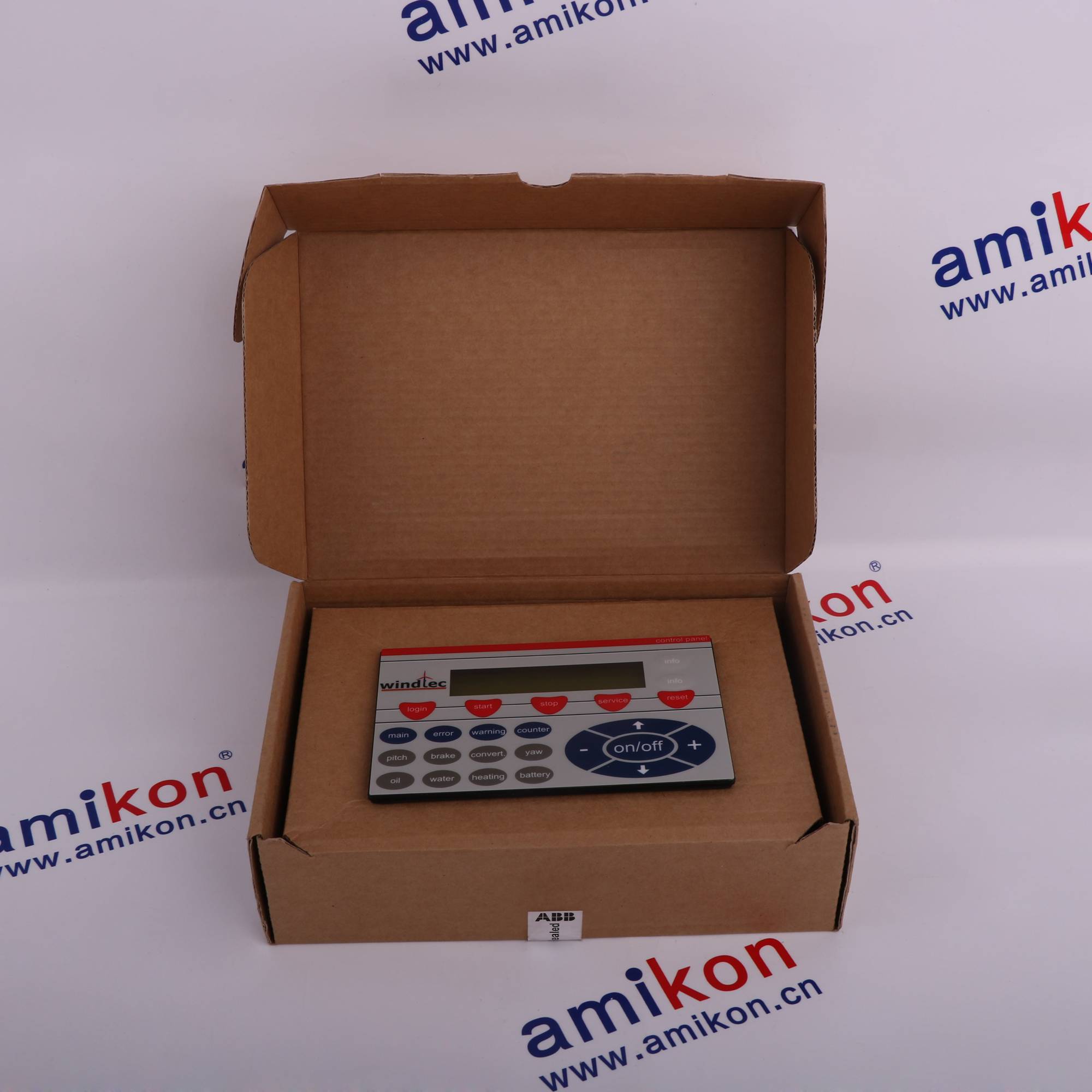

            The photographed Windtec overlay has 22 physical key positions: five red command positions, twelve labelled selections and a five-position central group. Generic CP502 key counts should not replace this visible layout. The installed project determines the actual key actions.
