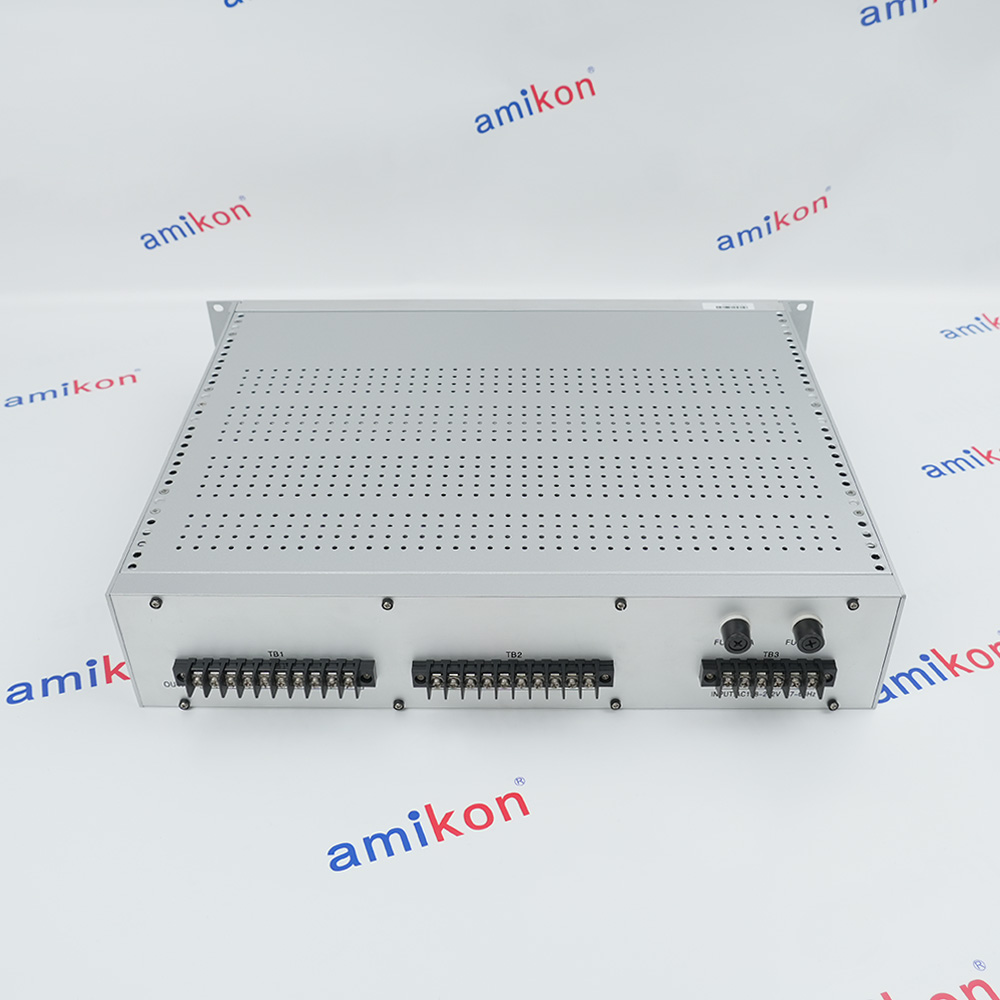

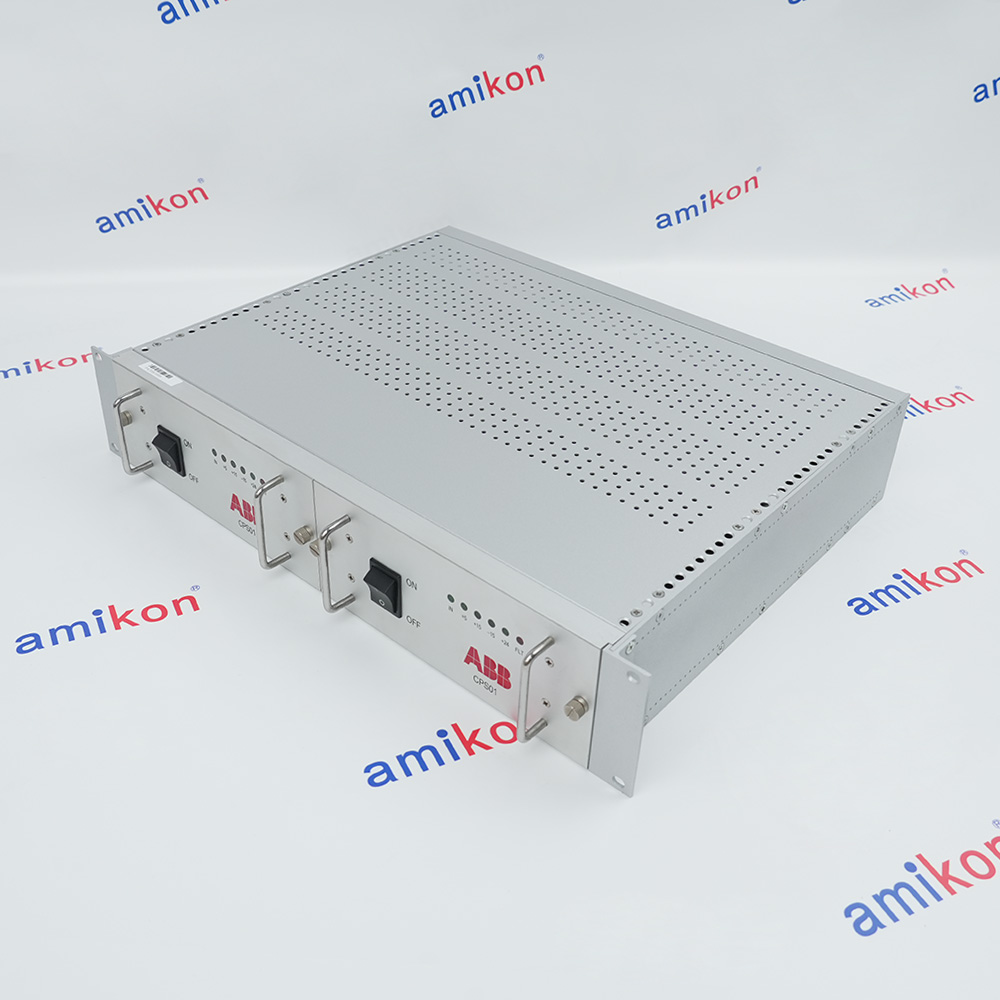

Technical specifications for CPS01
-
Product ModelCPS01
-
Product ParametersPower Supply
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size48.3x39x8.8cm
-
ManufacturerABB
-
Weight10.6 kg
-
Operating Temp-25°C to +70°C
-
Humidity5–95% (non-condensing)
-
MountingDIN rail (TS35) or panel-mount
-
Input Voltage24 V DC (±20%)
-
Power Consumption≤ 5 W
-
Communication Ports1 × RS-485
-
Data RateUp to 12 Mbps
Description
The ABB CPS01 is a console power supply designed for ABB's Symphony Harmony and INFI 90 distributed control system operator consoles. It provides stable, efficient, and secure power support for the PGP (Process Graphics Processor) operator console and associated display/control electronics.
The CPS01 converts AC mains input (typically 120/240 V AC at 50/60 Hz) into regulated DC output voltages required by the console components. The exact output configuration varies by revision (CPS01-A vs. CPS01-B), with common outputs including 24 V DC for logic and display circuits, or 5 V DC and ±15 V DC for analog and digital circuitry within the console.
The CPS01 converts AC mains input (typically 120/240 V AC at 50/60 Hz) into regulated DC output voltages required by the console components. The exact output configuration varies by revision (CPS01-A vs. CPS01-B), with common outputs including 24 V DC for logic and display circuits, or 5 V DC and ±15 V DC for analog and digital circuitry within the console.
Information
Overview
Manuals
Application Notes
Product Applications
Connection & Wiring
Features:
- Stable DC Power Output
- Industrial Protection Functions
- Continuous Industrial Operation
- Compact Installation
The CPS01 ABB Power Supply may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB CPS01 Power Supply Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The ABB CPS01 is widely used in power generation, oil and gas, chemical processing, manufacturing, and utility applications. As part of an industrial control system, it provides dependable power for automation components, contributing to stable operation of control, monitoring, and communication equipment throughout the plant.
- Process Control: Powers displays/terminals to prevent monitoring disruptions in heavy automation
- Power Generation: Supports turbine/energy grid consoles without sudden power drops
- Petrochemical: Operates reliably in harsh/hazardous plants with protective circuitry and thermal stability
- Factory Engineering: Delivers consistent low-voltage power to critical hardware backplanes
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Input Power: Connect the AC input lines to the designated L (Line), N (Neutral), and PE (Protective Earth) terminals on the module or base unit.
DC Output: Route the low-voltage DC output lines to the corresponding system backplane or distribution terminals.
Verify Grounding: Ensure the chassis ground or earthing wire is securely connected to the cabinet's grounding system, which is vital for EMC compliance and electrical safety
Alternative Names
CPS0I
CPSO1
CPSOI
Technical notes
The module incorporates protection against overload, overvoltage, short circuits, and thermal conditions while maintaining stable output characteristics under changing load conditions. Its compact design allows installation within standard industrial control cabinets and supports reliable operation in demanding process environments.
FAQs
-
What is the primary function of the ABB CPS01?
+It is used to provide secure, stable, and efficient DC power support for ABB industrial console systems. -
Which ABB platforms use this module?
+The CPS01 is primarily utilized as a legacy spare part within ABB’s Advant OCS and Bailey INFI 90 Distributed Control Systems (DCS). -
What is the difference between CPS01 and CPS01-A?
+The suffix -
Does the unit contain internal electrical safeguards?
+Yes. The unit features built-in electrical protection circuits to protect sensitive network processors and cards from voltage spikes and grid fluctuations
