ABB D2D160-CE02-11
ABB D2D160-CE02-11
ABB D2D160-CE02-11
ABB D2D160-CE02-11
ABB D2D160-CE02-11
ABB D2D160-CE02-11
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Ships by Tuesday, November 17

D2D160-CE02-11

Long Life Centrifugal Fan

Shipping Information

  • For inventory products, we support same day shipping upon payment.
  • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
  • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
Customs & Documentation
We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
Documents checked before dispatch · Shipment details confirmed · Global tracking provided
Payment
Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
Product Condition
Factory New These are new and current items that are procured directly from the manufacturer.
New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
Quantity
Mobile *
Country/Region *
E-mail *
Company
Content *
(gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Amikong please read our privacy policy.
  • 20+

    years in automation
  • ISO 9001

    certified quality system
  • 12 months

    amikon warranty
  • 2-hour reply

    from your account manager
  • Success Story

    solutions in action
PRODUCT DESCRIPTION

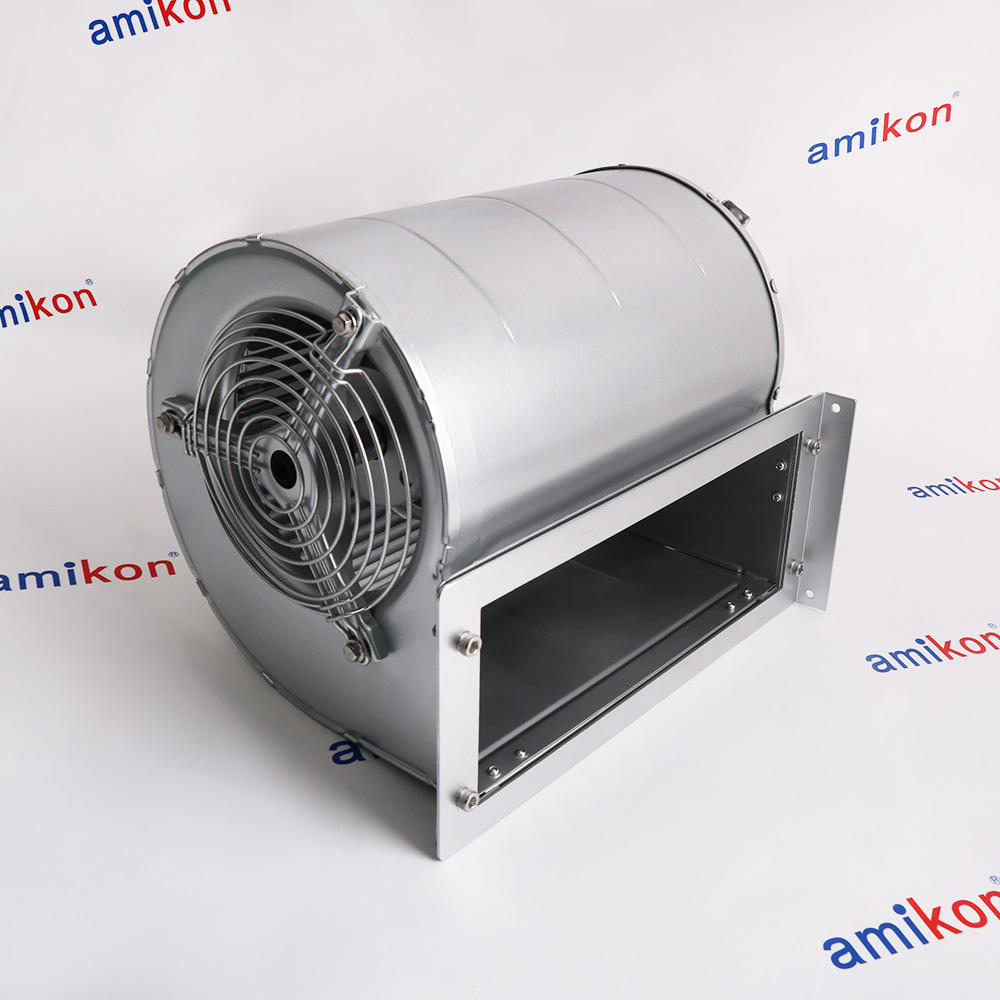

D2D160-CE02-11 Long Life Centrifugal Fan

D2D160-CE02-11 is a forward-curved, dual-intake AC centrifugal fan listed by ABB under spare-part reference 64650424. It supplies cooling airflow in the applicable low-voltage AC drive arrangement, combining a housed impeller and mounting bracket with a three-phase external-rotor motor.

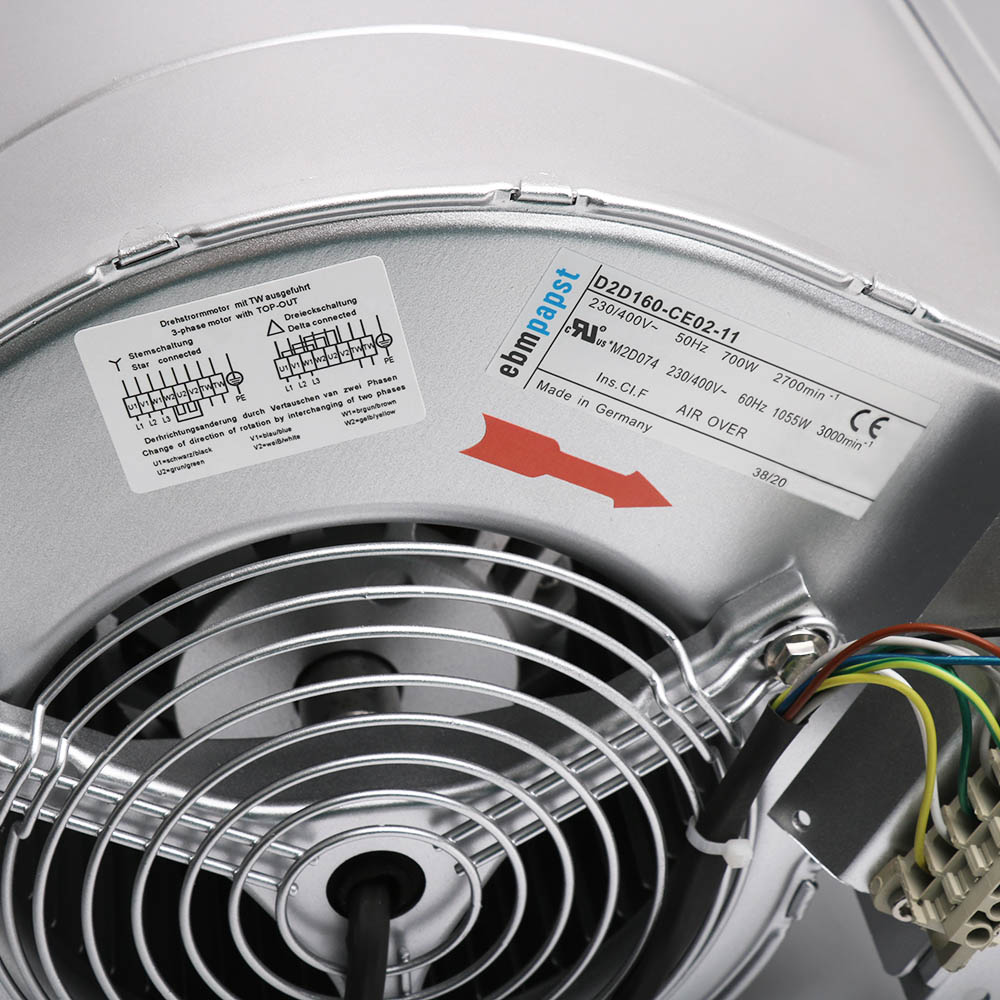

The OEM data distinguishes 230 V delta from 400 V star connections and gives separate 50 Hz and 60 Hz ratings. Match the supplied nameplate, connection diagram and installed duty before replacement. ABB’s nine-year long-life guidance remains subject to the specific drive’s preventive-maintenance schedule.
ACTUAL APPLICATIONS

Relevant contexts for D2D160-CE02-11

These categories reflect documented ABB portfolio contexts, not proof of suitability for every installation. Exact-model selection remains subject to the approved configuration.
  • 01 · PULP & PAPER

    Pulp Fibres and Paper Grade Materials

    Commercial publishing and graphic printing servicesPaper packaging and circular economy development
  • 02 · METALS & MINING

    Metallic Minerals and Nonferrous Metal Materials

    Mining, minerals and primary metals commerceFerrous and nonferrous metal supply chains
  • 03 · OIL & GAS

    Petroleum Resources and Natural Gas Derivatives

    Petroleum commerce and natural gas infrastructureOil, gas and petrochemical supply chains

Technical specifications for D2D160-CE02-11

  • Product Model
    D2D160-CE02-11
  • Product Parameters
    Long Life Centrifugal Fan
  • In stock
    1 unit
  • Manufacturer
    ABB
  • AC supply phases
    3
  • Nominal voltage and connection
    230 V delta / 400 V star
  • Supply frequency
    50 / 60 Hz
  • Power consumption at maximum load
    700 W at 50 Hz / 1055 W at 60 Hz
  • Current at maximum load
    230 V delta: 1.9 / 2.82 A; 400 V star: 1.1 / 1.63 A (50 / 60 Hz)
  • Nominal speed at maximum load
    2700 / 2960 rpm (50 / 60 Hz)
  • Minimum back pressure
    460 / 560 Pa (50 / 60 Hz)
  • Permitted operating ambient
    Minimum -25°C; maximum +90°C at 50 Hz / +50°C at 60 Hz
  • Ingress protection
    IP00
  • Insulation class
    F
  • Electrical protection class
    I; customer protective-earth connection required
  • Motor thermal protection
    Thermal overload protector with basic insulation
  • Direction of rotation
    Counterclockwise, viewed toward rotor
  • Duty type
    S1
  • Motor bearing
    Ball bearing
View all additional

Alternative Names

D2D160 CE02 11 ABB ACS800 drive cooling systems long-life centrifugal fan ABB long-life centrifugal fan
SYSTEM & REPLACEMENT CHECK

Information needed before ordering

Three direct checks to secure your system integration and minimize ordering risks.

Information

System integration Replacement check Manuals & support
SYSTEM INTEGRATION

Integrate D2D160-CE02-11 in the documented ABB LV AC drive cooling arrangement

ABB lists D2D160-CE02-11 as long-life centrifugal-fan spare 64650424. Establish fitment from the specific drive’s approved parts information rather than from the ACS800 family name alone. ABB’s long-life technical note identifies the spare but does not list every compatible drive variant.
Use the exact OEM voltage, frequency and connection column: 230 V delta or 400 V star, with separate 50 Hz and 60 Hz values. Preserve the thermal protector and protective-earth arrangements specified for the supplied assembly; connection work requires the applicable drive safety procedure.
The OEM lists counterclockwise rotation viewed toward the rotor, S1 duty and IP00 protection. Complete the required enclosure and guarding checks, then verify cooling performance and rotation through a controlled test under the drive manufacturer’s instructions.

Features:

  • Three-phase AC motor
  • 230 V delta / 400 V star
  • Separate 50 Hz and 60 Hz ratings
Check D2D160-CE02-11 against the applicable manufacturer documentation and the complete installed arrangement before service.
INTERCHANGEABILITY

Verify D2D160-CE02-11 before replacement

Match D2D160-CE02-11, ABB reference 64650424 and the installed drive’s parts information. The common D2D160 prefix is not a fitment rule. Do not claim a different suffix is interchangeable unless the applicable ABB or OEM replacement record explicitly supports it.
Isolate the drive according to its safety instructions before replacement and retain the connection record. Compare the nameplate frequency, star/delta arrangement, thermal-protector connection and mounting before energising; do not apply the 230 V current figure to a 400 V star connection.
ABB recommends a nine-year replacement interval for long-life fans within the specific drive’s preventive-maintenance schedule. Record the actual installation date and confirm the applicable schedule rather than representing this interval as a warranty or a guaranteed bearing lifetime.

Features:

  • Complete article and revision identity
  • Recorded wiring, settings and installed configuration
  • Post-installation diagnostics and functional test
Check D2D160-CE02-11 against the applicable manufacturer documentation and the complete installed arrangement before service.
DOCUMENTATION STATUS

Browse the Manuals, Datasheets, Official Documents, Links

Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software and certificates are included only when listed in the quotation.

Features:

  • Exact-model technical data for D2D160-CE02-11
  • Applicable manufacturer document pages when available
  • Directory links by series and brand
Documentation for ABB D2D160-CE02-11 must match the installed equipment; confirm document applicability before service.

Important notice

Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION

Commercial terms without hidden steps

Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • 01

    Shipping & delivery

    Dispatch
    Eligible stock: same / next day
    Carriers
    DHL, FedEx or UPS
    Ship from
    Xiamen, China
    Reference size
    36 × 25 × 26 cm
    Reference weight
    10.85 kg
  • 02

    Payment & customs

    Payment
    Bank transfer (T/T)
    Currencies
    USD · EUR · GBP · RMB
    Credit cards
    Not accepted
    HS reference
    8414593000
    Origin
    Germany / Hungary / India
  • 03

    Warranty & returns

    Warranty
    12 months from AMIKON
    Inspection
    Label, condition and packing checks
    Returns
    Prior RMA authorisation required
    Compatibility
    Confirm before order
    OEM warranty
    Does not apply
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
  • Part checked

    Full suffix recorded
  • Condition checked

    Label and appearance
  • Packing checked

    Antistatic protection
  • Tracking supplied

    Established couriers
  • Sandy Lin

    Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS

Questions buyers ask about D2D160-CE02-11

Direct answers about identity, compatibility, stock, warranty, payment and shipping.
  • How does ABB identify the D2D160-CE02-11 spare?

    ABB technical note 3AUA0000216096 Rev F maps code 64650424 to the D2D160-CE02-11 long-life centrifugal fan. Match both references with the supplied label and the applicable drive parts information; the note is not a universal fitment list for all ABB drives.
  • Can the same connection be used for 230 V and 400 V?

    The OEM sheet specifies 230 V with delta connection and 400 V with star connection. They are different connection arrangements, not interchangeable voltage labels. A qualified person must follow the exact supplied connection diagram and applicable drive instructions.
  • Why do the 50 Hz and 60 Hz power figures differ?

    At the documented maximum-load condition, the OEM lists 700 W and 2700 rpm at 50 Hz, compared with 1055 W and 2960 rpm at 60 Hz. Use the matching frequency column and voltage/connection combination instead of mixing ratings.
  • Which direction of rotation is specified for D2D160-CE02-11?

    The OEM technical description specifies counterclockwise rotation when viewed toward the rotor. Confirm the actual viewing direction and approved connection before the controlled test; airflow appearance alone is not an adequate wiring check.
  • Does the IP00 rating permit unguarded contact with the fan?

    No. IP00 does not provide an enclosure protection barrier. Protective-earth connection is required for the documented Class I arrangement. Use the applicable drive enclosure, guarding and electrical safety instructions rather than treating the bare fan as protected equipment.
  • When does ABB recommend replacement of a long-life fan?

    ABB recommends replacement every nine years after installation in accordance with the specific drive’s preventive-maintenance schedule. The long-life specification uses an L10 bearing-life basis at 35°C; it is not an unconditional service-life guarantee for every ambient or duty.
  • How should the ambient limit be selected for 60 Hz service?

    The OEM nominal-data table gives a minimum ambient of -25°C, with a maximum of +90°C at 50 Hz but +50°C at 60 Hz. Do not use the 50 Hz maximum or the transport/storage temperature as the 60 Hz operating limit.
  • Before a distributor confirms fitment, which details should be matched?

    Check the complete D2D160-CE02-11 nameplate, ABB reference 64650424, required voltage/connection and frequency against the installed drive’s approved parts information. Preserve the distinction between the OEM fan reference and ABB drive-specific fitment; similar D2D160 suffixes do not prove interchangeability.
