PRODUCT DESCRIPTION

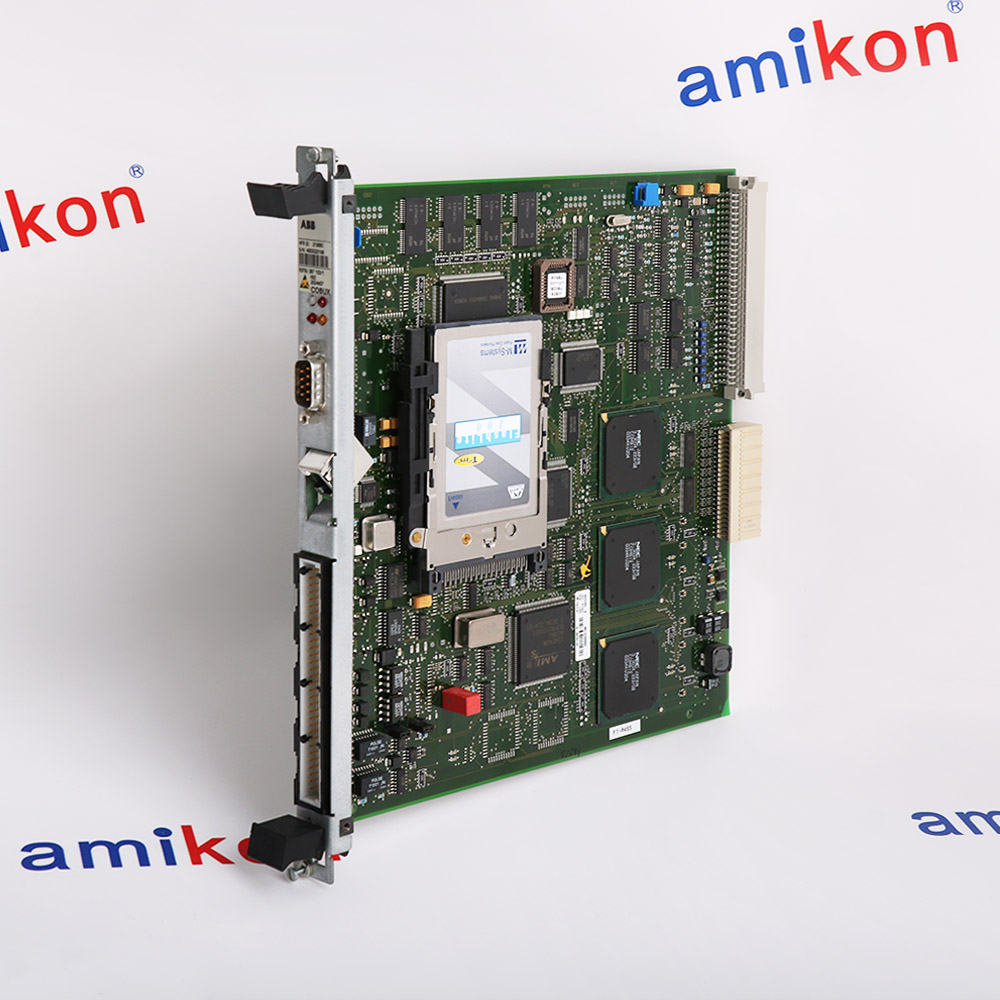

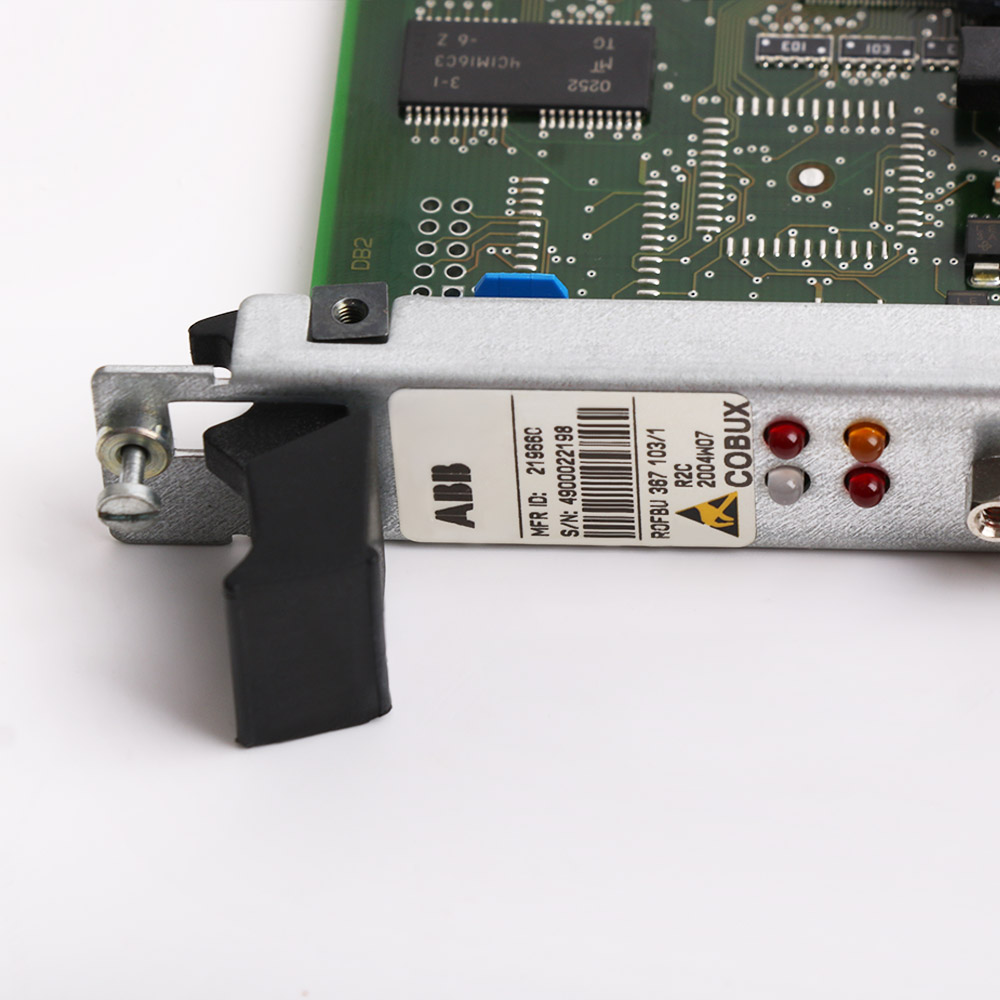

ROFBU 367 103/1 COBUX-HW INTERFACE CARD
ABB ROFBU 367 103/1 identifies COBUX control-unit hardware for documented FOX515 and FOX512 multiservice communications equipment. The control unit supports equipment management, diagnostics and the configured traffic-bus arrangement.
The unit provides documented Ethernet and serial management interfaces together with alarm inputs and relay contacts. Its management electronics supervise the fitted communications units and maintain equipment diagnostic information. Clock distribution and traffic-bus coordination operate within the configured FOX equipment, with software release and fitted modules determining the available network functions.
The unit provides documented Ethernet and serial management interfaces together with alarm inputs and relay contacts. Its management electronics supervise the fitted communications units and maintain equipment diagnostic information. Clock distribution and traffic-bus coordination operate within the configured FOX equipment, with software release and fitted modules determining the available network functions.
BEFORE YOU BUY
Confirm the complete cobux-hw interface card
ACTUAL APPLICATIONS
Application context for ROFBU 367 103/1
ROFBU 367 103/1 is COBUX control-unit hardware for documented FOX515 and FOX512 configurations. The communications platform serves electric power networks, railway operations and pipeline transport. Suitability depends on hardware release, fitted traffic modules, software and network engineering.
-
01 · ELECTRIC POWER
Electric Power Transmission and Distribution Operations
Power Transmission OperationsElectricity Distribution Management -
02 · RAILWAY TRANSPORT
Railway Transportation and Infrastructure
Railway Operations and DispatchingRail Infrastructure Management -
03 · OIL & GAS
Oil and Gas Pipeline Transportation Operations
Oil Pipeline OperationsNatural Gas Pipeline Transportation
Technical specifications for ROFBU 367 103/1
-
Product ModelROFBU 367 103/1
-
Product ParametersCOBUX-HW INTERFACE CARD
-
In stock1 unit
-
ManufacturerABB
-
UBUS Highway Count8
-
Traffic Capacity per UBUS Highway31 × 64 kbit/s
-
External Clock Inputs2 × 2,048 kHz
-
External Clock Outputs3 PDH + 1 SDH, 2,048 kHz
-
QX Management Interface10BASE-T Ethernet, RJ45
-
F Management InterfaceRS-232
-
Q1 Slave InterfaceRS-485
-
Q1 Master InterfaceRS-485, independent UART
-
IP Routing ProtocolOSPF version 2
-
External Alarm Inputs4 digital inputs
-
Alarm Relay Outputs2 change-over contacts
-
Metering Pulse Frequencies12 or 16 kHz
-
Control Unit Protection1 + 1 active / standby
-
Alarm Log Capacity256 status changes
-
Maximum Aggregate ECC Bandwidth2,048 kbit/s
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Match ROFBU 367 103/1 to the installed ABB COBUX control
ABB ROFBU 367 103/1 is a cobux-hw interface card for the ABB COBUX control. Its complete article identity determines the documented interface, operating role and approved host equipment.
Engineering should compare the installed interface, supply requirements, mounting, connected signals and host configuration. Confirm connectors, wiring, addressing and configuration support before connection.
Use the applicable manufacturer documentation for the complete wiring and configuration sequence. Validate communication or signal response with the connected equipment, then archive measured results and the final configuration with the asset record.
Features:
- Exact product identity: ROFBU 367 103/1
- Product class: COBUX-HW INTERFACE CARD
- Model-specific configuration verified
The 151X1202YE03SA04 IS200STAIH2ADC analog I/O terminal board requires appropriate configuration before system integration and commissioning.
REPLACEMENT CONTROL
Verify the complete ROFBU 367 103/1 identity before exchange
Replace ROFBU 367 103/1 only after matching the complete article code, cobux-hw interface card role, installed ABB COBUX control equipment and documented hardware or firmware revision. Similar housings and related family numbers do not establish functional interchangeability.
Photograph the nameplate, keyed connectors, terminal numbering, cable routing, shields, earth points and adjacent modules. Export the applicable controller, HMI, drive, network or instrument configuration and record addresses, parameters and diagnostic messages before removal.
After fitting the verified article, restore the controlled configuration and check every affected signal or communication path. Review status indications and diagnostic buffers, run the documented functional test at a safe operating point and retain the final acceptance record.
Features:
- Match the complete ROFBU 367 103/1 identity
- Compare revision, interfaces and mating hardware
- Test diagnostics and field operation before service
The 151X1202YE03SA04 IS200STAIH2ADC analog I/O terminal board requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 151X1202YE03SA04 IS200STAIH2ADC analog I/O terminal board must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size1.8 × 25.3 × 26.1 cm
-
Shipping weight0.45 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginSwitzerland
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about ROFBU 367 103/1
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Where is ROFBU 367 103/1 used within ABB COBUX control?
ROFBU 367 103/1 is used for its documented cobux-hw interface card role in compatible ABB COBUX control equipment. Confirm the installed host and complete order identity. -
What should engineers verify before replacing ROFBU 367 103/1?
Check the complete label, hardware revision, connectors, mounting, power requirements and approved ABB COBUX control configuration before removal. -
How can distributors identify the correct ROFBU 367 103/1 version?
Use the full model string, manufacturer label, suffixes, revision marks and clear nameplate photographs when preparing a quotation. -
Which compatibility details matter for this cobux-hw interface card?
Compatibility depends on the documented host platform, interfaces, electrical ratings, mating hardware and project configuration rather than appearance alone. -
What records should maintenance keep for ROFBU 367 103/1?
Retain terminal labels, connector orientation, wiring photographs, configuration backups, alarm records and the final functional-test result. -
Can a similar ABB COBUX control part replace ROFBU 367 103/1 directly?
A similar family designation does not prove interchangeability. Compare the complete article code and applicable manufacturer documentation before substitution. -
What should be inspected when receiving ROFBU 367 103/1?
Inspect the model label, packaging, connectors, enclosure or circuit board, mounting points and included accessories for damage or mismatch. -
Which checks are required after installing ROFBU 367 103/1?
Verify power, communication or signal paths, diagnostics, alarms and the complete controlled function before returning the equipment to service.
