PRODUCT DESCRIPTION
Eight-port industrial connectivity with Stratix 2500 management

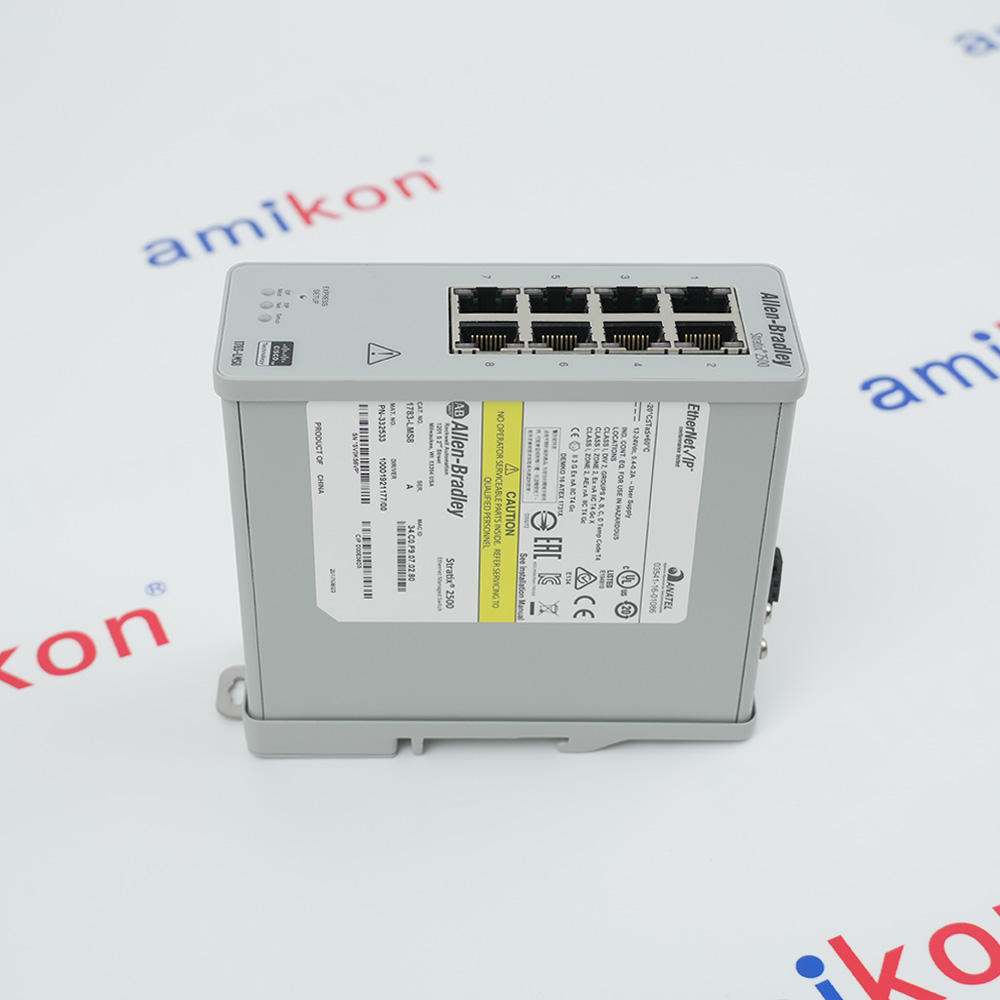

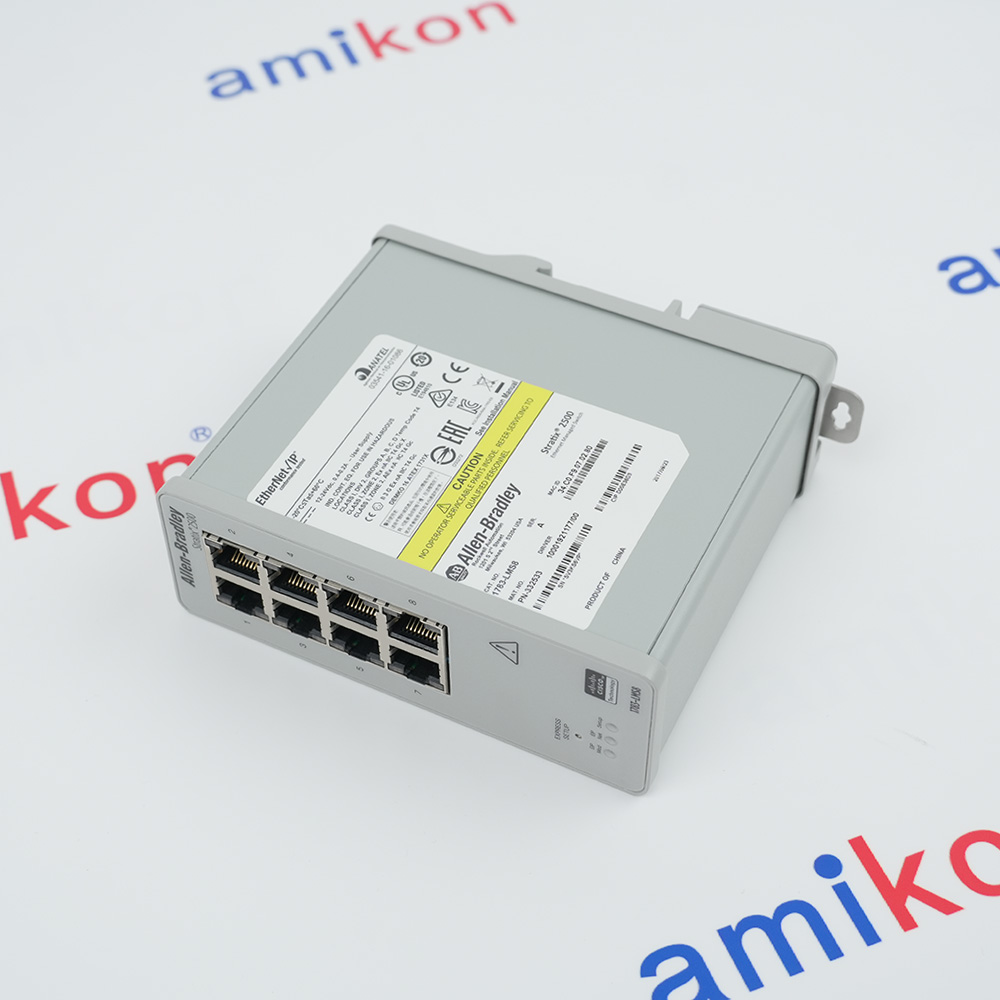

Allen-Bradley 1783-LMS8 is a Stratix 2500 lightly managed Ethernet switch with eight copper 10/100Base-T ports. It connects industrial network devices while providing configuration and diagnostic functions through the supported Device Manager and Studio 5000 environments.
The switch requires a suitable DC supply, protective enclosure and correctly grounded DIN-rail installation. When replacing an installed unit, retain its network settings and verify the connected devices, port configuration and firmware before restoring machine or process communications.
The switch requires a suitable DC supply, protective enclosure and correctly grounded DIN-rail installation. When replacing an installed unit, retain its network settings and verify the connected devices, port configuration and firmware before restoring machine or process communications.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Application context for 1783-LMS8
1783-LMS8 is a Lightly managed Ethernet switch for compatible Allen-Bradley systems. Its application context includes automotive, food and beverage, water and wastewater. Suitability depends on the complete part number, equipment revision, electrical interfaces and documented configuration.
-
01 · AUTOMOTIVE
Automotive Vehicle and Component Manufacturing
Automotive Body ManufacturingVehicle Component Production -
02 · FOOD & BEVERAGE
Food Processing and Beverage Manufacturing
Food Processing and PackagingBeverage Production and Bottling -
03 · WATER & WASTEWATER
Municipal Water and Wastewater Treatment
Drinking Water ProductionMunicipal Wastewater Treatment
Technical specifications for 1783-LMS8
-
Product Model1783-LMS8
-
Product ParametersLightly managed Ethernet switch
-
In stock1 unit
-
ManufacturerAllen-Bradley
-
Copper portsEight 10/100Base-T RJ45 ports
-
Power input12 to 24 V DC; 0.4 to 0.2 A; SELV
-
Power dissipation5.3 W
-
Operating temperature-20 to +60 degrees C
-
Enclosure requirementOpen-type indoor equipment; suitable protective enclosure required
-
Mounting methodSpring-loaded DIN-rail latch
-
Minimum clearances50.8 mm top, bottom and front; 25.4 mm sides
-
Maximum copper link length100 m between switch and attached device
-
Ethernet mediaCategory 5e minimum to TIA 568-B.1 or Category 5 to ISO/IEC 24702
-
DC supply conductors1.30 to 0.82 mm2 (16 to 18 AWG) copper; 30 degrees C above surrounding air rating
-
Functional ground conductors5.2 to 3.3 mm2 (10 to 12 AWG) copper
-
Power terminal torque0.19 N m maximum
-
Ground lug torque0.51 N m maximum
-
VLAN capacityMaximum 64 configured VLANs; VLAN 1 is the default
-
Configuration toolsDevice Manager or Studio 5000 Logix Designer
View all additional
Alternative Names
Allen-Bradley 1783-LMS8 switch
Stratix 2500 1783-LMS8
1783-LMS8 eight-port Ethernet switch
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
STRATIX 2500
Preserve port settings and the installed network design
Confirm eight copper Fast Ethernet ports are sufficient for the network. Use the approved device addresses, port roles and configuration tools rather than importing a different Stratix family configuration.
Mount and earth the switch in the specified enclosure, maintain ventilation clearances and connect the SELV DC supply with correct polarity. Follow the documented electrical safety precautions before working on connections.
Restore the approved firmware and switch configuration. Check VLAN membership, speed and duplex, device links and diagnostic status before reconnecting production traffic.
Features:
- Port and media match
- Protected DC installation
- Network configuration validation
The Allen-Bradley 1783-LMS8 requires application checks before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
The current official product record identifies 1783-LMS8 as Active. No discontinuation date or verified drop-in successor is asserted for this switch.
Evaluate a proposed change against port count and speed, management features, VLAN design and the connected control system. A matching connector count does not establish configuration or functional interchangeability.
Back up the installed switch settings and verify the new unit in the actual network. Confirm the stock-item origin from its label and order documents because the official catalog lists multiple origins.
Features:
- Active product record
- No assumed model interchangeability
- Configuration backup and test
The Allen-Bradley 1783-LMS8 requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Amikon is an independent supplier. Consult the applicable Rockwell Automation documentation and installed configuration before selection, installation or replacement.Features:
- Exact-model reference documents
- Hardware and system compatibility checks
- Accessories are supplied only when listed in the quotation
Documentation for the Allen-Bradley 1783-LMS8 supports document applicability checks before installation or replacement.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
