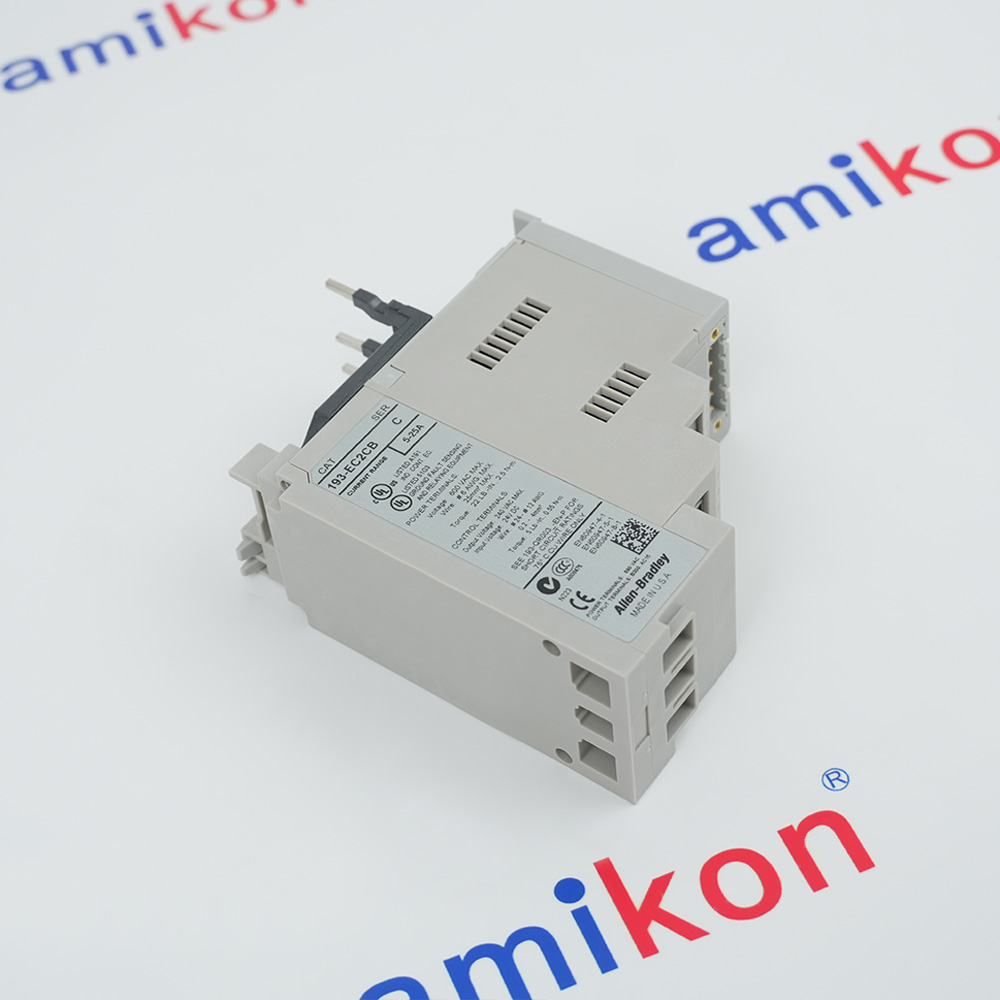

- 193-EC2CB
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 193-EC2CB
-
Product Model193-EC2CB
-
Product ParametersSOLID-STATE OVERLOAD RELAY
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4.4x10.6x12.6cm
-
ManufacturerAllen-Bradley
-
Weight0.35 kg
-
Adjustment Rating [A]5…25
-
Bulletin 100 Contactor SizeC09…C23
-
Discrete Inputs4 x 24V DC
-
Relay Outputs2 Form C contacts
-
Control Voltage24V DC
-
CommunicationDeviceNet, Group 2 slave
-
Operating Temperature-20°C to +55°C
-
Storage Temperature-40°C to +85°C
Description
SOLID-STATE OVERLOAD RELAY
IEC
E3 PLUS
INTERNAL GROUND FAULT SENSING
5-25 AMP RANGE
SIZE C09-C23
IEC
E3 PLUS
INTERNAL GROUND FAULT SENSING
5-25 AMP RANGE
SIZE C09-C23
Information
Overview
Manuals
Technical notes
Product Applications
Core Operation Guide
Features:
- E3 and E3 Plus Electronic Overload Relays
- Advanced Voltage and Torque Control
- Integrated Bypass Circuitry
- Versatile Communications Suite
- Multi-Application Special Features
The 193-EC2CB Allen-Bradley SOLID-STATE OVERLOAD RELAY may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 193-EC2CB SOLID-STATE OVERLOAD RELAY Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The E3 Overload Relay provides the capability to alert in the eventof an impending overload trip. A thermal warning bit is set in theWarning Status when the calculated percentage of thermal capacityutilization exceeds the programmed thermal warning level, whichhas a setting range of 0…100% TCU
- Intelligent Motor Protection:5–25A advanced diagnostics & thermal protection for motor control centers
- Pump and Fan Control:PTC thermistor temp monitoring prevents burnout in fluid systems
- DeviceNet Network Architectures:DeviceNet integration for remote config & real-time data
- Industrial Machine Safety:Local diagnostics for conveyors/compressors: ground fault & phase imbalance response
- Industrial Mills & Mixers:High-torque capability for ball mills & large mixers
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Trip Current Adjustment: Turn the dial until the desired current aligns with the pointer. The trip rating is typically 120% of the dial setting.LED Status Indicators:TRIP/WARN (Red/Amber): Flashes a specific code to identify faults like Ground Fault, Jam, or Phase Loss.Network Status (Green/Red): Indicates DeviceNet connection health.Test/Reset Button:Test: Press for 2+ seconds to open the trip relay contact.Reset: Press while in a tripped state (with power present) to close the trip relay
FAQs
-
What is the 193-EC2CB?
+The Allen-Bradley 193-EC2CB is an E3 Plus electronic overload relay. Designed to protect motors from overloads and phase loss, it features an adjustable trip class (5–30), a 5–25 A current range, and communication capabilities for industrial automation. -
What type of device is it?
+It is a solid-state overload relay used to protect motors from overcurrents, phase loss, and ground faults. -
What is its current range?
+The 193-EC2CB typically features an adjustable Full Load Current (FLC) range of 5–25 Amps. -
What do the LED indicators mean?
+The E3 relays use specific flash patterns on their Trip/Warn LEDs to identify issues. You can refer to the device's side label or user manual (Publication 193-UM002) for exact fault code definitions.
