PRODUCT DESCRIPTION

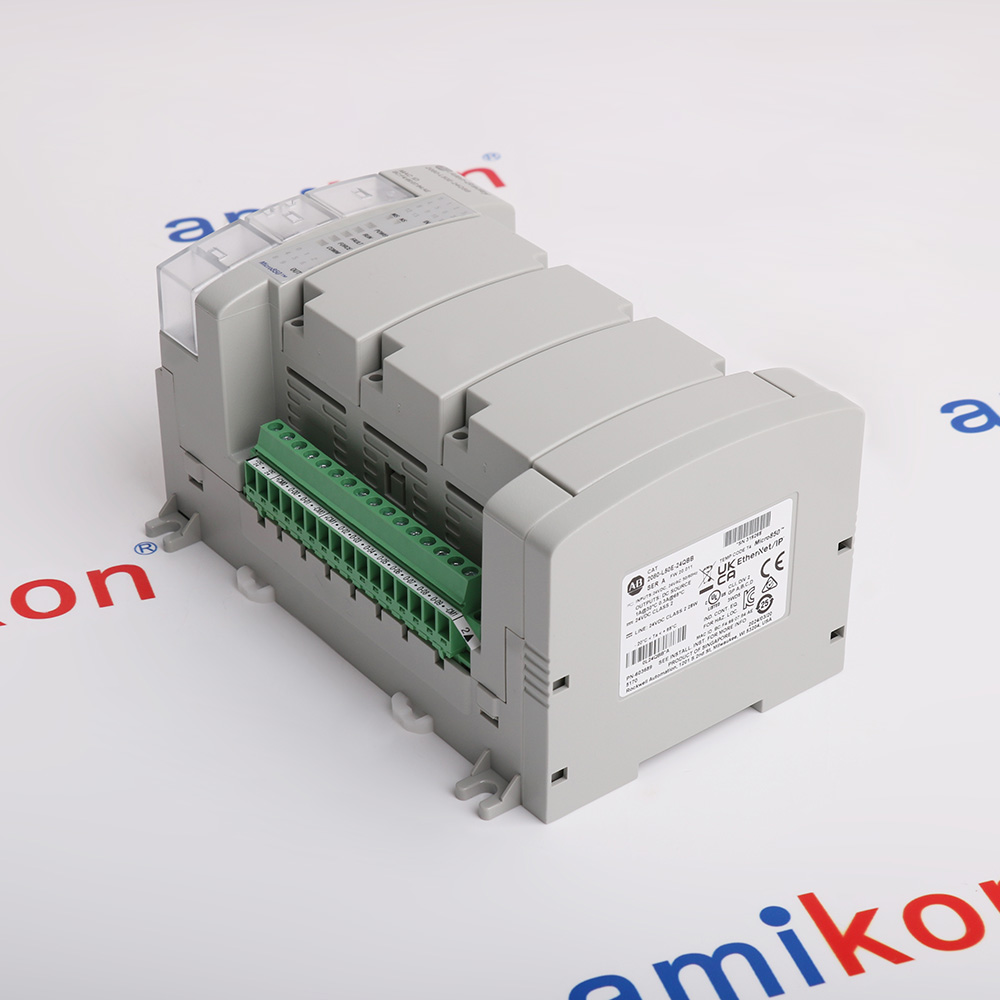

2080-L50E-24QBB 24-point programmable controller
Allen-Bradley 2080-L50E-24QBB is a 24-point Micro850 programmable controller in the Micro800 family for standalone machine automation. It combines fourteen digital inputs and ten sourcing transistor outputs, with embedded Ethernet and support for compatible plug-in and expansion I/O modules.
The controller operates from a 21.4 to 26.4 V DC Class 2 supply and provides two pulse-train or pulse-width-modulation channels and four embedded high-speed counters. Its twenty-four-point form factor supports up to four expansion I/O modules. Connected Components Workbench provides programming and configuration for the documented controller firmware and connected equipment.
The controller operates from a 21.4 to 26.4 V DC Class 2 supply and provides two pulse-train or pulse-width-modulation channels and four embedded high-speed counters. Its twenty-four-point form factor supports up to four expansion I/O modules. Connected Components Workbench provides programming and configuration for the documented controller firmware and connected equipment.
BEFORE YOU BUY
Confirm the complete 24-point programmable controller
ACTUAL APPLICATIONS
Application context for 2080-L50E-24QBB
2080-L50E-24QBB is a 24-point programmable controller in the Micro850 programmable controllers range. Compatible configurations serve food & beverage, material handling, water management. Suitability depends on the documented supply, connected loads and controller or machine configuration.
-
01 · FOOD & BEVERAGE
Food Manufacturing and Beverage Packaging Production
Food Production and PackingBeverage Filling and Packaging -
02 · MATERIAL HANDLING
Industrial Material Handling and Product Distribution
Warehouse Sorting and DistributionManufacturing Product Transfer -
03 · WATER MANAGEMENT
Water Supply and Industrial Wastewater Treatment
Municipal Water SupplyIndustrial Wastewater Processing
Technical specifications for 2080-L50E-24QBB
-
Product Model2080-L50E-24QBB
-
Product Parameters24-point programmable controller
-
In stock4 units
-
ManufacturerAllen-Bradley
-
Digital inputs14
-
Digital outputs10, sourcing transistor
-
Supply voltage range21.4–26.4 V DC, Class 2
-
Base power consumption8 W maximum
-
Fully expanded power consumption28 W maximum
-
Expansion I/O capacity4 modules maximum
-
PTO/PWM channels2
-
High-speed counters4
-
Embedded Ethernet node capacity8; firmware 21.011 or later
-
Input current rating8.8 mA at 24 V
-
Output current per point1 A at 30 ℃; 0.3 A at 65 ℃
-
Continuous isolation voltage50 V, reinforced insulation
-
Isolation type-test voltage720 V DC for 60 s
-
Terminal screw torque0.4–0.5 N·m
-
Wire stripping length7 mm
View all additional
Alternative Names
2080-L50E-24QBB
Micro850 programmable controllers 24-point programmable controller
24-point programmable controller 2080-L50E-24QBB
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 2080-L50E-24QBB 24-point programmable controller
Allen-Bradley 2080-L50E-24QBB is a 24-point Micro850 programmable controller in the Micro800 family for standalone machine automation. It combines fourteen digital inputs and ten sourcing transistor outputs, with embedded Ethernet and support for compatible plug-in and expansion I/O modules.
Match 2080-L50E-24QBB to the installed Micro850 programmable controllers configuration. Compare the supply, electrical interfaces, connectors and companion equipment with the applicable drawing before reconnecting the article.
Preserve the approved configuration and complete the documented checks for the connected 24-point programmable controller. Record the verified connections and final operating results with the equipment record.
Features:
- Digital inputs: 14
- Digital outputs: 10, sourcing transistor
- Supply voltage range: 21.4–26.4 V DC, Class 2
The 2080-L50E-24QBB 24-point programmable controller requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify 2080-L50E-24QBB 24-point programmable controller
Verify the complete 2080-L50E-24QBB identity and its 24-point programmable controller role before exchange. Match the installed revision, electrical interfaces and companion hardware; a similar housing does not establish interchangeability.
Record the wiring, grounding, connector allocation and configuration associated with 2080-L50E-24QBB. Isolate the affected equipment according to its applicable instructions before disconnecting the article.
After fitting the verified 2080-L50E-24QBB, restore the approved connections and configuration. Complete the affected signal, communication or power checks and retain the acceptance results for the supplied article.
Features:
- Digital inputs: 14
- Digital outputs: 10, sourcing transistor
- Supply voltage range: 21.4–26.4 V DC, Class 2
The 2080-L50E-24QBB 24-point programmable controller requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 2080-L50E-24QBB 24-point programmable controller must be checked for document applicability before installation or commissioning.
