PRODUCT DESCRIPTION

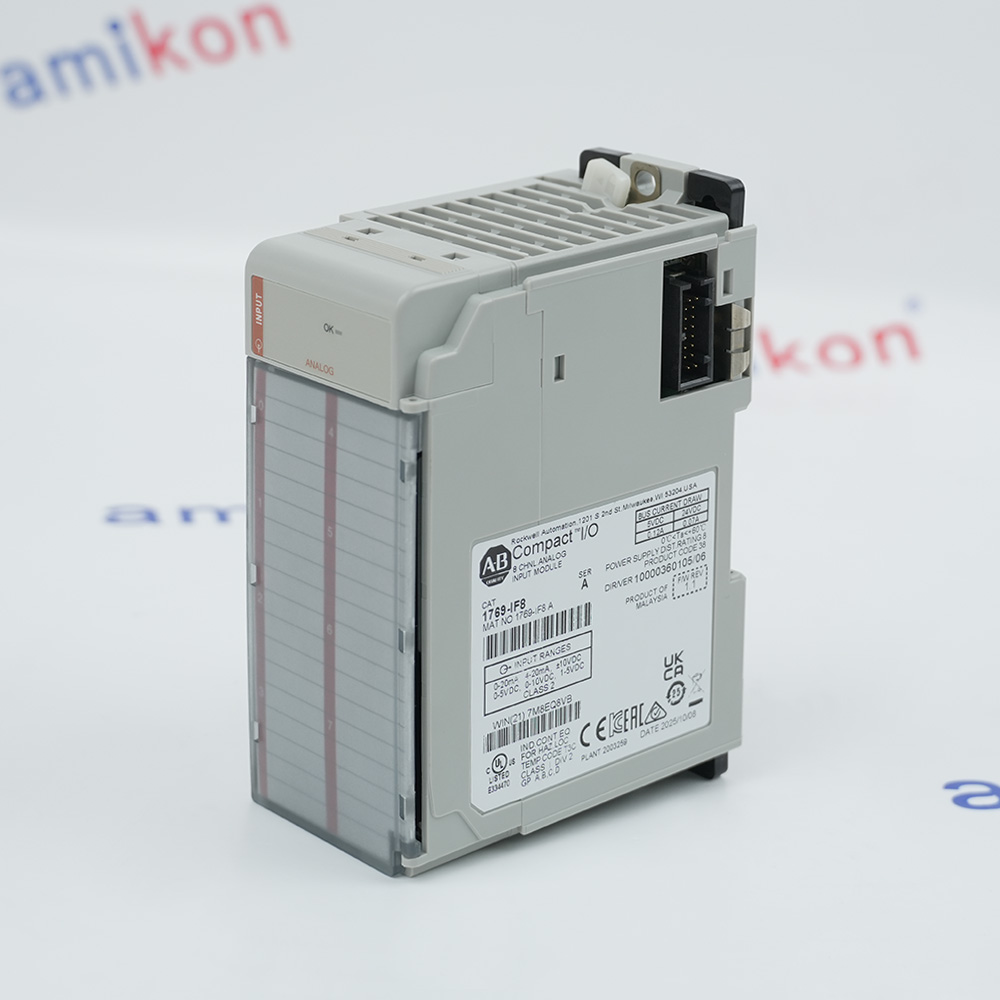

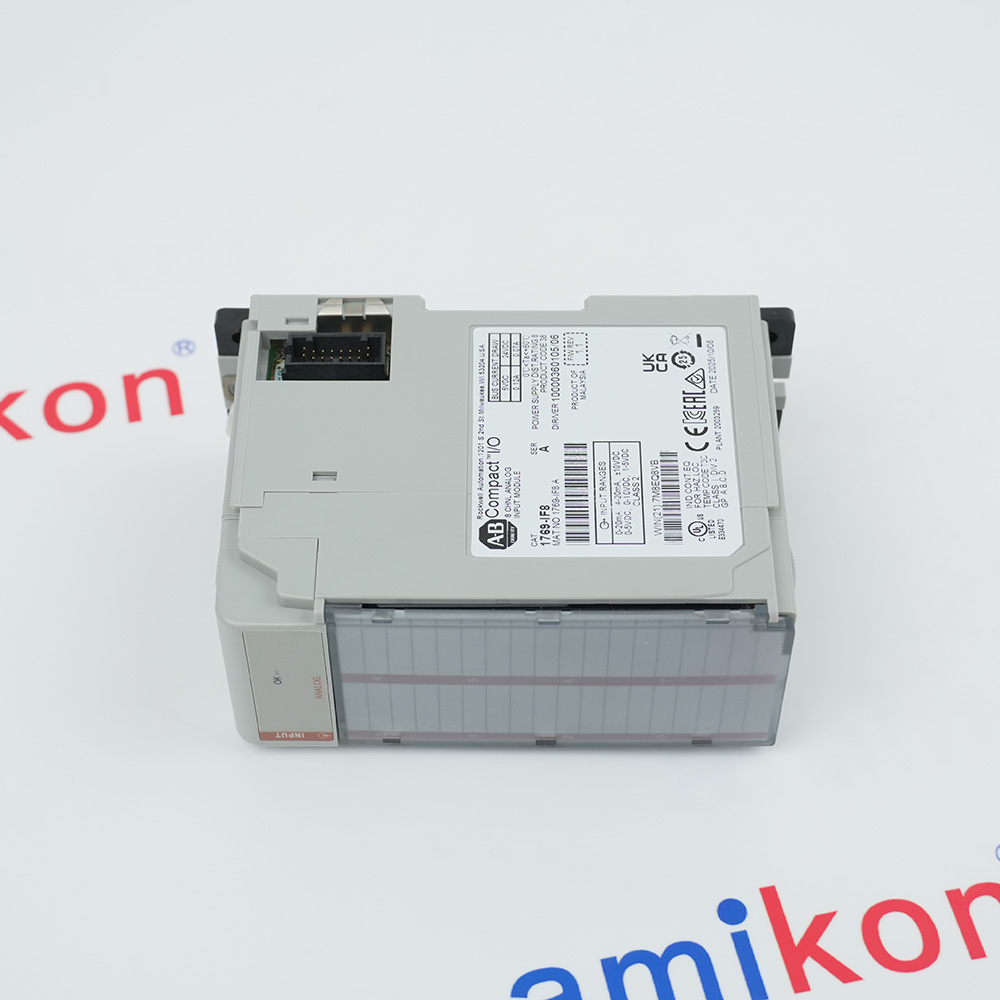

1769-IF8 Eight-channel analog input module
Allen-Bradley 1769-IF8 is an eight-channel analog input module in the Compact I/O family. Each channel accepts differential or single-ended voltage or current signals, with selectable ranges including ±10 V, 0-10 V, 0-5 V, 1-5 V, 0-20 mA and 4-20 mA. The published resolution is 16 bits for unipolar inputs or 15 bits plus sign for bipolar inputs.
The module uses a delta-sigma converter and draws 120 mA at 5.1 V and 70 mA at 24 V from the 1769 system. Before installation, match the eight channel assignments, input ranges, terminal wiring and available power-supply distance to the existing controller configuration. Rockwell specifies a maximum distance rating of eight modules from the power supply.
The module uses a delta-sigma converter and draws 120 mA at 5.1 V and 70 mA at 24 V from the 1769 system. Before installation, match the eight channel assignments, input ranges, terminal wiring and available power-supply distance to the existing controller configuration. Rockwell specifies a maximum distance rating of eight modules from the power supply.
BEFORE YOU BUY
Confirm the complete eight-channel analog input module
ACTUAL APPLICATIONS
Application context for 1769-IF8
The 1769-IF8 brings eight configurable voltage or current inputs to Compact I/O installations used across assembly, utility and food-processing sectors.
-
01 · AUTOMOTIVE MANUFACTURING
Vehicle Assembly and Component Operations
Passenger Vehicle ManufacturingAutomotive Component Manufacturing -
02 · WATER & WASTEWATER
Municipal Treatment and Industrial Water Services
Municipal Water SupplyIndustrial Wastewater Treatment -
03 · FOOD & BEVERAGE
Food Processing and Beverage Packaging Operations
Food ManufacturingBeverage and Packaging Industries
Technical specifications for 1769-IF8
-
Product Model1769-IF8
-
Product ParametersEight-channel analog input module
-
In stock1 unit
-
ManufacturerAllen-Bradley
-
Analog input channels8 differential or single-ended
-
Voltage input ranges±10 V; 0-10 V; 0-5 V; 1-5 V
-
Current input ranges0-20 mA; 4-20 mA
-
Unipolar resolution16 bits
-
Bipolar resolution15 bits plus sign
-
Current draw at 5.1 V120 mA
-
Current draw at 24 V70 mA
-
Converter typeDelta sigma
-
Maximum heat dissipation3.24 W
-
Rated working voltage30 V AC / 30 V DC
-
Voltage input impedance220 kΩ
-
Current input impedance250 Ω
-
Voltage accuracy at 25 °C±0.2% full scale
-
Current accuracy at 25 °C±0.35% full scale
-
Power supply distance rating8 modules
View all additional
Alternative Names
1769-IF8
Compact I/O eight-channel analog input module
Allen-Bradley 1769 voltage/current input module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 1769-IF8 eight-channel analog input module
The Rockwell 1769-IF8 accepts eight differential or single-ended analog signals in a Compact I/O assembly. Before insertion, check that the controller project defines the correct module and that the field circuits use one of the documented voltage ranges (±10 V, 0-10 V, 0-5 V or 1-5 V) or current ranges (0-20 mA or 4-20 mA). The power supply must support its 120 mA draw at 5.1 V and 70 mA draw at 24 V.
Plan the position using Rockwell’s eight-module power-supply distance rating. The module can be mounted on DIN rail or panel, and the manual shows separate differential, single-ended and mixed-transmitter terminal arrangements. Keep channel polarity, analog common and shield grounding consistent with the selected field wiring, and use the documented wire sizes and terminal torque.
At commissioning, check the controller’s module status and channel configuration, then verify known signal values across all eight inputs. Record each selected range, filter and engineering scaling value with the installed slot and revision so later service can reproduce the validated measurement.
Features:
- Eight configurable differential or single-ended analog inputs
- Selectable voltage and current input ranges
- 16-bit unipolar and 15-bit-plus-sign bipolar resolution
The 1769-IF8 eight-channel analog input module requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify 1769-IF8 eight-channel analog input module
A replacement must be identified as 1769-IF8 and checked against the installed revision and Compact I/O controller profile. Rockwell specifies eight analog inputs and six selectable voltage/current ranges for this article; a four-channel or output module cannot be assumed interchangeable even when the housing looks similar.
Before removal, save the controller project and record the slot, terminal numbering, channel wiring mode, selected range, filtering and scaling for every used input. Photograph the field conductors and shield connections, then compare the replacement terminal block and supply-distance position against the Rockwell wiring and specification pages.
After fitting the verified module, restore the approved configuration, observe startup diagnostics and test each affected voltage or current loop with a known value. Confirm the engineering-unit result and any alarms before returning the installation to service.
Features:
- Eight-channel Compact I/O analog input form
- Delta-sigma signal conversion
- Eight-module power-supply distance rating
The 1769-IF8 eight-channel analog input module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 1769-IF8 eight-channel analog input module must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size11.8 × 5.25 × 8.7 cm
-
Shipping weight0.45 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538901190
-
OriginUnited States
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 1769-IF8
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
How does 1769-IF8 fit an existing Compact I/O installation?
Check that the installed controller accepts 1769 Compact I/O, that eight analog channels are needed, and that the module is within the published eight-module power-supply distance rating. -
Can 1769-IF8 replace a 1769-IF4 without project changes?
No direct swap is established by the catalog number. The 1769-IF8 has eight inputs; compare module profiles, channel wiring, scaling and the stored project before substitution. -
Which terminals should be checked when wiring 1769-IF8 current inputs?
Use the documented I in positive, V/I in negative and analog common assignments for each channel; follow Rockwell’s two-wire or differential transmitter diagrams. -
How should differential and single-ended 1769-IF8 channels be configured?
The Rockwell specification allows eight differential or single-ended inputs. Match each channel’s selected wiring mode and voltage or current range to its transmitter. -
What should be tested after installing the 1769-IF8?
Confirm power-up and controller diagnostics, then inject or observe known values on all eight channels and verify the configured scaling and range. -
How should noisy 1769-IF8 readings be investigated?
Check the selected input filter, the shield grounding shown in Rockwell’s wiring diagram, signal commons and the specified voltage or current range before replacing the module. -
What details help a distributor quote the correct 1769-IF8?
Send the full 1769-IF8 catalog number, required quantity, terminal-block photos, controller family, destination and any specified revision. -
What should an MRO buyer inspect when 1769-IF8 arrives?
Compare the nameplate and eight-channel terminal block with the order, inspect the housing and contacts, and confirm any ordered accessories before removing the installed unit.
