1769-OF8C
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time

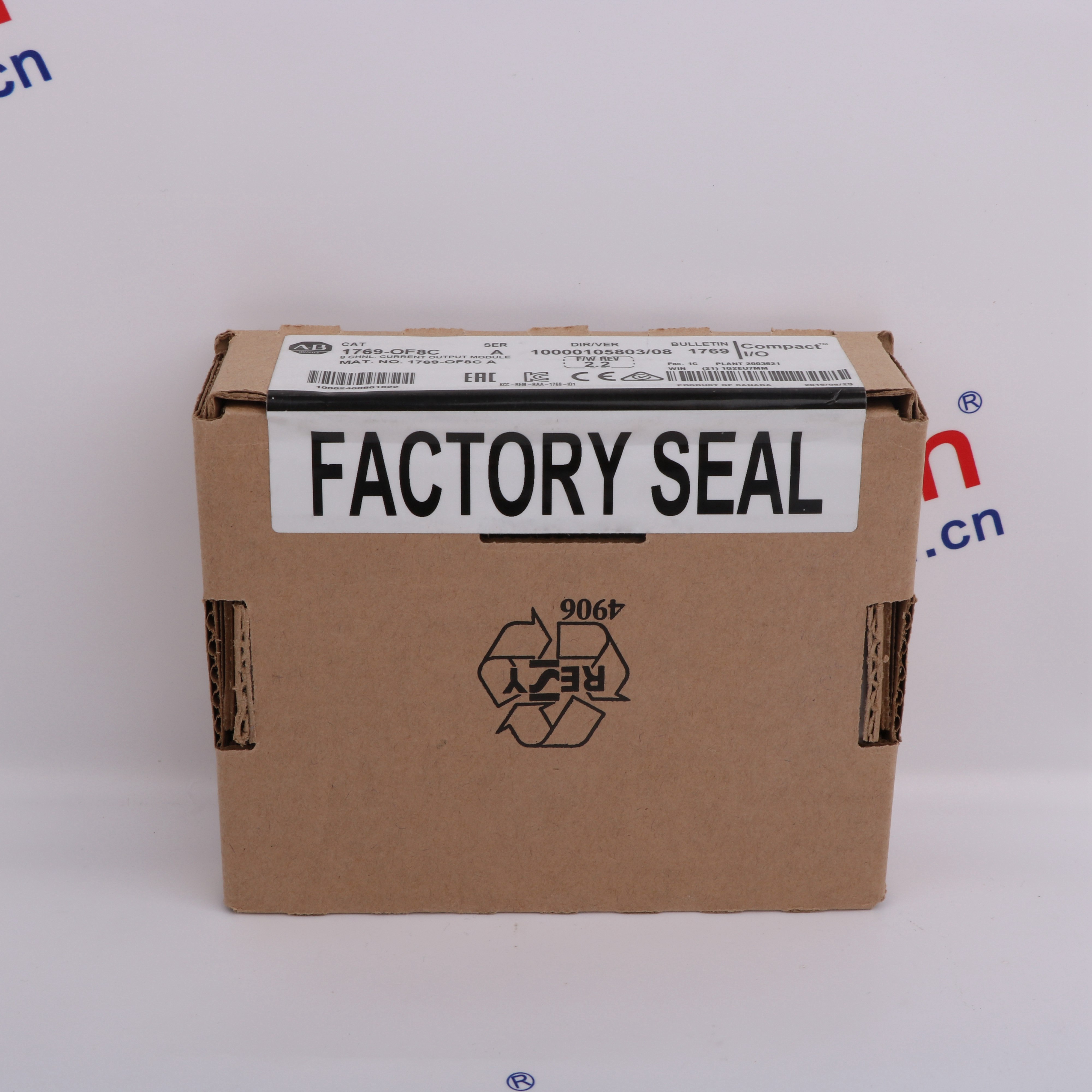

Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
1769OF8C
I/O MODULE
COMPACTLOGIX
8 CHANNEL
CURRENT OUTPUT
0-20 MA / 4-20 MA
16 BIT RESOLUTION
OPEN ENCLOSURE
24 VDC SUPPLY
I/O MODULE
COMPACTLOGIX
8 CHANNEL
CURRENT OUTPUT
0-20 MA / 4-20 MA
16 BIT RESOLUTION
OPEN ENCLOSURE
24 VDC SUPPLY
Technical specifications for 1769-OF8C
-
Product Model1769-OF8C
-
Spare Model1769OF8C
-
Product ParametersCompactLogix 8 Pt A/O Current Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size16x13x5.3cm
-
ManufacturerAllen-Bradley
-
Weight0.25 kg
-
Output Current0-20 mA / 4-20 mA
-
Output Current Range0-21 mA; 3.2 mA - 21 mA
-
Resolution16 bit
-
Conversion Rate (all channels) max.5 ms
-
Overall Accuracy±0.35% full scale at 25°C
-
Product LineCompactLogix
-
Input TypeOutput Current
-
Communication Cable8 Point
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the 1769-OF8C?+The Allen-Bradley 1769-OF8C is an 8-channel, analog current output module designed for CompactLogix or MicroLogix 1500 controllers
-
What is the function of the 1769-OF8C module?+The 1769-OF8C is a 1769 Compact I/O analog current output module with 8 channels that convert digital data from a PLC into 0–20mA or 4–20mA current signals.
-
What is the resolution of the 1769-OF8C?+It features a 16-bit Analog to Digital Converter (DAC) resolution
-
Does the 1769-OF8C have open-wire detection?+Yes, it is often noted as the only 1769 I/O module with specialized open wire detection. It also includes overvoltage and short-circuit protection.
-
Are the output channels isolated?+No, the 1769-OF8C does not have individual channel isolation
Get a quick price fo 1769-OF8C
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Hardware Mounting
Features:
- CompactLogix series
- Standard Current Signal Ranges
- Open-Loop Detection and Diagnostics
- Configurable Output Limits
- CompactLogix Bus Compatibility
The 1769-OF8C Allen-Bradley Compact current output analog module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1769-OF8C Compact current output analog module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Power consumption is efficient, with a bus current draw of 145 mA at 5V DC and 185 mA at 24V DC. Thermal management is accounted for, with a maximum heat dissipation of 2.69 watts, ensuring that the module operates within safe temperature limits. It is equipped with features for open-circuit protection and supports short-circuit conditions, upholding reliability in demanding environments. The maximum short-circuit protection is rated at 21 mA.
- Water & Wastewater Treatment:Precise chemical dosing & actuator pump speed control
- Food & Beverage Production:Flow/temp regulation for bottling, ovens & mixing stations
- Chemical & Oil/Gas Refineries:4-20mA signals for multiple control valves/positioners in continuous flow
- Advanced Manufacturing & Packaging:Motor speed/tension control; reference signals to multiple VFDs
- Metals & Mining: Controls heavy-duty proportional valves for hydraulic crushing and mineral processing equipment
- Fiber & Textiles: Manages tension control systems for spinning and weaving machinery to ensure consistent material quality
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
DIN Rail Mounting: Before mounting, close the DIN rail latches. Press the module against the 35 mm DIN rail; the latches will momentarily open and then lock into place.
Panel Mounting: Secure the module to a grounded metal panel using two M4 or #8 panhead screws. You can use the modules as a template to mark drill holes, ensuring proper alignment across the assembly.
