PRODUCT DESCRIPTION

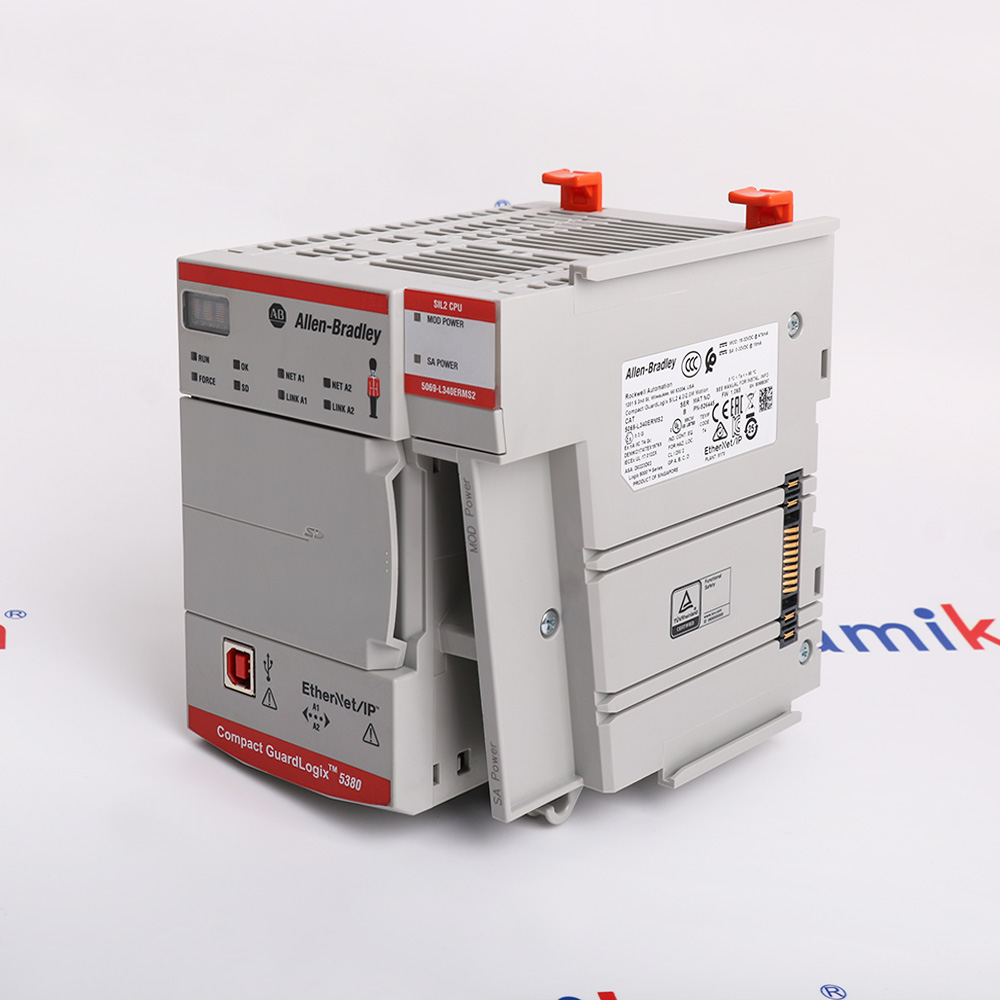

5069-L340ERMS2 Compact GuardLogix Controller
Allen-Bradley 5069-L340ERMS2 is a Compact GuardLogix 5380 controller with standard control, safety and integrated-motion capabilities. It is intended for compatible machine and production automation requiring a validated SIL 2 or PL d safety arrangement.
The controller provides 4 MB of standard user memory, 2 MB of safety user memory and support for twenty motion axes. Two Gigabit Ethernet ports and a USB interface support communication and programming, with expansion for up to 31 local Compact 5000 I/O modules. Standard and safety tasks execute the configured programs; the complete safety design determines achieved safety performance.
The controller provides 4 MB of standard user memory, 2 MB of safety user memory and support for twenty motion axes. Two Gigabit Ethernet ports and a USB interface support communication and programming, with expansion for up to 31 local Compact 5000 I/O modules. Standard and safety tasks execute the configured programs; the complete safety design determines achieved safety performance.
BEFORE YOU BUY
Confirm the complete compact guardlogix controller
ACTUAL APPLICATIONS
Application context for 5069-L340ERMS2
5069-L340ERMS2 is a Compact GuardLogix 5380 safety and motion controller. Its platform serves food packaging, pharmaceutical production and automotive manufacturing. Suitability depends on the validated safety program, selected I/O, motion configuration and connected production machinery.
-
01 · FOOD & BEVERAGE
Food Product Packaging and Beverage Manufacturing
Food Wrapping and PackagingBeverage Packaging and Handling -
02 · LIFE SCIENCES
Pharmaceutical and Healthcare Packaging
Pharmaceutical Blister PackagingMedicine Labeling and Packaging -
03 · AUTOMOTIVE MANUFACTURING
Automotive Manufacturing and Vehicle Component Assembly
Vehicle Component AssemblyAutomotive Production Material Handling
Technical specifications for 5069-L340ERMS2
-
Product Model5069-L340ERMS2
-
Product ParametersCompact GuardLogix Controller
-
In stock1 unit
-
ManufacturerAllen-Bradley
-
Standard User Memory4 MB
-
Safety User Memory2 MB
-
Maximum Ethernet Nodes90
-
Integrated Motion Axes20
-
Maximum Local I/O Modules31
-
Task Allocation31 standard tasks + 1 safety task
-
Maximum Programs per Task1,000
-
Ethernet Interfaces2 × 10/100/1,000 Mbps
-
USB Interface1 × USB 2.0 Full Speed, Type B
-
Functional Safety CapabilitySIL 2 / PL d
-
Standard Programming LanguagesLD, ST, FBD, SFC
-
Safety Programming LanguageLadder Diagram
-
MOD Supply Voltage18–32 V DC
-
Maximum MOD Bus Current5 A
-
Maximum DC SA Bus Current10 A
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Match 5069-L340ERMS2 to the installed Allen-Bradley Compact GuardLogix 5380
Allen-Bradley 5069-L340ERMS2 is a compact guardlogix controller for the Allen-Bradley Compact GuardLogix 5380. Its complete article identity determines the documented interface, operating role and approved host equipment.
Engineering should compare controller family (Compact GuardLogix 5380), controller type (Safety and motion controller), standard user memory (4 MB) with the installed equipment. Confirm connectors, wiring, addressing and configuration support before connection.
Use the applicable manufacturer documentation for the complete wiring and configuration sequence. Validate communication or signal response with the connected equipment, then archive measured results and the final configuration with the asset record.
Features:
- Exact product identity: 5069-L340ERMS2
- Product class: Compact GuardLogix Controller
- Model-specific configuration verified
The 151X1202YE03SA04 IS200STAIH2ADC analog I/O terminal board requires appropriate configuration before system integration and commissioning.
REPLACEMENT CONTROL
Verify the complete 5069-L340ERMS2 identity before exchange
Replace 5069-L340ERMS2 only after matching the complete article code, compact guardlogix controller role, installed Allen-Bradley Compact GuardLogix 5380 equipment and documented hardware or firmware revision. Similar housings and related family numbers do not establish functional interchangeability.
Photograph the nameplate, keyed connectors, terminal numbering, cable routing, shields, earth points and adjacent modules. Export the applicable controller, HMI, drive, network or instrument configuration and record addresses, parameters and diagnostic messages before removal.
After fitting the verified article, restore the controlled configuration and check every affected signal or communication path. Review status indications and diagnostic buffers, run the documented functional test at a safe operating point and retain the final acceptance record.
Features:
- Match the complete 5069-L340ERMS2 identity
- Compare revision, interfaces and mating hardware
- Test diagnostics and field operation before service
The 151X1202YE03SA04 IS200STAIH2ADC analog I/O terminal board requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 151X1202YE03SA04 IS200STAIH2ADC analog I/O terminal board must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size10.1 × 13.6 × 14 cm
-
Shipping weight0.75 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginUnited States
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 5069-L340ERMS2
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Where is 5069-L340ERMS2 used within Allen-Bradley Compact GuardLogix 5380?
5069-L340ERMS2 is used for its documented compact guardlogix controller role in compatible Allen-Bradley Compact GuardLogix 5380 equipment. Confirm the installed host and complete order identity. -
What should engineers verify before replacing 5069-L340ERMS2?
Check the complete label, hardware revision, connectors, mounting, power requirements and approved Allen-Bradley Compact GuardLogix 5380 configuration before removal. -
How can distributors identify the correct 5069-L340ERMS2 version?
Use the full model string, manufacturer label, suffixes, revision marks and clear nameplate photographs when preparing a quotation. -
Which compatibility details matter for this compact guardlogix controller?
Compatibility depends on the documented host platform, interfaces, electrical ratings, mating hardware and project configuration rather than appearance alone. -
What records should maintenance keep for 5069-L340ERMS2?
Retain terminal labels, connector orientation, wiring photographs, configuration backups, alarm records and the final functional-test result. -
Can a similar Allen-Bradley Compact GuardLogix 5380 part replace 5069-L340ERMS2 directly?
A similar family designation does not prove interchangeability. Compare the complete article code and applicable manufacturer documentation before substitution. -
What should be inspected when receiving 5069-L340ERMS2?
Inspect the model label, packaging, connectors, enclosure or circuit board, mounting points and included accessories for damage or mismatch. -
Which checks are required after installing 5069-L340ERMS2?
Verify power, communication or signal paths, diagnostics, alarms and the complete controlled function before returning the equipment to service.
