PRODUCT DESCRIPTION

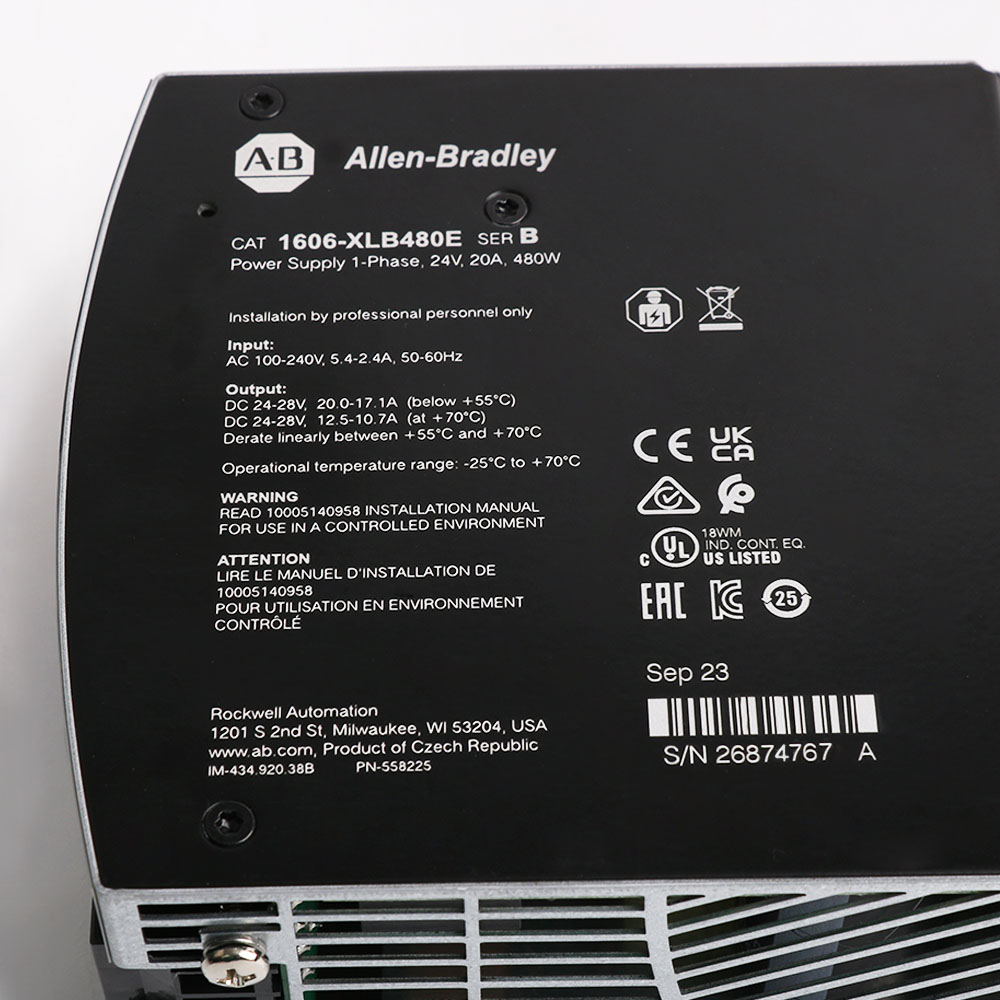

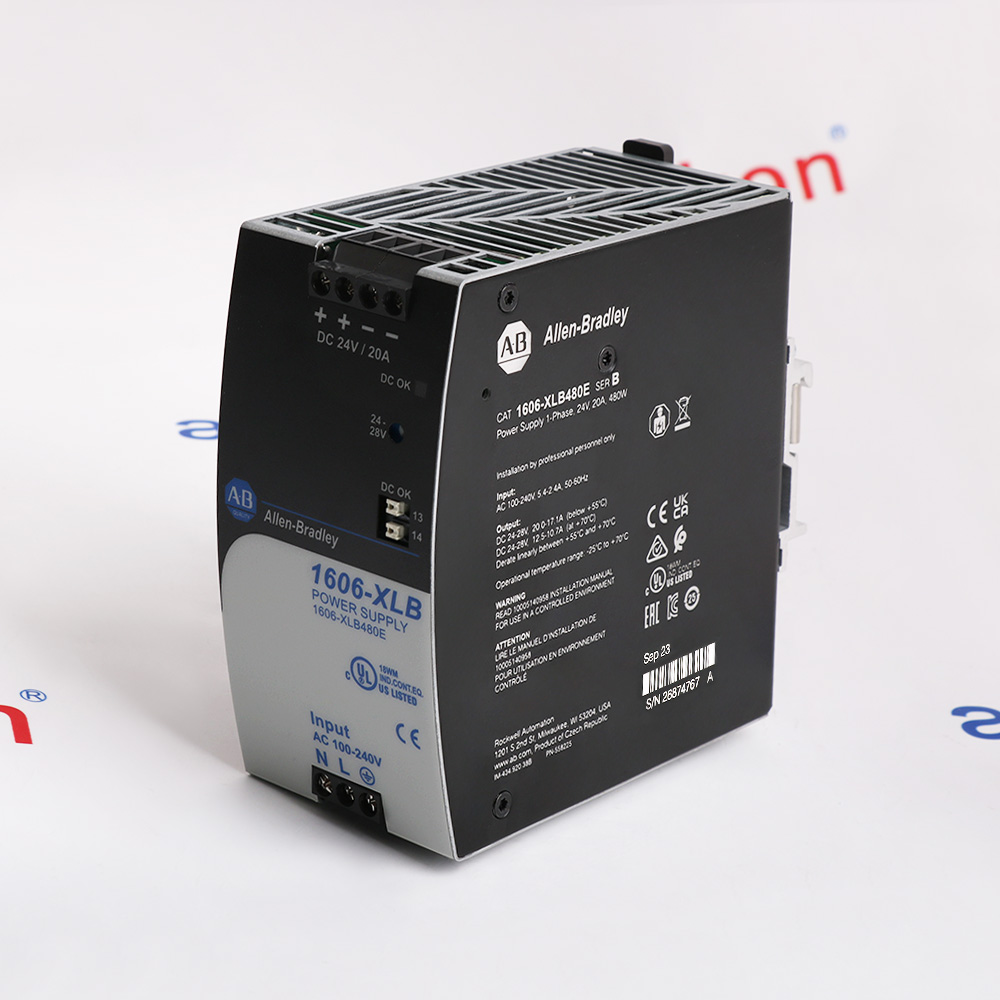

1606-XLB480E single-phase power supply
Allen-Bradley 1606-XLB480E is a single-phase power supply in the Bulletin 1606 basic power supplies. It is used to supply the specified operating power to the connected automation hardware.
Its documented configuration includes nominal output of 24 V DC, adjustment range of 24 to 28 V DC, rated output current of 20 A below 55 °C, and output power of 480 W. During operation, the single-phase power supply converts and distributes the specified supply voltage to the connected hardware.
Its documented configuration includes nominal output of 24 V DC, adjustment range of 24 to 28 V DC, rated output current of 20 A below 55 °C, and output power of 480 W. During operation, the single-phase power supply converts and distributes the specified supply voltage to the connected hardware.
BEFORE YOU BUY
Confirm the complete single-phase power supply
ACTUAL APPLICATIONS
Application context for 1606-XLB480E
Official manufacturer documentation supports these system uses when the complete Bulletin 1606 basic power supplies configuration is verified.
-
01 · AUTOMOTIVE
Assembly-line control cabinets
Control Power SystemsPLC cabinet DC supplySensor circuit power distribution -
02 · FOOD & BEVERAGE
Packaging machine panels
Machine Power SystemsConveyor control powerFilling machine DC supply -
03 · WATER & WASTEWATER
Pump station control panels
Panel Supply SystemsRemote controller DC powerInstrumentation loop supply
Technical specifications for 1606-XLB480E
-
Product Model1606-XLB480E
-
Product Parameterssingle-phase power supply
-
In stock1 unit
-
ManufacturerAllen-Bradley
-
Nominal Output24 V DC
-
Adjustment Range24 to 28 V DC
-
Rated Output Current20 A below 55 °C
-
Output Power480 W
-
AC Input Range100 to 240 V AC ±10%
-
Mains Frequency50 to 60 Hz ±6%
-
Input Current4.3 A at 120 V / 2.3 A at 230 V
-
Efficiency94.2% at 120 V / 95.3% at 230 V
-
Hold-up Time27 ms
-
Operating Temperature-25 to +70 °C
-
Power Factor0.99 at 120 V / 0.97 at 230 V
-
Protection DegreeIP20
-
Mounting RailDIN rail EN 60715
View all additional
Alternative Names
1606 XLB480E
Bulletin 1606 basic power supplies single-phase power supply
Allen-Bradley single-phase power supply
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Match 1606-XLB480E to the installed Bulletin 1606 basic power supplies
Allen-Bradley 1606-XLB480E is a single-phase power supply for the Bulletin 1606 basic power supplies. Its exact article suffix determines the supported interface, signal or communication function and the approved companion equipment.
Engineering should compare output power (480 W), ac input range (100 to 240 V AC ±10%) and mains frequency (50 to 60 Hz ±6%) with the installed system design. Confirm connector keying, addressing and configuration-tool support before connection.
Use the manufacturer documentation for the complete wiring and configuration sequence. Validate communication, signal conversion or control response with the connected equipment, then archive measured results and the final configuration with the asset record.
Features:
- Exact identity: 1606-XLB480E
- Product class: single-phase power supply
- Family: Bulletin 1606 basic power supplies
The Allen-Bradley 1606-XLB480E requires documented system integration before energising the equipment.
REPLACEMENT CONTROL
Verify the complete 1606-XLB480E identity before exchange
Replace 1606-XLB480E only after matching the complete article code, single-phase power supply, installed Bulletin 1606 basic power supplies role and documented hardware or firmware revision. Similar housings and related family numbers do not establish functional interchangeability.
Photograph the nameplate, keyed connectors, terminal numbering, cable routing, shields, earth points and adjacent modules. Export the applicable controller, HMI, drive or network configuration and record addresses, parameters and diagnostic messages before removal.
After fitting the verified article, restore the controlled configuration and check every affected signal or communication path. Review status indications and diagnostic buffers, run the documented functional test at a safe operating point and retain the final acceptance record.
Features:
- Exact identity: 1606-XLB480E
- Product class: single-phase power supply
- Family check: Bulletin 1606 basic power supplies
The Allen-Bradley 1606-XLB480E requires documented replacement verification before energising the equipment.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software and certificates are included only when listed in the quotation.Features:
- Technical values prepared for 1606-XLB480E
- Allen-Bradley Bulletin 1606 basic power supplies references reviewed
- Exact Allen-Bradley identity required before service
Documentation for Allen-Bradley 1606-XLB480E must match the installed equipment; confirm document applicability before service.
