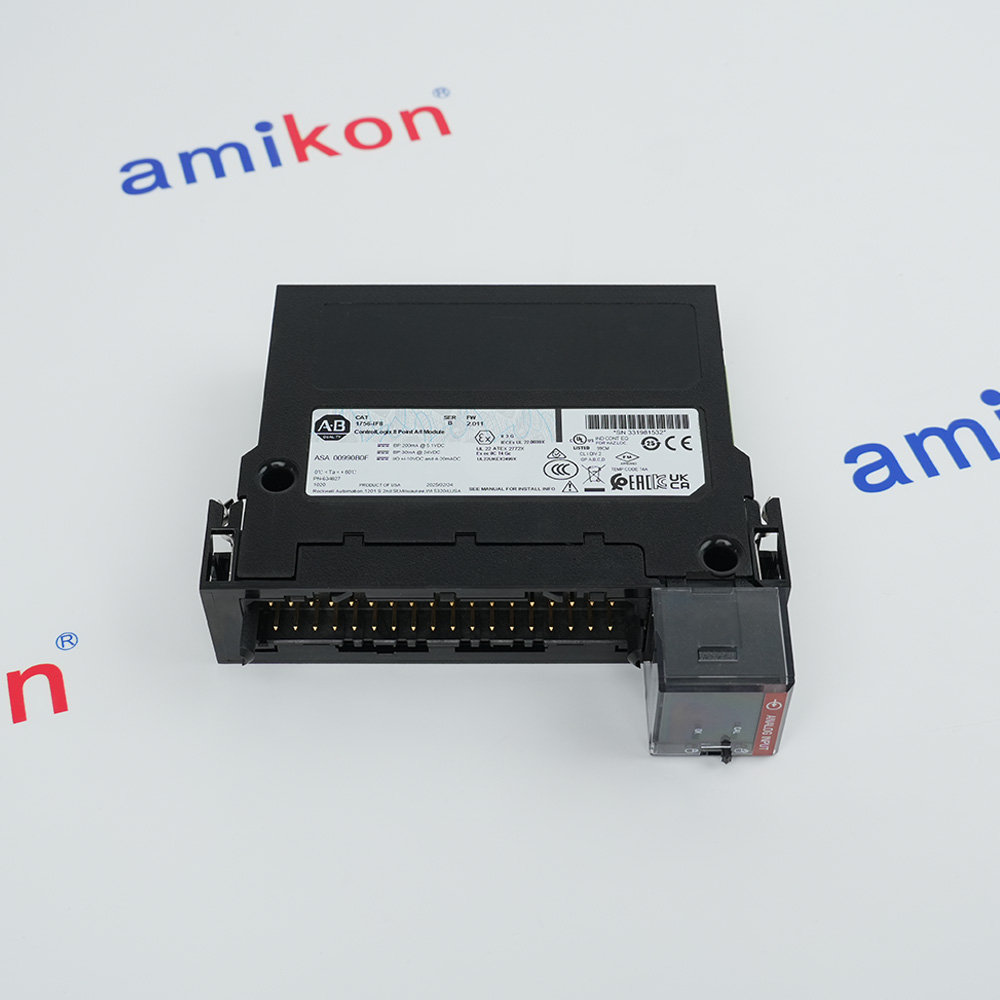

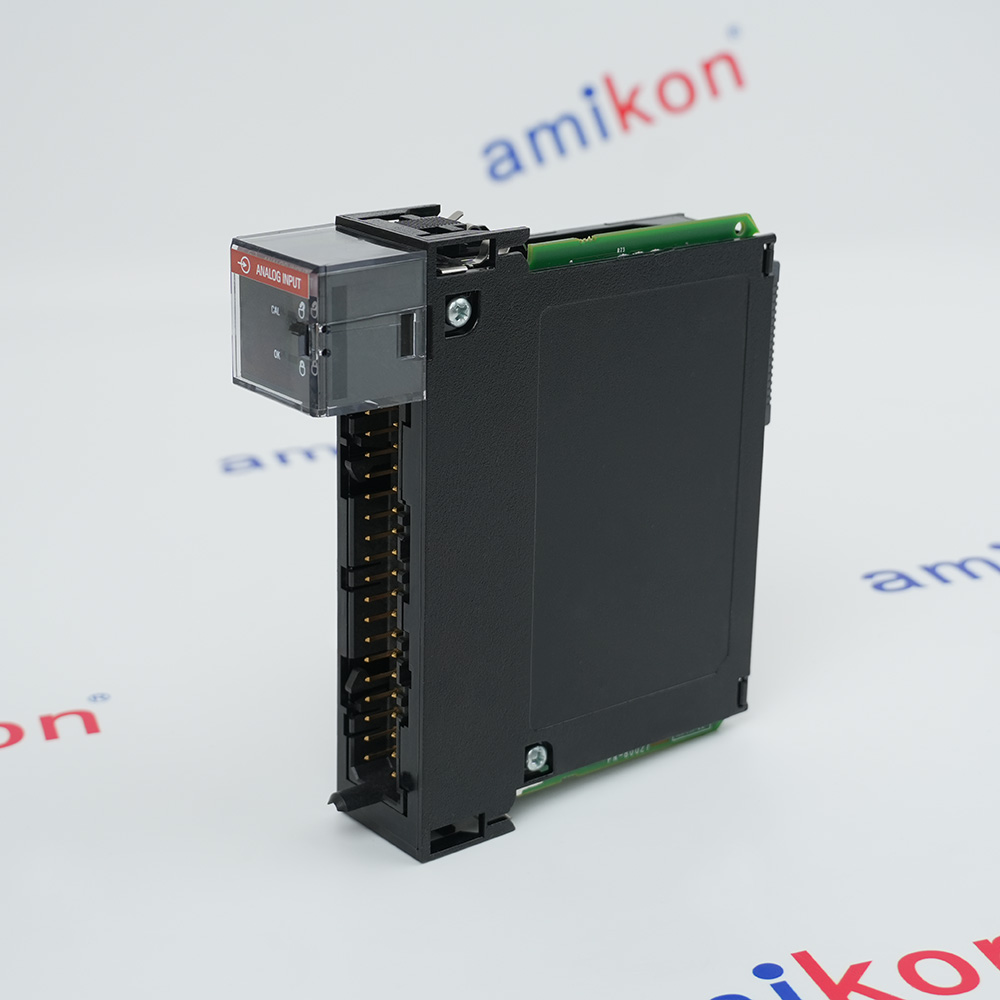

Technical specifications for 1756-IF8
-
Product Model1756-IF8
-
Spare Model1756IF8
-
Product ParametersControlLogix 8 Point A/I Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.5x14x14.5cm
-
ManufacturerAllen-Bradley
-
Weight0.2 kg
-
Backplane Current (24Volts)40 mA
-
Power Dissipation (Max) Voltage mode1.73 W Current mode: 2.33 W
-
Backplane Current (5Volts)150 mA
-
Module TypeAnalog Input
-
SeriesControlLogix
-
No. of Inputs8- channel Voltage / Current inputs
-
Conversion MethodSigma-Delta
Description
1756IF8
I/O MODULE
CONTROLLOGIX
ANALOG INPUT
8 CHANNEL
24 VDC
Country of Origin: United States
I/O MODULE
CONTROLLOGIX
ANALOG INPUT
8 CHANNEL
24 VDC
Country of Origin: United States
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Critical Safety Precautions
Features:
- Versatile 8-Channel Configuration
- Multiple Input Signal Ranges
- High-Resolution Data Acquisition
- Onboard Digital Filtering
- Comprehensive Module Diagnostics
The 1756-IF8 Allen-Bradley CONTROLLOGIX ANALOG INPUT MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1756-IF8 CONTROLLOGIX ANALOG INPUT MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 1756-IF8 from Allen Bradley serves as an input module designed for use in the ControlLogix series. This unit is engineered to offer diverse input configurations, boasting eight single-ended inputs alongside four differential inputs and two high-speed differential inputs. This wide range allows for flexibility in monitoring different types of signals.
For current operations, the module supports a range from 0 to 20 mA, allowing it to interact with many sensor types. In terms of voltage inputs, it can accurately handle values from -10 to 10V, 0 to 10V, or 0 to 5V. Its energy needs are efficient, with a current draw of 150 mA when powered at 5.1V DC and 40 mA at 24V DC, along with a total backplane power requirement totaling 1.73 Watts.
- Dosing Pumps:Flow feedback from transmitters
- Filtration Systems:Differential pressure for cleaning cycles
- Stamping Presses:Hydraulic/pneumatic pressure for consistent force
- Injection Molding Machines:Temp/pressure transducers for plastic flow & cooling
- Conveyor Systems:Ultrasonic/laser sensors for detection & distance
- Water Treatment Skids:Tracks pH, turbidity & chemical concentrations
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Awareness: While the module supports Removal and Insertion Under Power (RIUP), disconnecting an RTB with field-side power active can cause electrical arcing, which may trigger unintended machine motion.
Enclosure: This is "open-type" equipment and must be installed in an enclosure (NEMA or IEC rated) to prevent contact with live parts
FAQs
-
What is the 1756-IF8?
+The Allen-Bradley 1756-IF8 is an 8-channel non-isolated analog input module for the ControlLogix platform. It can accept both voltage and current inputs and is commonly used in industrial automation for reading sensor data. -
How many channels does the 1756-IF8 have?
+The module features 8 channels when configured for single-ended wiring. If configured for differential wiring to improve noise immunity, the capacity is reduced to 4 channels. -
What input ranges are supported?
+It supports multiple ranges: ±10V, 0–10V, 0–5V, and 0–20mA (including 4–20mA). -
Does it provide channel-to-channel isolation?
+No, the 1756-IF8 is a non-isolated module. For individual channel isolation, you would need a module like the 1756-IF8I
