Technical specifications for 1756-N2
-
Product Model1756-N2
-
Spare Model1756N2 1756-N2/A , 1756-N2/B
-
Product ParametersControlLogix Empty Slot Cover
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size3.4x5.3x14.5cm
-
ManufacturerAllen-Bradley
-
Weight0.05 kg
-
Module TypeSlot Filler / Dummy Module
-
Slots ProtectedSingle slot per module
-
Package Quantity2 modules per package
-
Isolation Voltage50 Volts Continuous
-
Operating Temperature0…60 °C (32…140 °F)
-
Storage Temperature-25…+60 °C (-13…+140 °F)
-
Relative Humidity5–95%, non-condensing
Description
The 1756-N2 is a slot filler module package manufactured by Rockwell Automation under the Allen-Bradley brand. It belongs to the ControlLogix series of modular programmable controllers. Each package contains two (2) passive slot filler modules designed to cover and protect the exposed backplane circuitry of vacant slots in standard ControlLogix chassis. The module is constructed as a single-slot-width passive cover without any electronic circuitry, and therefore does not occupy a functional slot position or draw current from the backplane.
Information
Overview
Manuals
Application Notes
Product Applications
Physical Installation Steps
Features:
- ControlLogix empty slot cover
- Single-slot chassis filler
- Passive mechanical component
- No power consumption
- Protects unused chassis slots
The module is installed whenever one or more chassis positions are intentionally left empty for future system expansion or when unused slots remain after system configuration. By covering open chassis positions, the 1756-N2 helps reduce the entry of dust, debris, and other contaminants that could affect the ControlLogix backplane and adjacent modules.
The 1756-N2 Allen-Bradley ControlLogix Slot Filler may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1756-N2 ControlLogix Slot Filler Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The slot filler also assists in maintaining proper airflow within the chassis and provides additional mechanical protection for exposed backplane connectors. In industrial environments such as manufacturing plants, power generation facilities, oil and gas installations, and process industries, the use of slot fillers helps keep control cabinets organized and protected.
Unlike ControlLogix I/O, communication, motion, or controller modules, the 1756-N2 does not appear in Studio 5000 Logix Designer because it has no electronic identity, requires no configuration, and exchanges no data with the controller. It functions solely as a physical protective cover.
- Water and Wastewater:High moisture & chemical exposure
- Oil, Gas, and Petrochemical:Corrosive environments
- Automotive & Heavy Manufacturing:High dust & ambient debris
- Food and Beverage Packaging:Washdown protection
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Align the Module: Hold the 1756-N2 vertically and line up the top and bottom plastic circuit guides with the corresponding tracks in the empty chassis slot.
Slide into Chassis: Carefully slide the empty slot cover into the chassis until the rear alignment pins engage with the backplane perimeter.
Seat the Cover: Press firmly on the top and bottom tabs of the module cover until you hear a clean click. This means the locking tabs have locked into the chassis frame.
Alternative Names
1756 N2
1756--N2
I756-N2
I75b-N2
I756 N2
I75b N2
Technical notes

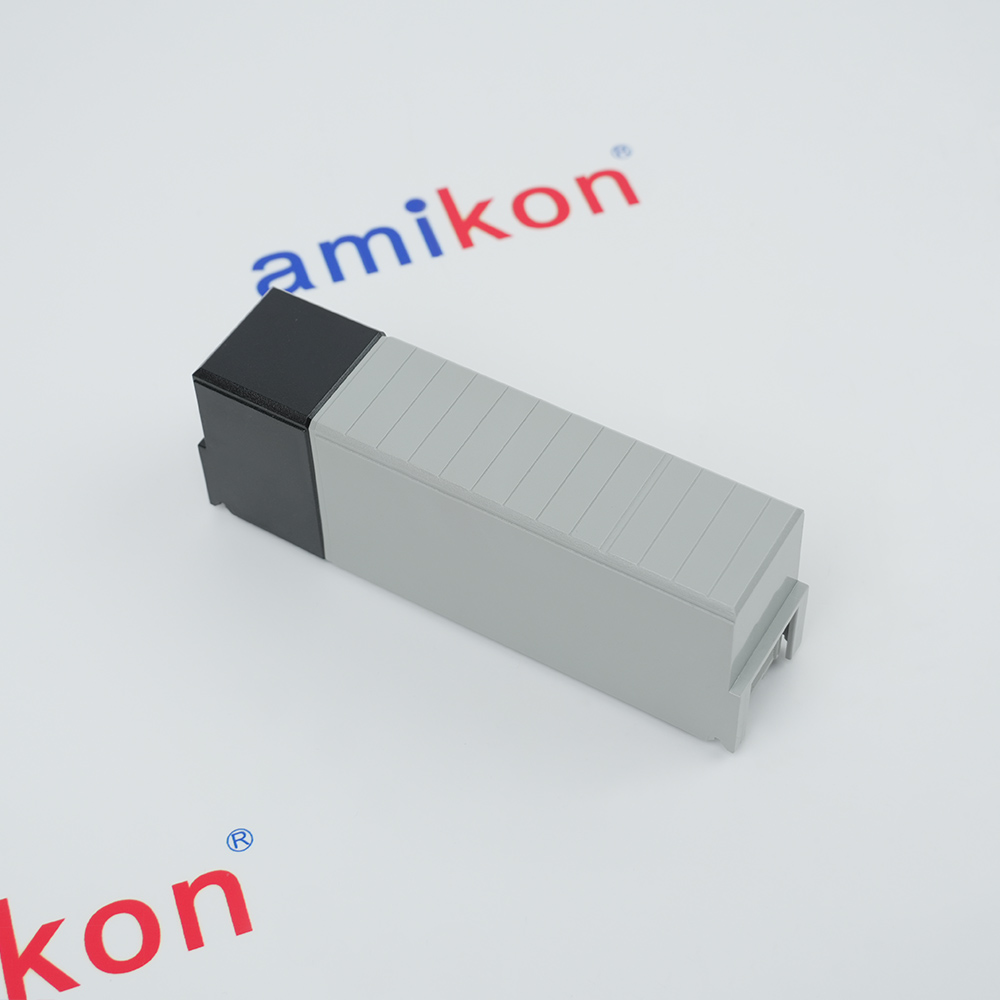

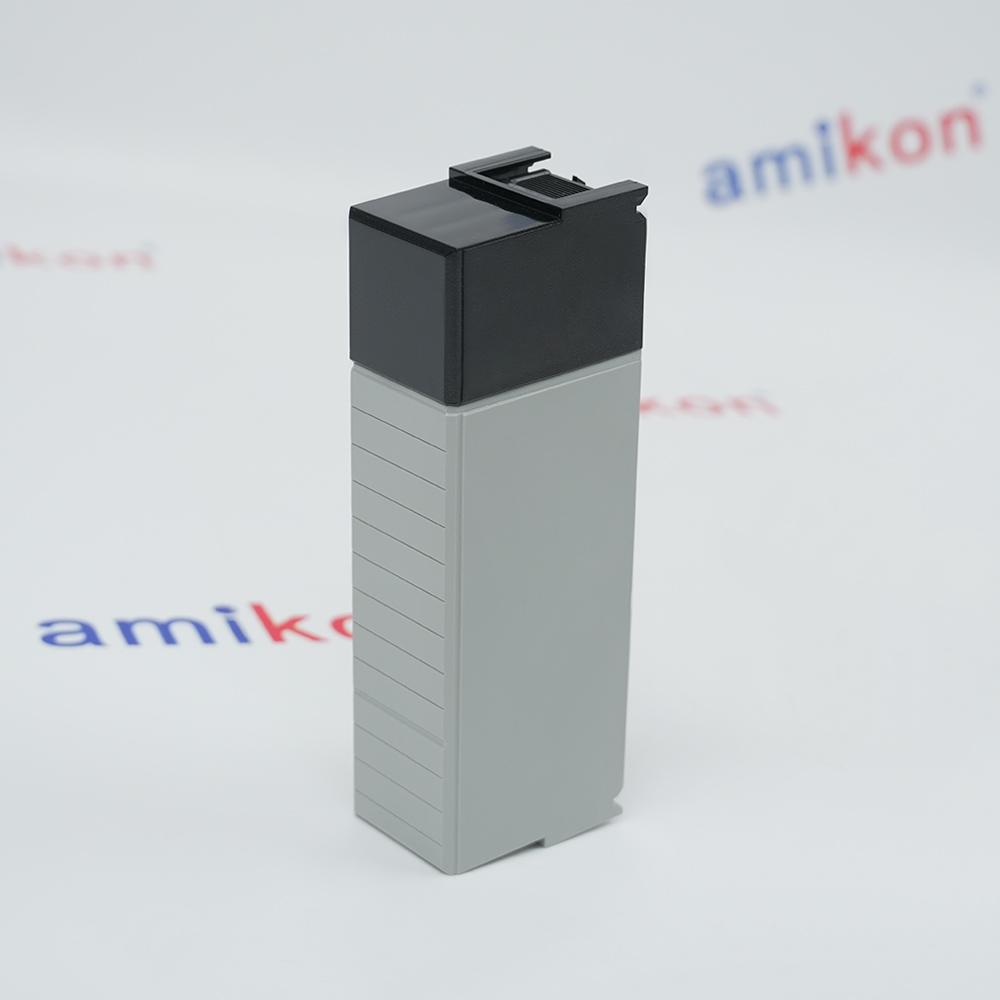

The 1756-N2 module is a rectangular plastic housing with a front faceplate and rear connector cover. The module features a light gray or off-white upper body with a black lower base section. It is engineered to match the physical form factor of standard ControlLogix I/O modules, ensuring uniform slot coverage and chassis structural integrity. The module installs directly into any empty slot of a standard ControlLogix chassis (1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17 series) without requiring tools.
FAQs
-
What is the 1756-N2?
+The Allen-Bradley 1756-N2 is a passive slot filler module (dummy cover) designed to protect vacant slots in a 1756 ControlLogix chassis. -
What does the 1756-N2 do?
+It protects vacant backplane slots from dust and contaminants, ensuring system integrity and optimal cooling airflow -
How many modules are included?
+The 1756-N2 package includes two single-slot blank fillers. -
How do I configure it in Logix 5000?
+You don't. It is a physical blank cover; no software configuration or backplane slot reservation is required.
