PRODUCT DESCRIPTION

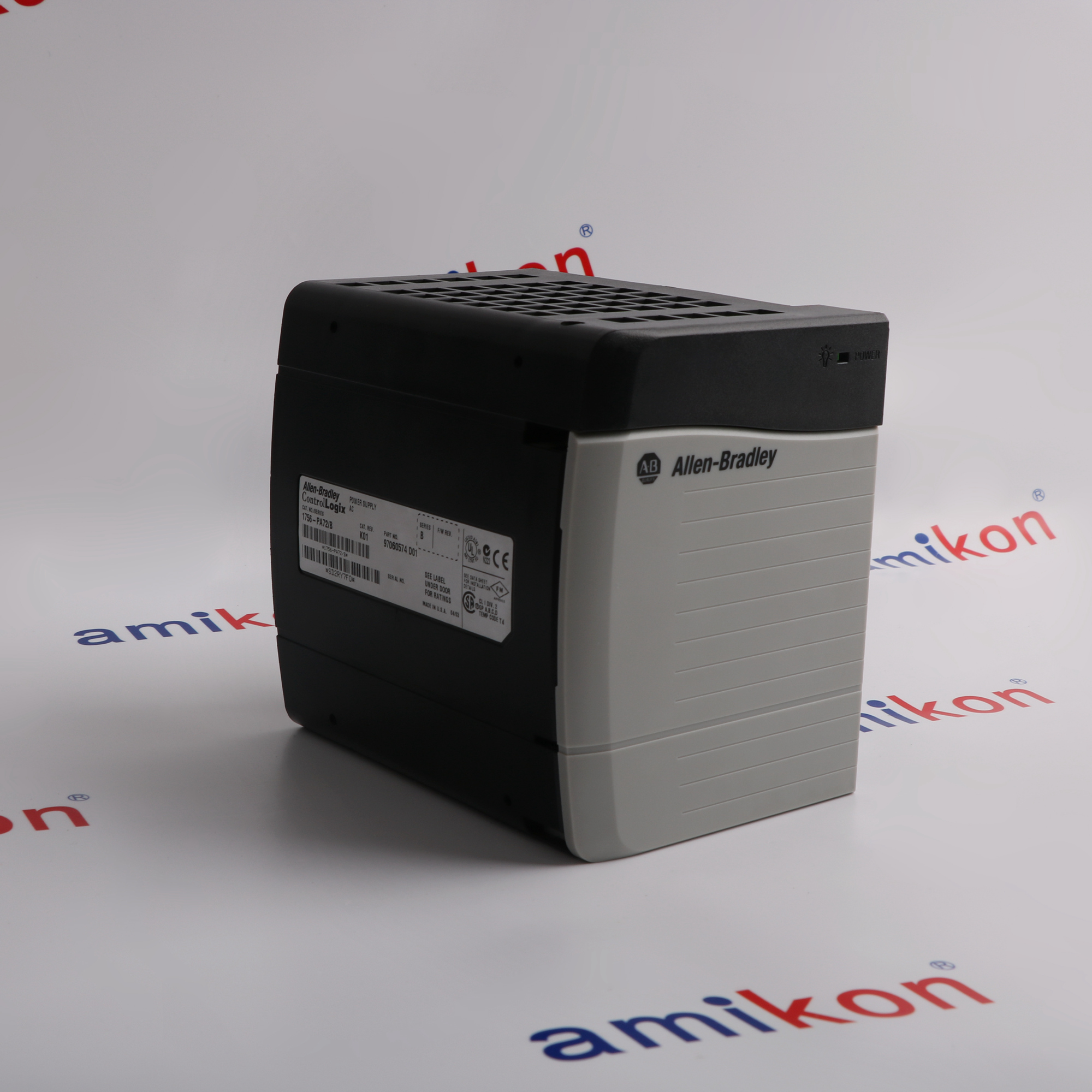

1756-PA72 AC Chassis Power Supply
Allen-Bradley 1756-PA72 is an ac chassis power supply in the ControlLogix 1756 range. It is used for powering compatible ControlLogix chassis electronics in compatible industrial automation systems.
The supply fits the left side of a compatible 1756 chassis and powers its 1.2 V, 3.3 V, 5.1 V and 24 V backplane circuits. Individual current ratings share a seventy-five-watt combined limit. The listed technical data describe the Series C execution, so chassis series, nameplate and power-loading requirements must be checked for the supplied unit.
The supply fits the left side of a compatible 1756 chassis and powers its 1.2 V, 3.3 V, 5.1 V and 24 V backplane circuits. Individual current ratings share a seventy-five-watt combined limit. The listed technical data describe the Series C execution, so chassis series, nameplate and power-loading requirements must be checked for the supplied unit.
BEFORE YOU BUY
Confirm the complete ac chassis power supply
ACTUAL APPLICATIONS
Application context for 1756-PA72
1756-PA72 is an ac chassis power supply for ControlLogix 1756. Its industrial scope includes chemical processing, metals production, power generation. Suitability depends on the accepted system, electrical interfaces and operating conditions.
-
01 · CHEMICAL PROCESSING
Chemical and Petrochemical Manufacturing and Production
Chemical Production Process AutomationPetrochemical Processing and Production -
02 · METALS PRODUCTION
Metal Production and Materials Processing
Steel Rolling Process ControlMetal Forming and Finishing -
03 · POWER GENERATION
Electric Power Generation and Energy Production
Electric Power Generation ControlIndustrial Cogeneration Process Automation
Technical specifications for 1756-PA72
-
Product Model1756-PA72
-
Product ParametersAC Chassis Power Supply
-
In stock9 units
-
ManufacturerAllen-Bradley
-
AC input voltage range85–265 V
-
Nominal mains input120 V or 240 V AC
-
Input frequency range47–63 Hz
-
Maximum input power100 W / 100 VA
-
Combined backplane output limit75 W
-
Maximum inrush20 A
-
Supply hold-up, Series C5 cycles at 85 V; 6 cycles at 120/200/240 V, 50/60 Hz
-
Backplane current at 1.2 V1.5 A
-
Backplane current at 3.3 V4 A
-
Backplane current at 5.1 V10 A
-
Backplane current at 24 V2.8 A
-
Continuous isolation voltage250 V, reinforced insulation
-
Isolation withstand test3500 V DC for 60 s
-
Conductor terminal torque0.565 N·m
-
Operating ambient0–60 ℃, documented Series C
View all additional
Alternative Names
1756-PA72
ControlLogix 1756 AC Chassis Power Supply
ControlLogix 75 W AC Backplane Supply
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 1756-PA72 ac chassis power supply
Integrate 1756-PA72 only in the documented ControlLogix 1756 configuration. Match the installed interfaces and the engineered application before selecting this ac chassis power supply.
The supply fits the left side of a compatible 1756 chassis and powers its 1.2 V, 3.3 V, 5.1 V and 24 V backplane circuits. Individual current ratings share a seventy-five-watt combined limit. The listed technical data describe the Series C execution, so chassis series, nameplate and power-loading requirements must be checked for the supplied unit.
