What is the Allen-Bradley 1783-ETAP2F?

The Allen-Bradley 1783-ETAP2F is an EtherNet/IP Tap module used to integrate standard devices into linear or Device Level Ring (DLR) network topologies. It features two fiber-optic ports and one copper RJ45 port, acting both as a network node and a media converter.

What is the port layout of the 1783-ETAP2F?

The 1783-ETAP2F features one copper RJ45 port (for connecting local devices) and two fiber optic ports (for connecting to ring/linear backbones).

What type of fiber does it use?

It supports 100BASE-FX multi-mode fiber with SC-style connectors.

Can 1783-ETAP2F act as a Ring Supervisor?

Yes, by using either the physical DIP switches on the module or I/O configuration in your Studio 5000 project.

Get Parts Quote

Name

Company *

Phone *

Email *

Address

City

State / Province / Region

Zipcode

Country

Quantity *

Part Number *

Manufacturer

Preferred Condition

Additional Information

Cancel

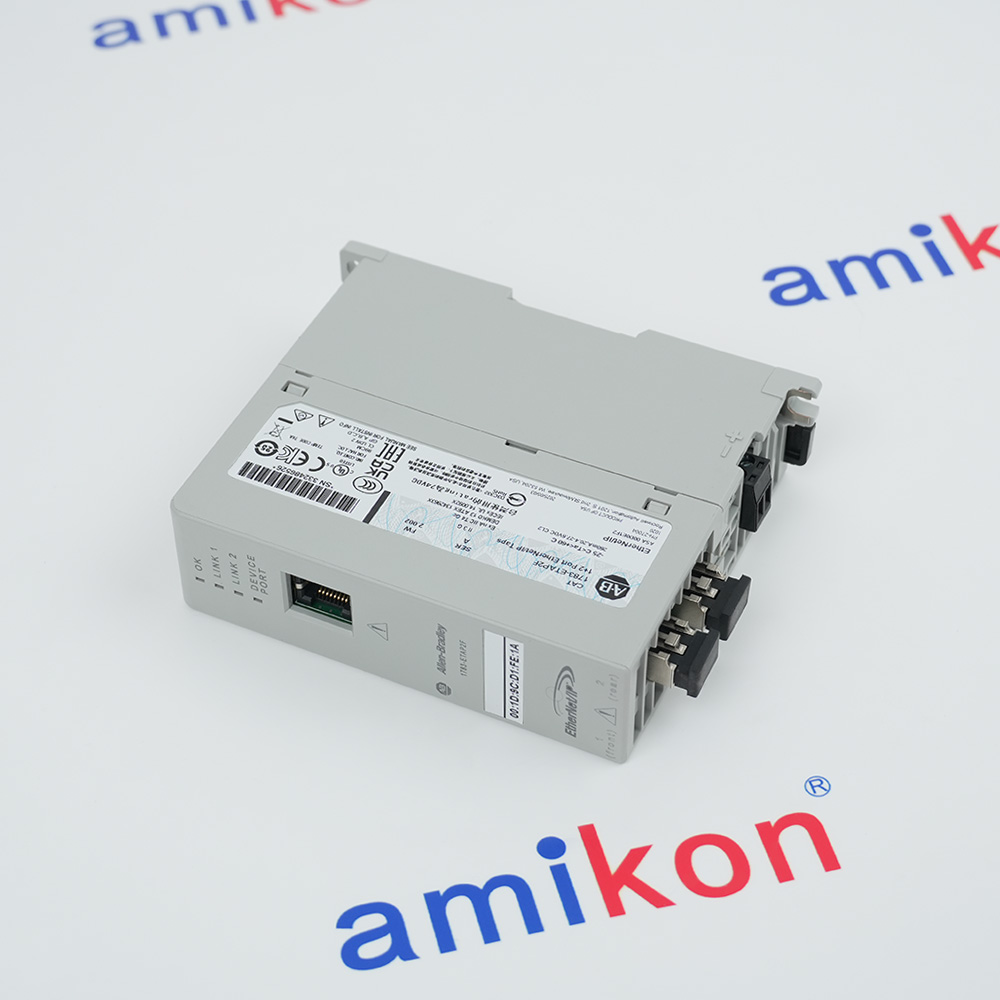

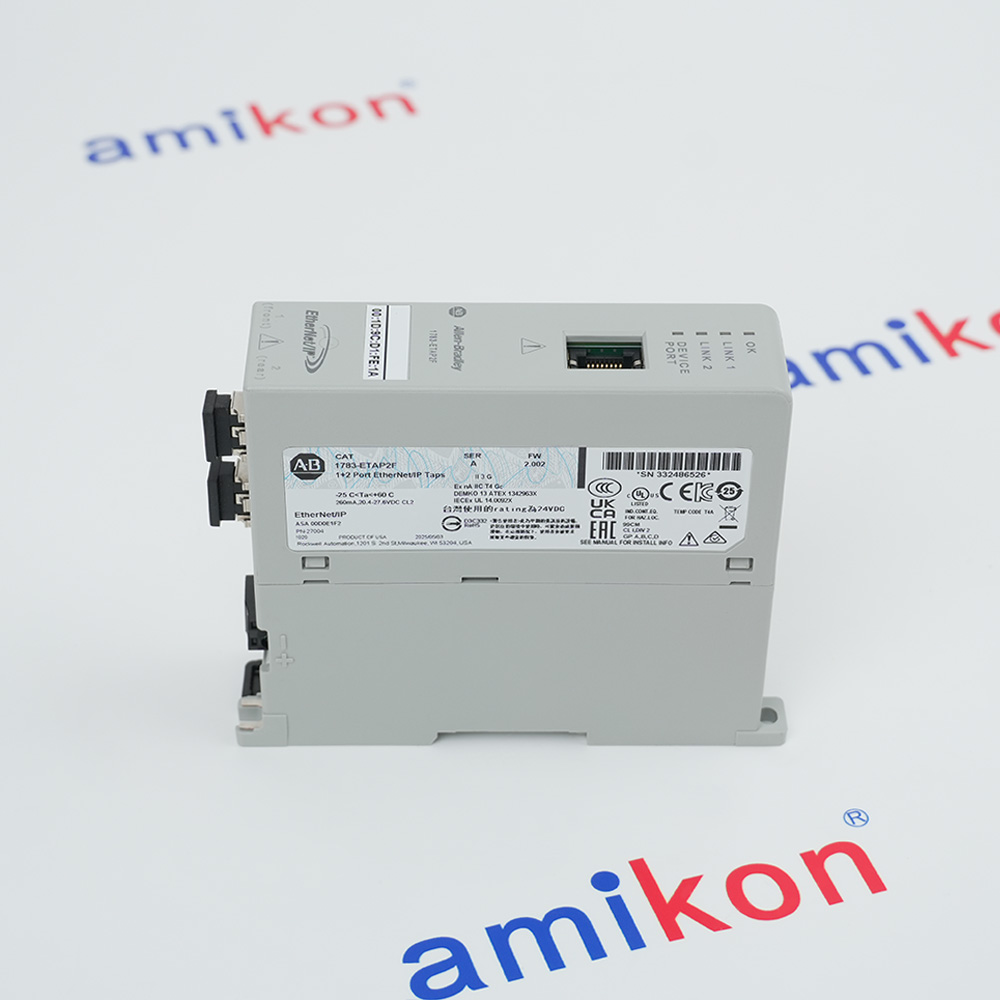

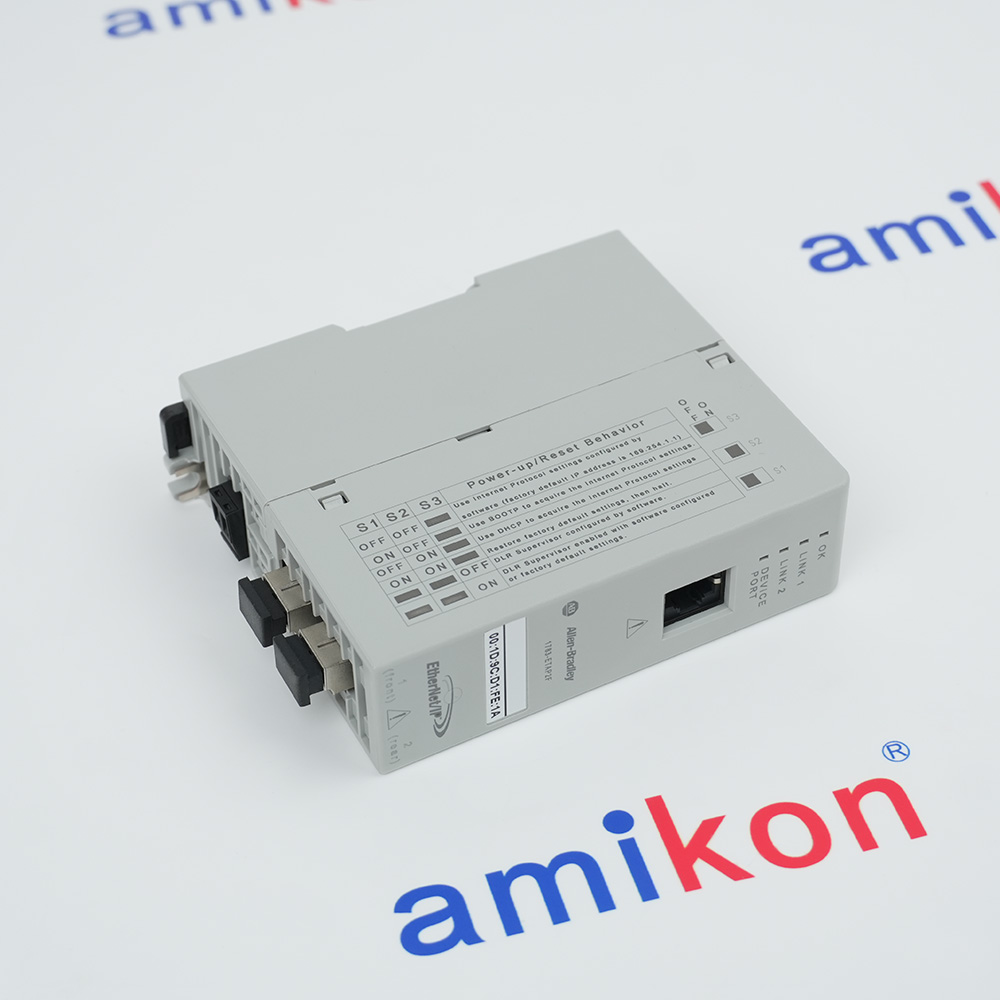

1783-ETAP2F

Name: 1783-ETAP2F
Brand: Allen-Bradley
SKU: 1783ETAP2F

Call us: +86-18020776786

Delivery time
Please indicate your delivery time

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Information

Product Describe

1783ETAP2F
STRATIX EMBEDDED SWITCH
ETHERNET/IP TAP
1+2 PORT
1 COPPER PORT
10/100 M
2 FIBER 100BASE FX PORTS
LC CONNECTOR
24 VDC

Technical specifications for 1783-ETAP2F

Product Model

1783-ETAP2F
Spare Model

1783ETAP2F
Product Parameters

Ethernet Tap
Tariff Code

8537101190
Country of origin

USA
Place of shipment

Xiamen, China
Estimated Shipping Size

3.5x10.5x13.7cm
Manufacturer

Allen-Bradley
Weight

0.2 kg
Transmission speed

10/100 Mbps
Fiber Optic Connector

LC Connector
No. Of Fiber Ports

Two (2)
Series

Stratix 5700
Tap type

Dual port fiber
Input voltage

24 Volts DC
Peak current consumption

260 milliamps
Peak power consumption

6.24 Watts

Factory New

These are new and current items that are procured from the manufacturer.
New No Package

These parts are new. They have not been used, but their original packaging is no longer available.
New In Opened Package

These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged.
New In Sealed Package

Parts are new. They have not been used and still have their original package seal intact.
New in Original Package

These parts are new. The packages were not originally sealed by their original manufacturer.

Warranty Period & Disclaimer

Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.

FAQs

What is the Allen-Bradley 1783-ETAP2F?+

The Allen-Bradley 1783-ETAP2F is an EtherNet/IP Tap module used to integrate standard devices into linear or Device Level Ring (DLR) network topologies. It features two fiber-optic ports and one copper RJ45 port, acting both as a network node and a media converter.
What is the port layout of the 1783-ETAP2F?+

The 1783-ETAP2F features one copper RJ45 port (for connecting local devices) and two fiber optic ports (for connecting to ring/linear backbones).
What type of fiber does it use?+

It supports 100BASE-FX multi-mode fiber with SC-style connectors.
Can 1783-ETAP2F act as a Ring Supervisor?+

Yes, by using either the physical DIP switches on the module or I/O configuration in your Studio 5000 project.

Get a quick price fo 1783-ETAP2F

*Quantity

*E-mail

Company

*Mobile

*Content

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Amikong please read our privacy policy.

Inquiry

Control system parts

Required delivery time

ask

Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions

Product

MORE INFORMATION

Overview Manuals Technical notes Product Applications Wiring and Connectivity

Features:

Stratix 5700
DIN Rail / Panel Mount
Device Level Ring (DLR) Connectivity
Fiber Optic Distance Capability

The Allen-Bradley 1783-ETAP2F is an Ethernet Tap used for industrial Ethernet I/P communication. This module has One (1) 10/100 Mbps, auto-negotiating copper port and Two (2) Fiber Optic interface that supports 100 Mbps in full duplex operation. This device support horizontal or vertical installation orientation using a standard DIN rail.

The single copper port of the 1783-ETAP2F is capable for 10/100 Mbps with auto-negotiating capability and supports operation in full or half duplex modes. The dual fiber optic ports of the 1783-ETAP2F is similarly capable of 10/100 Mbps communication speed with support for longer communication distance that exhibits increased susceptibility to noise and disturbances of electrical nature.

The 1783-ETAP2F Allen-Bradley Ethernet Tap may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).

Allen-Bradley 1783-ETAP2F Ethernet Tap Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

The 1783-ETAP2F does not install to any backplane nor does not draw current from it. It is supplied externally by a power supply with input voltage range of 20.4…27.6V DC with a nominal input voltage of 24VDC. This Ethernet device can be installed using a DIN rail mount or directly mounted to an enclosure plate. It is capable of horizontal and vertical mounting, providing flexibility of installation. This device occupies minimum panel space however, specific installation clearance must be followed to ensure proper operation and quality of connection. These clearances include 7.62 cm (3 in.) of space on the bottom of the tap and 2.54 cm (1 in.) of space on the remaining sides of the tap. For Fiber cable entry, at least 5.08 cm or 2 inches is recommended to comply with the necessary bending radius of the Fiber Optic cable.

Water & Wastewater Treatment:Fiber ports enable kilometer-long RTU/pump station links
Oil & Gas Refineries:Class I Div 2: fiber prevents sparks in hazardous areas
Automotive Assembly Lines:DLR ring: single cable failure won't halt production
Marine & Shipbuilding:Certified for vibration/humidity: engine room & bridge networks
Power Plants & Substations:EMI-immune fiber for power monitors & relays in high-voltage areas

This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.

Power Supply: Connect a 24V DC power source using the provided terminal block. Use 22–12 AWG solid or stranded copper wire rated for at least 75°C.Grounding: Use a minimum 4.0 mm² (12 AWG) stranded copper wire for the ground connection.Fiber Ports: Connect duplex LC connectors to the fiber ports on the bottom of the tap. These ports support 100Base-FX multimode fiber (62.5/125 μm or 50/125 μm).Device Port: Connect your single-port Ethernet device to the front-facing RJ45 copper port.
