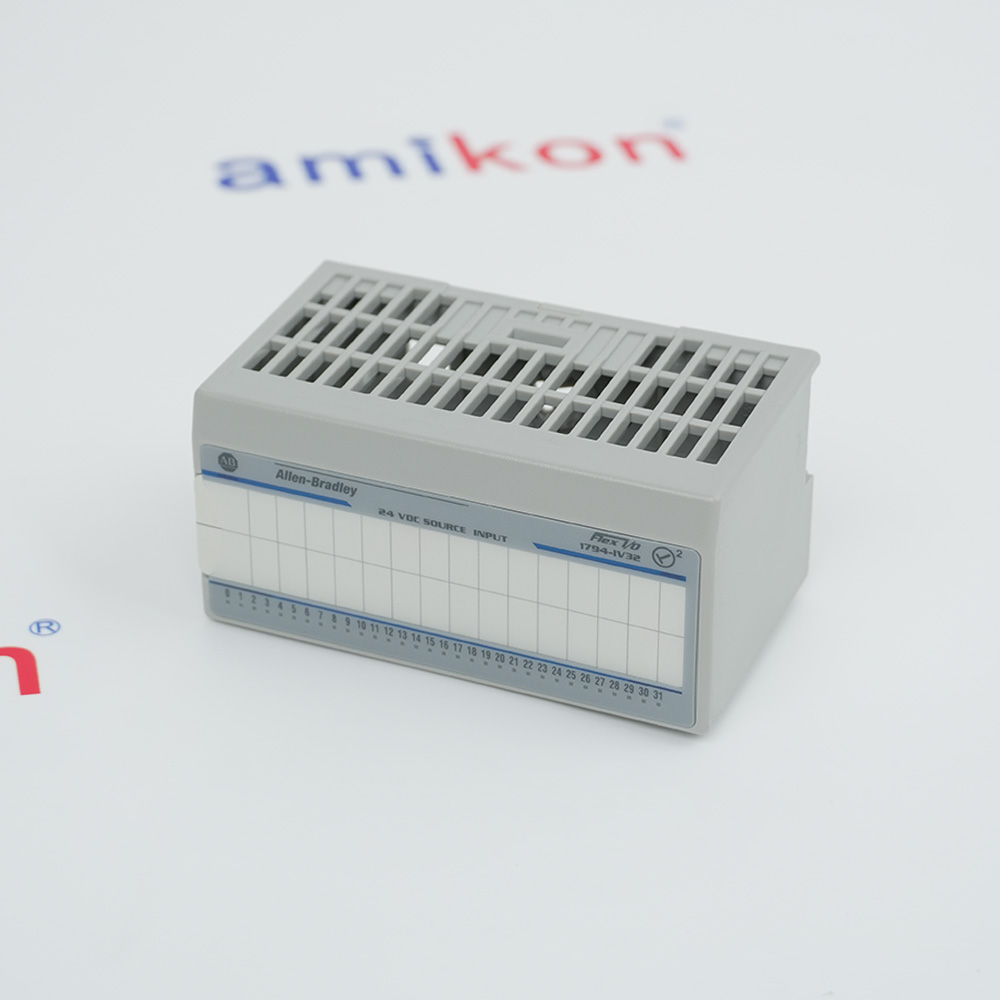

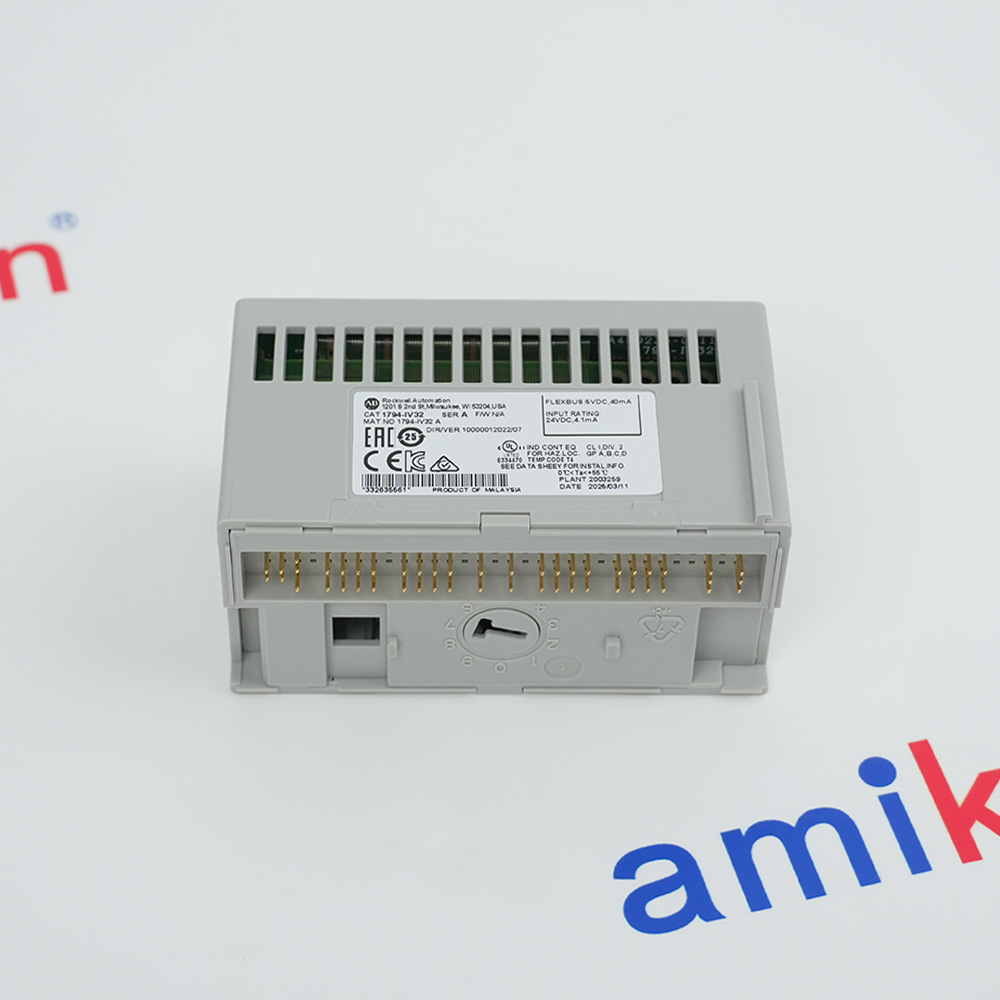

Technical specifications for 1794-IV32
-
Product Model1794-IV32
-
Product ParametersDigital Input Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size9.3x5.4x4.8cm
-
ManufacturerAllen-Bradley
-
Weight0.1 kg
-
Number of inputs32, current, sourcing
-
On-state voltage, min19.2V DC
-
On-state voltage, nom24V DC
-
On-state voltage, max31.2V DC
-
On-state current, min2.0 mA
-
On-state current, nom4.1 mA @ 24V DC
-
On-state current, max6.0 mA
-
Off-state voltage, max5V DC
-
Off-state current, max1.5 mA
-
Input impedance6 kΩ
-
Flexbus current40 mA @ 5V DC
-
Power dissipation, max6 W @ 31.2V DC
-
Thermal dissipation, max20.5 BTU/hr @ 31.2V DC
-
External DC power supply voltage, nom24V DC
Description
1794IV32
INPUT MODULE
FLEX I/O
DISCRETE
DC
32 POINTS 24VDC SOURCING INPUT
OPEN STYLE
DIN MOUNT
IP20
INPUT MODULE
FLEX I/O
DISCRETE
DC
32 POINTS 24VDC SOURCING INPUT
OPEN STYLE
DIN MOUNT
IP20
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Comparison with Related Models
Features:
- High-Density 32-Point Configuration
- Current Sourcing Design
- Removal and Insertion Under Power (RIUP)
- Wide Operating Voltage Support
- Individual Channel Status LEDs
The 1794-IV32 Allen Bradley INPUT MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen Bradley 1794-IV32 INPUT MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Allen-Bradley 1794-IV32 is part of the Flex I/O platform, typically used in implementing distributed I/O topology. This module is specifically a high-density discrete input module that features Thirty-Two (32) current sourcing input channels. This module is designed to accept nominal input signal voltage of 24 VDC, enabling integration of discrete input signals such as switches, auxiliary contacts, sensors, and similarly binary operating devices. The 1794-IV32 is installed along with a Flex I/O assembly with a Flex I/O communication adapter as the header module. The data within the 1794-IV32’s local memory is transferred via the FlexI/O bus which is then forwarded to the host controller through a communication highway. The 1794-IV32 has a FlexBus current draw of 40 mA at 5 VDC. It has a minimum On-state voltage of 19.2 VDC while the maximum On-state voltage is 31.2 VDC. Additionally, the minimum On-state current is 2.0 mA while the maximum is 6.0 mA. Configurable filter times are available to this module specifically, 0.25 ms; 0.5 ms; 1 ms; 2 ms; 4 ms; 8 ms; 16 ms, and 32 ms. Filter times can be used to eliminate false activation due to debouncing or noises. The default filter time is 0.25 ms.
- Automotive Assembly Stations:Pneumatic valves, clamping cylinders & status lights
- Packaging and Bottling Lines:High-speed conveyors, sorting gates & labeling heads
- Material Handling Systems:Warehouse: palletizers, AS/RS & complex conveyors
- Textile and Paper Processing:Precise timing for actuators/tension in textile/paper
- Machine Tools (CNC & Metalworking):Coolant pumps, interlocks & turret positioning indicators
- HVAC Control Skids:Dampers, fans & status indicators for industrial HVAC
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The Allen-Bradley 1794-IV32 and 1794-OV32 are high-density 32-point digital I/O modules within the FLEX I/O platform, designed for distributed I/O applications, particularly in tight spaces requiring high-density mapping. They are typically used with Allen-Bradley ControlLogix or CompactLogix controllers via adapters like the 1794-AENT/AENTR.
FLEX I/O XT (1794-IV32XT / 1794-OV32XT): These are the "Extreme Environment" counterparts. They offer the same functionality as the 1794-IV32/OV32 but are built for harsh conditions (higher/lower temperatures, conformal coating).
FAQs
-
What is 1794-IV32?
+The Allen-Bradley 1794-IV32 is a 32-point, 24V DC sourcing input module, part of the FLEX I/O platform. -
What is the difference between sourcing and sinking?
+The 1794-IV32 is a sourcing input module, meaning it supplies voltage to the input device, which then connects to common. If you need to sink current, you would use a different module like the 1794-IB32 -
What status indicators are available?
+The module features 32 yellow status LEDs located on the front panel, providing a dedicated indicator for each input channel to show its ON/OFF state -
What communication networks can it use?
+The 1794-IV32 communicates with a controller via a FLEX I/O communication adapter. Supported networks include EtherNet/IP, ControlNet, and DeviceNet. -
What is the operating voltage range?
+While nominally 24V DC, sourcing modules in this series typically have an ON-state voltage range of approximately 19.2V to 31.2V DC.
