Technical specifications for 1794-PS13
-
Product Model1794-PS13
-
Spare Model1794-PS13/A
-
Product ParametersPower Supply - 3A
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size6.7x8.6x6.8cm
-
ManufacturerAllen-Bradley
-
Weight0.5 kg
-
Input Voltage range85-264VAC
-
Input Frequency range47-63 Hz
-
Maximum input current0.7 A
-
Output power31.2 Watts
-
Overcurrent protection1.4 A
-
Power dissipation, max7 W
Description
POWER SUPPLY
FLEX I/O
INPUT: 120/230 VAC / 0.62/0.42 AMP (50/60 HZ)
OUTPUT: 24 VDC / 1.3 AMP
31.2 W
DIN RAIL MOUNTABLE
FLEX I/O
INPUT: 120/230 VAC / 0.62/0.42 AMP (50/60 HZ)
OUTPUT: 24 VDC / 1.3 AMP
31.2 W
DIN RAIL MOUNTABLE
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Key Installation Steps
Features:
- High-Amperage Output Power
- Wide AC Input Range
- Space-Saving DIN Rail Design
- Integrated Over-Voltage Protection
- Status Diagnostic Indicator
The 1794-PS13 Allen-Bradley POWER SUPPLY may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1794-PS13 POWER SUPPLY Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

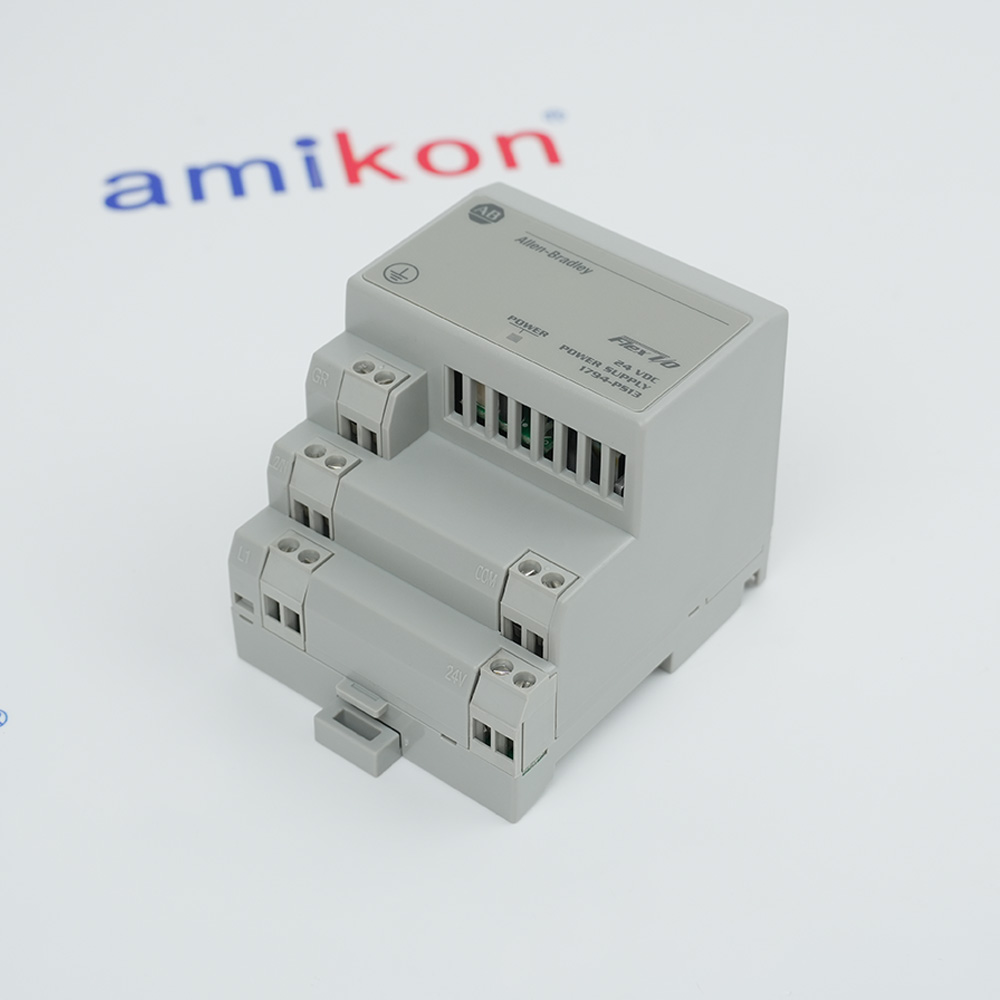

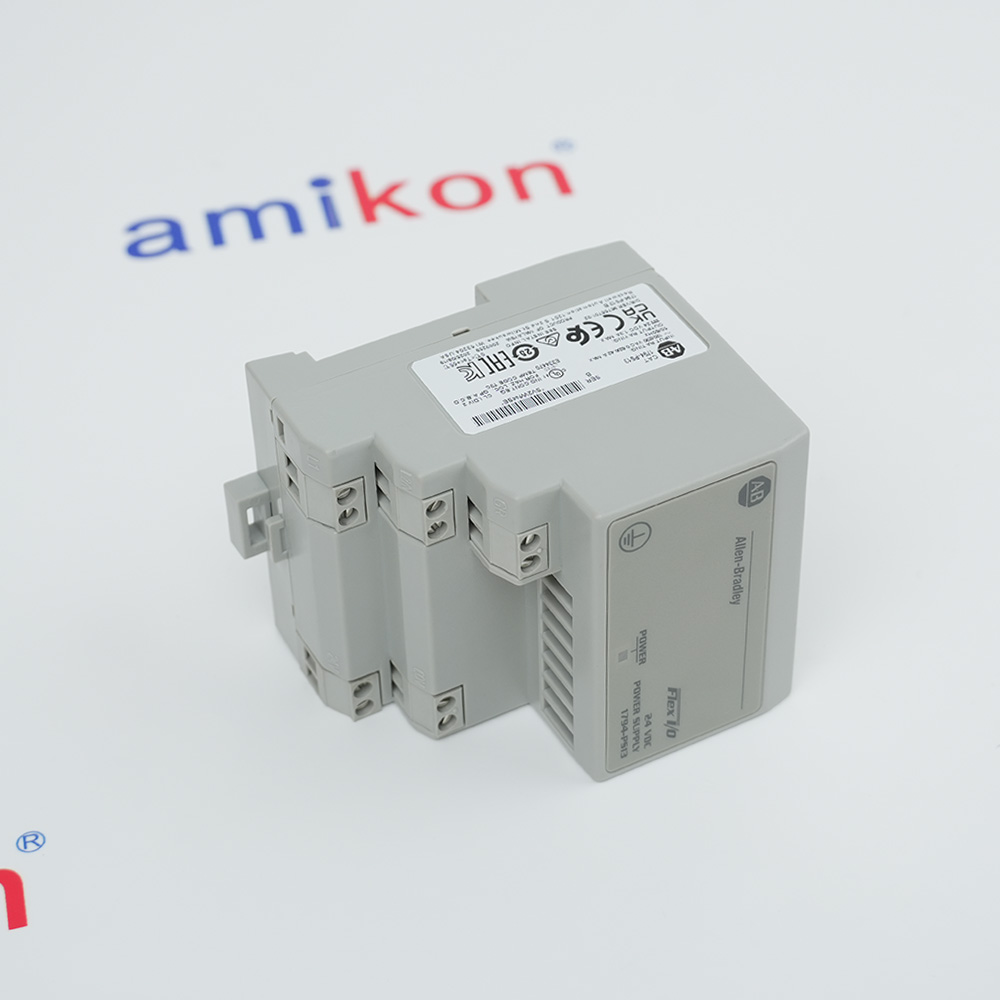

The Allen-Bradley 1794-PS13 is a Flex I/O power supply. This power supply has a nominal supply voltage of 120V AC, 50/60 Hz; 0.6 A max. and 230V AC, 50/60 Hz; 0.42 A max with a voltage range of 85-264VAC, 47-63 Hz. This power supply module is used to provide power to the Flex I/O modules and adapters. It has a maximum input current of 0.7 Amperes and able to withstand an inrush current of 40 A typical, 1 AC cycle @ Vin 265V AC, 55 °C.
- Automotive Assembly Stations:Pneumatic valves, clamping cylinders & status lights
- Packaging and Bottling Lines:High-speed conveyors, sorting gates & labeling heads
- Material Handling Systems:Warehouse: palletizers, AS/RS & complex conveyors
- Textile and Paper Processing:Precise timing for actuators/tension in textile/paper
- Machine Tools (CNC & Metalworking):Coolant pumps, interlocks & turret positioning indicators
- HVAC Control Skids:Dampers, fans & status indicators for industrial HVAC
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: Hook the module onto a 35mm DIN rail and rotate it down until the locking tab snaps into place.
Wiring AC Input (Terminals A, B, C): Connect 120/230V AC to the input terminals. The module supports 85–264V AC.
Wiring DC Output (Terminals G, H): Connect the 24V DC output (Terminal G: +24V DC, Terminal H: 24V DC common) to the first adapter in your FLEX I/O system.
Daisy-Chaining: Use terminals D, E, F to daisy-chain AC power to additional power supply modules.
FAQs
-
What is the 1794-PS13 power supply?
+The 1794-PS13 is a 24V DC field power supply module within the Allen-Bradley FLEX I/O product family. It provides power to input/output devices connected to the terminal bases. -
How many adapter modules can the 1794-PS13 power?
+It provides sufficient 24V DC power to operate up to 4 adapter modules, though it is not designed to power an entire large FLEX I/O system. -
What is the output power and current?
+It has a nominal output of 24V DC, a maximum output current of 1.3 A, and an output power of 31.2 Watts. -
What is the input voltage range of the 1794-PS13?
+This module accepts a wide input voltage range of 85–264V AC, 47–63 Hz, suitable for global applications.
