Technical specifications for 1794-TB3
-
Product Model1794-TB3
-
Spare Model1794TB3 1794-TB3/A
-
Product ParametersFlex Terminal Base
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size9.3x9.5x5.8cm
-
ManufacturerAllen-Bradley
-
Weight0.2 kg
-
Terminal Type3-Wire Cage Clamp
-
I/O Connections16 I/O terminals
-
Common Connections18 Common (COM) terminals
-
Power Connections18 +V terminals
-
Mounting Method35 mm DIN Rail
-
Maximum Current Capacity10 A
-
Operating Temperature-20°C to +70°C (-4°F to +158°F)
-
Storage Temperature-40°C to +85°C
Description

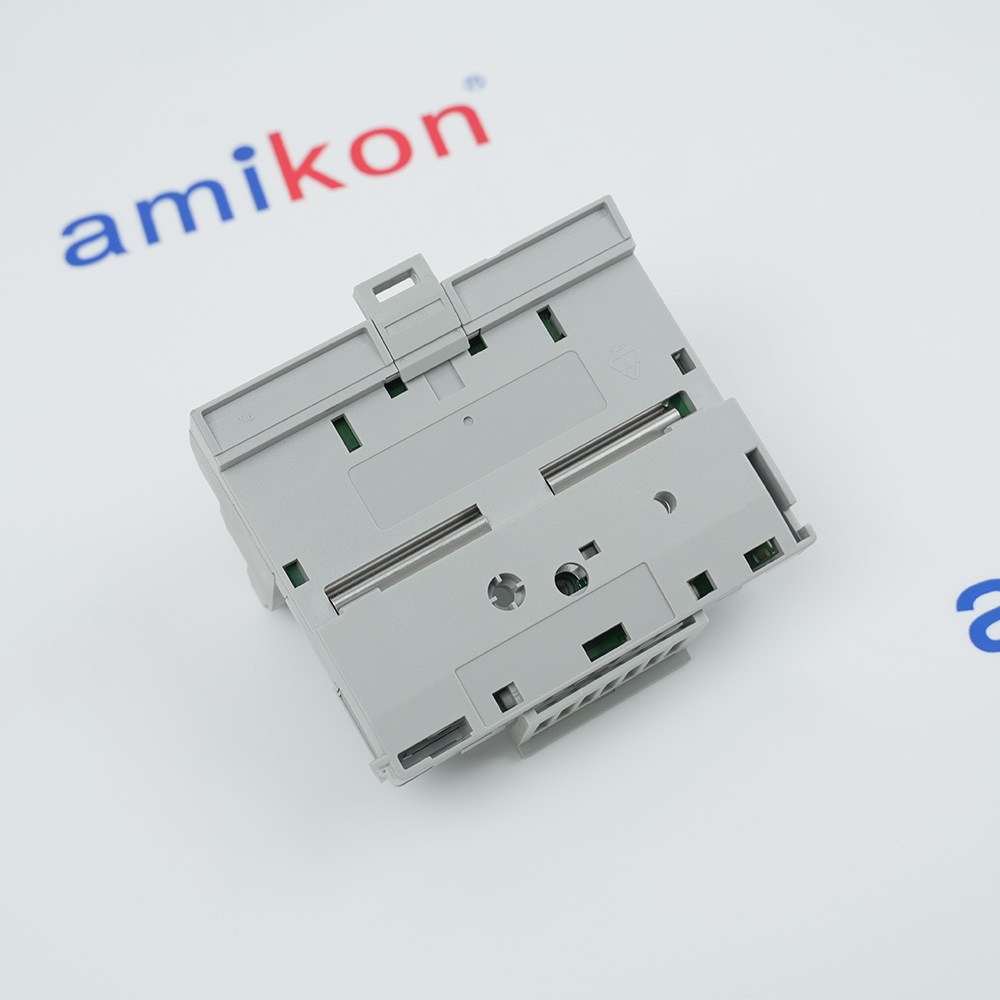

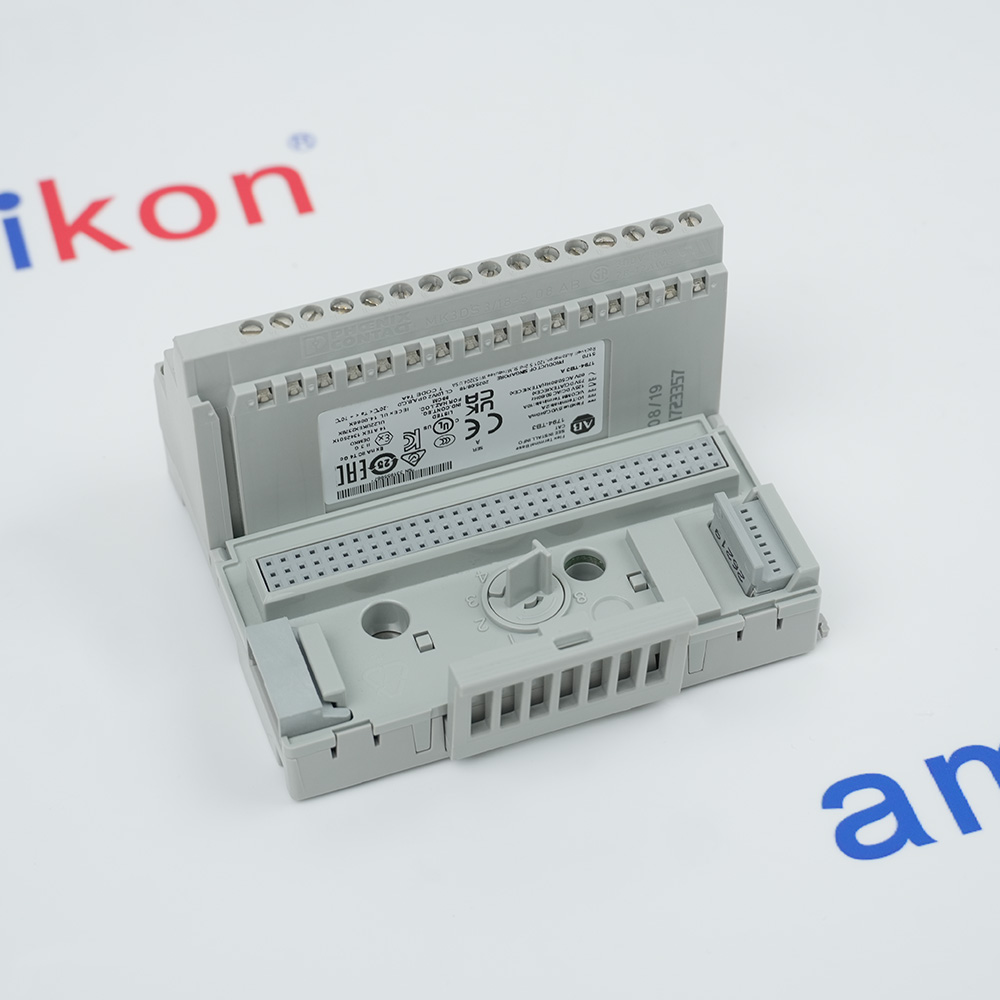

The Allen-Bradley 1794-TB3 FLEX I/O Terminal Base Unit is a field wiring base used with the Rockwell Automation FLEX I/O platform. It combines three essential functions within a single component: mechanical support for the I/O module, electrical termination for field wiring, and communication through the integrated FLEXBus backplane.
The terminal base features 16 I/O terminals, 18 common terminals, and 18 power terminals, making it particularly suitable for 3-wire digital input devices such as proximity sensors and photoelectric sensors. Its cage-clamp wiring system allows secure connection of field conductors while simplifying installation and maintenance procedures.
The terminal base features 16 I/O terminals, 18 common terminals, and 18 power terminals, making it particularly suitable for 3-wire digital input devices such as proximity sensors and photoelectric sensors. Its cage-clamp wiring system allows secure connection of field conductors while simplifying installation and maintenance procedures.
Revisions
Revision Part #
Also known as
Alternative Names
1794-T83
179ATB3
I79AT83
1794T83
I794-TB3
1794TB3
I794TB3
179A-TB3
I79A-T83
Information
Overview
Manuals
Application Notes
Product Applications
Terminal Base DIN Rail Mounting
Features:
- 3-Wire Sensor Wiring Configuration
- Integrated FLEXBus Connection
- Module Replacement Without Rewiring
- Flexible System Expansion
The Allen Bradley 1794-TB3 serves as a robust terminal base unit in industrial settings. This unit supports a flexible mounting solution via DIN rail installation and incorporates a cage-clamp mechanism for maintaining secure connections. It is designed with terminal screw torque specifications ranging from 0.56 to 0.79 Nm.
The 1794-TB3 Allen-Bradley FLEX I/O Terminal Base Units may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1794-TB3 FLEX I/O Terminal Base Units Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The top terminal strip (positions 0–15) is dedicated to I/O signal wiring. The middle strip (positions 16–33) provides common (−V) connections, with B-16 serving as the daisy-chain supply in terminal and B-33 as the supply out terminal. The bottom strip (positions 34–51) provides positive voltage (+V) connections, with C-34 as the daisy-chain supply in terminal and C-51 as the supply out terminal. This daisy-chain capability allows multiple terminal bases to be connected in series for efficient power distribution without external terminal blocks.
The 1794-TB3 uses screw-clamp (cage clamp) termination technology, accepting solid or stranded copper conductors from 0.34 to 3.3 mm² (22–12 AWG) with maximum insulation thickness of 1.2 mm. Terminal screw torque is specified at 0.56–0.79 Nm. The open-style IP20 enclosure is designed for installation inside control cabinets.
- Packaging/Conveyor: Manages sensors, switches, and actuators for automated sorting and high-speed packaging
- Water/Wastewater: Supports telemetry panels with digital connections for flow, pressure, and valve monitoring
- Automotive: Deployed in robotics/assembly networks requiring organized, high-density wiring
- Process/Machine Control: Used for speed calculation, flow monitoring, and quantity counting in DCS
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Prepare Mating Pins: Check that the 16 male Flexbus pins on the adjacent left module or adapter are perfectly straight.
Retract Connector: Ensure the female Flexbus connector on the 1794-TB32 is fully shifted to the left.
Hook onto Rail: Tilt the base slightly and hook its top rear lip onto the 35mm DIN rail.
Lock and Snap: Rotate the module downward until the locking tab snaps tightly onto the bottom of the rail.
Technical notes
Supported FLEXBus characteristics include a voltage rating of 5V DC, along with a maximum current of 640 mA. The V/COM terminals are rated for a supply voltage of 125V AC or DC and can operate effectively at frequencies of 50 or 60 Hertz, accommodating a wide range of applications. The current capacity for these V/COM terminals reaches up to 10 Amps.
FAQs
-
What type of wiring connection does the 1794-TB3 use?
+It utilizes a 3-wire screw clamp terminal connection style. -
How many terminals does the base have?
+The base features a total of 52 terminals (16 I/O terminals, 18 voltage common connections, and 18 voltage + connections). -
What is the current and voltage rating?
+The terminal base has a maximum current capacity of 10 Amps and supports voltages up to 132V AC. -
Can I daisy-chain power between multiple 1794-TB3 bases?
+Yes, terminal base daisy-chaining is supported, provided the total current passing through does not exceed the 10 A limit.
