PRODUCT DESCRIPTION

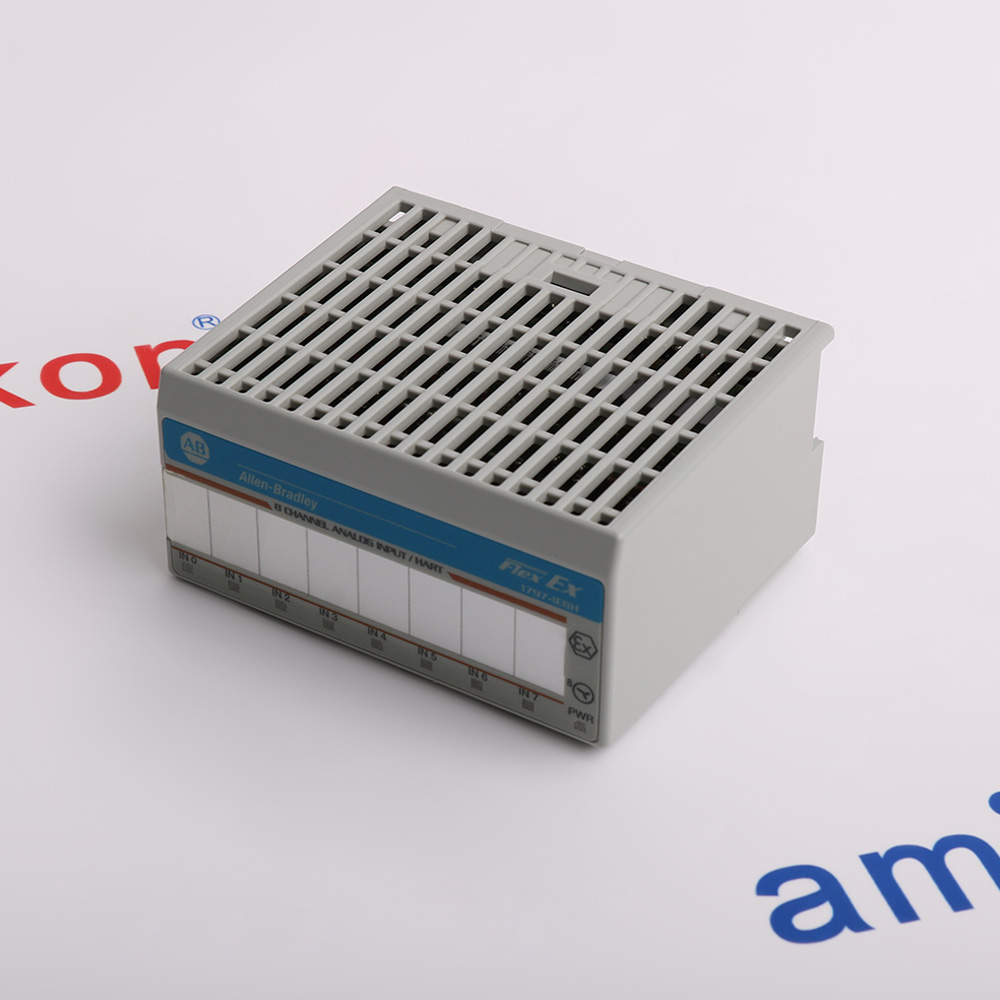

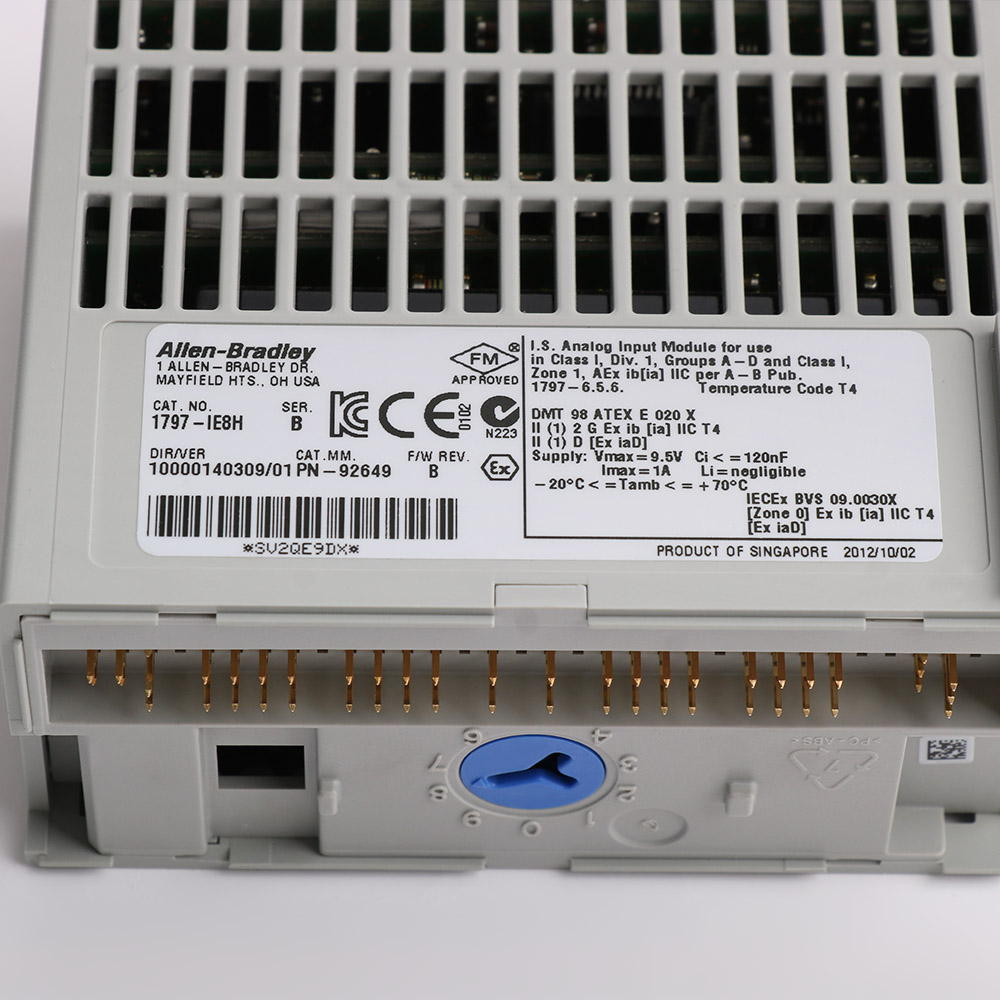

1797-IE8H Eight Channel HART Analog Input Module
Allen-Bradley 1797-IE8H is an eight-channel analog input module with HART support for the FLEX Ex intrinsically safe I/O system. It connects compatible current-loop instrumentation to the distributed control platform in hazardous-area process applications.
The module provides eight single-ended inputs with 16-bit conversion and configurable data formats. The manufacturer identifies non-isolated input channels and separate galvanic isolation paths to the power supply and Flexbus. A compatible 1797-TB3 or 1797-TB3S base and the complete entity-parameter assessment are required.
The module provides eight single-ended inputs with 16-bit conversion and configurable data formats. The manufacturer identifies non-isolated input channels and separate galvanic isolation paths to the power supply and Flexbus. A compatible 1797-TB3 or 1797-TB3S base and the complete entity-parameter assessment are required.
BEFORE YOU BUY
Confirm the complete eight channel hart analog input module
ACTUAL APPLICATIONS
Application context for 1797-IE8H
1797-IE8H brings analog measurements and HART instrument data into compatible FLEX Ex systems. Its process context includes chemical manufacturing, oil and gas processing, and pharmaceuticals. Terminal-base selection, configured data format and intrinsic-safety limits must match the field instruments.
-
01 · CHEMICAL PROCESSING
Chemical Production and Process Manufacturing
Industrial Chemical ProductionPetrochemical Production and Processing -
02 · OIL & GAS
Oil Refining and Natural Gas Processing
Petroleum Refining and ProcessingNatural Gas Processing -
03 · PHARMACEUTICALS
Pharmaceutical and Biopharmaceutical Production
Pharmaceutical Ingredient ManufacturingBiopharmaceutical Process Production
Technical specifications for 1797-IE8H
-
Product Model1797-IE8H
-
Product ParametersEight Channel HART Analog Input Module
-
In stock8 units
-
ManufacturerAllen-Bradley
-
Analog input count8 single-ended, non-isolated channels
-
Conversion resolution16 bits
-
Accuracy at 20 ℃0.1% of signal range
-
Temperature drift0.05% of signal range per ℃
-
Step response to 99% full scale80 ms
-
Field-side power consumption7.1 W
-
Power dissipation3.9 W
-
HART communicationSupported
-
Module key switch position8
-
Compatible terminal bases1797-TB3 / 1797-TB3S
-
Operating ambient temperature-20 to +70 ℃
-
Storage ambient temperature-40 to +85 ℃
-
Relative humidity5 to 95%, non-condensing
-
Shock resistance15 g peak, 11 +1 ms pulse
-
Vibration resistance2 g at 10 to 500 Hz
View all additional
Alternative Names
1797-IE8H
FLEX Ex Eight Channel HART Analog Input Module
1797 intrinsically safe HART analog input
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 1797-IE8H eight channel hart analog input module
1797-IE8H operates with a compatible FLEX Ex adapter and 1797-TB3 or TB3S terminal base. Set the documented key position 8 and assign its eight inputs using the module-specific wiring map.
Configure the data format, filter selection and HART settings required by the controller and field instruments. Budget 7.1 W field-side power and apply the documented intrinsic-safety limits.
Verify input scaling, diagnostic behavior and HART communication on each connected channel. Confirm the non-isolated input arrangement and the full installation safety assessment.
Features:
- Eight single-ended analog inputs with HART support
- 16-bit conversion and configurable data formats
- 7.1 W field-side power budget
The 1797-IE8H eight channel hart analog input module requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify 1797-IE8H eight channel hart analog input module
Match 1797-IE8H, its hardware series and the installed base before exchange. Plain 1797-IE8 and noise-filter variants have different capabilities.
Save the input formats, filter selections, HART master settings and channel wiring. Preserve key position 8 and the certification information used in the system assessment.
After replacement, compare all eight input readings and test the configured diagnostic response. Check field-instrument HART data and controller mapping before releasing the process.
Features:
- 1797-IE8H hardware series and terminal-base identity
- Key position 8 and preserved HART/filter settings
- Eight-channel scaling and diagnostic recovery
The 1797-IE8H eight channel hart analog input module requires replacement verification against the complete installed configuration and current manufacturer documentation.
