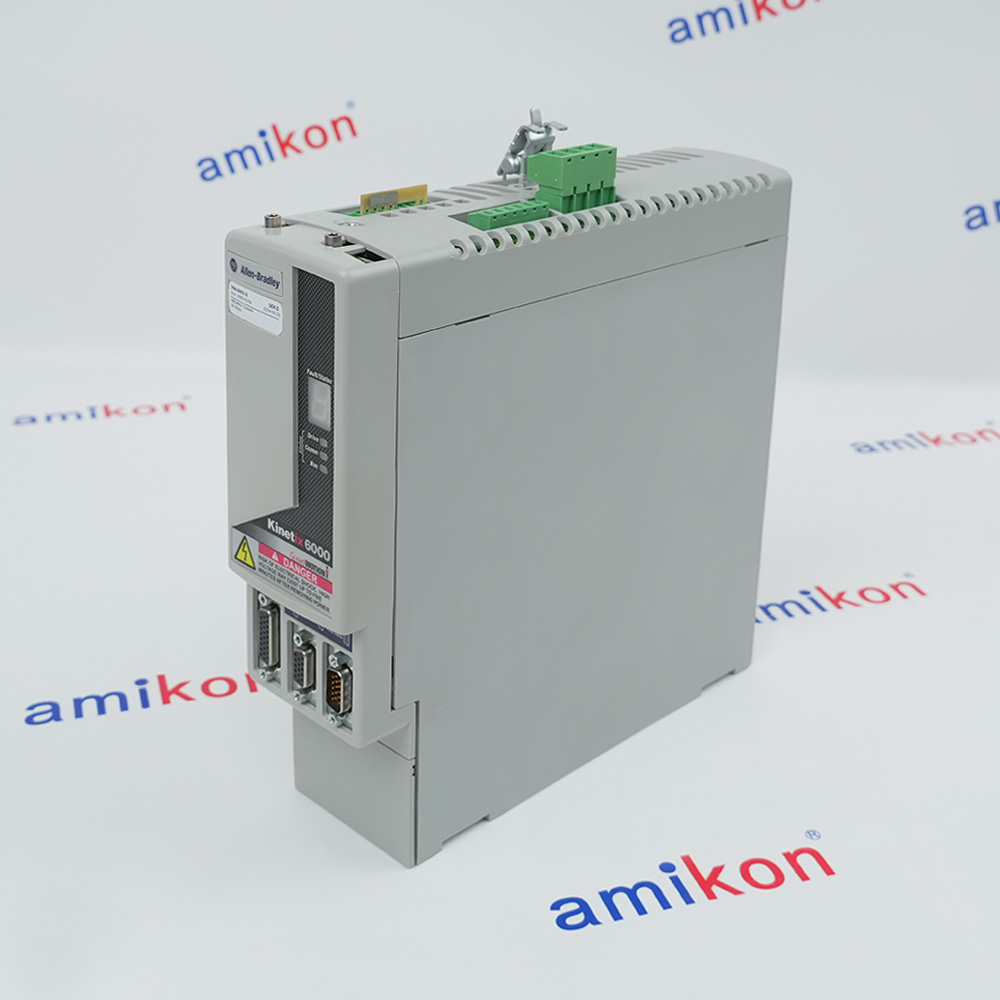

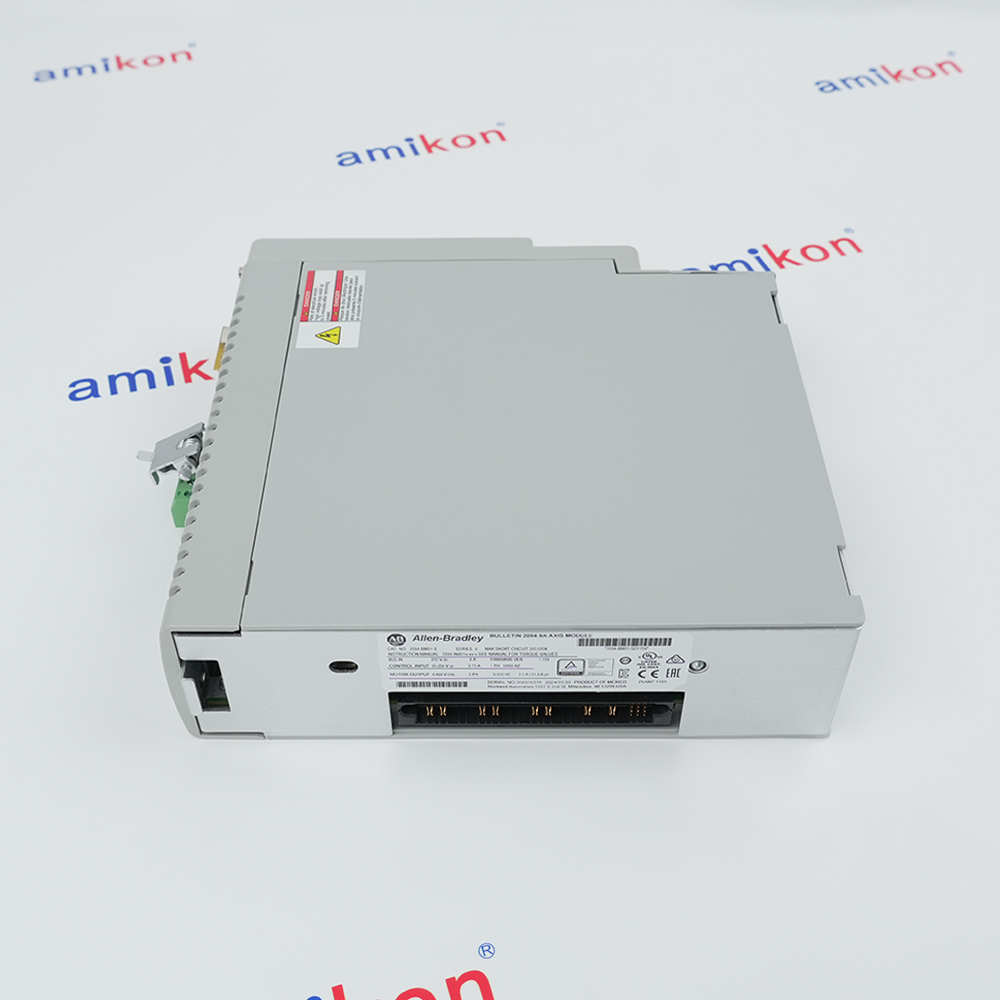

Technical specifications for 2094-BM01-S
-
Product Model2094-BM01-S
-
Spare Model2094BM01S
-
Product ParametersKINETIX 6000 SERVO AM 480V 8.6A INV
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size7x28.5x25.5cm
-
ManufacturerAllen-Bradley
-
Weight3.14 kg
-
Continuous Output Current6.1 A
-
Peak Current8.6 A
-
Continuous power out (nom)3.9 kW
-
Voltage Class400V
-
Power Dissipation57-126 Watts
-
Nom Drive Voltage360-480 Volts (3 Phase)
-
Internal Shunt continuous power50W
-
Internal shunt peak power5.6 kW
Description
The 2094-BM01-S is a Kinetix 6000 servo axis module from Allen-Bradley, designed as a 480V 8.6A inverter for multi-axis servo drive applications. The 2094-BM01-S operates at 400/460V with a 9A inverter rating and includes Safe Torque Off functionality, making it suitable for applications requiring safety-rated stop capabilities.
The 2094-BM01-S integrates seamlessly into the Logix platform for multiaxis integrated motion control. By embedding motion control functions in RSLogix 5000 programming and in the Logix controller, the 2094-BM01-S reduces the time and money involved in machine building, implementation and maintenance, providing a streamlined development experience for automation engineers.
The 2094-BM01-S integrates seamlessly into the Logix platform for multiaxis integrated motion control. By embedding motion control functions in RSLogix 5000 programming and in the Logix controller, the 2094-BM01-S reduces the time and money involved in machine building, implementation and maintenance, providing a streamlined development experience for automation engineers.
Alternative Names
2094BM01S
2094-BM0I-S
2O94-BMO1-S
2O94-BMOI-S
2094 BM01 S
2094 BM0I S
2O94 BMO1 S
Information
Overview
Manuals
Application Notes
Product Applications
Physical Mounting
Features:
- 480V 8.6A Inverter Module
- Safe Torque Off (STO) functionality
- Seamless Logix platform integration
- 400V-class servo drive compatibility
- Simplified machine building and maintenances
Rated for 8.6 A continuous output current, the 2094-BM01-S delivers precise control of servo motors used in positioning, speed regulation, synchronization, indexing, and coordinated motion applications. The module is engineered for demanding manufacturing environments where accurate motion performance and system reliability are required.
The drive utilizes advanced digital servo control algorithms to provide fast response times, smooth motor operation, and accurate position control. It supports coordinated multi-axis motion systems commonly used in packaging machinery, material handling equipment, converting lines, assembly systems, and automated production equipment.
The 2094-BM01-S Allen-Bradley Kinetix 6000 servo drive axis module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 2094-BM01-S Kinetix 6000 servo drive axis module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The module communicates through the SERCOS fiber-optic network, enabling deterministic motion control and high-speed synchronization between multiple axes and controllers. Integration with ControlLogix and CompactLogix motion controllers allows centralized programming and diagnostics through Rockwell Automation software platforms.
The 2094-BM01-S includes Safe Torque-Off (STO) functionality, providing a safety mechanism that removes motor torque without disconnecting power from the drive system. This feature helps support machine safety requirements while minimizing downtime.
- Packaging Machinery:Multi-axis forming/filling/sealing
- Material Handling:Precise indexing, sorting & conveyor routing
- Automotive Assembly:Robots & tightening/joining stations
- Converting and Printing:Synchronized web, winding & slitting
- General Factory Automation:RSLogix/Studio 5000 coordinated motion
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting Order: The IAM must be installed in the leftmost slot of the Bulletin 2094 Power Rail. The 2094-BM01-S axis module installs in the slots directly to the right of the IAM.
Clearance Requirements: Allow a minimum of 50 mm (2.0 in.) above and below the power rail for adequate airflow.
Slot Fillers: Any empty slots on the power rail must be covered with 2094-PRF slot-filler modules to maintain environmental ratings and proper cooling.
Technical notes
The 2094-BM01-S is part of the Kinetix 6000 drive family, which provides Integrated Motion capability through the SERCOS interface. The 2094-BM01-S is compatible with other Kinetix 6000 modules, allowing users to build scalable multi-axis motion systems that can be expanded as application requirements grow.
FAQs
-
What is the 2094-BM01-S?
+The Allen-Bradley 2094-BM01-S is a Kinetix 6000 series axis module. Operating at 650V DC nominal input, it provides 3.9 kW continuous power and a 9A continuous inverter rating. -
What does the S stand for?
+The "S" at the end of the part number indicates that the drive features built-in Safe Torque-Off (STO) capabilities. This allows the drive to disable motor torque without removing main AC/DC bus power, facilitating safer machine restarts. -
What are its primary power specifications?
+It operates at a 650V DC nominal input voltage, delivering a continuous RMS output current of 6.1 Amps and a continuous power output of 3.9 kW. -
What is the recommended wire size for this module?
+The recommended field wiring size ranges from 1.5 to 6 mm² (8 to 16 AWG), though specific motor cables depend on your motor/drive combination
