Technical specifications for 1734-4IOL
-
Product Model1734-4IOL
-
Product ParametersPOINT I/O 4 Channel IO-Link Master Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size1.1x5.5x7.6cm
-
ManufacturerAllen-Bradley
-
Weight0.05 kg
-
Input Voltage24V DC nominal
-
Current Draw from 5V Backplane75 mA
-
Current Draw from 24V Field Power50 mA
-
Current per IO-Link Channel200 mA maximum per channel
-
Total Module Current Output800 mA
-
Power Dissipation1.5 W typical
Description

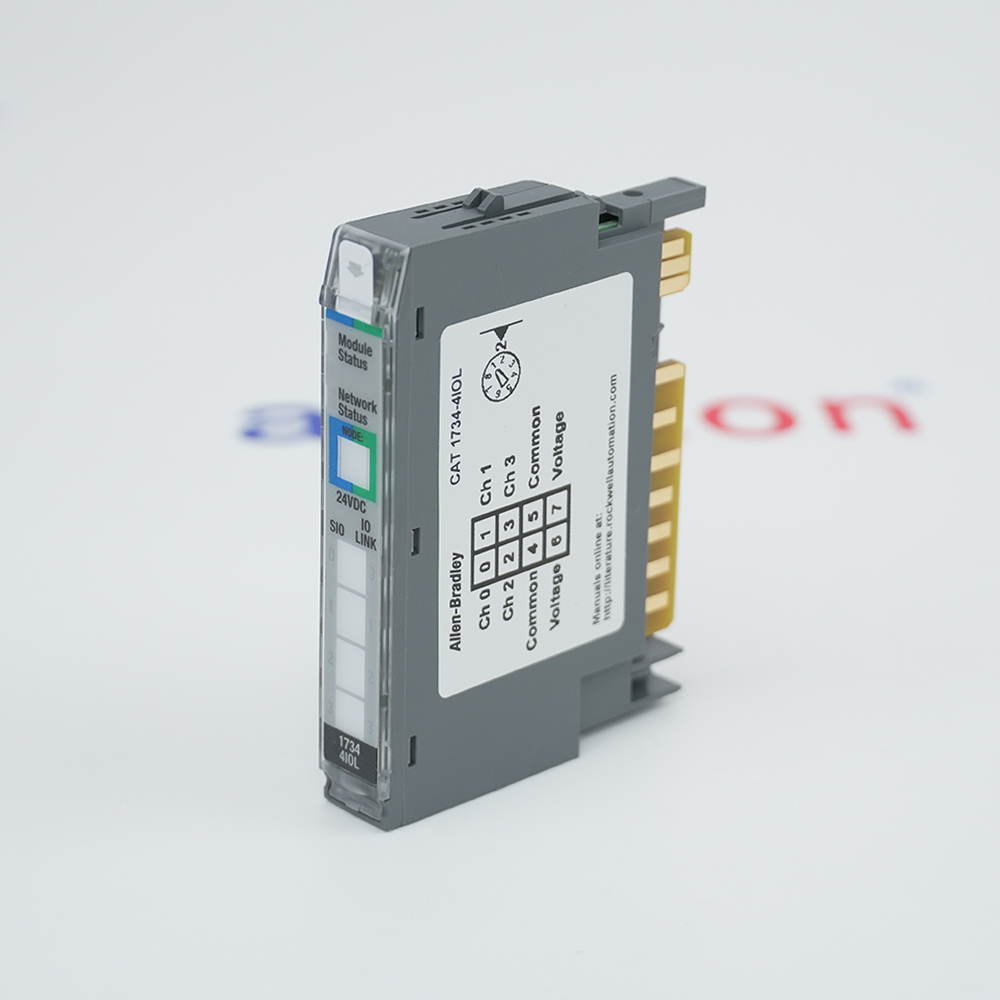

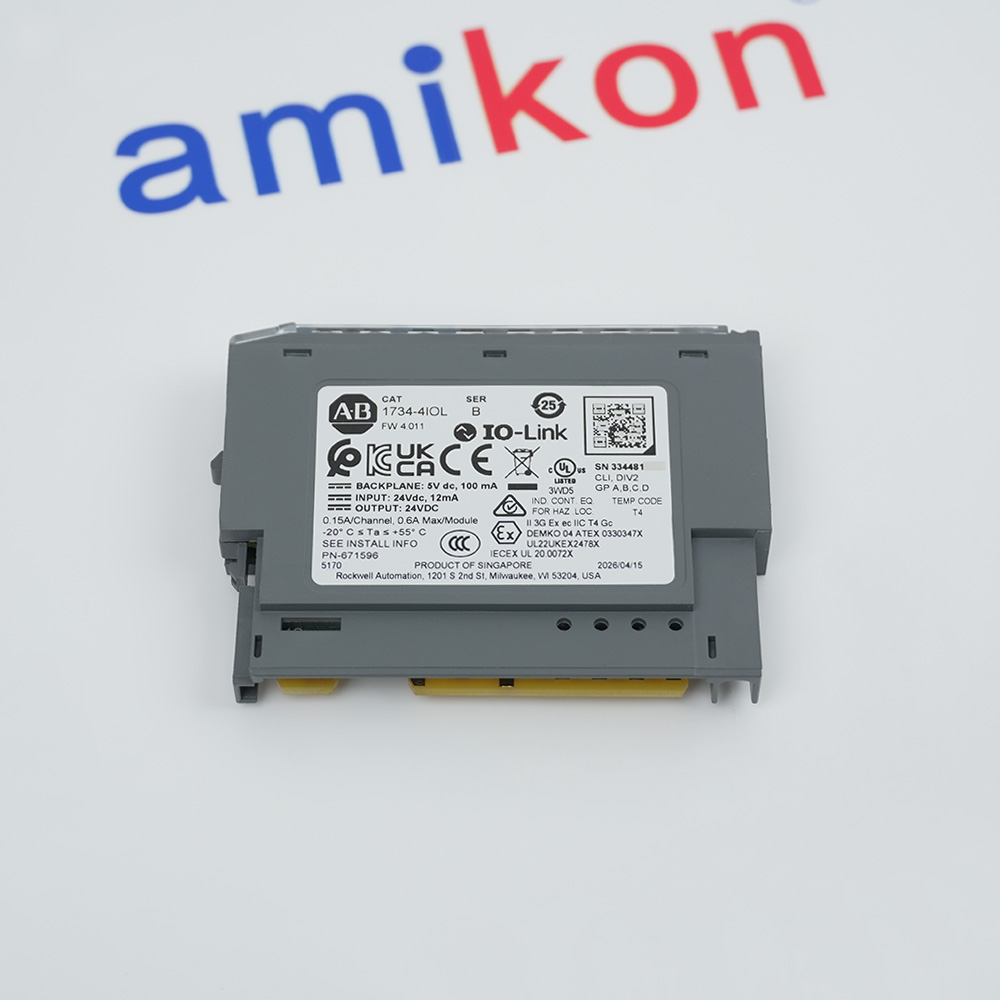

The Allen-Bradley 1734-4IOL POINT I/O 4-Channel IO-Link Master Module is a distributed I/O communication module that enables seamless integration of IO-Link-enabled field devices into Rockwell Automation control architectures. Designed for use within the POINT I/O platform, the module provides four independent IO-Link master ports capable of exchanging process data, diagnostics, and configuration parameters with connected devices.
Each port supports IO-Link Version 1.1 communication and can also function as a standard digital input or output channel when connected to conventional field devices. This flexibility allows machine builders and plant operators to deploy smart sensors and actuators while maintaining compatibility with existing automation infrastructure. The module supports automatic device recognition and parameter storage, helping reduce commissioning time and simplify device replacement procedures.
Each port supports IO-Link Version 1.1 communication and can also function as a standard digital input or output channel when connected to conventional field devices. This flexibility allows machine builders and plant operators to deploy smart sensors and actuators while maintaining compatibility with existing automation infrastructure. The module supports automatic device recognition and parameter storage, helping reduce commissioning time and simplify device replacement procedures.
Information
Overview
Manuals
Application Notes
Product Applications
Module Installation Steps
Features:
- Four independent IO-Link master ports
- Supports IO-Link Version 1.1 devices
- Class A port configuration
- Automatic device parameterization
This module features four independent IO-Link Class A ports, each supporting the IO-Link V1.1 specification. The ports operate at COM1 (4.8 kbaud), COM2 (38.4 kbaud), or COM3 (230.4 kbaud) communication rates, automatically negotiating with connected IO-Link devices. Each port can supply up to 200 mA to power connected IO-Link devices, with a total module capacity of 800 mA across all four channels.
The 1734-4IOL Allen-BradleyPOINT I/O 4 Channel IO-Link Master Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1734-4IOL POINT I/O 4 Channel IO-Link Master Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 1734-4IOL supports process data widths of up to 32 bytes input and 32 bytes output per channel, accommodating complex IO-Link devices with extensive data requirements. Device parameter storage and IODD (IO Device Description) file upload/download are supported, enabling automatic device configuration and replacement without manual parameter entry.
Each IO-Link port is equipped with comprehensive diagnostics including short circuit detection, open load detection, and overload protection. The per-port LED indicators display green for active IO-Link communication, yellow for standard I/O (SIO) mode when a non-IO-Link device is connected, and red for fault conditions.
- Packaging and Material Handling:Syncs sensors/labelers for sorting; recipe updates
- Automotive Assembly and Parts Manufacturing:Robotic cell sensors; wear telemetry prevents stops
- Food and Beverage Processing:Manages pumps/valves; predicts seal maintenance
- Water and Wastewater Treatment:Data from level/turbidity/dosing sensors
- Pharmaceutical and Life Sciences:Secures track-and-trace; maintains calibration
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Set the Keyswitch Position: Use a small bladed screwdriver to rotate the mechanical keyswitch clockwise on the terminal base until it matches the required position index.
Verify Base Locking Mechanism: Confirm that the orange DIN rail locking screw on the base is in the horizontal position before attempting to slide the hardware down.
Insert the Module: Push the module straight down into the mounting base assembly until the plastic latch on top clicks securely into position.
Attach Removable Terminal Block (RTB): Hook the bottom edge of the wired RTB into the mounting base, then snap the top handle shut to lock it.
Alternative Names
1734-4I0L
1734-41OL
1734 4IOL
1734 41OL
I734-41OL
I734-4I0L
Technical notes
The 1734-4IOL communicates through a POINT I/O network adapter, enabling integration with EtherNet/IP-based control systems. Through Studio 5000 and FactoryTalk® environments, users can access device diagnostics, monitor operating conditions, retrieve detailed status information, and manage configuration parameters from a centralized location.
FAQs
-
What is the 1734-4IOL?
+The Allen-Bradley 1734-4IOL is an Allen-Bradley POINT I/O module featuring four Class A IO-Link master channels. -
Can I use the 1734-4IOL as a standard digital I/O module?
+Yes, each of the four channels can be individually configured as an IO-Link master, a standard digital input, or a standard digital output, providing extreme application flexibility -
Which terminal base does the 1734-4IOL plug into?
+The module mounts directly into standard 1734 POINT I/O bases, such as the 1734-TB or 1734-TBS -
What are the modes of operation for each channel?
+Each channel is individually configurable. You can set it up as an IO-Link master, a standard digital input, a standard digital output, or you can disable it entirely if it is not in use.
