1503VC-BMC5
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time

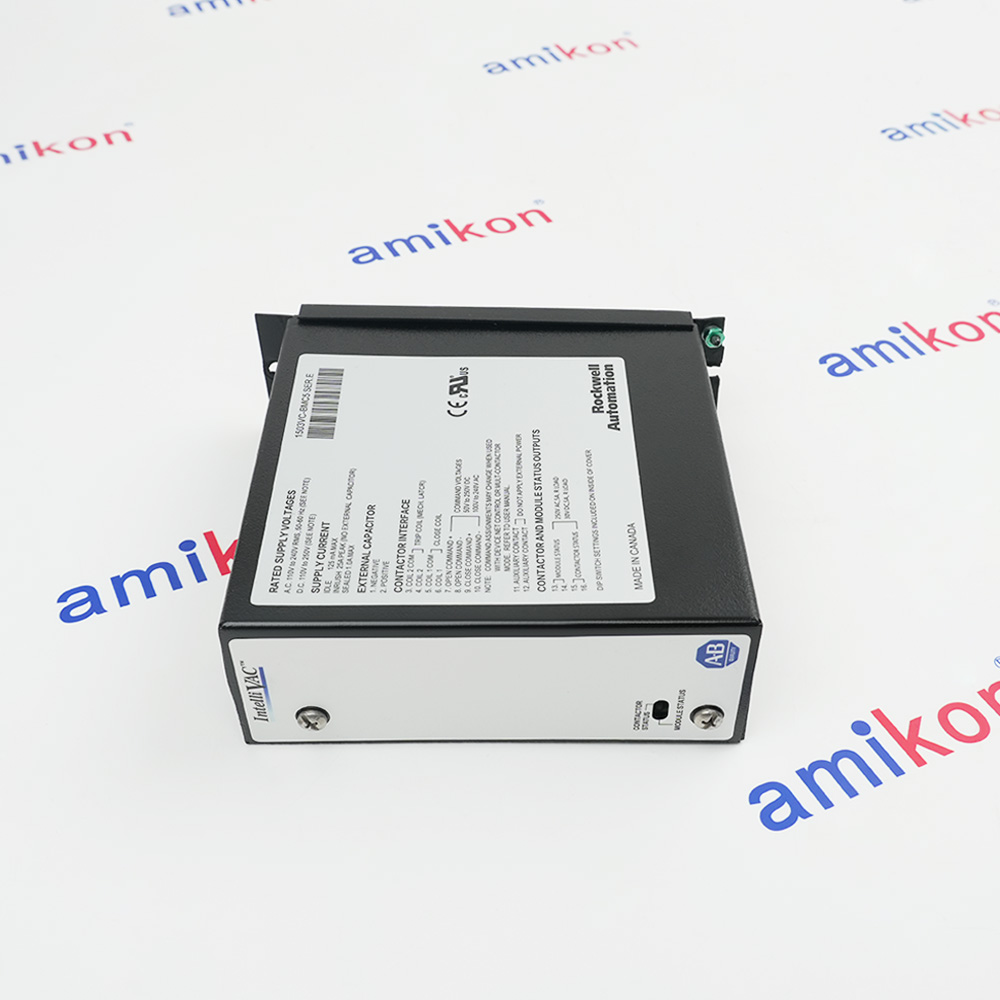

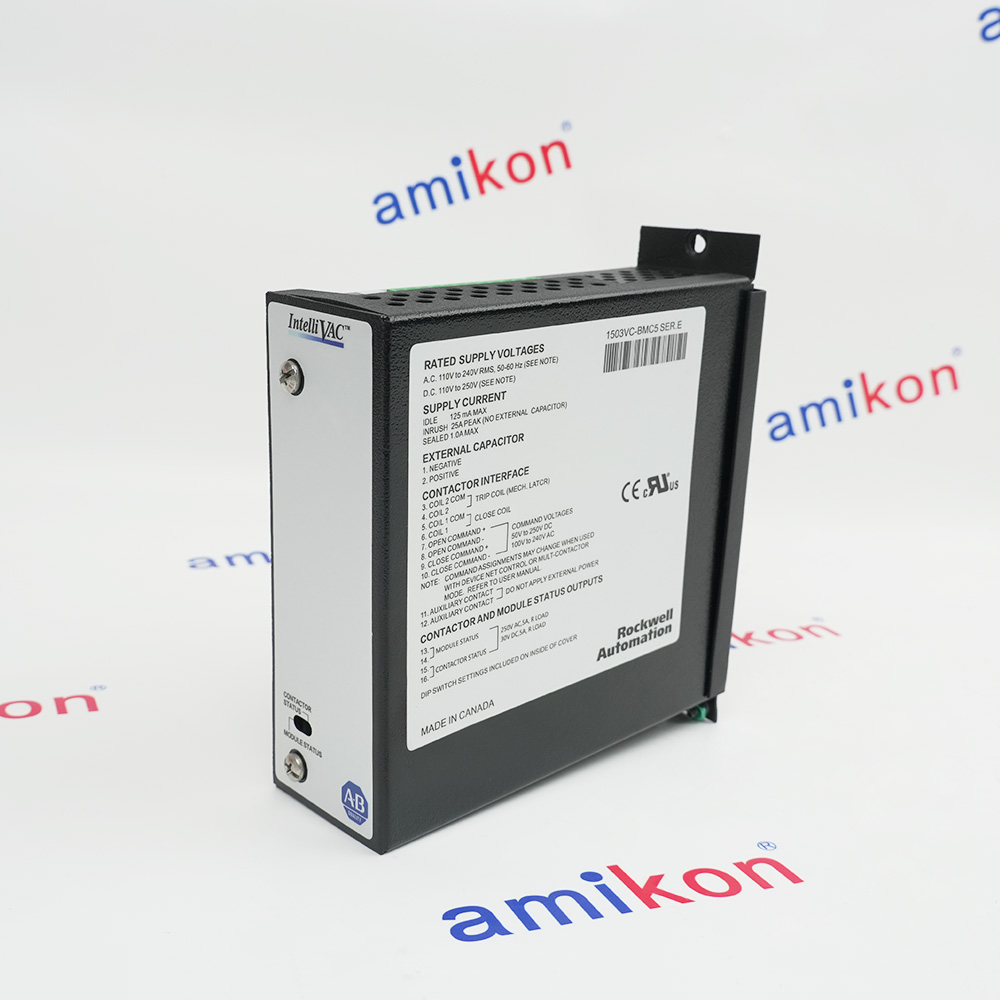

This image is for reference only product style, specific date of manufacture and product version, please refer to the actual product delivery!
Product Information
Product Describe
1503VCBMC5
CONTROL MODULE
INTELLIVAC
FOR BULLETIN 1502 VACUUM CONTACTORS
110-240VAC
50/60HZ
CONTROL MODULE
INTELLIVAC
FOR BULLETIN 1502 VACUUM CONTACTORS
110-240VAC
50/60HZ
Specifications
-
Product Model1503VC-BMC5
-
Spare Model1503VCBMC5
-
Product ParametersIntelliVAC Vacuum Contactor Control Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size6x17x18.8cm
-
ManufacturerAllen-Bradley
-
Weight1.2 kg
-
Inrush Current400/800
-
Temperature Operating0 - 60 °C
-
Altitude-1000 - 5000 meters
-
Status Output ContactsAC – 250V rms
-
Humidity95% non-condensing
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the 1503VC-BMC5？+The Allen-Bradley 1503VC-BMC5 IntelliVAC Contactor Control Module is an industrial component used with Bulletin 1502 vacuum contactors.
-
What is the 1503VC-BMC5 used for?+It is used to efficiently and flexibly control Allen-Bradley Bulletin 1502 medium voltage vacuum contactors in motor starter and feeder applications.
-
What are the main input voltage ratings?+The module has a wide supply voltage range: 110-240V AC (47-63 Hz) and 110-250V DC.
-
What contactor types are supported?+It controls both electrically held and mechanically latched contactors, specifically designed for 400A and 800A vacuum contactors.
-
What are its main advantages?+It provides consistent vacuum contactor pick-up time and offers selectable drop-out time to improve coordination with upstream power fuses
Get a quick price fo 1503VC-BMC5
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
- What Happens Next
-
Get the quote now Write Email to: INFO@AMIKON.CNEmail confirmation You will get an email confirming that we have received your enquiry.Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition.Your quote You will receive a comprehensive quote tailored to your specific needs.Need Moore Help? Get fast and efficient help from our experienced sales or customer service teams.
- Delivery and Payment
-
Delivery
Logistic partners UPS, FedEx and DHL
International delivery available
Same day dispatch from warehouse inventory
Warranty
All parts new original are covered by Amikon 12 month warranty
Returns
No hassle returns policy
Dedicated customer support team
Payment options
We accept Bank transfers and the following methods of payment:
For more information, please visit our dedicated payments page.
- Why Choose Amikon Limited?
-
When it comes to industrial automation, reliability, speed, and trust matter. At Amikon Limited, we go beyond just supplying parts — we deliver confidence.
- ● Extensive Inventory Reach: Nearly 1 million automation parts at your fingertips, including legacy and obsolete models.
- ● 20+ Years of Expertise: Trusted by engineers, project managers and government companies worldwide for our professional service.
- ● Quality You Can Trust: Each unit is strictly inspected by the warehouse staff to ensure product quality
- ● Fast Global Shipping: We help you minimize downtime with express logistics worldwide.
- ● 1-Year Warranty Available: Peace of mind with every purchase backed by one year warranty guarantee.
Whether you're maintaining legacy systems or building future-ready projects, Amikon Limited is your dependable partner in precision and performance.
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Series Compatibility & Migration
Features:
- A range of supply voltage (110 – 240V AC 50/60 Hz, 110 - 250V DC)allows implementation in multiple applications.
- Consistent vacuum contactor pick-up time (at a given supply voltage)ensures repeatable performance.
- Selectable vacuum contactor drop-out time improves coordination withupstream power fuses.
- Electronic altitude compensation (Bulletin 1502 400 A only) eliminatesmechanical compensation required for altitudes above 1000 meters
- Power loss ride-through (TDUV) allows the vacuum contactor to remainclosed during short power loss
- Anti-kiss and anti-pumping protection ensure that the vacuum contactorclose – open sequence occurs as expected, avoiding rapid reclosure due tofaulty control devices.
- Delayed restart protects the vacuum contactor by ensuring that the ratedduty cycle is not exceeded
- Temporary jog function (electrically held contactors only) allows themotor to be positioned for process set-up.
The 1503VC-BMC5 Allen-Bradley IntelliVAC Contactor Control Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1503VC-BMC5 IntelliVAC Contactor Control Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The IntelliVACcontrol modules are mounted using two screws. They are typically located in the low voltage control panel of themedium voltage controller (Bulletin 1500/1900 controllers, in the case ofRockwell Automation).IntelliVAC is interfaced to the Bulletin 1502 vacuum contactors using a “quick”connector, located at the module, a wire harness and “quick” connector at thecontactor. Control power and other control circuit connections are similarlyachieved with “quick” connectors.
- Metal Processing: Used in iron & steelmaking, and hot/cold rolling mills.
- Mining & Smelting:Specifically highlighted for use in aluminum smelters.
- Energy & Power:Power station control & grid monitoring for renewable energy systems.
- Manufacturing:Ideal for automated lines, packaging machinery, and material handling.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Series A & B: Documented in Publication 1503-UM051. These are older legacy designs.
Series C & D: Documented in Publication 1503-UM052. These versions introduced better compatibility with PLC outputs (specifically verified with Rockwell OA type 120V triac outputs).
Series E & F: The most current versions. Series F is the latest standard, featuring the widest support for modern Bulletin 1502 400A and 800A vacuum contactors.
