- 8V1090.001-2
In Stock
Ships by Sunday, August 16
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 8V1090.001-2
-
Product Model8V1090.001-2
-
Product ParametersAcopos 1090 Servo Drive
-
Tariff Code8537101190
-
Country of originAustria
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size7.2x23.5x37.5cm
-
ManufacturerB&R
-
Weight4.2 kg
-
B&R ID code0xA09B
-
Slots for plug-in modules4
-
Mains input voltage3x 400 VAC to 480 VAC ±10%3x 230 VAC ±10%
-
Frequency50 / 60 Hz ±4%
-
Installed load Max10 kVA
-
Inrush current at400 VAC 7 A
-
Switch-on interval>10 s
-
DC bus capacitance470 µF
-
Input voltage24 VDC ±25%
-
Input capacitance8200 µF
-
Current consumptionMax. 2.5 A + Current for motor holding brake
-
Peak power output7 kW
-
Continuous power200 W
-
Input voltage24 VDC
Description

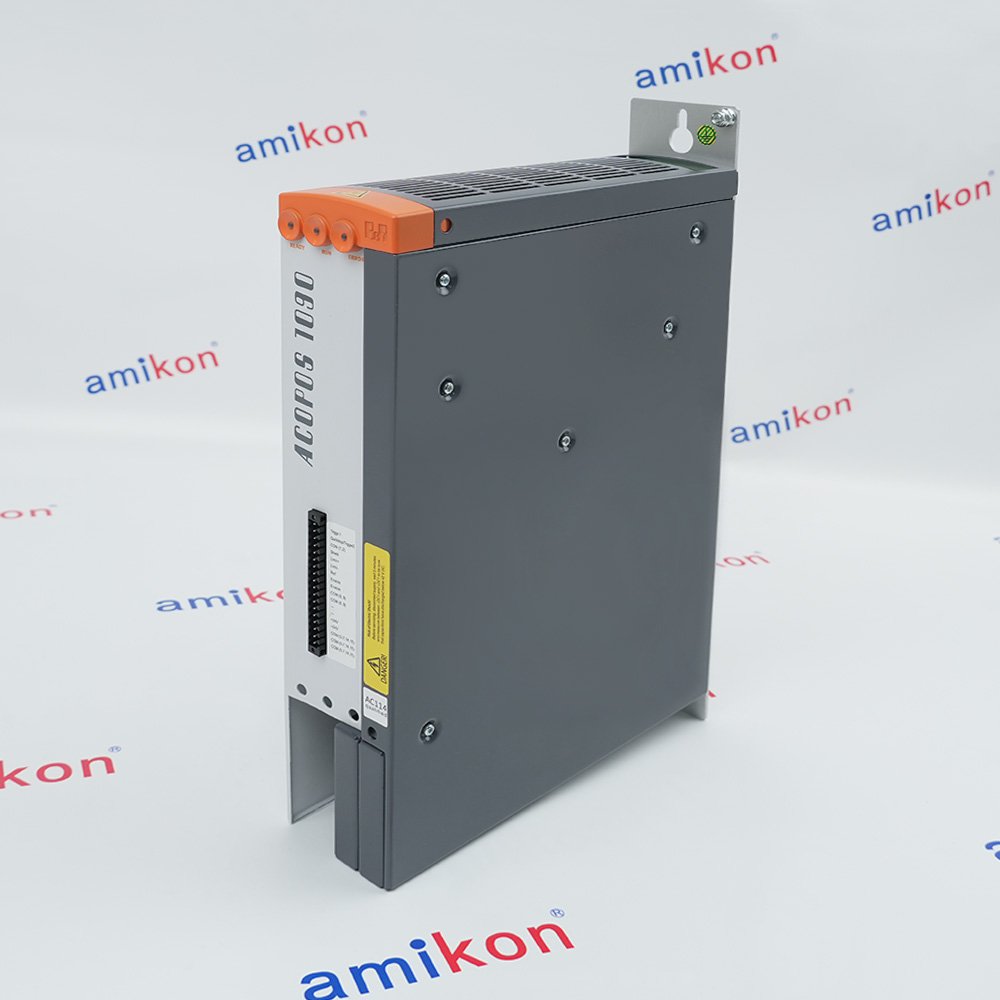

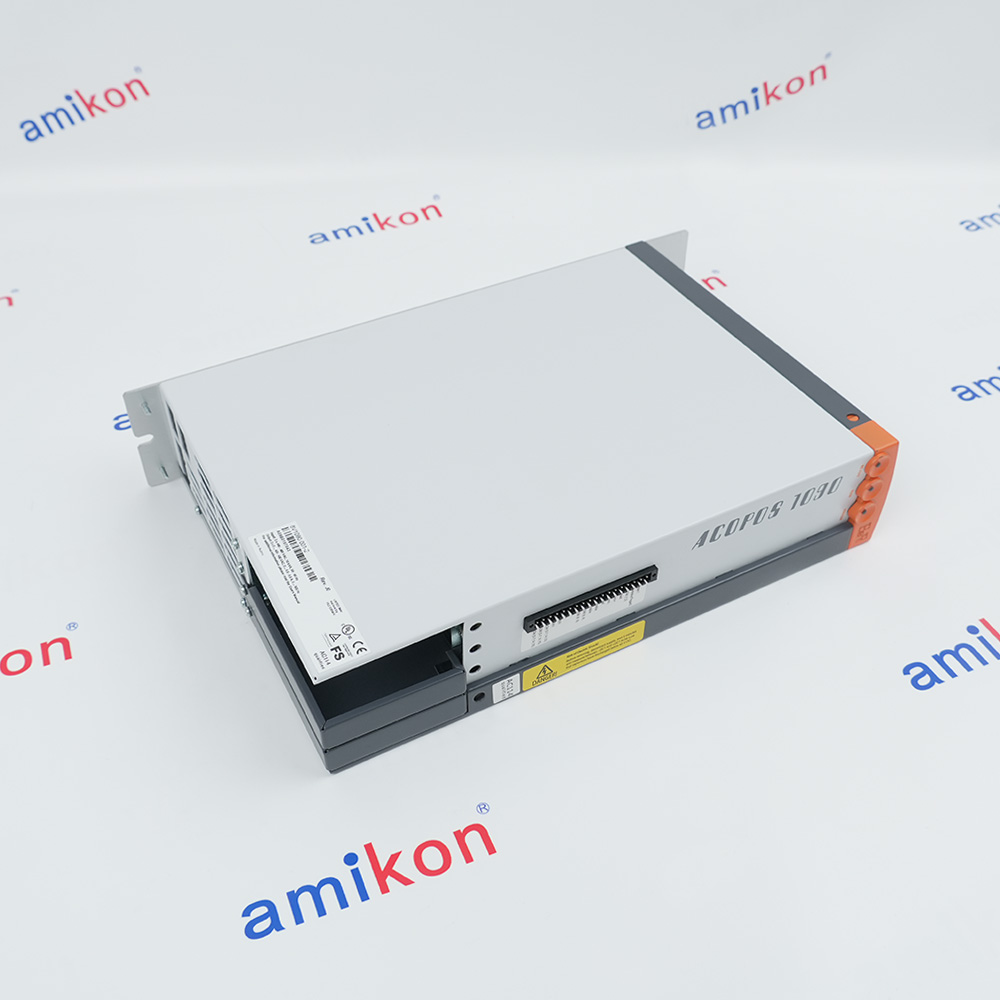

The B&R 8V1090.001-2 Acopos 1090 Servo Drive is a high-performance ACOPOS servo drive for precision motion control applications in industrial automation. 8V1090.001-2 delivers 4 kW of output power with a continuous current of 8.8 A effective and a peak current of 24 A effective, making 8V1090.001-2 suitable for controlling synchronous and asynchronous servo motors in packaging, robotics, material handling, and machine tool applications requiring higher power than the smaller ACOPOS variants.
8V1090.001-2 accepts mains input voltages of 3× 400 V AC to 480 V AC ±10% or 3× 230 V AC ±10%, with a frequency range of 50/60 Hz ±4%. The installed load of 8V1090.001-2 is rated at a maximum of 10 kVA, with an inrush current of 7 A at 400 V AC and a switch-on interval requirement of greater than 10 seconds. The integrated line filter of 8V1090.001-2 complies with EN 61800-3 category C3, ensuring electromagnetic compatibility without requiring additional external filtering components. The power dissipation of 8V1090.001-2 at nominal power without braking resistor is approximately 200 W.
8V1090.001-2 accepts mains input voltages of 3× 400 V AC to 480 V AC ±10% or 3× 230 V AC ±10%, with a frequency range of 50/60 Hz ±4%. The installed load of 8V1090.001-2 is rated at a maximum of 10 kVA, with an inrush current of 7 A at 400 V AC and a switch-on interval requirement of greater than 10 seconds. The integrated line filter of 8V1090.001-2 complies with EN 61800-3 category C3, ensuring electromagnetic compatibility without requiring additional external filtering components. The power dissipation of 8V1090.001-2 at nominal power without braking resistor is approximately 200 W.
Information
Overview
Manuals
Application Notes
Product Applications
Electrical Connections
Features:
- Modular mechanical design using plug-in modules
- Integrated line filter
- Integrated braking resistor
- All connections are made using plug-in connectors
- Integrated electronic restart inhibit
The drive features a modular mechanical design with 4 plug-in module slots for communication interfaces, encoder interfaces, and I/O expansion. All connections are made using plug-in connectors for tool-free installation and maintenance. The .001-2 suffix indicates partially-coated printed circuit boards, providing enhanced protection against environmental influences such as dust, moisture, and corrosive atmospheres compared to the non-coated .00-2 variant.
The 8V1090.001-2 B&R Acopos 1090 Servo Drive may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
B&R 8V1090.001-2 Acopos 1090 Servo Drive Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Integrated functions include an EMC line filter per EN 61800-3 Category C3, an internal braking resistor for dynamic braking energy dissipation, and an electronic safe restart interlock for safety-compliant machine restart prevention. The DC bus capacitance is 660 nF, and the 24 V control supply accepts ±25% tolerance with a maximum consumption of 2.5 A plus motor holding brake current.
The drive achieves IE2 energy efficiency classification with power dissipation ranging from 1.6% to 2.8% of continuous apparent power depending on operating point. Standby losses are 16.8 W. At nominal power without braking resistor, total power dissipation is approximately 120 W.
- Packaging: Drives smart-conveyor feeds, capping systems, and labeling axes
- Textile: Regulates tension controls, yarn feeders, and material winding mechanisms
- Pick-and-Place: Powers Cartesian arms and delta robots for electronics assembly
- Printing/Converting: Manages alignment, cutting, and registering axes in low-tonnage presses
- Material Handling: Operates high-speed diverters and gating on logistics sorting lines
- Medical: Controls fluid pumping arrays and laboratory sample sorting grids
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mains Input: Connect a 3-phase supply (3×400 V to 480 V) to the mains terminal block. Ensure TT or TN network configurations are used.
DC Bus: Utilizes the X2 connector for linking multiple drives and sharing regenerative energy.Grounding (Critical): Due to high leakage currents (>3.5 mA), an equipotential ground must be firmly established to the housing using the same cross-section as the mains PE conductor.
Control Unit (X1): Pinout configurations include +24 VDC supply, safe restart inhibit (Enable), and digital I/O inputs.
Motor & Brake: Connects to the motor power cable via shielded terminal connections and provides a dedicated output for the motor holding brake
Alternative Names
8V1090.001-Z
8V1090.00I-2
8V1090.0O1-2
8V1090.O01-2
8V109O.001-2
8V1O90.001-2
8VI090.001-2
8V1090-001-2
8V1090-001-Z
8V1090-00I-2
8V1090-OO1-2
8V109O-001-2
8V1O90-001-2
8VI090-001-2
BV1090-001-2
Technical notes
The DC bus connection of 8V1090.001-2 features a DC bus capacitance of 470 µF. The 24 V DC control power supply of 8V1090.001-2 accepts input voltages of 24 V DC ±25%, with an input capacitance of 8200 µF and a maximum current consumption of 2.5 A plus the current required for the motor holding brake. This dual-power architecture of 8V1090.001-2 ensures that control electronics remain powered even when the main AC supply is disconnected, maintaining position feedback and safety status information.
FAQs
-
What is the 8V1090.001-2?
+The B&R 8V1090.001-2 is a high-performance ACOPOS servo drive designed for precise, demanding industrial motion control. -
Does this drive require an external braking resistor?
+Generally, no. The 8V1090.001-2 is equipped with an integrated braking resistor, making an external module unnecessary for most standard motion and deceleration applications. -
What are the minimum clearance requirements for installation?
+To ensure adequate thermal dissipation and air circulation, you must leave a minimum clearance of 80 mm both above and below the drive. Furthermore, a minimum spacing of 100 mm is required. -
What does the 001-2 suffix signify?
+The .001-2 extension designates a heavily ruggedized model featuring partially coated circuit boards. This coating provides superior resistance to harsh industrial environments, moisture, and dust.
