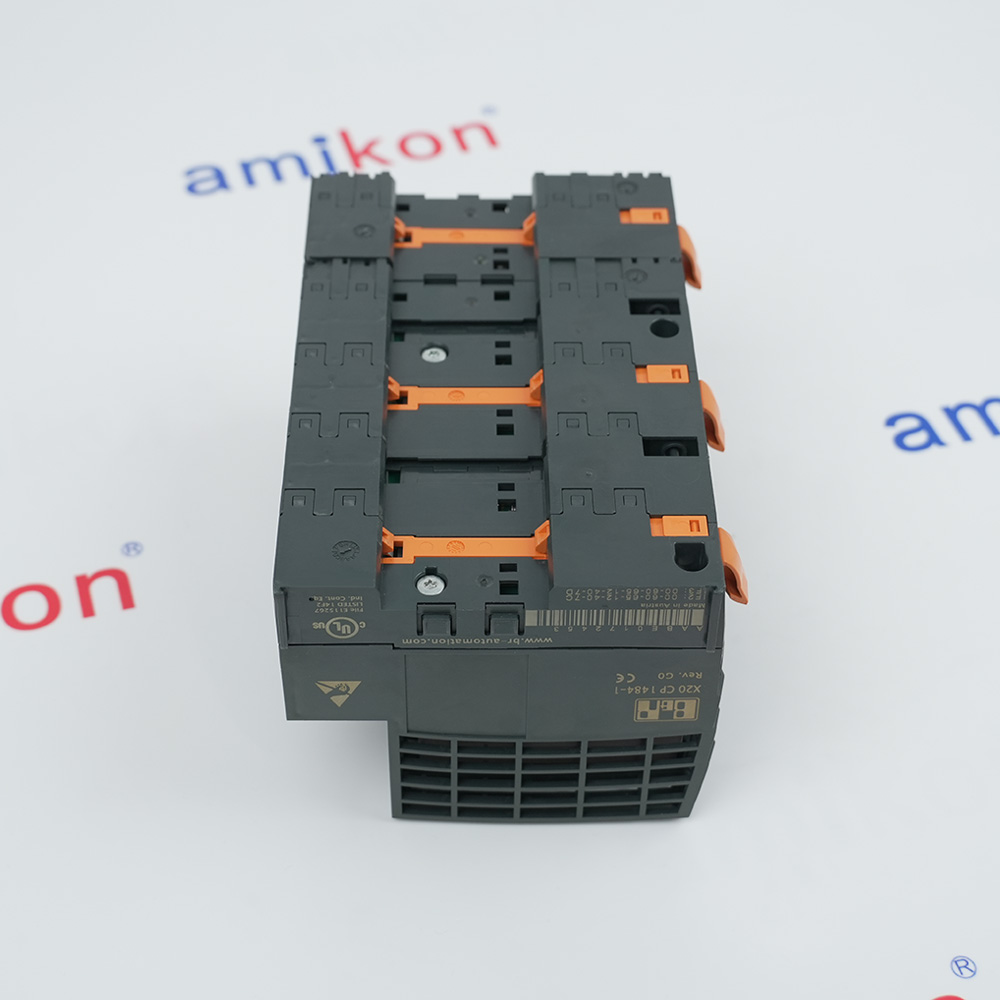

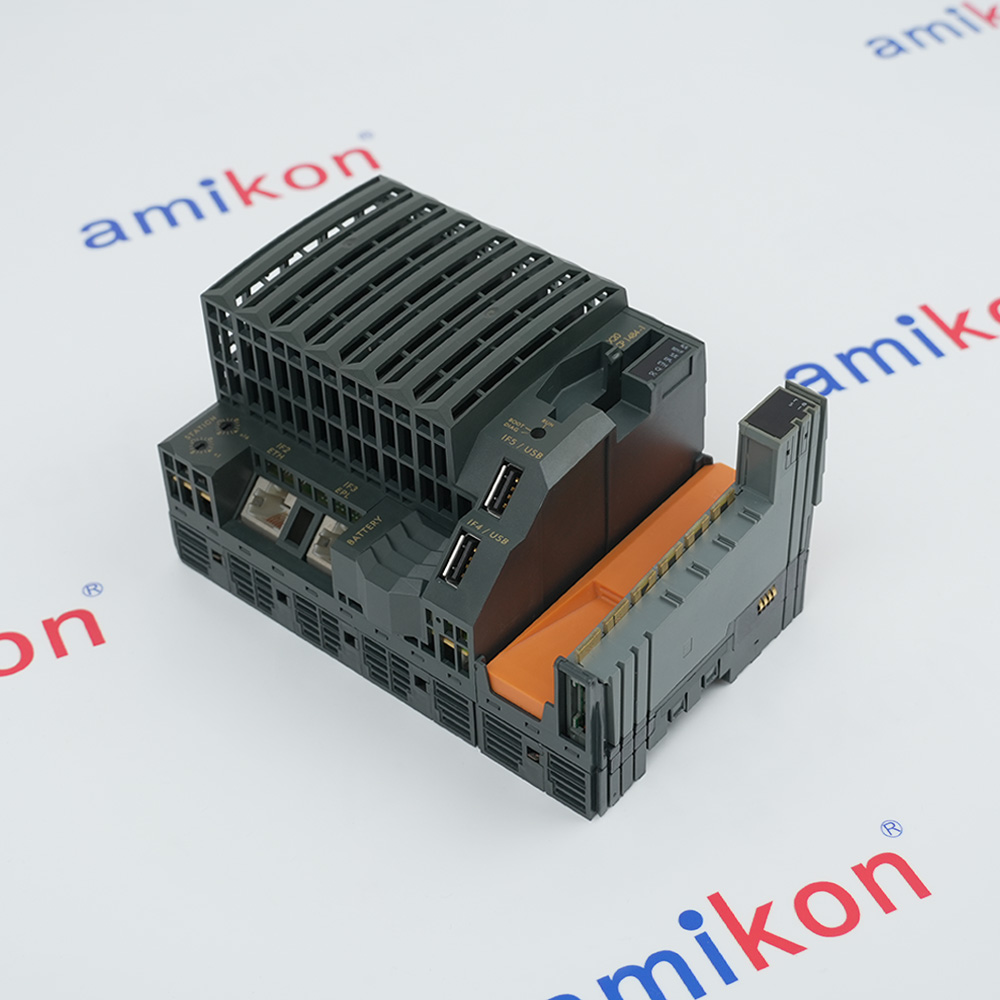

- X20CP1484-1
In Stock
Ships by Sunday, July 19
Fast Shipping Available
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for X20CP1484-1
-
Product ModelX20CP1484-1
-
Product ParametersSmallest Celeron based CPU
-
Tariff Code8537101190
-
Country of originAustria
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size15.3x8x10.1cm
-
ManufacturerB&R
-
Weight0.66 kg
-
Interfaces1x RS232, 1x Ethernet, 1x POWERLINK V1/V2, 2x USB, 1x X2X Link
-
System moduleCPU
-
B&R ID code0xAEC5
-
Power consumption6.0 W
-
Input voltage24 VDC -15% / +20%
-
Input Current Max2.2 A
-
Rated output power7.0 W
-
Remanent variables Max32 kB
Description
The X20CP1484-1 is a compact CPU module designed for the B&R X20 modular PLC system. The X20CP1484-1 combines an Intel Celeron 266 MHz compatible processor with a dedicated integrated I/O processor that handles data point processing in the background. This architecture allows the X20CP1484-1 to achieve a shortest task class cycle time of 800 µs while maintaining deterministic real-time performance.
Memory configuration on the X20CP1484-1 includes 64 MB of SDRAM for program and data storage, 1 MB of SRAM for user data, and support for up to 64 kB of remanent variables. The X20CP1484-1 buffers its real-time clock and remanent data using an integrated lithium battery with a minimum lifespan of three years. A battery monitoring function provides early warning of degraded buffer capacity.
Communication interfaces on the X20CP1484-1 include one RS232 interface on the X20 standard terminal block, one 10/100 Base-T Ethernet interface, one ETHERNET Powerlink V1/V2 interface for real-time communication, two USB 1.1 ports for B&R-approved peripherals, and one X2X Link master interface for remote I/O integration. The X20CP1484-1 provides one slot for modular interface expansion, allowing connection to additional bus or network systems via X20 interface modules.
Memory configuration on the X20CP1484-1 includes 64 MB of SDRAM for program and data storage, 1 MB of SRAM for user data, and support for up to 64 kB of remanent variables. The X20CP1484-1 buffers its real-time clock and remanent data using an integrated lithium battery with a minimum lifespan of three years. A battery monitoring function provides early warning of degraded buffer capacity.
Communication interfaces on the X20CP1484-1 include one RS232 interface on the X20 standard terminal block, one 10/100 Base-T Ethernet interface, one ETHERNET Powerlink V1/V2 interface for real-time communication, two USB 1.1 ports for B&R-approved peripherals, and one X2X Link master interface for remote I/O integration. The X20CP1484-1 provides one slot for modular interface expansion, allowing connection to additional bus or network systems via X20 interface modules.
Information
Overview
Manuals
Application Notes
Product Applications
Module Insertion & Assembly
Features:
- Intel Celeron 266 Performance with additional I/O processor
- Ethernet, POWERLINK and USB onboard
- 1 slot for modular interface expansion
- CompactFlash as removable application memory
The B&R X20CP1484-1 integrates Ethernet, POWERLINK, RS232, and dual USB interfaces while offering one slot for modular interface expansion. It supports CompactFlash removable application memory, features a fanless design, and is compatible with Automation Studio engineering software
The X20CP1484-1 B&R Smallest Celeron based CPU may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
B&R X20CP1484-1 Smallest Celeron based CPU Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The X20CP1484-1 features an integrated power supply equipped with feeds for the CPU, the X2X Link, and the internal I/O supply. The X20CP1484-1 supports redundancy of the X2X Link supply through parallel operation of multiple supplies, enhancing system availability for critical applications.
The X20CP1484-1 incorporates an operating mode switch for setting RUN or BOOT-DIAG modes, along with a reset button located below the USB ports. The X20CP1484-1 also includes comprehensive status LEDs for CPU, power supply, and communication interface diagnostics, facilitating system monitoring and troubleshooting.
The X20CP1484-1 is designed with a fan-free architecture, ensuring maintenance-free operation in industrial environments. The X20CP1484-1 is extremely compact, making it ideal for space-constrained control cabinet installations.
- Packaging: Ideal for form-fill-seal, labeling, and capping with fast synchronized I/O
- Assembly/Handling: Used in pick-and-place, sorters, and assembly lines with real-time fieldbus
- Plastics: Perfect for injection molding, blow molding, and auxiliary handlers
- Textile/Printing: Suited for web tension, winding, and multi-color presses requiring cycle sync
- Factory Automation: Functions as edge controller or sub-system manager in plant-wide networks
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mount the Bus Module: Snap the X20 bus module onto a standard 35 mm DIN rail. If expanding an existing system, slide it to the left to mesh with the adjacent bus module connectors.Insert the CPU Electronics Module: Align the X20CP1484-1 electronics housing with the guide rails of the bus module. Push it firmly down until it clicks securely into place.
Attach the Terminal Block: Insert the pre-wired terminal block into the front of the CPU module. Push it in until the locking levers engage.
Insert Memory: Insert the CompactFlash card containing the application memory into its designated front-facing slot before powering on.
Alternative Names
X20CP1484-I
X20CP14B4-1
X2OCP1484-1
XZ0CP1484-1
X20CP1484 1
X20CP1484 I
X20CP14B4 1
X20CPI484 1
X2OCP1484 1
XZ0CP1484 1
Technical notes
The integrated power supply on the X20CP1484-1 feeds the CPU, X2X Link, and internal I/O supply from a 24 VDC input. The CPU/X2X Link supply is electrically isolated from the I/O supply. The X2X Link output on the X20CP1484-1 delivers 7 W nominal power and supports parallel connection for redundancy. Reverse polarity protection is built into the CPU/X2X Link input. The I/O power output provides 24 VDC with a permissible contact load of 10 A.
FAQs
-
What is the X20CP1484-1?
+The B&R X20CP1484-1 is a compact and powerful CPU module from B&R Industrial Automation's X20 System. -
What is the difference between the X20CP1484 and X20CP1484-1?
+The CPU models differ only by their SDRAM size. The X20CP1484 has 32 MB of RAM, while the X20CP1484-1 has 64 MB of RAM. -
What are the integrated onboard interfaces?
+It comes with 1x RS232, 1x Ethernet (10/100 MBit/s), 1x Ethernet POWERLINK for real-time communication, 2x USB, and 1x X2X Link. -
What is the minimum cycle time of this CPU?
+It features an Intel Celeron 266 equivalent processor with a shortest task class cycle time of 800 µs.
