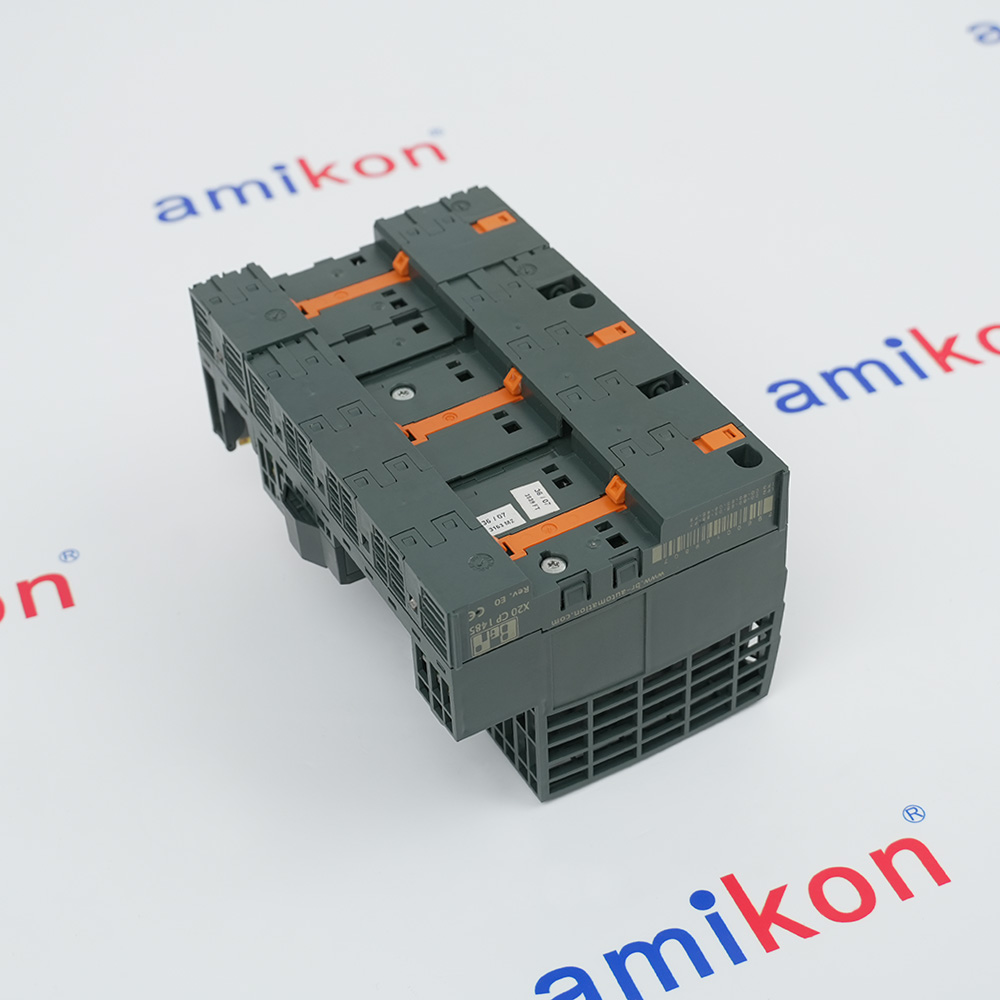

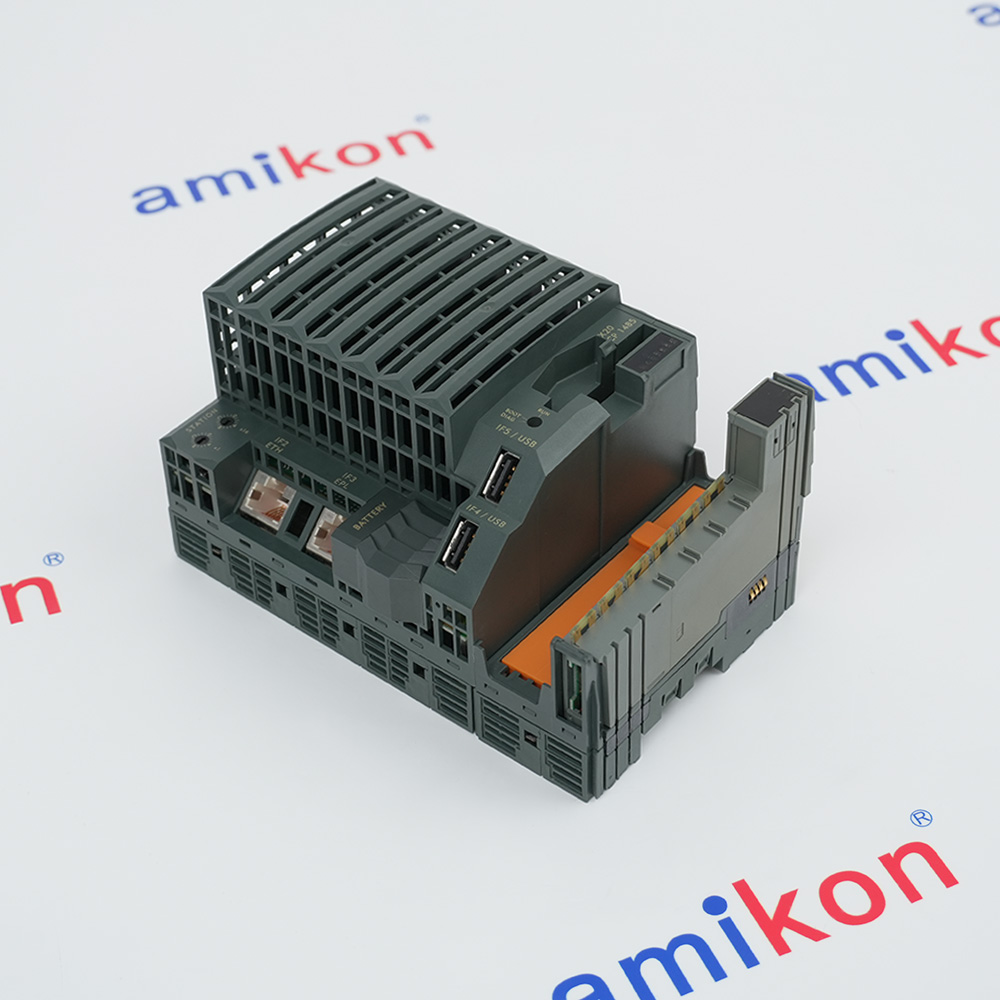

- X20CP1485
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for X20CP1485
-
Product ModelX20CP1485
-
Product ParametersCPU Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size15.1x10.5x8.4cm
-
ManufacturerB&R
-
Weight0.7 kg
-
Nominal output power7 W
-
Input voltage24 VDC -15% / +20%
-
Input currentMax. 2.2 A
-
Required line fuseMax. 10 A, slow-blow
-
Permissible contact load10 A
-
Remanent variablesMax. 256 kB
-
Shortest task class cycle time400 µs
-
Typical instruction cycle time0.0055 µs
-
B&R ID code0x1F18
Description
CPU MODULE
X20 System
24 V DC
10 AMP
7 W
64 MB SDRAM
1 MB SRAM
FAN-FREE
X20 System
24 V DC
10 AMP
7 W
64 MB SDRAM
1 MB SRAM
FAN-FREE
Information
Overview
Manuals
Technical notes
Product Applications
Electrical Wiring & Power Supply
Features:
- Intel Celeron 400 Performance with additional I/O processor
- Ethernet, POWERLINK and USB onboard
- 1 slot for modular interface expansion
- CompactFlash as removable application memory
- Extremely compact
- Fan-free
Ethernet and USB are onboard. In addition, the CPU has a POWERLINK V1/V2 connection for real-time communication. The only differences from the CP3485 are thatthe CP1485 only has one slot for interface modules and a smaller width.
The X20CP1485 B&R CPU MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
B&R X20CP1485 CPU MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
At its core, the X20CP1485 is built around an Intel x86-compatible processor running at 100 MHz, supported by 32 MB of SDRAM for program execution and 1 MB of SRAM for high-speed data handling. The CPU includes 2 × 16 KB L1 cache and 256 KB L2 cache to accelerate instruction processing. Performance metrics include a fastest class cycle time of 400 µs and a typical instruction cycle time of 100 µs, ensuring responsive real-time control for applications involving fast I/O scanning, PID loops, and sequential logic. The module also features an integrated Floating Point Unit (FPU) for mathematical operations and an integrated I/O processor that handles I/O data point processing in the background, offloading the main CPU and improving overall system determinism.
- Machine Control:Compact high-speed control for specialized machinery
- Packaging Lines:Automation of packaging machinery
- Conveyor Systems:Conveyor sequencing & material handling
- Manufacturing Facilities:PROFINET IO automation for production lines (no gateways)
- Process Automation:Monitoring & control for industrial processes
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
CPU Power Supply: Connect a 24 VDC (-15% / +20%) input to power the CPU and the X2X Link.
I/O Power Supply: Connect a separate 24 VDC input for I/O functions.
Fusing Requirements: Protect the system with a line fuse of maximum 10 A slow-blow.
Terminal Blocks: Connections are made via the included 12-pin X20TB12 terminal block.
FAQs
-
What are the key differences between X20CP1485 and X20CP1485-1?
+The main difference lies in the SDRAM size, with the "-1" variant typically providing higher capacity for more demanding applications. -
Does the X20CP1485 require a fan?
+No, the unit is fan-free, which allows for improved reliability in industrial environments. -
What are the environmental limits?
+Operation is supported from 0 to 55°C for horizontal mounting and 0 to 50°C for vertical mounting -
What type of power supply does the CPU demand?
+The system requires a nominal 24 VDC input supply (with an acceptable variance range between -15% and +20%). The input current draw tops out at a maximum of 2.2 A.
