- X20CP1485-1
In Stock
Ships by Sunday, July 19
Fast Shipping Available
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for X20CP1485-1
-
Product ModelX20CP1485-1
-
Product ParametersPowerful CPU
-
Tariff Code8537101190
-
Country of originAustria
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size15.3x8x10.1cm
-
ManufacturerB&R
-
Weight0.66 kg
-
Interfaces1x RS232, 1x Ethernet, 1x POWERLINK V1/V2, 2x USB, 1x X2X Link
-
System moduleCPU
-
B&R ID code0xA2AB
-
Power consumption10.5 W
-
Input voltage24 VDC -15% / +20%
-
Input Current Max.2.2 A
-
Rated output power7.0 W
Description

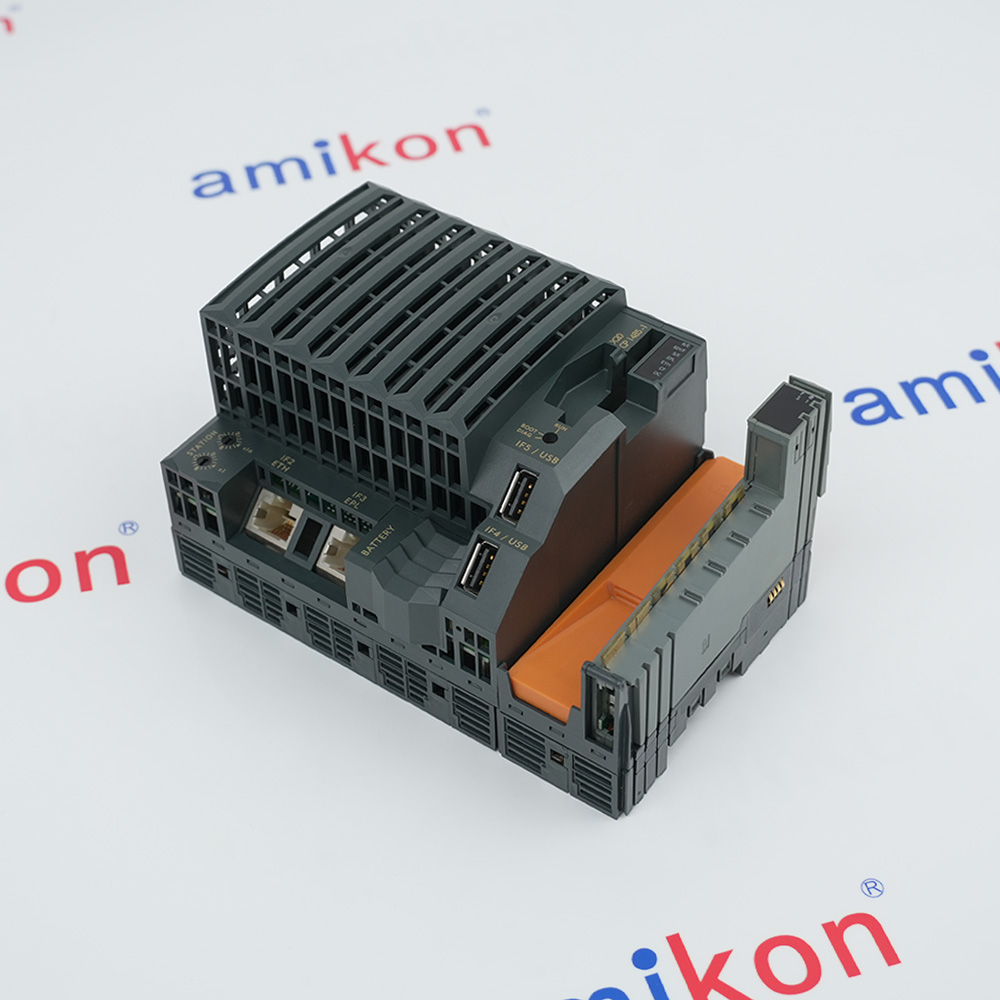

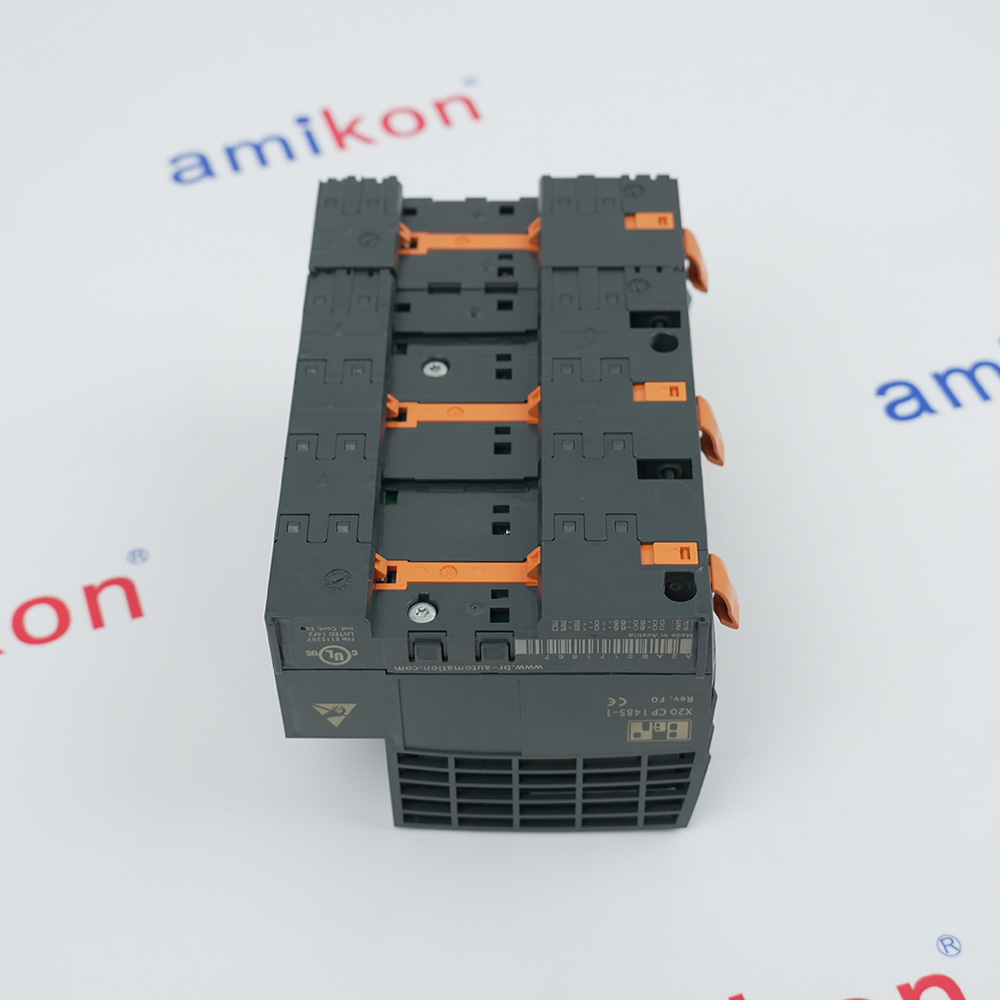

The B&R X20CP1485-1 is a high-performance PLC CPU module for the X20 Automation System, for demanding industrial applications requiring short PLC cycle times, high-speed data processing, and floating-point calculations. It is powered by an Intel® Celeron® 400 MHz processor with an additional dedicated I/O processor, enabling deterministic control and fast execution of automation tasks.
The B&R X20CP1485-1 integrates Ethernet, POWERLINK, RS232, dual USB ports, and an X2X Link interface while providing one modular interface expansion slot. The CPU supports CompactFlash removable application memory, features a fanless design, and is fully compatible with Automation Studio for programming and diagnostics
The B&R X20CP1485-1 integrates Ethernet, POWERLINK, RS232, dual USB ports, and an X2X Link interface while providing one modular interface expansion slot. The CPU supports CompactFlash removable application memory, features a fanless design, and is fully compatible with Automation Studio for programming and diagnostics
Information
Overview
Manuals
Application Notes
Product Applications
Module Insertion & Mounting
Features:
- Intel Celeron 400 Performance with additional I/O processor
- Ethernet, POWERLINK and USB onboard
- 1 slot for modular interface expansion
- CompactFlash as removable application memory
Ethernet and USB are onboard. In addition, the CPU has a POWERLINK connection for real-time communication. The only differences from the X20CP3485-1 are that the X20CP1485-1 only has one slot for interface modules and a smaller width.
The two CPU models X20CP1485 and X20CP1485-1 differ only by SDRAM size.
The X20CP1485-1 B&R Powerful CPU may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
B&R X20CP1485-1 Powerful CPU Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The integrated power supply on the X20CP1485-1 feeds the CPU, X2X Link, and internal I/O supply from a 24 VDC input. The CPU/X2X Link supply is electrically isolated from the I/O supply. The X2X Link output on the X20CP1485-1 delivers 7 W nominal power and supports parallel connection for redundancy. Reverse polarity protection is built into the CPU/X2X Link input. The I/O power output provides 24 VDC with a permissible contact load of 10 A. Power consumption of the X20CP1485-1 without memory card, interface module, or USB is 10.5 W.
The X20CP1485-1 is a fan-free design, making it suitable for environments where maintenance-free operation is required. An overtemperature shut-off triggers at 100°C to prevent hardware damage. Status LEDs on the X20CP1485-1 indicate CPU function, overtemperature, Ethernet activity, POWERLINK status, CompactFlash access, battery condition, module run/error state, overload, and RS232 data transfer.
- Packaging: Ideal for form-fill-seal, labeling, and capping with fast synchronized I/O
- Assembly/Handling: Used in pick-and-place, sorters, and assembly lines with real-time fieldbus
- Plastics: Perfect for injection molding, blow molding, and auxiliary handlers
- Textile/Printing: Suited for web tension, winding, and multi-color presses requiring cycle sync
- Factory Automation: Functions as edge controller or sub-system manager in plant-wide networks
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mount the Bus Module: Snap the underlying X20 bus module onto the standard EN 50022 DIN rail. Slide it horizontally to link with adjacent X20 modules via the side-integrated X2X Link bus contacts.
Insert the Memory: Before mounting the CPU into a tight cabinet, insert the CompactFlash card into the designated slot. This card serves as the essential removable application memory.
Insert the Interface Module (Optional): If using an add-on communication card, insert it into the single available modular interface expansion slot on the front of the CPU before final mounting.
Alternative Names
X20CP1485-I
X20CP14B5-1
X20CPI485-1
X2OCP1485-1
XZ0CP1485-1
X20CP1485 1
X20CP1485 I
X20CP14B5 1
X20CPI485 1
X2OCP1485 1
XZ0CP1485 1
Technical notes
Physical dimensions of the X20CP1485-1 are 150 mm in width, 99 mm in height, and 85 mm in depth. The module mounts on a DIN rail in either horizontal or vertical orientation. The X20CP1485-1 operates at ambient temperatures from 0°C to +55°C when mounted horizontally, and 0°C to +50°C when mounted vertically. Humidity tolerance is 5% to 95% non-condensing.
FAQs
-
Which B&R Automation Studio version should I use for programming?
+You can use older versions like AS 3.0.90, but B&R experts recommend using Automation Studio 4.12 or newer. Version 4.12 is fully compatible with Windows 11 and provides modern features like System Designer, making it more polished for legacy support. -
What power requirements does the CPU have?
+It requires a 24 VDC (-15% / +20%power supply with an input current of max. 2.2 A. The I/O supply input requires a max. 10 A slow-blow fuse -
Can I replace an older X20CP148x processor with the X20CP1485-1?
+No, the X20CP148x cannot be directly replaced by the X20CP1485-1. Hardware upgrades and POWERLINK configurations require careful verification depending on your specific version. -
What are its integrated communication ports?
+It features 1x Ethernet, 1x POWERLINK (V1/V2), 2x USB, and 1x X2X Link onboard.
