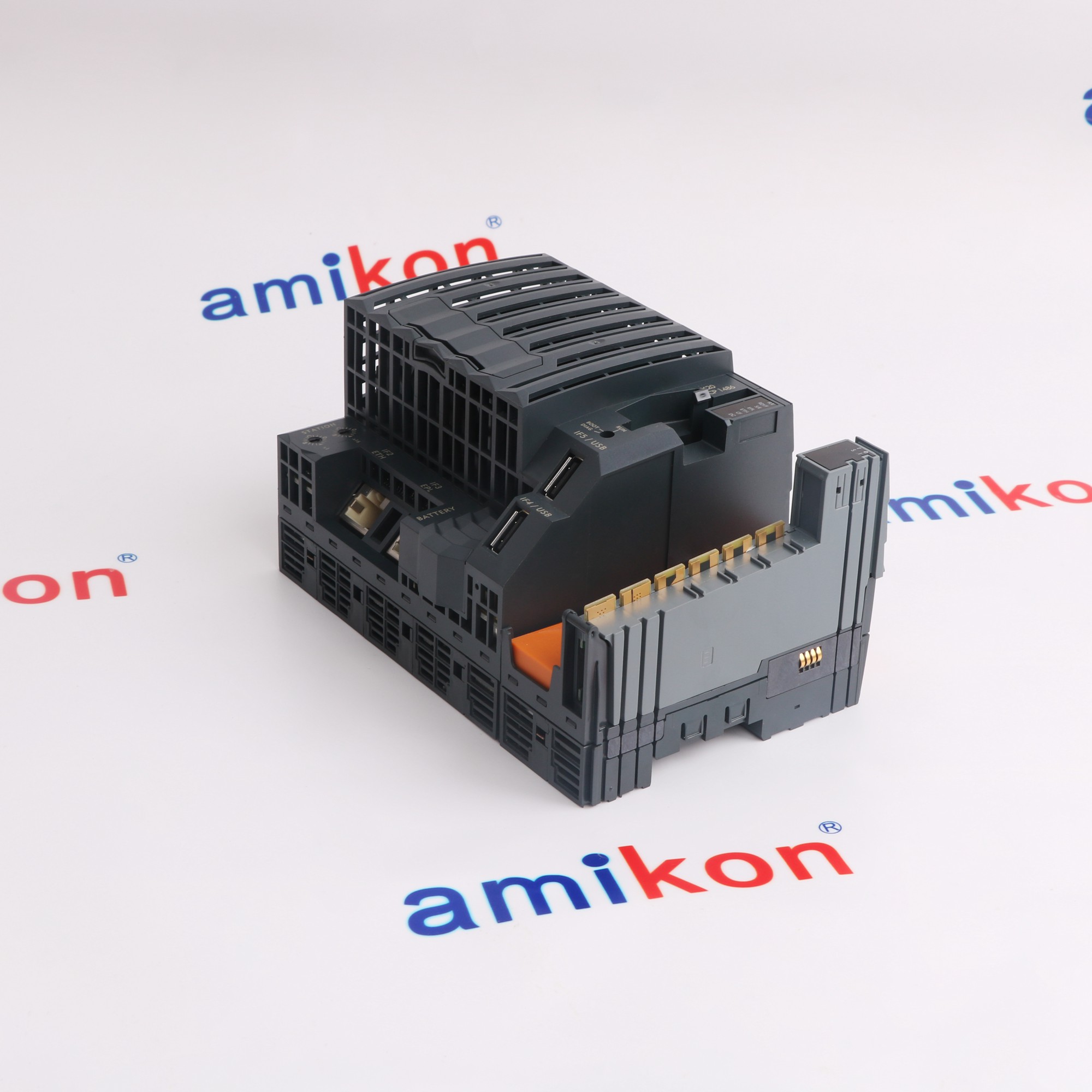

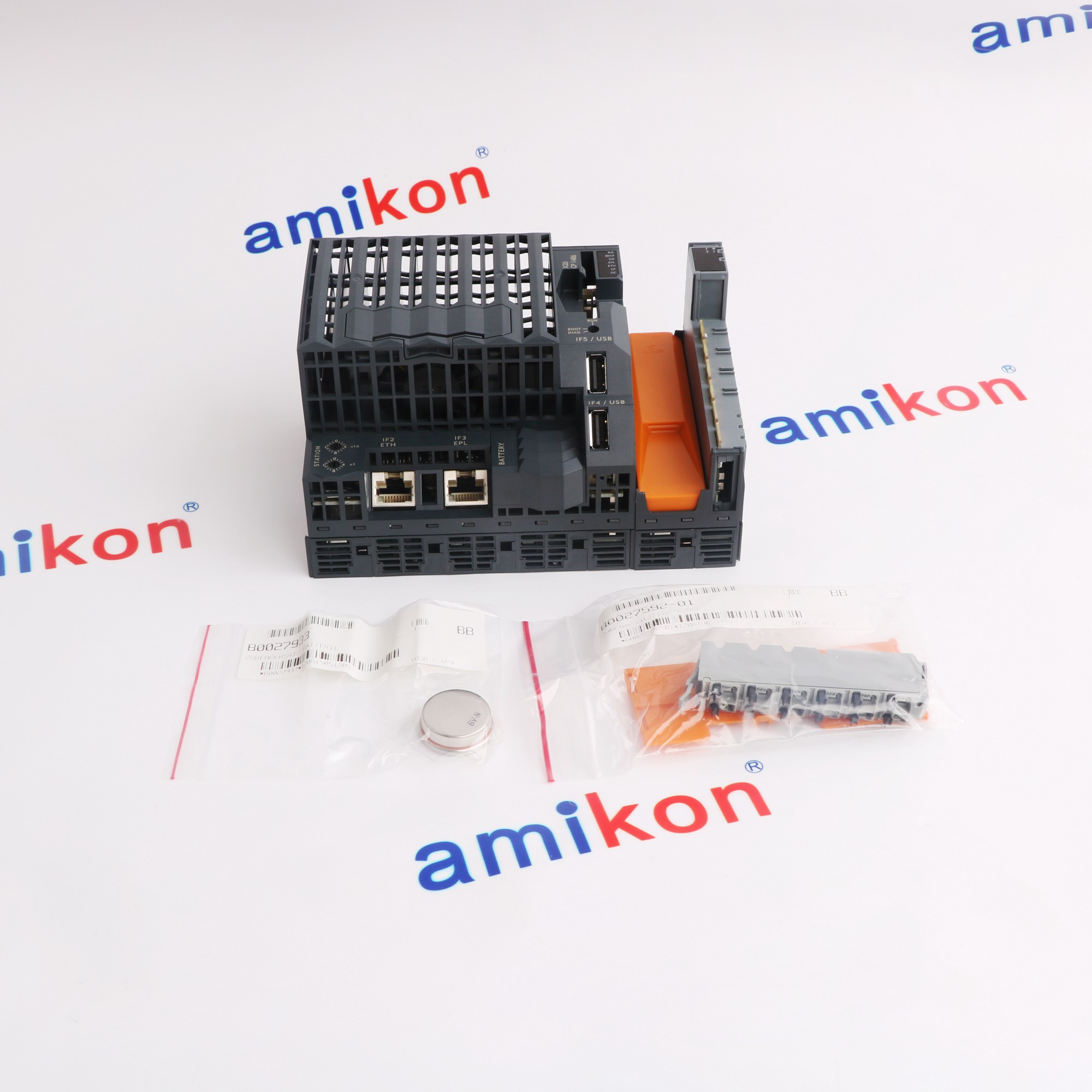

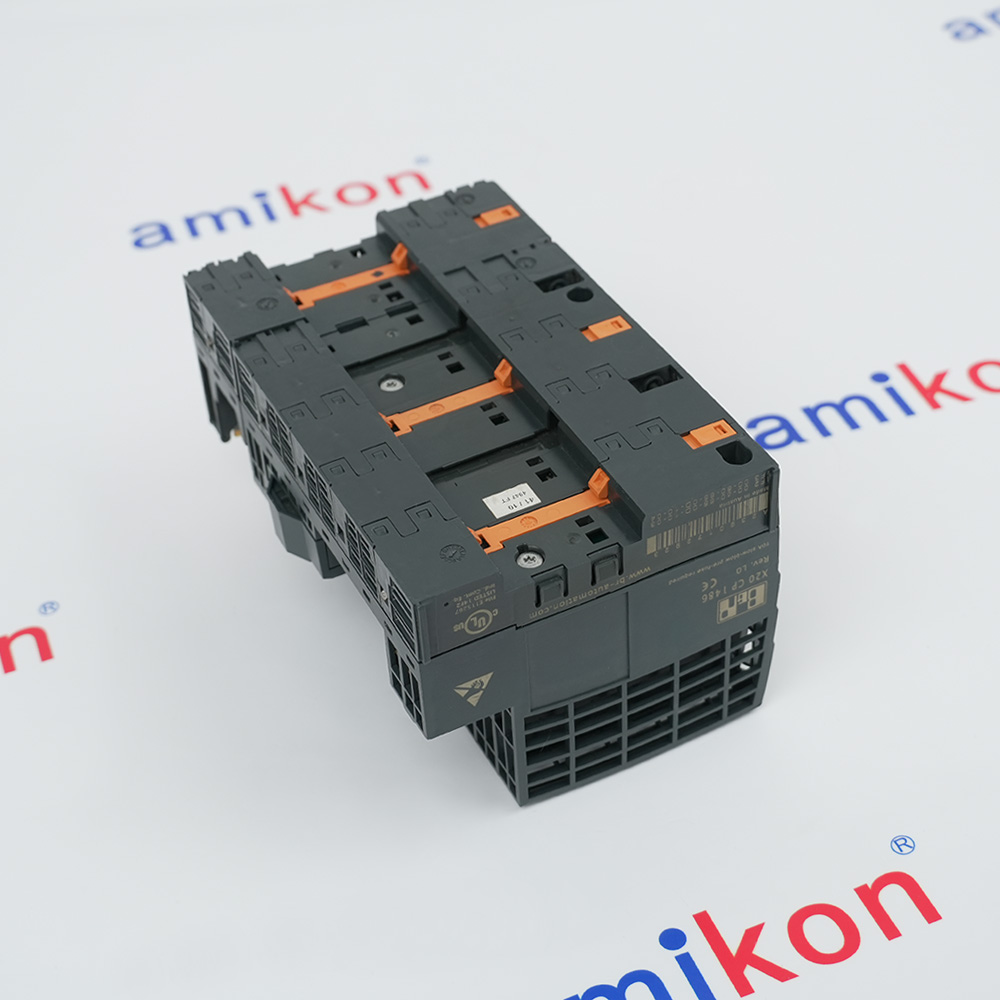

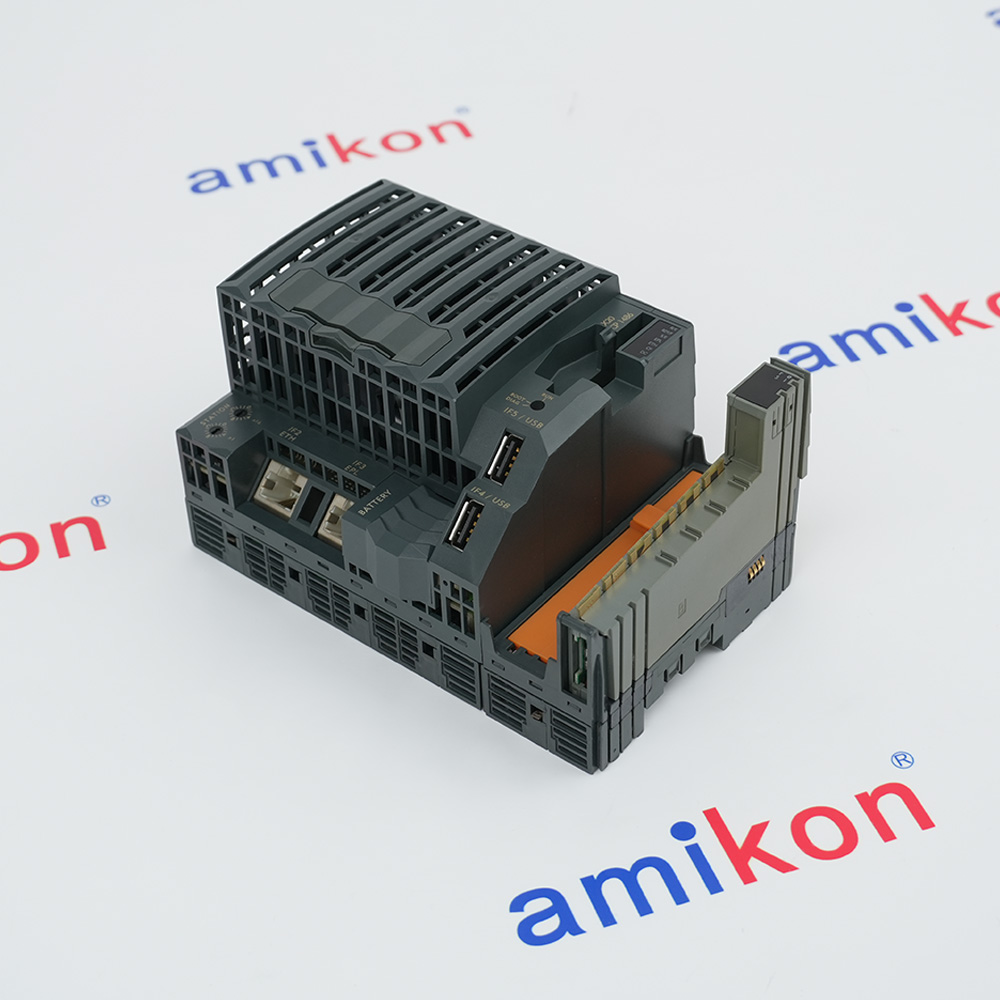

- X20CP1486
In Stock
Ships by Sunday, August 16
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for X20CP1486
-
Product ModelX20CP1486
-
Product ParametersCPU for the X20 System
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size15x8.5x10.8cm
-
ManufacturerB&R
-
Weight0.6 kg
-
System moduleCPU
-
ProcessorCeleron 650
-
Interfaces1x RS232, 1x Ethernet, 1x POWERLINK V1/V2, 2x USB, 1x X2X Link
-
Fastest task class cycle time200 s
-
Typical instruction cycle time0.01 s
-
L1 cache for data and program code2x 16 KB
-
L2 cache256 KB
-
Working memory (SDRAM)64 MB SDRAM
-
User RAM (SRAM)1 MB SRAM
-
Remanent variables256 KB
-
Integrated I/O processorProcesses I/O data points in the background
Description
The B&R X20CP1486 is a high-performance CPU for the B&R X20 System, designed for use anywhere from high-end applications in machine manufacturing to demanding tasks in process control. The B&R X20CP1486 features an Intel Celeron 650 processor with 256 kB L2 cache and 2×16 kB L1 cache for data and program code, delivering powerful computational performance for complex automation applications. The B&R X20CP1486 also includes an additional integrated I/O processor that processes I/O data points in the background, ensuring efficient data handling without impacting main CPU performance.
Memory specifications of the B&R X20CP1486 include 64 MB SDRAM standard memory, 1 MB SRAM user RAM, and a maximum of 256 kB remanent variables. The B&R X20CP1486 features a CompactFlash slot for removable application memory, with CompactFlash cards available in capacities from 16 MB to 8 GB. The B&R X20CP1486 includes a nonvolatile real-time clock with 1-second resolution and –20 to 20 ppm accuracy at 25°C, backed by a lithium battery with at least 3 years of operational life and battery monitoring capability.
Memory specifications of the B&R X20CP1486 include 64 MB SDRAM standard memory, 1 MB SRAM user RAM, and a maximum of 256 kB remanent variables. The B&R X20CP1486 features a CompactFlash slot for removable application memory, with CompactFlash cards available in capacities from 16 MB to 8 GB. The B&R X20CP1486 includes a nonvolatile real-time clock with 1-second resolution and –20 to 20 ppm accuracy at 25°C, backed by a lithium battery with at least 3 years of operational life and battery monitoring capability.
Information
Overview
Manuals
Application Notes
Product Applications
Physical Rail Installation Steps
Features:
- Intel Celeron 650 Performance with additional I/O processor
- Ethernet, POWERLINK V1/V2 and USB onboard
- 1 slot for modular interface expansion
- Compact Flash as removable application memory
- Fan can be exchanged from the outside, tool-free
- Extremely compact
Ethernet and USB are onboard. In addition, the CPU has a POWERLINK V1/V2 connection for real-time communication. The only differences from the CP3486 are thatthe CP1486 only has one slot for interface modules and a smaller width.
The X20CP1486 B&R CPU MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
B&R X20CP1486 CPU MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Electrical design emphasizes protection and integration convenience. The X20CP1486 operates from 24 V DC (–15% / +20%) with a maximum input current of 2.2 A, and includes reverse polarity protection and an integrated non-replaceable fuse. It supplies 7.0 W to the X2X Link bus for powering downstream I/O slices, with support for parallel and redundant operation of the X2X Link supply to enhance system availability. An independent I/O power supply output delivers 24 V DC with a permitted contact load of 10.0 A, capable of driving substantial actuator loads directly from the CPU module. Galvanic isolation is implemented between the PLC core and the Ethernet/POWERLINK/USB interfaces, while the RS232 and USB ports share a common ground with the PLC
- Machine Control:Compact high-speed control for specialized machinery
- Packaging Lines:Automation of packaging machinery
- Conveyor Systems:Conveyor sequencing & material handling
- Manufacturing Facilities:PROFINET IO automation for production lines (no gateways)
- Process Automation:Monitoring & control for industrial processes
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Prepare Node Address Switches: Locate the two rotary address switches on the underlying base module. Use a flathead screwdriver to rotate both switches to their default positions (typically 0), aligning one arrow to 12:00 and the other to 9:00.
Mount the Base Segment: Snaps the base module into position directly on the TS35 DIN rail. Slide it laterally into the male/female locking grooves of any adjacent existing X20 backplane slices until it clicks.
Insert the CPU Module: Align the back runners of the X20CP1486 processor block with the plastic guide grooves of your mounted base housing. Slide the block straight forward firmly until the triangular locking clips snap into place.
Alternative Names
X20CP14B6
X20CPI486
X2OCP1486
XZ0CP1486
Technical notes
Communication interfaces on the B&R X20CP1486 are comprehensive and versatile. The B&R X20CP1486 includes Interface IF1 as RS232 via a 12-pin terminal block with a maximum transfer rate of 115.2 kbit/s. Interface IF2 on the B&R X20CP1486 is Ethernet with a shielded RJ45 connector supporting 10/100 Mbit/s and maximum line length of 100 m between stations. Interface IF3 on the B&R X20CP1486 is POWERLINK V1/V2 with 100BASE-T (ANSI/IEEE 802.3) via shielded RJ45, supporting real-time Ethernet communication at 100 Mbit/s. The B&R X20CP1486 also includes two USB 1.1 Type A interfaces (IF4 and IF5) with 0.5 A maximum output current each, and one X2X Link master interface (IF6) for connecting X20 I/O modules.
FAQs
-
What is the X20CP1486 ？
+The B&R X20CP1486 is a compact, modular PLC CPU from the X20 system, designed for high-performance automation tasks with integrated POWERLINK and Ethernet capabilities. -
What are the key interfaces?
+It includes 1x Ethernet, 1x POWERLINK V1/V2, 1x RS232, 2x USB, and an X2X Link interface. -
What are the cooling conditions?
+The module is fanless within a 0 to 45°C range, and requires a fan for temperatures up to 55°C. -
What is the maximum operating altitude?
+0 to 2000 m without derating; above 2000 m, the temperature must be reduced by 0.5°C per 100 m. -
What do the LEDs indicate?
+Status LEDs display CPU function, overtemperature, Ethernet, POWERLINK, CompactFlash, and battery status.
