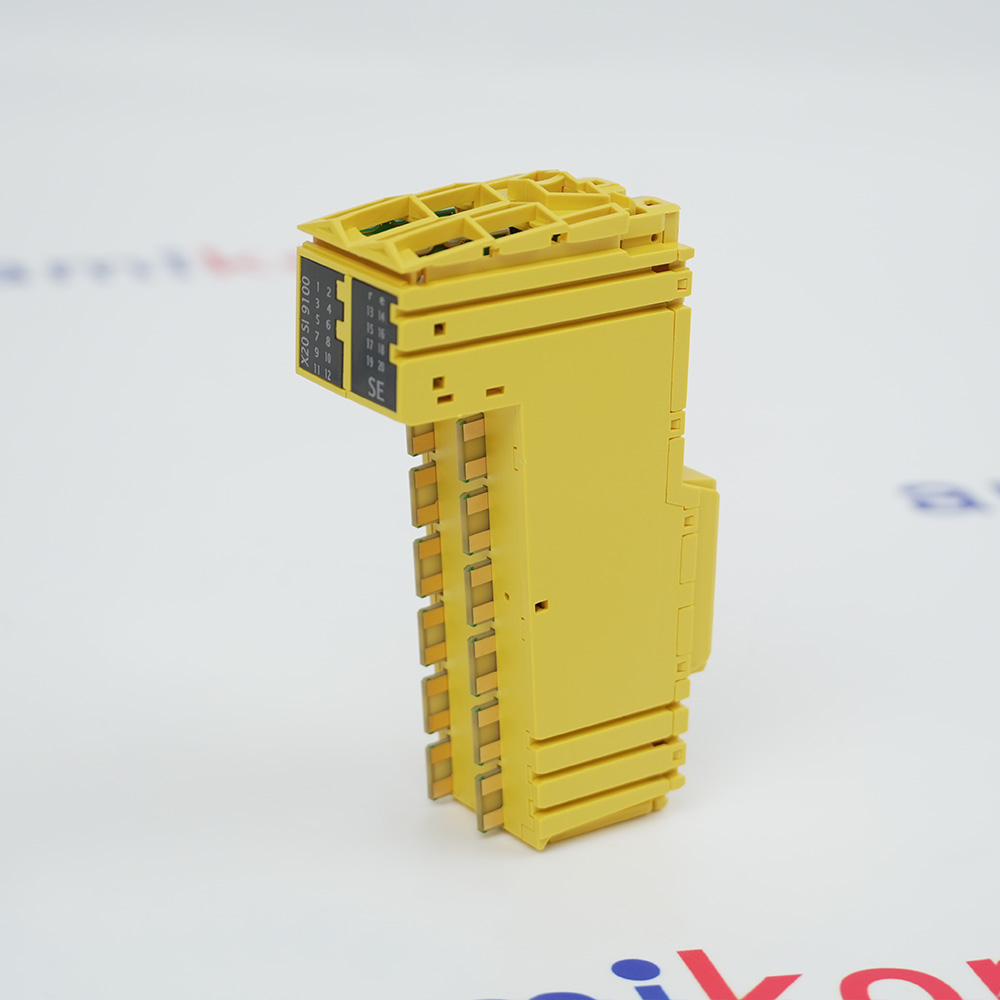

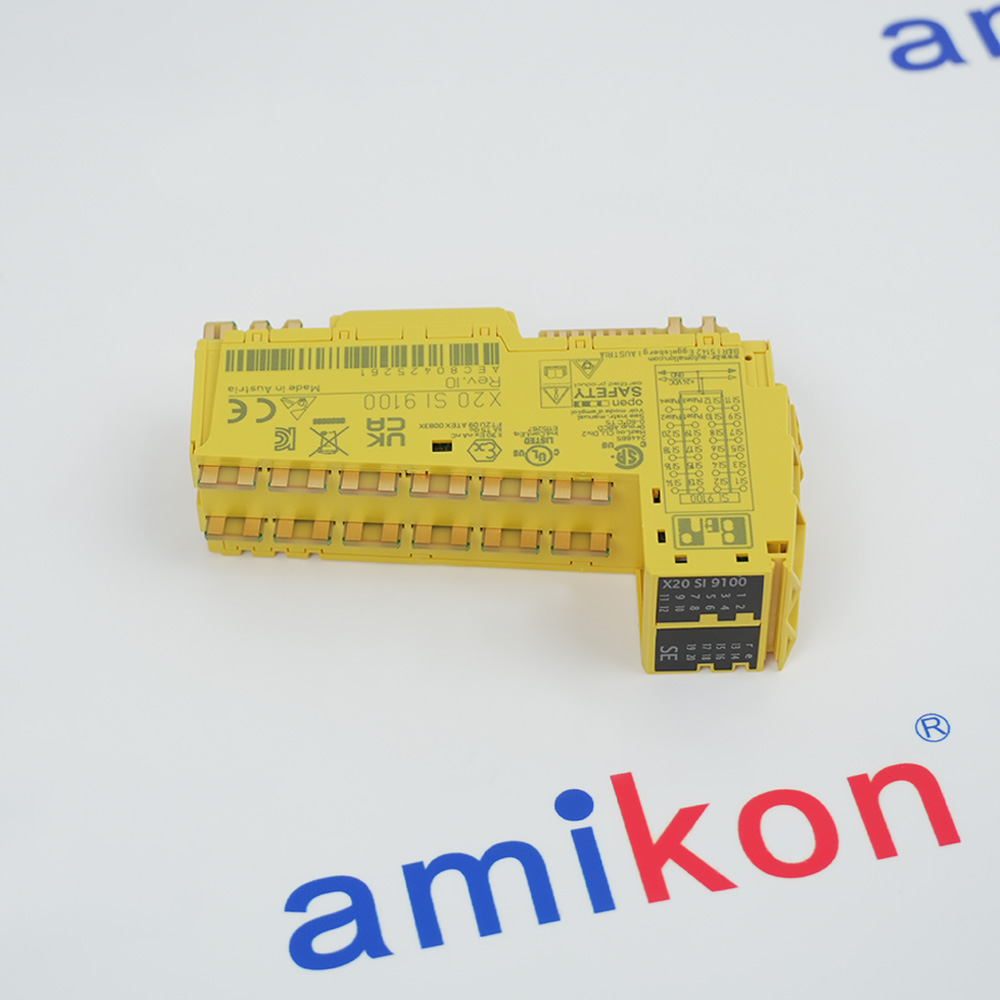

Technical specifications for X20SI9100
-
Product ModelX20SI9100
-
Product ParametersINPUT MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size7.4x14.2x19.8cm
-
ManufacturerB&R
-
Weight0.05 kg
-
I/O module20 safe type A digital inputs, 4 pulse outputs, 24 VDC
-
Bus0.4 W
-
Internal I/O1.6 W
-
Nominal voltage24 VDC
-
Voltage range24 VDC -15% / +20%
Description
X20SI9100
INPUT MODULE
DIGITAL
20 SAFE INPUT
4 PULSE OUTPUT
SINK CIRCUIT
1.4W
INPUT MODULE
DIGITAL
20 SAFE INPUT
4 PULSE OUTPUT
SINK CIRCUIT
1.4W
Information
Overview
Manuals
Technical notes
Product Applications
Installation Steps
Features:
- 20 safe digital inputs
- 4 pulse outputs
- Sink circuit
- Software input filter configurable for each channel
The X20SI9100 B&R INPUT MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
B&R X20SI9100 INPUT MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The module provides pulse signals for diagnosing the sensor line. By default, each pulse signal provides a uniquepulse pattern derived from the module's serial number and pulse channel number. This allows any pulse signalsto be combined in one signal cable and still cover any cross fault combinations in the cable. The pulse check canalso be disabled to connect electronic sensors with separate line monitoring (OSSD signals).
- Packaging Machinery:Safety doors & E-stop for high-speed bottling/wrapping/labeling
- Mobile Machinery:Rugged safety for construction/agricultural/outdoor vehicles
- Automotive & Robotics:Light curtains & mats for human-robot safety
- Production Lines:openSAFETY network for coordinated multi-vendor safety
- Maritime Applications:DNV/LR/ABS certified for deck/engine room safety.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Preparation: Ensure power is disconnected. Mount the X20 bus module on the DIN rail.
Mounting: Plug the X20SI9100 module onto the bus module until it clicks securely into place.
Wiring: Use the 12-pin safety-keyed terminal block (X20TB12) to wire the digital inputs and pulse outputs according to the application's safe logic requirements.
Commissioning: The module supports automated parameterization through the safe logic PLC.
FAQs
-
What is X20SI9100?
+The B&R X20SI9100 is a premium digital input module from B&R Industrial Automation's X20 system -
What are the core technical specifications?
+It features 20 safe type A digital inputs, 4 pulse outputs (Push-Pull), and operates at 24 VDC nominal voltage. It uses an X20 12-pin terminal block. -
What safety levels does it achieve?
+It can reach CAT 3 or CAT 4 (depending on input channel wiring) and PL e or SIL 3. -
What are the pulse outputs used for?
+They are designed to generate test pulses for diagnosing the sensor line, ensuring that there are no short circuits or wire breaks.
