Technical specifications for BES 516-114-SA1-05
-
Product ModelBES 516-114-SA1-05
-
Product ParametersINDUCTIVE SENSOR
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size20x20x3cm
-
ManufacturerBalluff
-
Weight0.25 kg
-
Load capacitance max. at Ue0.15 µF
-
Min. operating current Im0 mA
-
No-load current Io max., damped15 mA
-
No-load current Io max., undamped15 mA
-
Operating voltage Ub10...30 VDC
-
Output resistance Ra6.2 kOhm + D/10.0 kOhm + D
-
Rated insulation voltage Ui75 V DC
-
Rated operating current Ie400 mA
-
Rated operating voltage UeDC 24 V
-
Rated short circuit current100 A
-
Ready delay tv max.10 ms
-
Residual current Ir max.80 µA
-
Ripple max. (% of Ue)15 %
-
Switching frequency300 Hz
-
Utilization categoryDC -13
-
Voltage drop static max.1.5 V
Description
BES516114SA105
INDUCTIVE SENSOR
30 X 91.5 MM
M30X1.5
FOR FLUSH MOUNTING
10 MM RANGE
PNP
NO/NC
300 HZ SWITCHING FREQUENCY
10-30 VDC
NICKEL-PLATED BRASS HOUSING
IP67
(BES02H7)
INDUCTIVE SENSOR
30 X 91.5 MM
M30X1.5
FOR FLUSH MOUNTING
10 MM RANGE
PNP
NO/NC
300 HZ SWITCHING FREQUENCY
10-30 VDC
NICKEL-PLATED BRASS HOUSING
IP67
(BES02H7)
Information
Overview
Manuals
Technical notes
Product Applications
Mounting & Installation
Features:
- Inductive Proximity Sensor
- Compact detection range suitable for precise object detection in tight spaces
- DC PNP Output
- Protection Rating IP67
The BES 516-114-SA1-05 Balluff Temperature-rated inductive sensor may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Balluff BES 516-114-SA1-05 Temperature-rated inductive sensor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

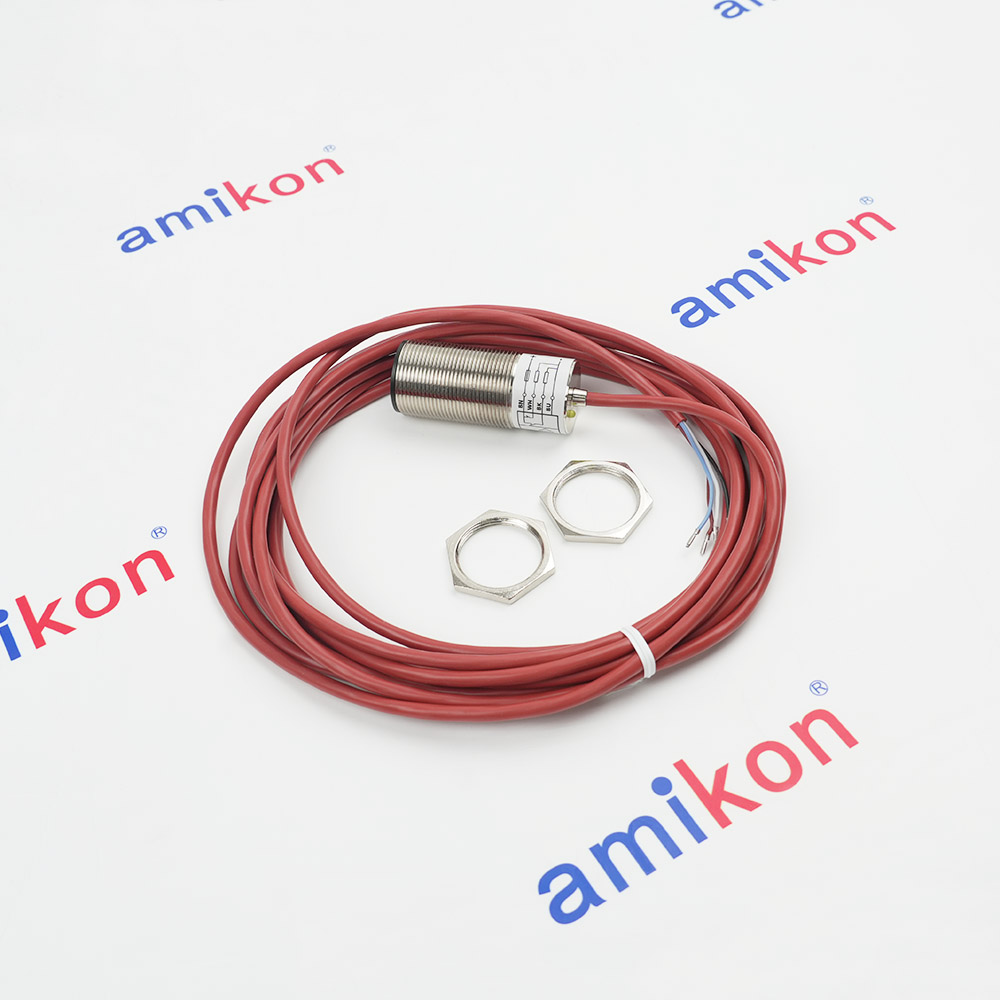

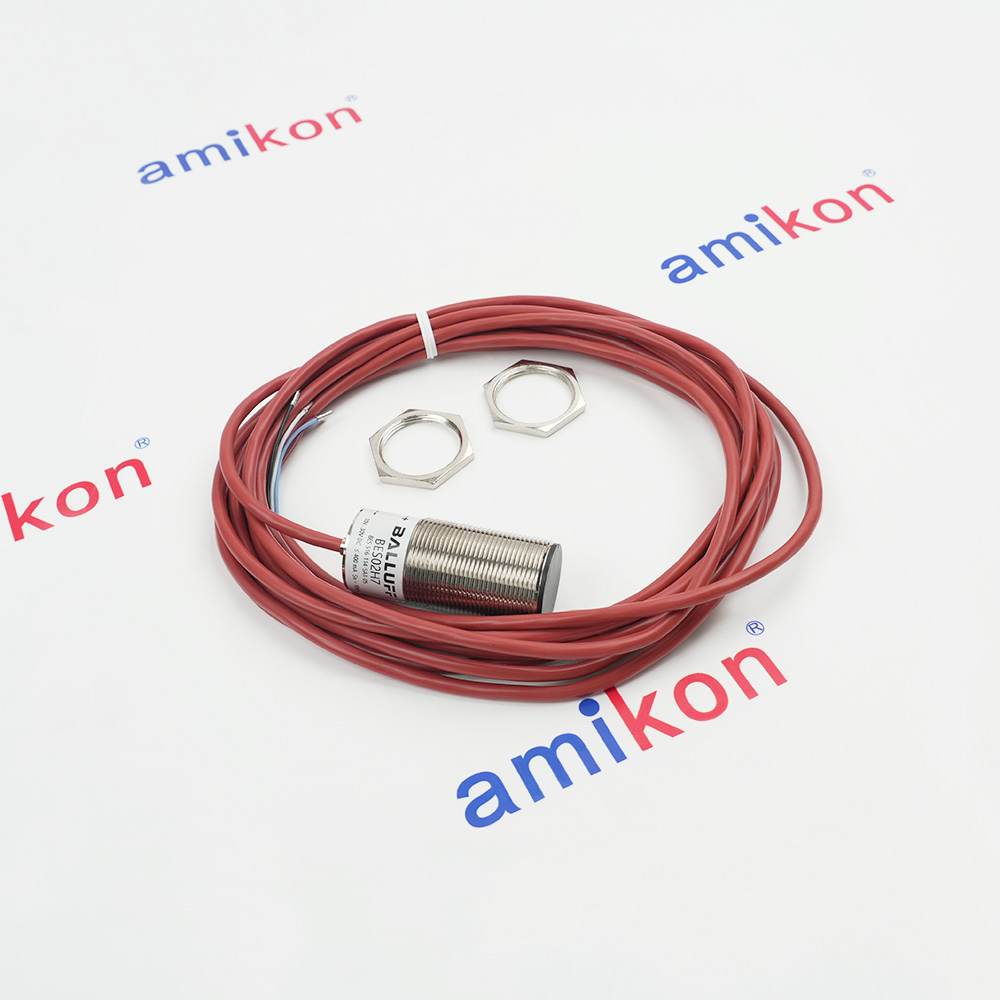

The Balluff BES 516-114-SA1-05(Order Code BES02H7) is a M3Ox1.5 threaded inductive proximity sensor designed for high temperature applications, featuring a 10 mm flush mounting range, 300 Hz switching frequency, PNP normally open/normally closed(NO/NC) output, and a 5-meter silicone cable. It operates between -25--120 °C and has a nickel-plated brass housing.
- Automotive Production Lines:Robotic weld cells, hot stamping & parts detection in high radiant heat
- Metalworking & Forging Equipment:Clamping path monitoring in CNC & position detection in steel forging
- Plastics & Glass Manufacturing:Mold position detection in injection molding & glass-forming equipment
- Hydraulic Systems:End-of-stroke sensors for hydraulic cylinders under high pressure & temperature
- arge-Scale Logistics:Positioning heavy pallets & adapter plates in battery/automotive assembly
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Flush Mounting: This sensor is designed for flush (shielded) mounting, meaning it can be embedded in metallic support material up to its sensing face without unintended triggering.
Tightening Torque: The maximum tightening torque for the M30x1.5 housing is 70 Nm.
Sensing Range: The rated operating distance is 10 mm. For reliable operation, the assured operating distance should be set between 0 and 8.0 mm.
Cable Management: The minimum bending radius is 5x the cable diameter at rest and 10x the cable diameter when in motion
FAQs
-
What is the BALLUFF BES 516-114-SA1-05?
+The Balluff BES 516-114-SA1-05(BES02H7) is a high-temperature(120°C) inductive sensor designed for industrial applications requiring robustness. It features a M16 x 1 stainless steel housing, 10--30 VDC operating voltage, PNP normally open/closed output, 8mm sensing distance, and IP67 protection. -
Is this product brand new?
+Yes, BALLUFF BES 516-114-SA1-05 is brand new, original, unused, and factory sealed -
How do I get the price of BES 516-114-SA1-05 ?
+Please contact our sales director Ms. Sandy for a discount exclusive quote, Email info@amikon.cn Mob/Whatsapp: +86-18020776786. -
What is the maximum operating distance?
+The rated operating distance is 10 mm, with an assured distance of 8 mm. -
What is the switching output type?
+It is a PNP type with configurable NO/NC functionality.
