Temperature Monitor
Accepts from 1 to 6 RTD or TC transducersignals
Greater than 3 MΩ for each lead input.
TC Option: Nominal consumption of 6.3watts.
RTD Option: Nominal consumption of 5.6watts
Standalone Digital Tachometer
Signal :Proximitor Sensor
Threshold:Automatic adjustment
Hysteresis :0.2 Vdc to 2.5Vdc, fieldadjustable.
Events PerTurn:1 to 99, field-adjustable
Electrical Supply: 110-230 Vac, 50-60 Hz. 1.5 Amp
Measurement Range:1 to 999,999 rpm
Measurement Resolution:1 rpm
Proximitor Power:-24 Vdc at 20 mAmaximum
Interconnect Cable

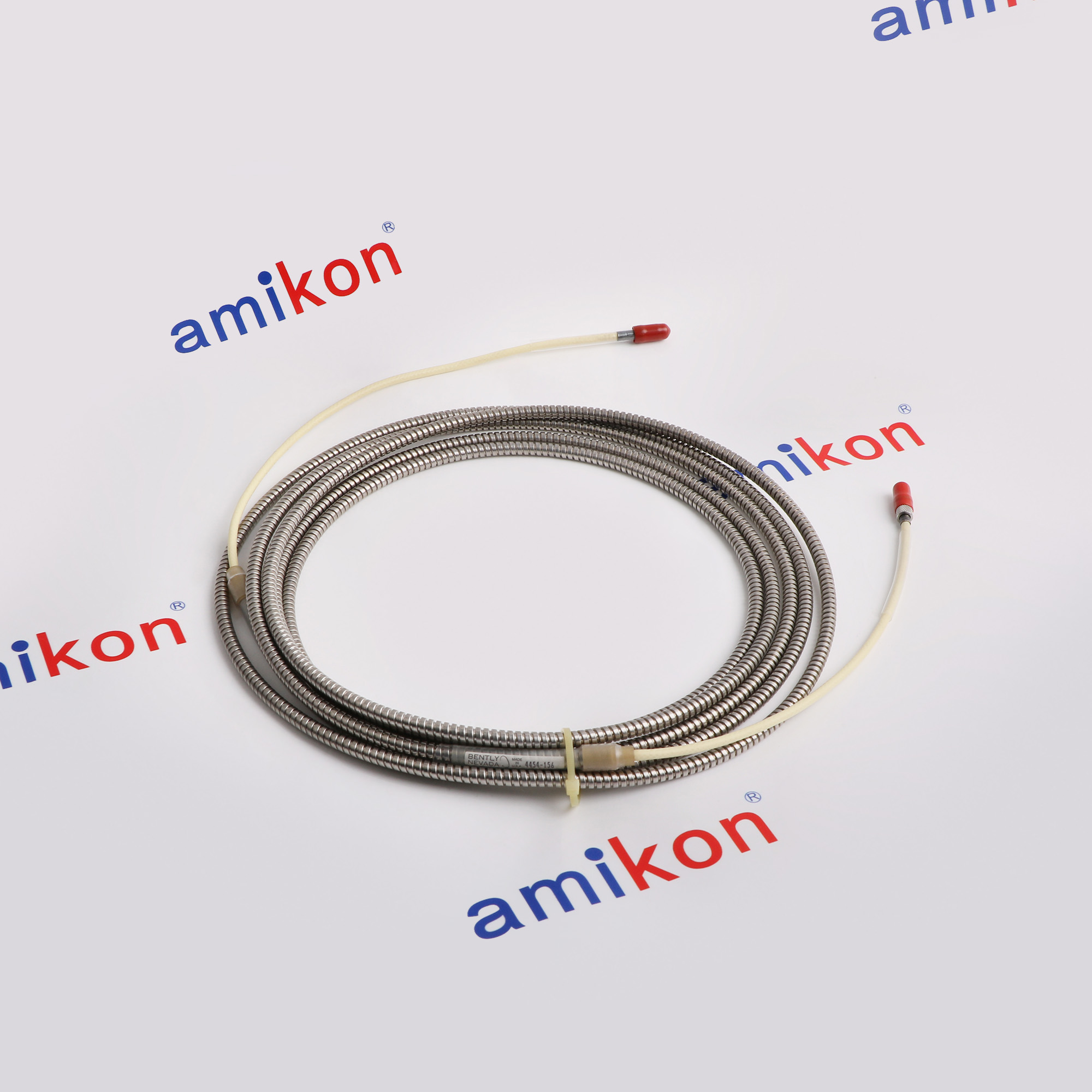

Interconnect Cable with Armor
33 = 33 feet
increments of 1 foot (0.3 m)
Minimum length: 3 feet (0.91 m)
Maximum length: 99 Feet (30.2m)
3300 XL 8 mm Proximity Probes
330103 3300 XL 8 mm Probe
M10 x 1 thread,without armor
Minimum unthreaded length: 0 mm
Minimum case length: 100 mm
50 5.0 meters (16.4 feet)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required
Temperature Module
Model: 3500/61
Part Number: 133811-02.
Description: 16-Channel Temperature Monitor Module
RTDs:2-wire, 3-wire, or 4-wire Pt100
RTD Excitation Current: 1 mA
ADC Resolution: 16-bit
Accuracy RTD: ±0.5°C (±0.9°F) typical
Programmable Alarms: Up to 4 per channel
