- 3300 XL 11mm Proximity Transducer
- 330703-000-050-10-12-05
In Stock
Ships by Wednesday, July 29
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330703-000-050-10-12-05
-
Product Model330703-000-050-10-12-05
-
Product Parameters3300 XL 11 mm Probe, M14 x 1.5 thread,without armor
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size2.5x2x111cm
-
ManufacturerBently Nevada
-
Weight0.1 kg
-
Unthreaded Length Option0 mm
-
Overall Case Length Option50 mm
-
Total Length Option1.0 meter (3.3 feet)
-
Connector and Cable-Type OptionMiniature coaxial ClickLocconnector FluidLoc cable
-
Agency Approval OptionMultiple Approvals
Description

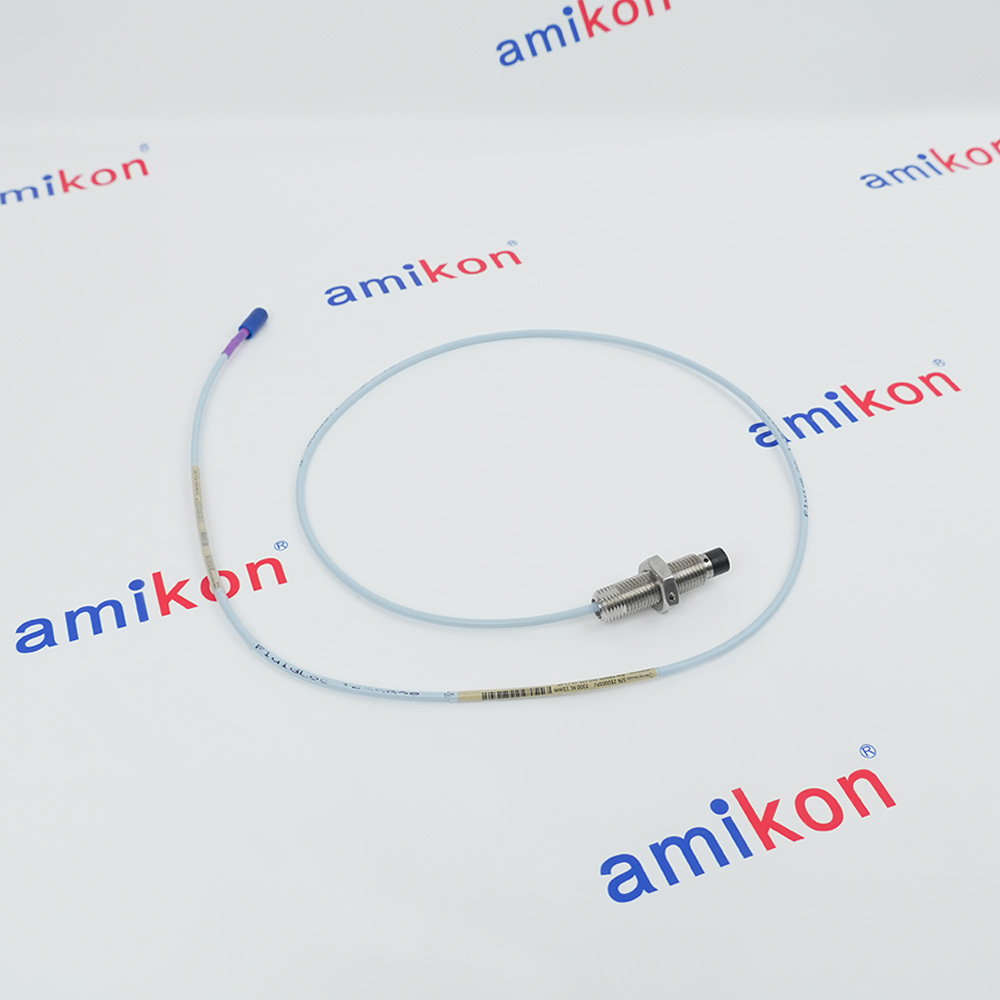

The 330703-000-050-10-12-05 is a 3300 XL 11mm Proximity Probe from Bently Nevada, designed as a key component of the 3300XL 11mm Proximity Transducer System for machinery condition monitoring. The 330703 features an M14 × 1.5 metric thread and comes in a standard configuration without armor, providing a cost-effective solution for industrial applications where mechanical cable protection is not required.
The 330703-000-050-10-12-05 is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines where non-contacting vibration and displacement measurements are needed. The 330703 is part of a transducer system that provides a 3.94 V/mm (100 mV/mil) output for measuring position or vibration within a frequency range of 0 to 8 kHz on fluid film bearing machines.
The 330703-000-050-10-12-05 is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines where non-contacting vibration and displacement measurements are needed. The 330703 is part of a transducer system that provides a 3.94 V/mm (100 mV/mil) output for measuring position or vibration within a frequency range of 0 to 8 kHz on fluid film bearing machines.
Information
Overview
Manuals
Technical notes
Product Applications
Gap Calibration & Voltage
Features:
- 3.94 V/mm (100 mV/mil) Output
- Long Linear Range
- Thin Design
The 3300 XL 11 mm Proximitor Sensor has the same advanced features found in the 3300 XL 8 mm Proximitor Sensor. Its thin design allows it to be mounted in either a high-density DIN-rail installation or a more traditional panel mount configuration. Improved RFI/EMI immunity allows the 3300 XL Proximitor Sensor to achieve European CE mark approvals without any special mounting considerations. This RFI immunity also prevents the transducer system from being adversely affected by nearby high frequency radio signals. SpringLoc terminal strips on the Proximitor Sensor require no special installation tools and facilitate faster, highly robust field wiring connections.
The 330703-000-050-10-12-05 Bently Nevada 3300 XL 11 mm Proximity Probes may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330703-000-050-10-12-05 3300 XL 11 mm Proximity Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL 11 mm Proximitor Sensor is designed to replacethe 7200-series 11 mm and 14 mm Transducer Systems. Whenupgrading from the 7200-series system to the 3300 XL 11 mmsystem, every component must be replaced with 3300 XL 11mm components. In addition, the monitoring system mustbe updated. If using a 3500 Monitoring System, an updatedversion of the configuration software that lists the 3300 XL 11mm Transducer System as a compatible option is required. Existing 3300 Monitoring Systems may need a modification. Contact your local sales and service representative forassistance.
- Axial (Thrust) Position:Measures shaft axis movement to prevent internal contact
- Radial Vibration and Position:Monitors side-to-side shaft movement within bearings
- Differential Expansion:Measures rotor-casing growth difference for steam turbines
- Rod Drop/Position:Monitors reciprocating compressors for rider band wear
- Speed and Phase Reference:Keyphasor sensor for tacho & zero-speed
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Gap Calibration & Voltage
Recommended Gap: 2.5 mm (100 mils).
Linear Range: 0.5 to 4.5 mm (20 to 180 mils), which roughly corresponds to an output of –1 to –17 Vdc.
Scale Factor: The system typically produces 3.94 V/mm (100 mV/mil).
Target Size: Ensure a minimum target diameter of 30.5 mm (1.2 in) for a flat target to maintain measurement accuracy.
Alternative Names
330703 000 050 10 12 05
33O7O3-OOO-O5O-1O-12-O5
330703-000-050-I0-I2-05
33O7O3 OOO O5O 1O 12 O5
33O7O3 OOO O5O IO I2 O5
330703-000-050-10-12-00
330703-000-050-10-12-CN
330703-000-050-10-12-BR
330703-000-050-10-12-RU
Technical notes
The 330703-000-050-10-12-05 is deployed in industrial rotating machinery monitoring systems across power generation, oil and gas, petrochemical, and general manufacturing sectors. The 50 mm case length provides a compact mounting solution for installations with limited mounting boss depth. The M14 x 1.5 thread is a metric standard commonly used in European and Asian machinery. The FluidLoc cable construction makes this probe suitable for environments exposed to hydraulic fluids, lubricating oils, and coolants.
FAQs
-
What is 330703-000-050-10-12-05?
+The Bently Nevada 330703-000-050-10-12-05 is a 3300 XL 11mm proximity probe for critical machinery monitoring, such as shaft vibration and position. -
What is the standard gap voltage for 330703-000-050-10-12-05?
+For optimal linear output, the gap voltage of these probes is typically between -8 VDC and -12 VDC. -
What is the system's linear range?
+The 11 mm system has a larger linear range than standard 8 mm probes, typically providing a 4.0 mm (160 mil) linear range starting at a gap of approximately 0.5 mm (20 mils). -
Is the probe submersible?
+The probe tip and cable are designed to withstand high humidity and condensation (100% humidity), but they are not submersible unless the connectors are specifically protected..
