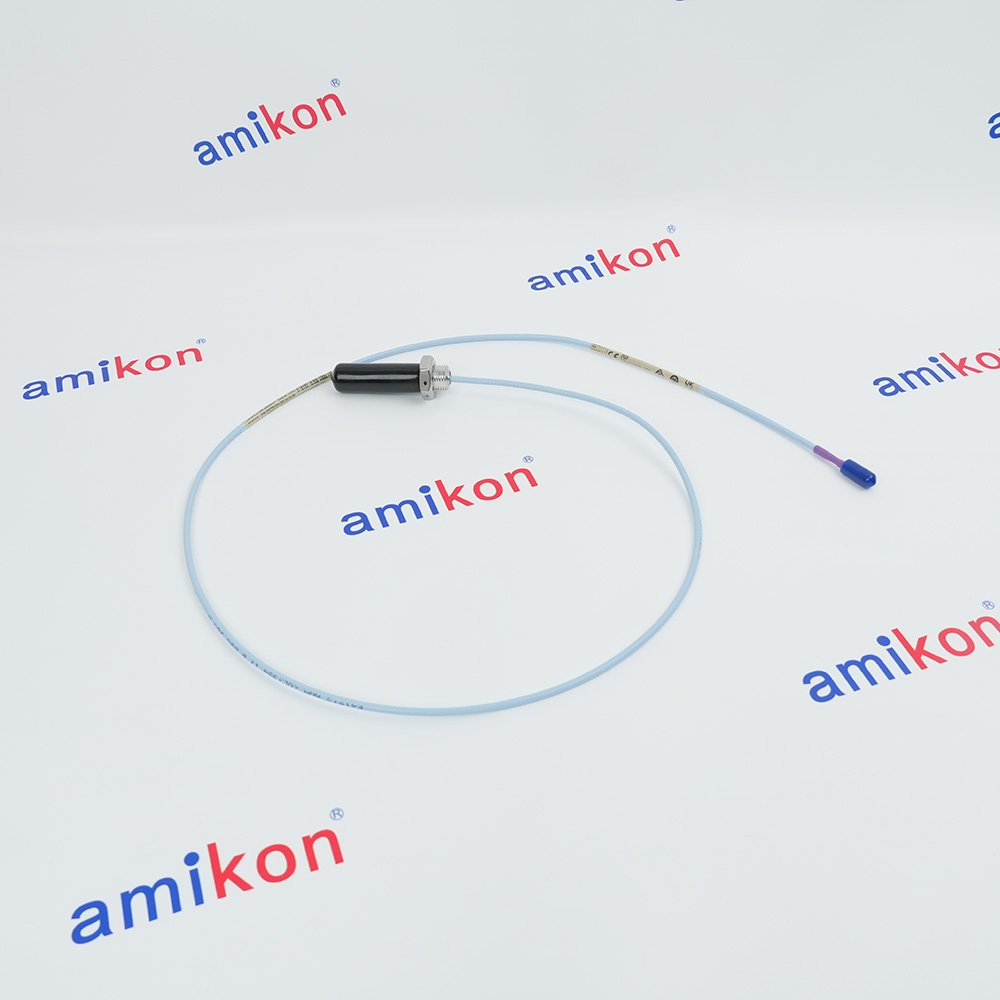

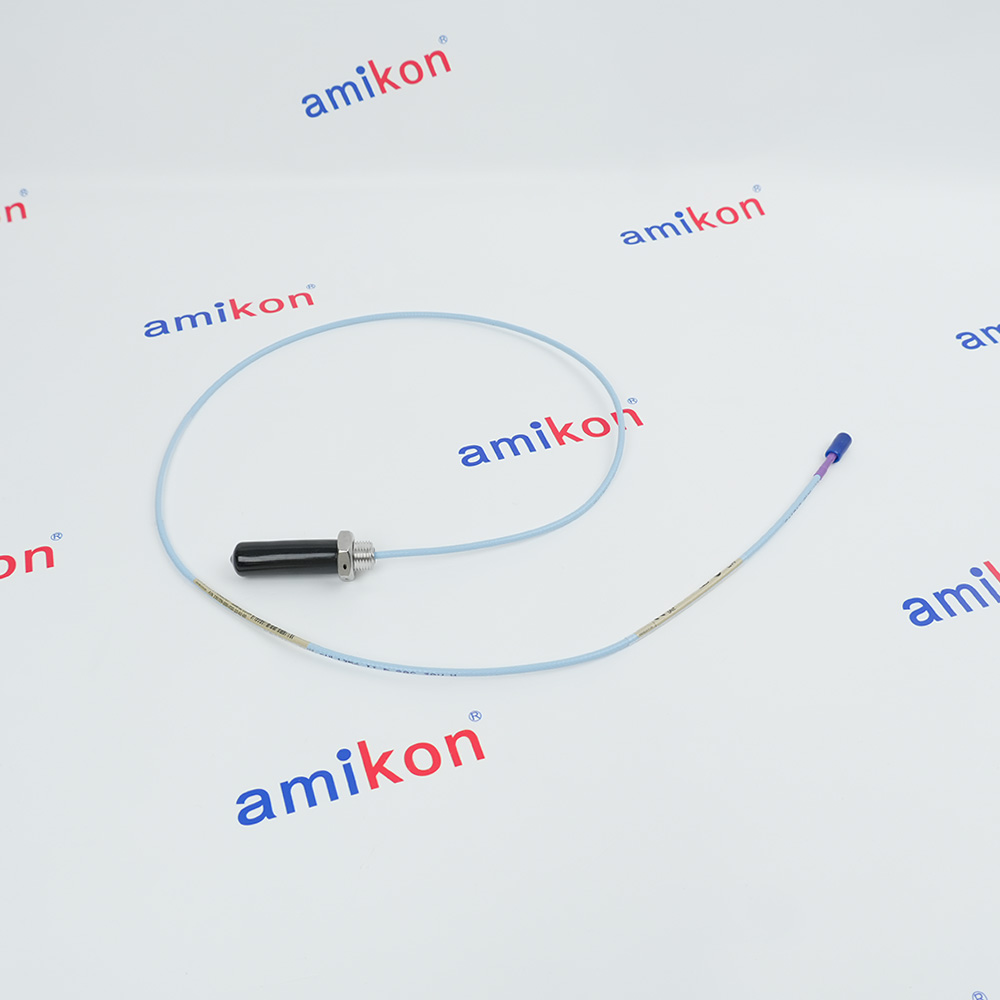

330709-000-050-10-02-00
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
330709 3300 XL 11 mm Probe
M16 x 1.5 thread,without armor
Minimum unthreaded length:0 mm
Minimum length:50 mm
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required
M16 x 1.5 thread,without armor
Minimum unthreaded length:0 mm
Minimum length:50 mm
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required
Technical specifications for 330709-000-050-10-02-00
-
Product Model330709-000-050-10-02-00
-
Product Parameters3300 XL 11 mm Proximity Probes
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size20.4x22.2x3.7cm
-
ManufacturerBently Nevada
-
Weight0.18 kg
-
Unthreaded Length Option0 mm
-
Overall Case Length Option50 mm
-
Total Length Option1.0 meter (3.3 feet)
-
Connector and Cable-Type OptionMiniature coaxial ClickLocconnector standard cable
-
Agency Approval OptionNot required
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is 330709-000-050-10-02-00?+The Bently Nevada 330709-000-050-10-02-00 is a 3300 XL 11 mm Proximity Probe designed for high-precision, non-contact vibration and position measurements in fluid film bearing machinery
-
What is the linear range of this transducer system?+The 3300 XL 11 mm system has a linear range of 4.0 mm (160 mils) with a nominal scale factor of 3.94 V/mm (100 mV/mil).
-
How do I verify the electrical health of the probe?+You can check the DC resistance of the probe tip. For a 1.0-meter probe, the resistance between the center and outer conductors should typically measure 5.9 ± 0.5 ohms
-
Does this probe require an extension cable?+Yes. To form a calibrated 5-meter or 9-meter system, this 1.0-meter probe must be used with a 4-meter or 8-meter extension cable, respectively.
Get a quick price fo 330709-000-050-10-02-00
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Connector Installation & Torque
Features:
- 3.94 V/mm (100 mV/mil) Output
- Long Linear Range
- Thin Design
The 3300 XL 11 mm Proximitor Sensor has the same advanced features found in the 3300 XL 8 mm Proximitor Sensor. Its thin design allows it to be mounted in either a high-density DIN-rail installation or a more traditional panel mount configuration. Improved RFI/EMI immunity allows the 3300 XL Proximitor Sensor to achieve European CE mark approvals without any special mounting considerations. This RFI immunity also prevents the transducer system from being adversely affected by nearby high frequency radio signals. SpringLoc terminal strips on the Proximitor Sensor require no special installation tools and facilitate faster, highly robust field wiring connections.
The 330709-000-050-10-02-00 Bently Nevada 3300 XL 11 mm Proximity Probes may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330709-000-050-10-02-00 3300 XL 11 mm Proximity Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL 11 mm Proximitor Sensor is designed to replacethe 7200-series 11 mm and 14 mm Transducer Systems. Whenupgrading from the 7200-series system to the 3300 XL 11 mmsystem, every component must be replaced with 3300 XL 11mm components. In addition, the monitoring system mustbe updated. If using a 3500 Monitoring System, an updatedversion of the configuration software that lists the 3300 XL 11mm Transducer System as a compatible option is required. Existing 3300 Monitoring Systems may need a modification. Contact your local sales and service representative forassistance.
- Oil & Gas Refineries and Petrochemical Plants:Monitors compressors/pumps & fluid-film bearings to prevent failures
- Power Generation Facilities:Axial/radial vibration monitoring for turbines in coal/hydro/combined-cycle
- Pulp and Paper Mills:Monitors large rolls & pulp refiners for consistent rotation
- Mining and Metal Processing:Heavy equipment monitoring (ball mills, crushers, fans) in dusty environments
- Water and Wastewater Treatment Plants:Monitors critical pumps & blowers for municipal projects
- Fertilizer and Chemical Production:Ensures rotating machinery reliability in high-stakes processing
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
XL to XL Connections: Tighten the connectors finger-tight until you hear or feel a "click". No tools are required for standard 3300 XL components.
Mixed Components: If connecting a 3300 XL cable to a non-XL stainless steel connector, tighten finger-tight and then use pliers to apply an additional 1/8 turn.
Maximum Torque: Never exceed 0.565 N·m (5 in·lb) of torque to avoid damaging the gold plating or the internal contact.
