Product Information
Product Describe
080 8.0 meters (26.2 feet)
03 Armored cable with connectorprotector
05 Multiple Approvals

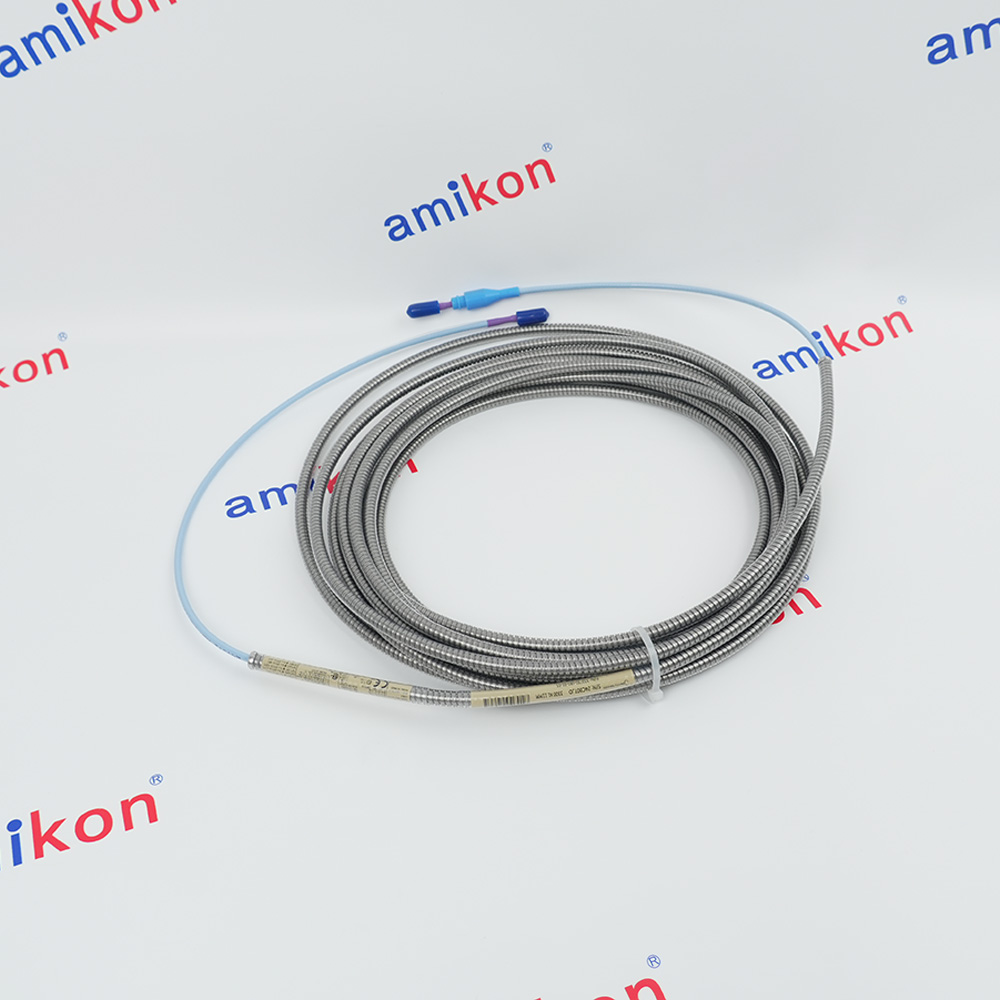

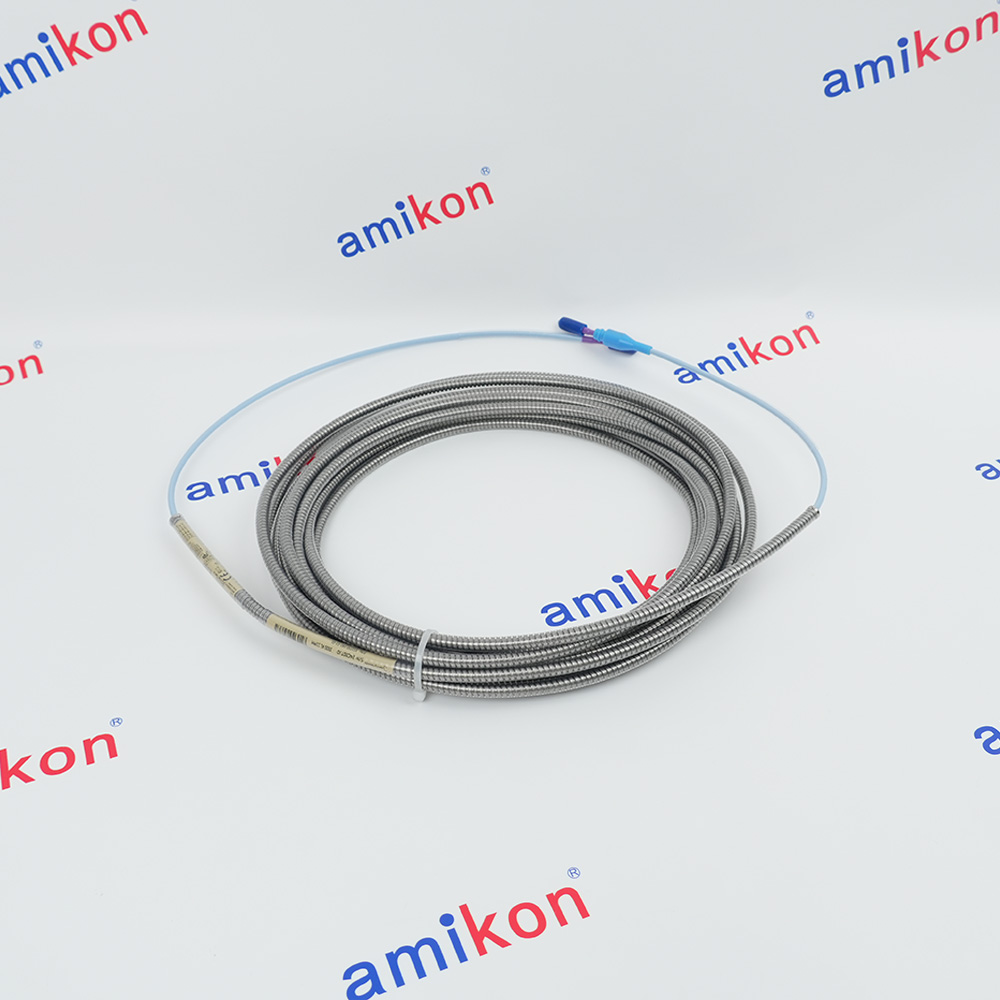

3300 XL 11 mm Extension Cable
03 Armored cable with connectorprotector
05 Multiple Approvals
3300 XL 11 mm Extension Cable
Technical specifications for 330730-080-03-05
-
Product Model330730-080-03-05
-
Product Parameters3300 XL 11 mm Extension Cable
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size21x20x2cm
-
ManufacturerBently Nevada
-
Weight0.2 kg
-
Cable Length Option8.0 meters (26.2 feet)
-
Connector and Cable OptionArmored cable with connectorprotector
-
Agency Approval OptionMultiple Approvals
-
Output resistance50 Ω
-
Operating and Storage Temperature-52°C to +177°C (-62°F to+351°F)
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is 330730-080-03-0?+The Bently Nevada 330730-080-03-05 is an 8.0-meter (26.2-foot) extension cable designed for the 3300 XL 11 mm Proximity Transducer System.
-
What is the cable length of 330730-080-03-05?+"080" indicates a total length of 8.0 meters (26.2 feet).
-
What is the cable type of 330730-080-03-05?+It is a 75Ω triaxial cable with fluoroethylene propylene (FEP) insulation, which helps maintain signal integrity.
-
What system is this used in?+It is exclusively for the 3300 XL 11 mm Proximity Transducer System.
-
What is the maximum distance between 330730-080-03-05 and the display?+This system supports a maximum distance of 305 meters (1000 feet) between the 3300 XL proximity sensor and the display.
Get a quick price fo 330730-080-03-05
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Comparison with Related Models
Features:
- 3.94 V/mm (100 mV/mil) Output
- Long Linear Range
- 3300 XL 11mm Proximity Transducer System
The 3300 XL 11 mm Proximitor Sensor has the same advanced features found in the 3300 XL 8 mm Proximitor Sensor. Its thin design allows it to be mounted in either a high-density DIN-rail installation or a more traditional panel mount configuration. Improved RFI/EMI immunity allows the 3300 XL Proximitor Sensor to achieve European CE mark approvals without any special mounting considerations. This RFI immunity also prevents the transducer system from being adversely affected by nearby high frequency radio signals. SpringLoc terminal strips on the Proximitor Sensor require no special installation tools and facilitate faster, highly robust field wiring connections.
The 330730-080-03-05 Bently Nevada 3300 XL 11mm Extension Cable may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330730-080-03-05 3300 XL 11mm Extension Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL 11 mm probe comes in varyingprobe case configurations, including armoredand unarmored ½-20, 5⁄8 -18, M14 X 1.5 and M16 X1.5 probe threads. The reverse mount 3300 XL 11mm probe comes standard with either 3⁄8 -24or M10 X 1 threads. All components of thetransducer system have gold-plated brassClickLoc connectors. ClickLoc connectors lockinto place, preventing the connection frombecoming loose. The patented TipLoc moldingmethod provides a robust bond between theprobe tip and the probe body. The probe cableis securely attached to the probe tip utilizingour patented CableLoc design that provides330 N (75 lb) pull strength.
- Gas Turbines: Used in large units (200MW+) to monitor shaft vibration and thrust
- Steam Turbines: Monitors differential expansion and bearing housing performance
- Hydroelectric Plants: Tracks rotor movement and vibration in turbine generators
- Centrifugal & Process Gas Compressors: Ideal for high-speed compressors in refinery and pipeline operations
- Pumps: Monitors critical feed and process pumps to prevent mechanical seal or bearing failure
- Electric Motors: Large industrial motors used in mining, pulp and paper, or water treatment
- Gearboxes: Monitors shaft alignment and vibration in heavy-duty gear systems
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
3300 5 mm System: Uses a smaller physical package but offers a similar linear range to the 8 mm probe. It is used when physical (not electrical) space is limited.
3300 XL NSv (Narrow Side View): Specifically designed for tight spaces with limited side clearance. It has a shorter linear range (1.5 mm) but superior performance in narrow targets.
3300 XL 25 mm & 50 mm: These are "extended range" systems. The 25 mm system offers a 12.7 mm range, while the 50 mm system provides up to 27.9 mm, the longest available for eddy current sensors.
