- 3300 XL 8mm Proximity Transducer
- 330101-00-12-10-02-05
In Stock
Ships by Wednesday, September 2
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330101-00-12-10-02-05
-
Product Model330101-00-12-10-02-05
-
Product Parameters3300 XL 8 mm Proximity Probes
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size1.6x1.4x118cm
-
ManufacturerBently Nevada
-
Weight0.05 kg
-
Unthreaded Length Option0.0 in
-
Overall Case Length Option1.2 in
-
Total Length Option1.0 metre (3.3 feet)
-
Connector and Cable-Type OptionMiniature coaxial ClickLocconnector standard cable
-
Agency Approval OptionCSA, ATEX, IECEx Approvals
Description

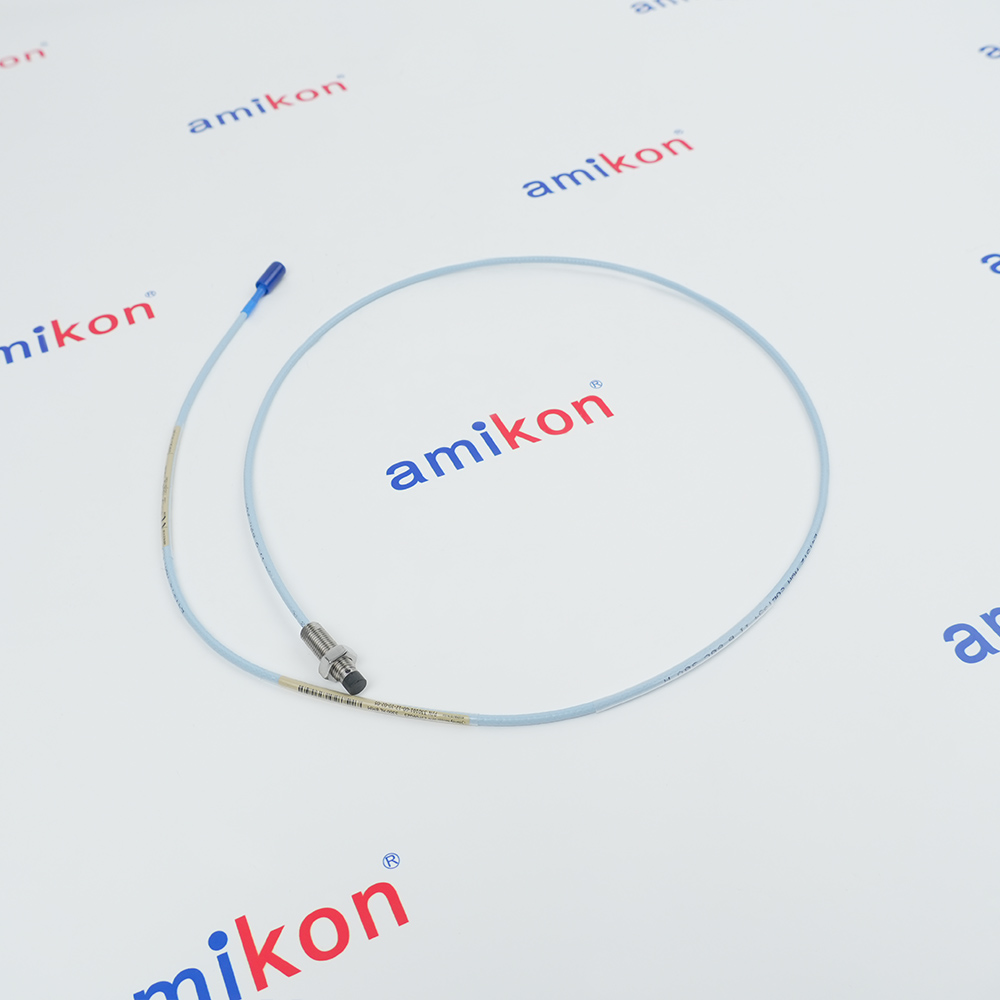

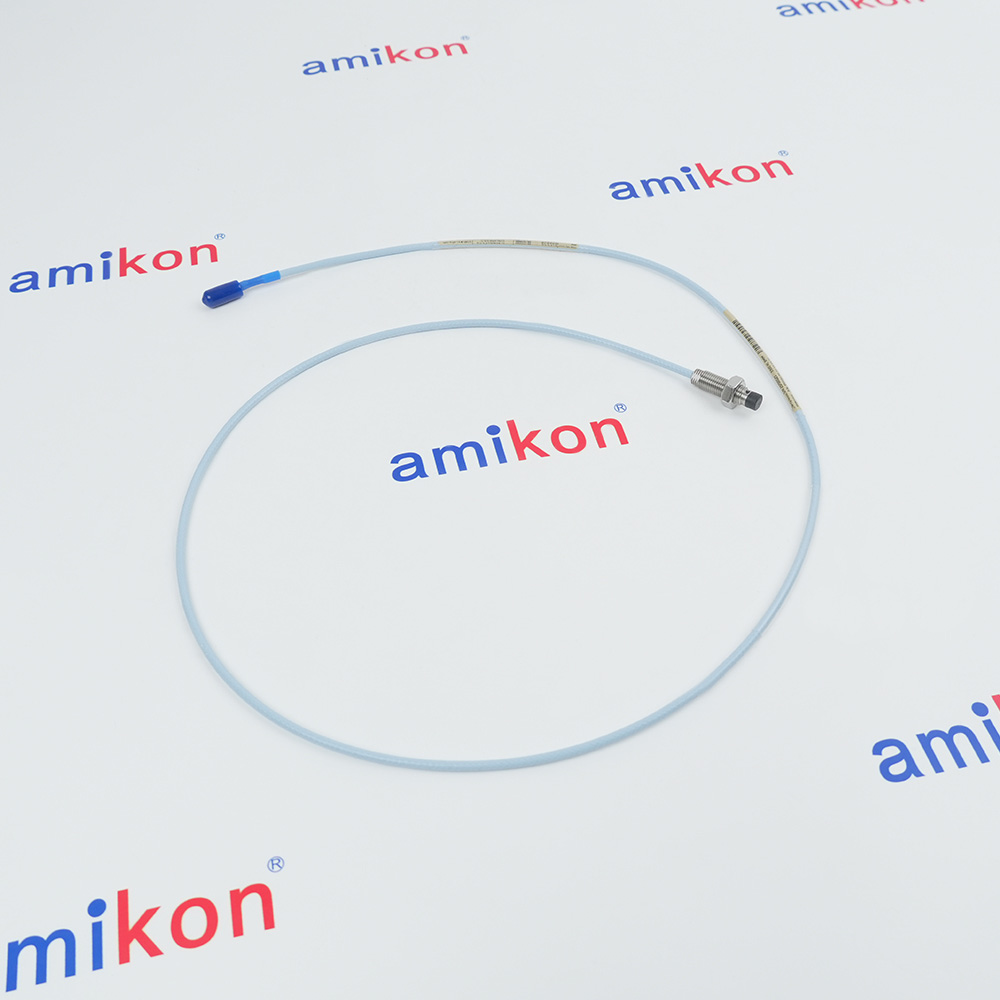

The BENTLY NEVADA 330101-00-12-10-02-05 3300 XL 8 mm Proximity Probe is a non-contact eddy-current displacement sensor used for monitoring the position and movement of conductive machine components. It is part of the Bently Nevada 3300 XL 8 mm Proximity Transducer System, which consists of the probe, a compatible extension cable, and a 3300 XL Proximitor Sensor.
The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
Information
Overview
Manuals
Application Notes
Product Applications
Mechanical Insertion & Gapping
Features:
- 3/8-24 UNF Thread Mounting
- Patented TipLoc Molding Method
- Corrosion-Resistant Gold-Plated ClickLoc Connector
- Connector Protector Included
- CSA, ATEX, and IECEx Agency Approvals
The probe uses an 8 mm diameter sensing tip and is suitable for non-contact measurement of rotating machinery. Typical applications include shaft vibration monitoring, radial shaft position measurement, axial position measurement, speed measurement, and Keyphasor-related applications. The exact measurement function depends on the connected monitoring system, Proximitor Sensor, target geometry, and system configuration.
The 330101-00-12-10-02-05 Bently Nevada 3300 XL 8 mm Probe, 3/8-24 UNFthread, without armor may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330101-00-12-10-02-05 3300 XL 8 mm Probe, 3/8-24 UNFthread, without armor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 330101-00-12-10-02-05 features corrosion-resistant, gold-plated ClickLoc connectors that require only finger-tight torque (the connectors will "click" when tight), and the specially-engineered locking mechanism prevents the connectors from loosening. The 330101-00-12-10-02-05 requires no special tools for installation or removal, simplifying field maintenance and reducing downtime.
The 330101-00-12-10-02-05 carries CSA, ATEX, and IECEx agency approvals (option -05), making it suitable for use in hazardous area environments. The 330101-00-12-10-02-05 operates within a temperature range of -52°C to +177°C (-62°F to +350°F) for standard applications, and is fully interchangeable with other 3300 XL 8 mm system components, eliminating the need to match or bench calibrate individual components.
- Oil/Gas: Deployed on offshore rigs, refineries, and LNG transport facilities
- Power Generation: Used in nuclear, thermal, gas, and hydro plants for grid uptime
- Chemical/Petrochemical: Installed in high-risk zones with ATEX/IECEx explosion-proof ratings
- Mining/Refining: Used on ore crushers, blast furnace blowers, and rolling mill drives
- Pulp/Paper/Water: Monitors wastewater pumps and large industrial drying rollers
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Prepare the Mounting Hole: Ensure the 3/8-24 UNF threaded port is clean, free of burrs, and perpendicular to the target shaft.
Manual Threading: Thread the probe into the mounting bracket or housing by hand until the tip lightly touches the target shaft. Do not force it, as this can crack the tip assembly.
Back-Off Calculation (Alternative Method): One full turn of a 3/8-24 thread equals 0.041 inches (approx. 41.7 mils or 1.06 mm). To rough-gap the sensor to its ideal 50 mil (1.27 mm) center point, back the probe out roughly 1.2 turns from the shaft surface.
Alternative Names
330101-00-12-10-02-O5
330101-00-12-10-0Z-05
330101-00-12-10-O2-05
330101-00-12-1O-02-05
330101-00-12-I0-02-05
330101-00-I2-10-02-05
330101-OO-12-10-02-05
33010I-00-12-10-02-05
3301O1-00-12-10-02-05
330I01-00-12-10-02-05
33O101-00-12-10-02-05
330101 00 12 10 02 05
330101 00 12 10 02 O5
330101 00 12 10 0Z 05
330101 00 12 10 O2 05
330101 00 12 IO 02 05
330101 00 IZ 10 02 05
330101 OO 12 10 02 05
33010I 00 12 10 02 05
330101-00-12-10-02-00
330101-00-12-10-02-CN
330101-00-12-10-02-BR
330101-00-12-10-02-RU
Technical notes
The 330101-00-12-10-02-05 carries CSA, ATEX, and IECEx agency approvals (option -05), making it suitable for use in hazardous area environments. The 330101-00-12-10-02-05 operates within a temperature range of -52°C to +177°C (-62°F to +350°F) for standard applications, and is fully interchangeable with other 3300 XL 8 mm system components, eliminating the need to match or bench calibrate individual components.
FAQs
-
What is the 330101-00-12-10-02-05?
+The Bently Nevada 330101-00-12-10-02-05 is a 3300 XL 8 mm Proximity Probe used for non-contact vibration and position measurements on rotating machinery -
What components are required for the complete transducer system?
+To function correctly, this probe must be paired with a 3300 XL extension cable and a 3300 XL Proximitor Sensor. Using mismatched components will cause calibration errors. -
What does this probe measure?
+It measures the distance between the probe tip and a conductive target (usually a rotating shaft). It translates this distance into a voltage output, which is used for monitoring vibration, rotor speed (Keyphasor), and axial position. -
What are the required environmental and operating conditions?
+The probe is designed to operate in extreme environments and is rated for temperatures ranging from -51°C to +177°C. The
