- 3300 XL 8mm Proximity Transducer
- 330101-00-20-10-02-00
In Stock
Ships by Wednesday, September 2
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330101-00-20-10-02-00
-
Product Model330101-00-20-10-02-00
-
Product Parameters3300 XL 8 mm Probe, 3/8-24 UNFthread, without armor
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size1.5x1.3x113cm
-
ManufacturerBently Nevada
-
Weight0.05 kg
-
ProximitorSensorMaterialA308 aluminum
-
Connector MaterialGold-plated brass or goldplated beryllium copper
-
StandardProbe-52°C to +177°C (-62°F to+350°F)
-
Unthreaded Length Option0.0 in
-
Overall Case Length Option2.0 in
-
Total Length Option1.0 meter (3.3 feet)
-
Connector and Cable-Type OptionMiniature coaxial ClickLocconnector, standard cable
-
Agency Approval OptionNot required
Description

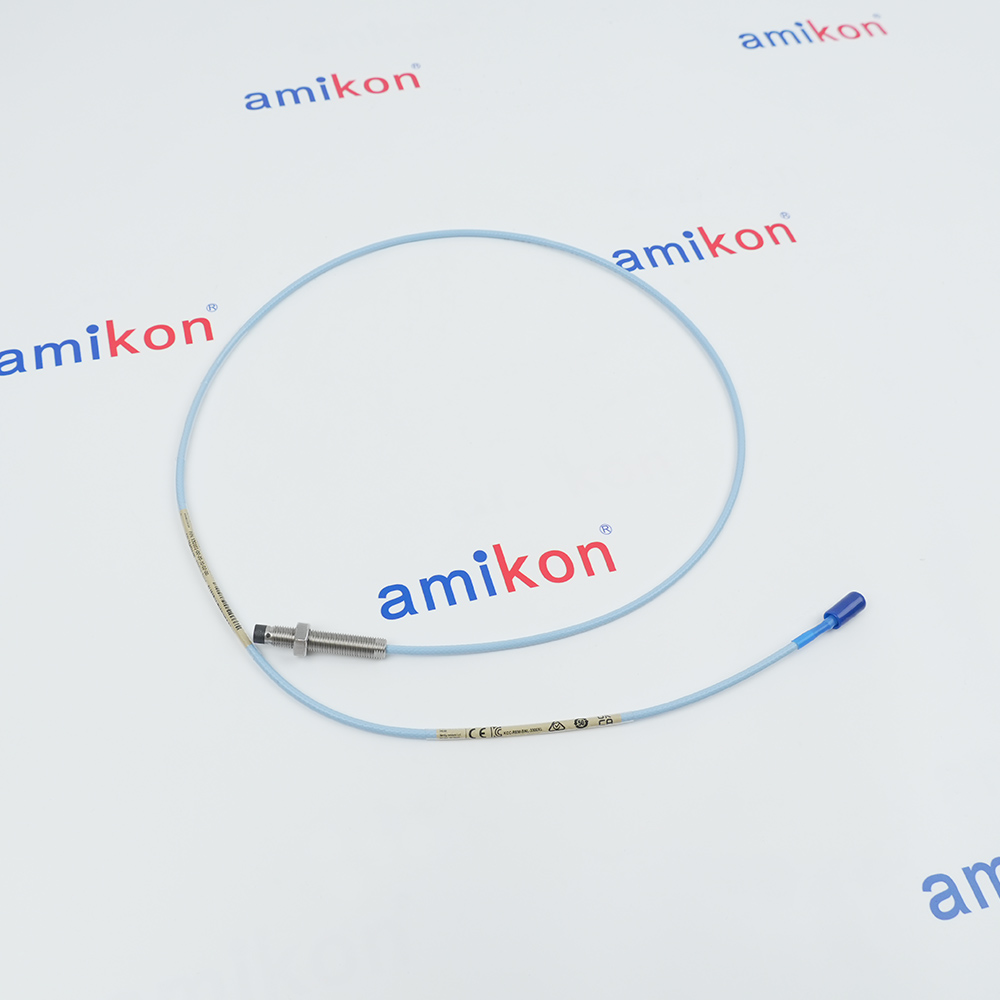

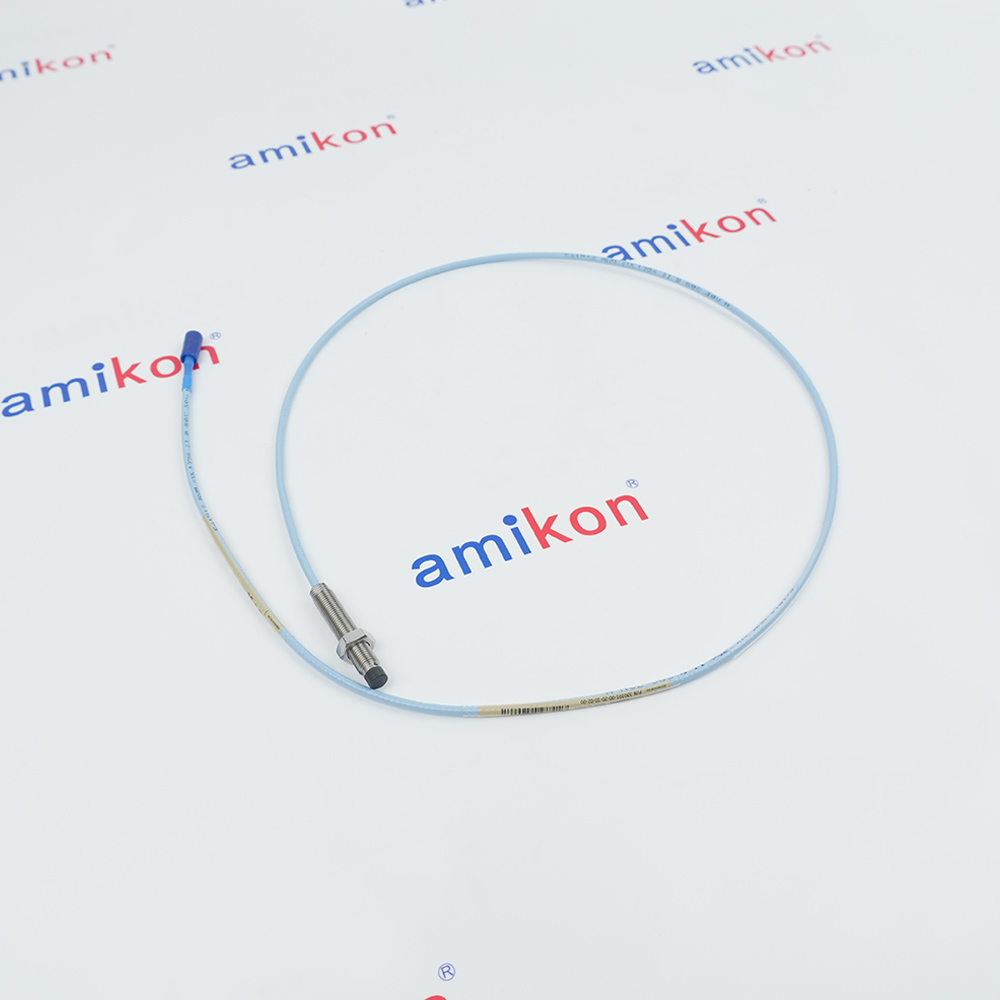

The BENTLY NEVADA 330101-00-20-10-02-00 is a standard-mount 3300 XL 8 mm proximity probe with a 3/8-24 UNF inch thread. The probe is intended for non-contact measurement of shaft displacement and is used with compatible 3300 XL Proximitor Sensors and extension cables to form a complete machinery monitoring transducer system. (dam.bakerhughes.com)
The BENTLY NEVADA 330101-00-20-10-02-00 has a 0 in unthreaded length and a 2.0 in case length. The 10 configuration specifies a 10.0 ft total system length, while the 02 configuration uses a miniature coaxial ClickLoc connector with standard cable.
The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
The BENTLY NEVADA 330101-00-20-10-02-00 has a 0 in unthreaded length and a 2.0 in case length. The 10 configuration specifies a 10.0 ft total system length, while the 02 configuration uses a miniature coaxial ClickLoc connector with standard cable.
The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
Information
Overview
Manuals
Application Notes
Product Applications
Probe Insertion
Features:
- 3/8-24 UNF Thread without Armor
- 2.0 Inch Unthreaded Length with 1.0 Inch Overall Case Length
- 1.0 Meter (3.3 Feet) Total Cable Length
- Complete Interchangeability of Components
- API 670 Standard Compliance
- Backward Compatibility with Non-XL 3300 Series
The 330101-00-20-10-02-00 is part of the 3300 XL 8mm system that delivers the most advanced performance in Bently Nevada's eddy current proximity transducer systems. The 330101-00-20-10-02-00 supports complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
The 330101-00-20-10-02-00 Bently Nevada 3300 XL 8 mm Probe, 3/8-24 UNFthread, without armor may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330101-00-20-10-02-00 3300 XL 8 mm Probe, 3/8-24 UNFthread, without armor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 330101-00-20-10-02-00 is backward compatible and interchangeable with other non-XL 3300 series 5mm and 8mm transducer system components. The 330101-00-20-10-02-00 features a 3/8-24 UNF thread without armor, providing a lightweight and flexible probe solution for standard industrial installations.
The 330101-00-20-10-02-00 has an unthreaded length of 2.0 inches, an overall case length of 1.0 inch, and a total length of 1.0 meter (3.3 feet). The 330101-00-20-10-02-00 is equipped with a miniature coaxial ClickLoc connector with connector protector and standard cable. The ClickLoc connector on the 330101-00-20-10-02-00 locks into place, preventing the connection from loosening.
The 330101-00-20-10-02-00 has a maximum tensile strength of 330N (75 lbf) from probe case to probe lead. The 330101-00-20-10-02-00 is approved with multiple agency approvals including CSA, ATEX, and IECEx.
- Gas & Steam Turbines: Tracks radial vibration and casing expansion under high temperatures
- Centrifugal & Axial Compressors: Monitors shaft alignment and surge conditions
- Electric Motors & Generators: Detects bearing wear and rotor imbalances to prevent failure
- Pumps & Gearboxes: Continuously maps distance to fluid-film bearings
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Thread alignment: Screw the 3/8-24 UNF probe body into the mounting hole or bracket carefully to avoid stripping the machine threads.
Locknut and sealing: Secure the probe with its locknut. If an O-ring seal is used, ensure proper compression to prevent fluid leakage.
Gap adjustment: Set the initial mechanical gap using a multitester or voltmeter connected to the Proximitor sensor, adjusting the probe depth until the output reaches the linear range target voltage (typically −10 V DC, or a gap voltage range of −9 V to −11 V DC)
Alternative Names
330101-00-20-10-02-OO
330101-00-20-10-O2-00
330101-00-20-1O-02-00
330101-00-20-I0-02-00
330101-00-2O-10-02-00
330101-OO-20-10-02-00
33010I-00-20-10-02-00
3301O1-00-20-10-02-00
330I01-00-20-10-02-00
33O101-00-20-10-02-00
330101 00 20 10 02 00
330101-00-20-10-02-05
330101-00-20-10-02-CN
330101-00-20-10-02-BR
330101-00-20-10-02-RU
Technical notes
The 330101-00-20-10-02-00 has a maximum tensile strength of 330N (75 lbf) from probe case to probe lead. The 330101-00-20-10-02-00 is approved with multiple agency approvals including CSA, ATEX, and IECEx.The 330101-00-20-10-02-00 operates over a temperature range of -52°C to +177°C (-62°F to +350°F). The 330101-00-20-10-02-00 is designed to seal differential pressure between the probe tip and case using a Viton O-ring seal.
FAQs
-
What is the normal gap voltage?
+For the 3300 XL series proximity probes, the standard gap voltage range is typically between −9 V and −11 V DC when the probe is correctly positioned and gapped within its linear measurement range against a standard AISI 4140 steel target. -
Is it backwards compatible with older 3300 systems?
+Yes. The 3300 XL 8 mm probe components are both electrically and physically interchangeable with older, non-XL Bently Nevada 3300 5 mm and 8 mm components. However, mixing XL and non-XL parts limits the total system performance to the lower, non-XL specifications. -
What is the standard target material calibration?
+The system is factory-calibrated by default to AISI 4140 steel. Utilizing alternative target materials requires custom factory recalibration or specialized calibration curves. -
Does a 1-meter probe require an extension cable?
+No. In the 3300 XL Transducer System, 1-meter systems are designed to connect directly to the Proximitor Sensor without an intermediate extension cable.
