- 3300 XL 8mm Proximity Transducer
- 330101-00-71-05-01-05
In Stock
Ships by Wednesday, September 2
Fast Shipping Available
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330101-00-71-05-01-05
-
Product Model330101-00-71-05-01-05
-
Product Parameters3300 XL 8 mm Probe, 3/8-24 UNFthread, without armor
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size1.5x1.3x116cm
-
ManufacturerBently Nevada
-
Weight0.1 kg
-
Unthreaded Length Option0.0 in
-
Overall Case Length Option7.1 in
-
Total Length Option0.5 meter (1.6 feet)
-
Connector and Cable-Type OptionMiniature coaxial ClickLocconnector with connectorprotector, standard cable
-
Agency Approval OptionCSA, ATEX, IECEx Approvals
Description

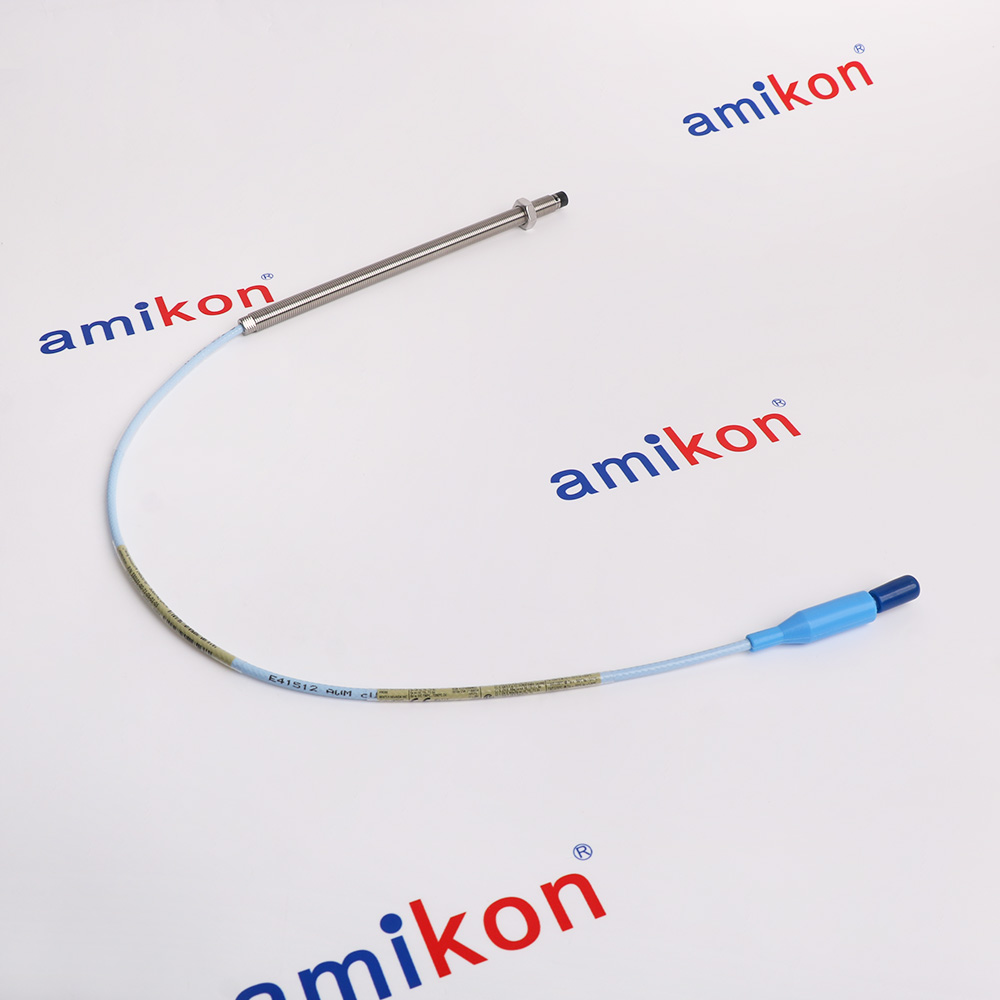

The 330101-00-71-05-01-05 is a Bently Nevada 3300XL 8 mm proximity probe with 3/8-24 UNF thread and without armor cable, designed as a component of the 3300XL 8 mm Proximity Transducer System. The 330101-00-71-05-01-05 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values for machinery condition monitoring on fluid-film bearing machines, as well as Keyphasor reference and speed measurement applications.
The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
Information
Overview
Manuals
Application Notes
Product Applications
Coaxial Connection
Features:
- 3/8-24 UNF Thread Configuration
- Without Armor Construction
- Connector Protector with Standard Cable
- Patented TipLoc Molding Method

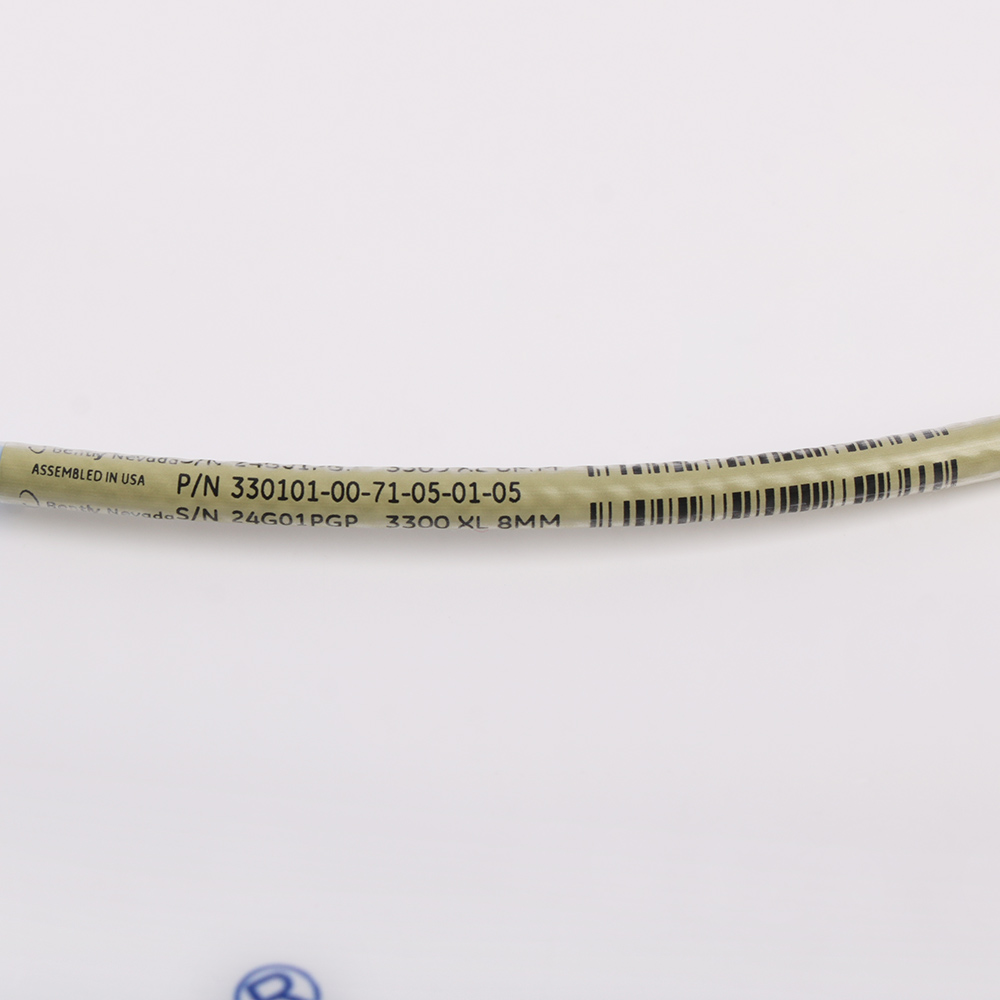

The 330101-00-71-05-01-05 incorporates a 75 Ω triaxial cable with FEP insulation and a stainless-steel probe body with a polyphenylene sulfide (PPS) probe tip. The electrical characteristics are factory controlled, allowing complete interchangeability with other probes of the same system length without field calibration. When combined with the specified extension cable and Proximitor Sensor, the system provides a 2.0 mm (80 mil) linear measurement range calibrated for AISI 4140 steel targets and complies with the performance requirements of API Standard 670.
The 330101-00-71-05-01-05 Bently Nevada 3300 XL 8 mm Probe, 3/8-24 UNFthread, without armor may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330101-00-71-05-01-05 3300 XL 8 mm Probe, 3/8-24 UNFthread, without armor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 330101-00-71-05-01-05 carries the -05 agency approval option, providing CSA, ATEX, and IECEx certifications for use in hazardous area applications. The 330101-00-71-05-01-05 meets the entity parameters for probe hazardous area approvals when used with Bently Nevada extension cables and connected to Bently Nevada Proximitor sensors, and the probe is approved for cNRTLus intrinsic safety (ia) and non-incendive (nA, ec) installations as well as ATEX/IECEx intrinsic safety (ia) and non-incendive (nA, ec) installations.
The 330101-00-71-05-01-05 incorporates a patented TipLoc molding method that provides a more robust bond between the probe tip and the probe body, and features a patented CableLoc design that provides 330 N (75 lbf) pull strength to more securely attach the probe cable and probe body. The 330101-00-71-05-01-05 has an 8.0 mm probe body diameter that provides thicker encapsulation of the probe coil in the molded PPS plastic probe tip, resulting in a more rugged probe with a stronger, more robust case, and the probe cable is constructed from 75 Ω triaxial cable.
- Oil and Gas: Covers upstream extraction, midstream compression, and downstream refining
- Power Generation: Steam, gas, and hydro turbine-generators
- Radial Vibration: Monitors dynamic shaft motion in fluid-film journal bearings
- Axial Position (Thrust): Tracks axial shaft displacement to prevent internal rubbing
- Petrochemical: Large pumps, centrifugal compressors, and electric motors
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Clean connectors: Wipe down the gold-plated ClickLoc coaxial connectors with a clean electrical contact solvent and verify they are completely dry before mating.
Finger-tight lock: Push and screw the outer couplings together using finger-tight torque only until you feel and hear them "click" securely into place (no special tools required).
Isolate shielding: Ensure the outer metallic shield of the coaxial line grounds strictly at the Proximitor sensor housing ground point to prevent industrial ground loops.
Alternative Names
330101-OO-71-O5-O1-O5
330I0I-00-7I-05-0I-05
330101-00-71-05-01-00
330101-00-71-05-01-CN
330101-00-71-05-01-BR
330101-00-71-05-01-RU
Technical notes
The 330101-00-71-05-01-05 operates over a standard temperature range from -52°C to +177°C (-62°F to +350°F) and features a Viton O-ring pressure seal designed to seal differential pressure between the probe tip and case. The 330101-00-71-05-01-05 has a linear range of 2.0 mm (80 mils) with an incremental scale factor of 7.87 V/mm (200 mV/mil), a deviation from best fit straight line (DSL) within ±0.127 mm (±5 mils), and a frequency response of 0 to 10 kHz (-3 dB).
FAQs
-
What is the normal gap voltage?
+A properly gapped probe on a centered shaft typically reads between −9 V and −11 V DC. -
Can you mix XL and non-XL parts?
+Yes, but system performance drops to match the lower non-XL specifications. -
Does a 0.5-meter system use an extension cable?
+No, 0.5-metre and 1-metre probe systems connect directly without an extension cable. -
What material is this probe calibrated to by default?
+The probe comes calibrated from the factory for AISI 4140 steel targets. Using it with other metals will alter the voltage-to-distance scale factor and require custom calibration.
