- 3300 XL 8mm Proximity Transducer
- 330102-00-43-05-02-05
In Stock
Ships by Sunday, July 19
Fast Shipping Available
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330102-00-43-05-02-05
-
Product Model330102-00-43-05-02-05
-
Product Parameters3300 XL 8 mm Probe, 3/8-24 UNFthread, with armor
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size1.5x1.3x65cm
-
ManufacturerBently Nevada
-
Weight0.05 kg
-
Unthreaded Length Option0.0 in
-
Overall Case Length Option4.3 in
-
Total Length Option0.5 meter (1.6 feet)
-
Connector and Cable-Type OptionMiniature coaxial ClickLocconnector standard cable
-
Agency Approval OptionCSA, ATEX, IECEx Approvals
Description

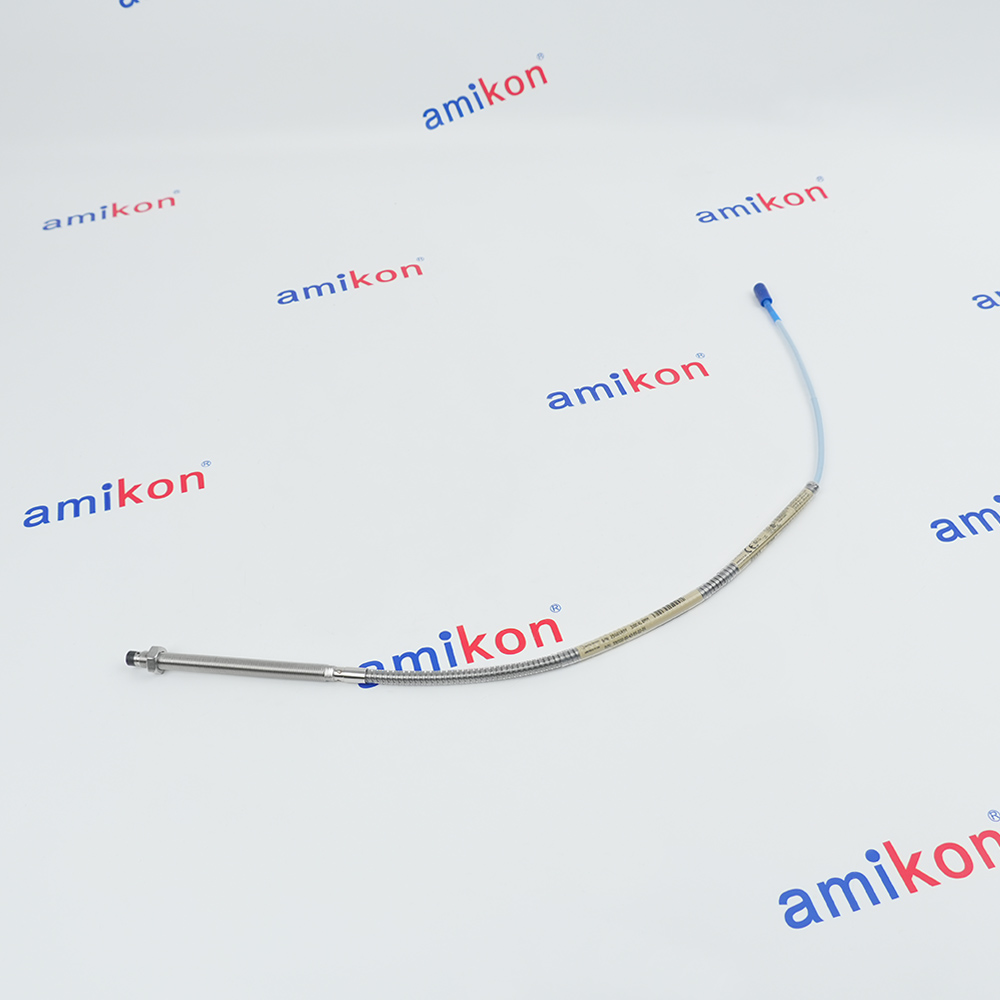

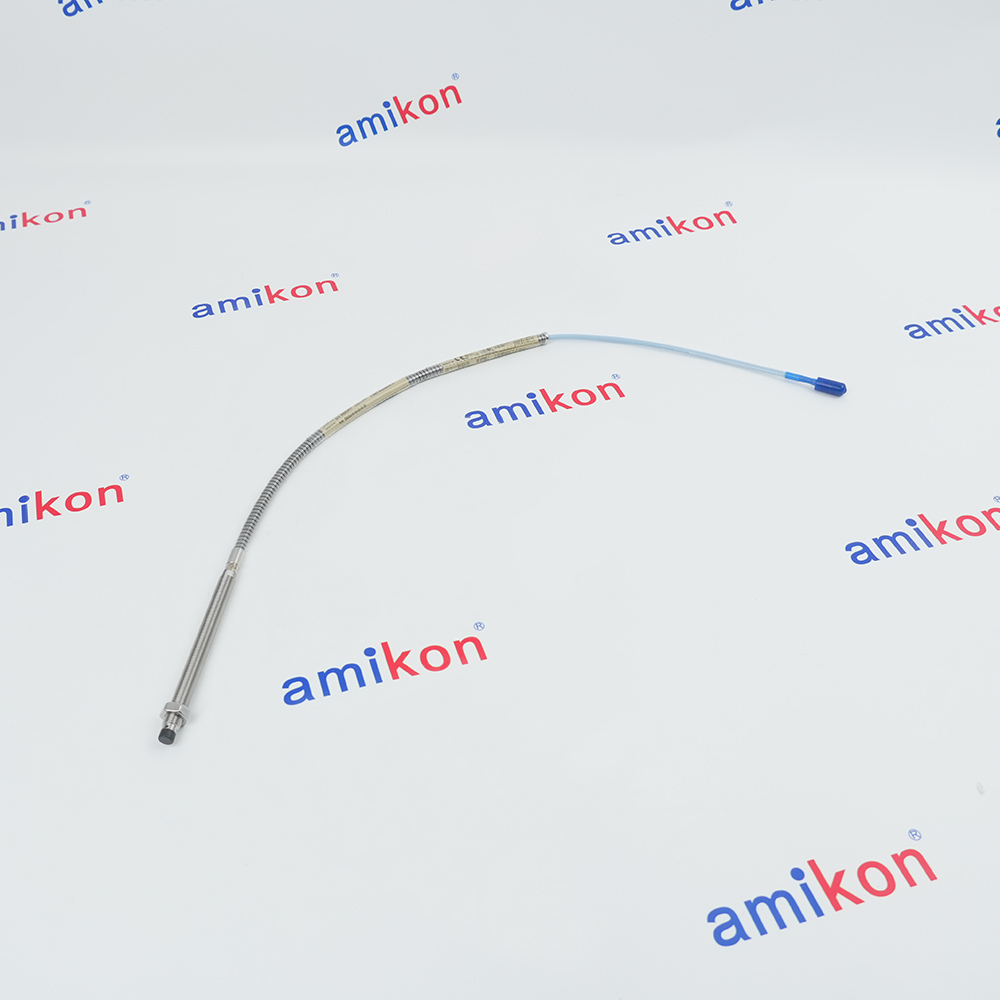

The Bently Nevada 330102-00-43-05-02-05 3300 XL 8 mm Probe is a precision non-contact displacement sensor developed for machinery protection and condition monitoring applications. Using eddy-current technology, the probe continuously measures the distance between the probe tip and a conductive target surface, providing accurate shaft vibration and position data for critical rotating equipment.
This configuration incorporates a 3/8-24 UNF threaded stainless-steel probe body with a 4.3-inch case length and a 0.5-meter armored cable assembly. The stainless-steel armor provides additional protection against abrasion, vibration, mechanical impact, and harsh environmental conditions, making the probe suitable for demanding industrial installations. The probe utilizes a miniature coaxial ClickLoc™ connector and standard 75-ohm triaxial cable to maintain signal integrity throughout the transducer system.
This configuration incorporates a 3/8-24 UNF threaded stainless-steel probe body with a 4.3-inch case length and a 0.5-meter armored cable assembly. The stainless-steel armor provides additional protection against abrasion, vibration, mechanical impact, and harsh environmental conditions, making the probe suitable for demanding industrial installations. The probe utilizes a miniature coaxial ClickLoc™ connector and standard 75-ohm triaxial cable to maintain signal integrity throughout the transducer system.
Alternative Names
330102 00 43 05 02 05
33O1O2-OO-43-O5-O2-O5
330I02-00-43-O5-O2-O5
330102 00 43 O5 O2 O5
330102-00-43-05-02-00
330102-00-43-05-02-CN
330102-00-43-05-02-BR
330102-00-43-05-02-RU
Information
Overview
Manuals
Application Notes
Product Applications
Cabling & Connections
Features:
- API 670 Standard Compliance
- Complete Interchangeability & Backward Compatibility
- Improved RFI/EMI Immunity
- SpringLoc Terminal Strips
This probe is the armored variant 330102-00-43-05-02-05 of the 3300 XL 8mm proximity probe series, distinguished from the non-armored version (330101) by the inclusion of flexible AISI 302 or 304 stainless steel cable armor with an FEP outer jacket. The armor provides enhanced protection against abrasion, crushing, and other mechanical damage in harsh industrial environments. The armor length is 300 mm (11.8 in) shorter than the total cable length, leaving a non-armored portion at the connector end.
The 330102-00-43-05-02-05 Bently Nevada 3300 XL 8 mm Probe, 3/8-24 UNFthread, with armor may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330102-00-43-05-02-05 3300 XL 8 mm Probe, 3/8-24 UNFthread, with armor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The probe has zero unthreaded length (0.0 in) and an overall case length of 4.3 inches (109.22 mm), making it suitable for installations where the probe threads directly into a mounting location without an extended unthreaded section and where a longer case length is required for deeper mounting configurations. The 4.3-inch case length is one of the longer standard options in the 3300 XL 8mm probe series, providing extended reach through thick mounting brackets or machine housings. The total cable length is 5.0 metres (16.4 feet), with a length tolerance of +20% and -0%.
- Rolling-Element Bearing Equipment:High-frequency casing signals reveal bearing flaws
- Industrial Pumps:Casing stress on Sulzer crude pumps
- Centrifugal Compressors:Absolute vibration prevents degradation/failure
- Gearboxes:Casing vibration: misalignment/wear/imbalance
- Gas and Steam Turbines:Absolute casing motion for power generation
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Component Matching: Ensure the probe, extension cable, and Proximitor sensor share the exact same electrical length (e.g., standard 5-meter or 9-meter systems).
Cable Routing: Never exceed a maximum distance of 305 meters (1,000 feet) between the Proximitor sensor and the monitoring instrument.
ClickLoc Connectors: Do not overtighten the mini-coaxial connectors. The ClickLoc design locks securely without the need for special tools. Use the provided silicone tape to seal the connections against environmental hazards.
Technical notes
This configuration incorporates a 3/8-24 UNF threaded stainless-steel probe body with a 4.3-inch case length and a 0.5-meter armored cable assembly. The stainless-steel armor provides additional protection against abrasion, vibration, mechanical impact, and harsh environmental conditions, making the probe suitable for demanding industrial installations. The probe utilizes a miniature coaxial ClickLoc™ connector and standard 75-ohm triaxial cable to maintain signal integrity throughout the transducer system.
FAQs
-
What is the function of a Proximitor Sensor?
+The 3300 XL Proximity System uses eddy current principles. It converts the distance between the probe tip and a conductive target into a proportional voltage. This allows it to monitor dynamic vibrations and static positions of rotating shafts in real time. -
How do I set the proper Gap Voltage?
+The initial probe gap should be set to a nominal gap voltage of -10V DC. Since the sensitivity is nominally 7.87 mV/mil (200 mV/mm), every 1 mil (0.0254 mm) of movement changes the DC gap voltage by roughly 7.87 mV. -
What target material is this probe calibrated for?
+The factory default calibration is optimized for AISI 4140 steel. Using other conductive target metals will alter the gap-to-voltage scale factor and requires custom calibration. -
What is the standard gap voltage?
+For continuous vibration monitoring, the probe gap voltage is typically set to -10V DC. This means the probe tip is generally positioned about 40 mils (1.0 mm) from the shaft.
