- 3300 XL 8mm Proximity Transducer
- 330104-02-24-10-01-00
In Stock
Ships by Saturday, June 27
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330104-02-24-10-01-00
-
Product Model330104-02-24-10-01-00
-
Product Parameters3300 XL 8 mm Proximity Probes
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size1.8x1.6x117cm
-
ManufacturerBently Nevada
-
Weight0.2 kg
-
Total Length Option1.0 meter (3.3 feet)
-
Connector and Cable-Type OptionMiniature coaxial ClickLocconnector with connectorprotector, standard cable
-
Agency Approval OptionNot required
Description

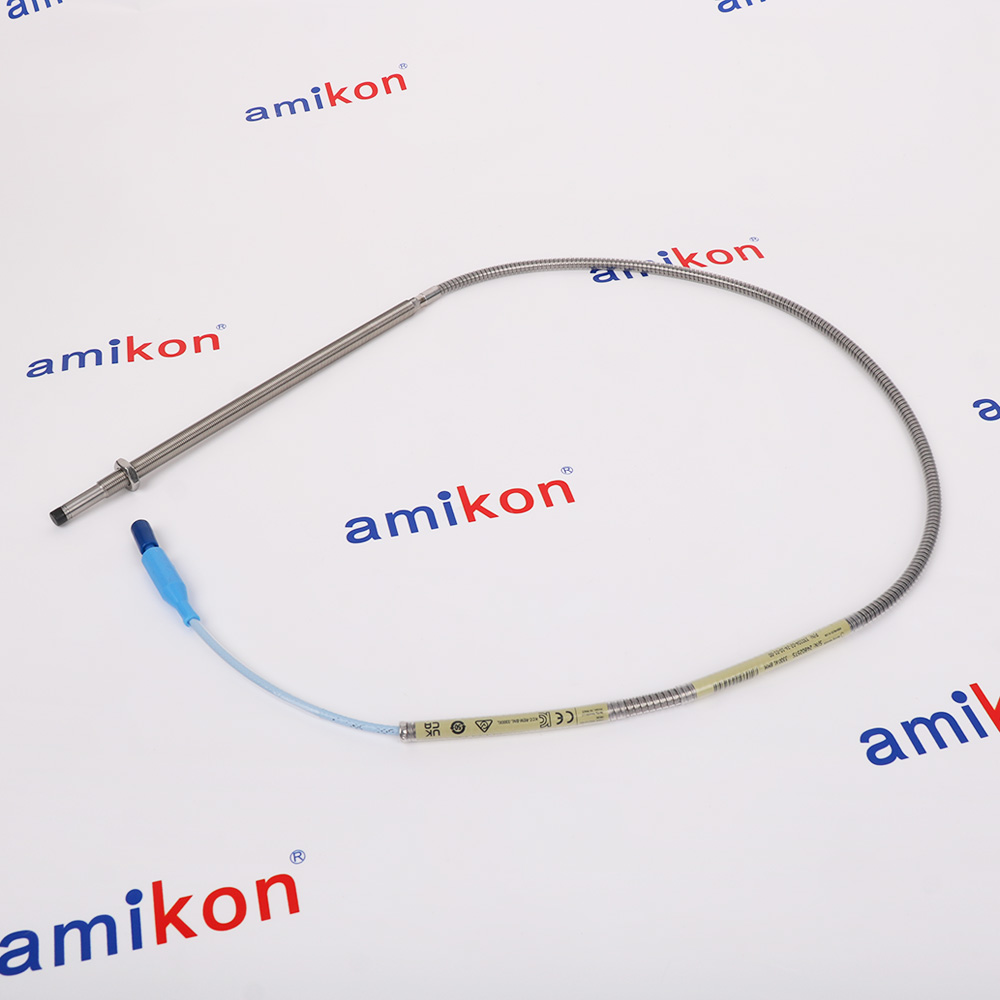

The Bently Nevada 330104-02-24-10-01-00 is a 3300XL 8mm proximity probe with M10 × 1 metric thread and with armor. The Bently Nevada 330104-02-24-10-01-00 is part of the 3300XL 8mm Proximity Transducer System. The Bently Nevada 330104-02-24-10-01-00 measures absolute vibration and position by providing an output voltage directly proportional to the distance between the probe tip and the observed conductive surface.
The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
Alternative Names
330104 02 24 10 01 00
33O1O4-O2-24-1O-O1-OO
330I04-02-24-I0-0I-00
330104-02-24-10-01-05
330104-02-24-10-01-CN
330104-02-24-10-01-BR
330104-02-24-10-01-RU
Information
Overview
Manuals
Connectors
Product Applications
Electrical Gapping Procedure
Features:
- M10 × 1 Metric Thread with Armored Cable
- 2.0 Inch (50mm) Unthreaded Length
- Miniature Coaxial ClickLoc Connector with Armor
- No Agency Approval
The Bently Nevada 330104-02-24-10-01-00 is fully interchangeable with all 3300XL 8mm system components. The Bently Nevada 330104-02-24-10-01-00 can be combined with any 3300XL extension cable and any 3300XL Proximitor sensor without requiring individual matching or bench calibration. This interchangeability simplifies maintenance and reduces spare parts inventory requirements.
The 330104-02-24-10-01-00 Bently Nevada 3300 XL 8 mm Reverse Mount Probes may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330104-02-24-10-01-00 3300 XL 8 mm Reverse Mount Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL probe, extension cable, and Proximitor sensor have corrosion-resistant,gold-plated ClickLoc connectors. Theseconnectors require only finger-tight torque (theconnectors will "click" when tight), and thespecially-engineered locking mechanismprevents the connectors from loosening. Theseconnectors require no special tools forinstallation or removal.
You can order the 3300 XL 8 mm probes andextension cables with connector protectorsalready installed. We can also supplyconnector protectors separately for fieldinstallations (such as when an applicationmust run the cable through restrictive conduit).We recommend connector protectors for allinstallations to provide increasedenvironmental protection
- Steam and Gas Turbines:Radial vibration & axial thrust for turbine rotors
- Generator Bearings:Fluid-film journal: oil whirl/friction/misalignment
- Cooling Water Pumps & Forced Draft Fans:Safeguards high-capacity auxiliary equipment
- Centrifugal Compressors:High-speed rotors: gas transport & reinjection
- Turbo-Expanders:Shaft stability under cryogenic temp differentials
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Connect the System Loop: Attach the probe to its designated 3300 XL extension cable and Proximitor sensor. Apply a standard -24 Vdc power source to the Proximitor.
Attach a Multimeter: Connect a digital voltmeter across the OUT and COM terminals of the Proximitor sensor. Set the meter to read DC voltage.
Advance to the Target: Carefully thread the probe through the housing until the tip gently touches the shaft surface.
Set the Voltage Center: Back the probe away from the target shaft while monitoring the voltmeter. Stop turning once the meter reads exactly -9.0 Vdc. This voltage represents the precise midpoint of the sensor's linear range, equivalent to a physical gap of 1.27 mm (50 mils).
Technical notes
The system provides an output voltage that is directlyproportional to the distance between the probe tip and theobserved conductive surface and can measure both static(position) and dynamic (vibration) values. The system’sprimary applications are vibration and positionmeasurements on fluid-film bearing machines, as well asKeyphasor reference and speed measurements.
FAQs
-
What is the 330104-02-24-10-01-00？
+The Bently Nevada 330104-02-24-10-01-00 is a highly specific part number within the 3300 XL 8 mm Proximity Transducer System -
Can I mix XL and non-XL 3300-series components?
+Yes, but system performance will be limited to the specifications of the older, non-XL 3300-series components. For optimal accuracy, using XL probes, cables, and Proximitor sensors together is recommended. -
Does this model include fluid sealing features?
+This part number incorporates a fluorocarbon (Viton®) O-ring. Furthermore, specific configurations in this series can include FluidLoc cables to prevent oil and other liquids from leaking through the inside of the cable -
Is it safe for use in explosive/hazardous environments?
+Yes, the 3300 XL 8 mm transducer system features hazardous area approvals (ATEX, IECEx, and North American approvals) and is intrinsically safe when used with appropriate zener barriers or galvanic isolators
