Technical specifications for 330130-040-00-05
-
Product Model330130-040-00-05
-
Product Parameters3300 XL Standard Extension Cable
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size19x18x1.5cm
-
ManufacturerBently Nevada
-
Weight0.15 kg
-
Cable Length Option4.0 meters (11.5 feet)
-
Connector Protector and Cable OptionStandard cable
-
Agency Approval OptionCSA, ATEX, IECEx Approvals
-
Output Resistance50 Ω
-
Extension Cable Capacitance69.9 pF/m (21.3 pF/ft)typical
Description

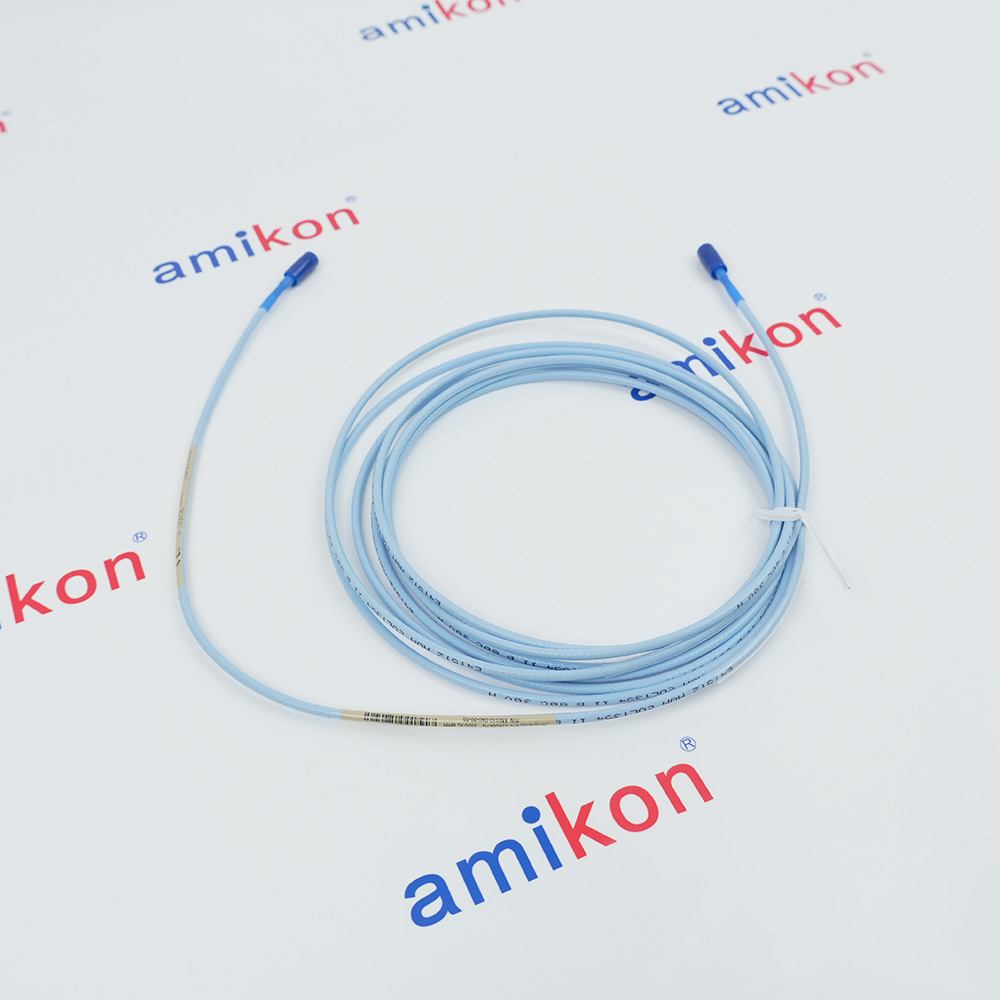

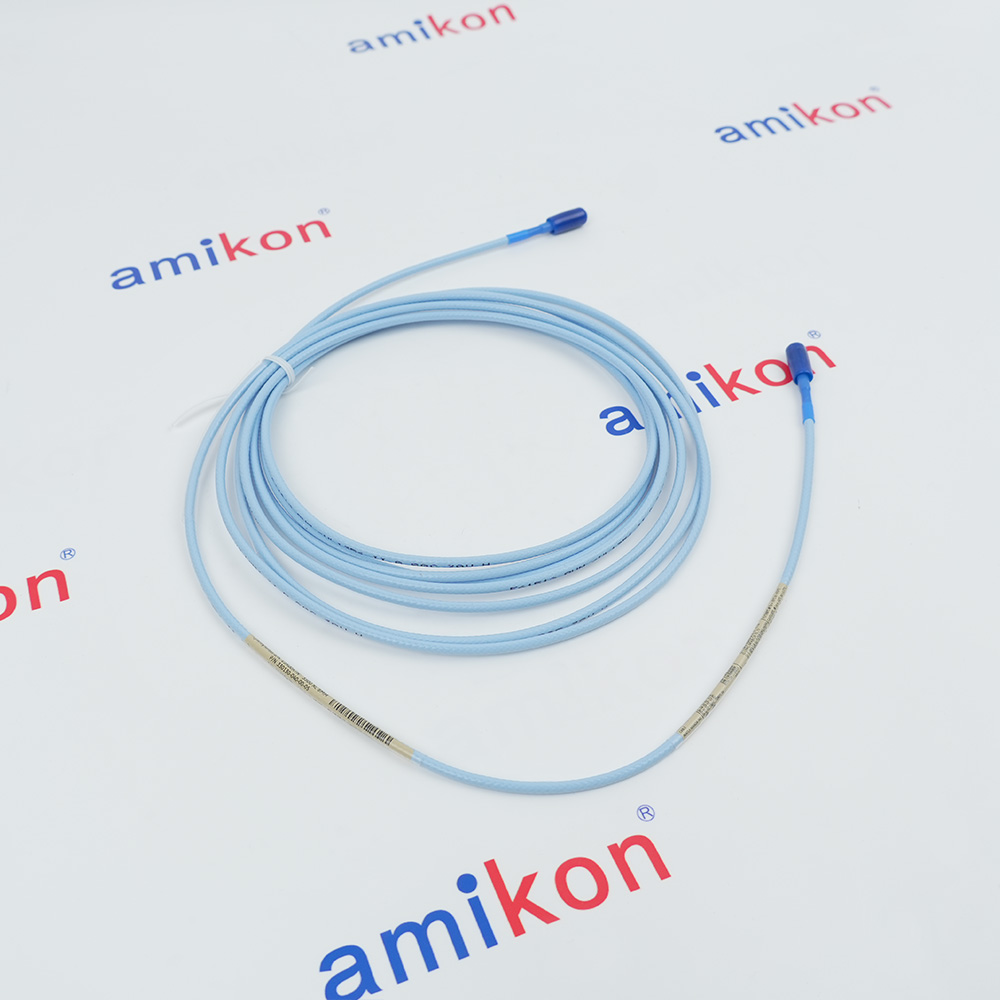

The Bently Nevada 330130-040-00-05 3300 XL Standard Extension Cable is a critical component of the 3300 XL 8mm Proximity Transducer System, to connect 3300XL 8mm proximity probes to 3300XL Proximitor Sensors in machinery condition monitoring applications. 330130 provides the electrical pathway that carries the eddy current signal from the probe tip to the Proximitor Sensor, where it is converted into a voltage proportional to the
distance between the probe and the observed conductive surface.
330130 is a 75 Ω coaxial extension cable specifically engineered for use with 3300XL Proximitor Sensors and 3300XL 8mm probes. The electrical characteristics of 330130 are precisely matched to the system requirements, ensuring that the combined probe, extension cable, and Proximitor Sensor deliver accurate and stable measurements. When using 330130 with XL components, system performance will be limited to the specifications for the non-XL 3300 system if mixed with non-XL components.
distance between the probe and the observed conductive surface.
330130 is a 75 Ω coaxial extension cable specifically engineered for use with 3300XL Proximitor Sensors and 3300XL 8mm probes. The electrical characteristics of 330130 are precisely matched to the system requirements, ensuring that the combined probe, extension cable, and Proximitor Sensor deliver accurate and stable measurements. When using 330130 with XL components, system performance will be limited to the specifications for the non-XL 3300 system if mixed with non-XL components.
Information
Overview
Manuals
Application Notes
Product Applications
Connection Procedure
Features:
- 75 Ω Coaxial Cable for 3300XL Proximity Transducer Systems
- Wide Temperature Range (-51°C to +177°C)
- Corrosion-Resistant Gold-Plated Brass ClickLoc Connectors
- Complete Interchangeability with 3300XL System Components
- 4.0 Meter Standard Length
The Bently Nevada 330130-040-00-05 utilizes a 75 Ω triaxial cable with fluoroethylene propylene (FEP) insulation, providing excellent electrical stability, chemical resistance, and high-temperature performance. The cable has a typical capacitance of 69.9 pF/m (21.3 pF/ft), ensuring proper matching with the 3300 XL Proximitor Sensor to preserve the system's calibrated sensitivity and measurement accuracy.
The 330130-040-00-05 Bently Nevada3300 XL Standard Extension Cable may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330130-040-00-05 3300 XL Standard Extension Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL 8 mm system fully complies with the American Petroleum Institute (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
The operating temperature range spans -51°C to +177°C (-60°F to +351°F). The maximum recommended installation distance between the Proximitor sensor and the monitoring system is 305 metres (1,000 feet). The cable is rated for 100% condensing relative humidity when connectors are properly protected.
- Oil/Gas/Petrochemical: Monitors critical machinery processing volatile hydrocarbons in hazardous explosive zones
- Power Generation: Tracks turbine/generator shaft movements in thermal, nuclear, and hydro plants
- Chemical Processing: Resists corrosive vapors with PPS thermoplastic housing
- Water/Wastewater: Operates reliably in moisture/humidity/outdoor spaces with IP66 washdown protection
- Mining/Heavy: Withstands dust, abrasive particles, and extreme mechanical vibration
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Protection: Ensure your environment is safe. If necessary, disconnect power to the monitoring system to avoid faults or live arcing.
Connector Alignment: The 3300 XL system uses miniature ClickLoc connectors. Inspect the male and female pins to ensure they are clean, dry, and free of debris.
Mating: Align the keyways and push the connectors together. Twist the outer locking sleeve clockwise until you hear and feel it click into the locked position.
Connector Protectors: Slide the connector protectors (or boots) over the mated connection to prevent moisture ingress, oil contamination, and radio frequency interference.
Alternative Names
330130-040-00-O5
330130-040-OO-05
330130-04O-00-05
330130-O40-00-05
33013O-040-00-05
330I30-040-00-05
33O130-040-00-05
330130 040 00 05
330130 040 00 O5
330130 040 OO 05
330130 O4O 00 05
33013O 040 00 05
330I30 040 00 05
33O130 040 00 05
Technical notes
330130-040-00-05 operates over a wide temperature range from -51°C to +177°C (-60°F to +351°F) for standard extension cables. This temperature capability of 330130 ensures reliable signal transmission in harsh industrial environments including cold climates and high-temperature machinery locations. The cable construction of 330130 is designed to withstand the thermal cycling and mechanical stresses typical of industrial rotating machinery installations.
FAQs
-
What is the 330130-040-00-05?
+The Bently Nevada 330130-040-00-05 is a 4.0-meter 3300 XL Standard Extension Cable designed to connect an 8 mm proximity probe to a Proximitor sensor in vibration monitoring systems -
Where is this cable primarily used?
+It is widely utilized in heavy industrial machinery, including fluid-film bearing machines, compression systems, and for Keyphasor/speed measurements. -
What components does it work with?
+This extension cable is an integral part of the Bently Nevada 3300 XL 8mm Proximity Transducer System, which consists of three matched components: the probe, the extension cable, and the Proximitor Sensor. -
Does the extension cable affect system calibration?
+The standard system is calibrated for AISI 4140 steel. The combined length of the extension cable and the probe lead (usually totaling 5 or 9 meters) is critical to the calibration; substituting lengths without recalibrating the Proximitor Sensor can cause measurement errors.
