Technical specifications for 330130-040-02-05
-
Product Model330130-040-02-05
-
Product Parameters3300 XL Standard Extension Cable
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size20x20x1.5cm
-
ManufacturerBently Nevada
-
Weight0.15 kg
-
Cable Length Option4.0 meters (11.5 feet)
-
Connector Protector and Cable OptionStandard cable with connectorprotector
-
Agency Approval OptionCSA, ATEX, IECEx Approvals
-
OutputResistance50 Ω
Description

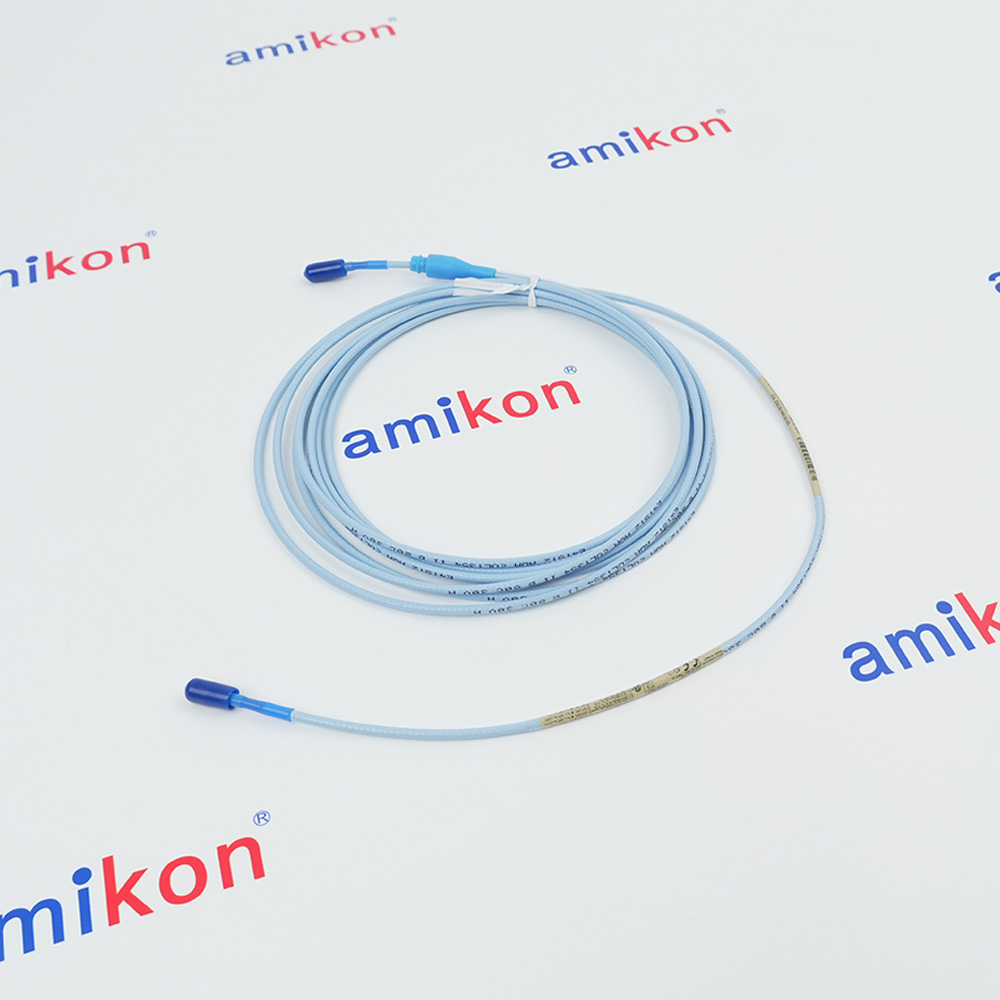

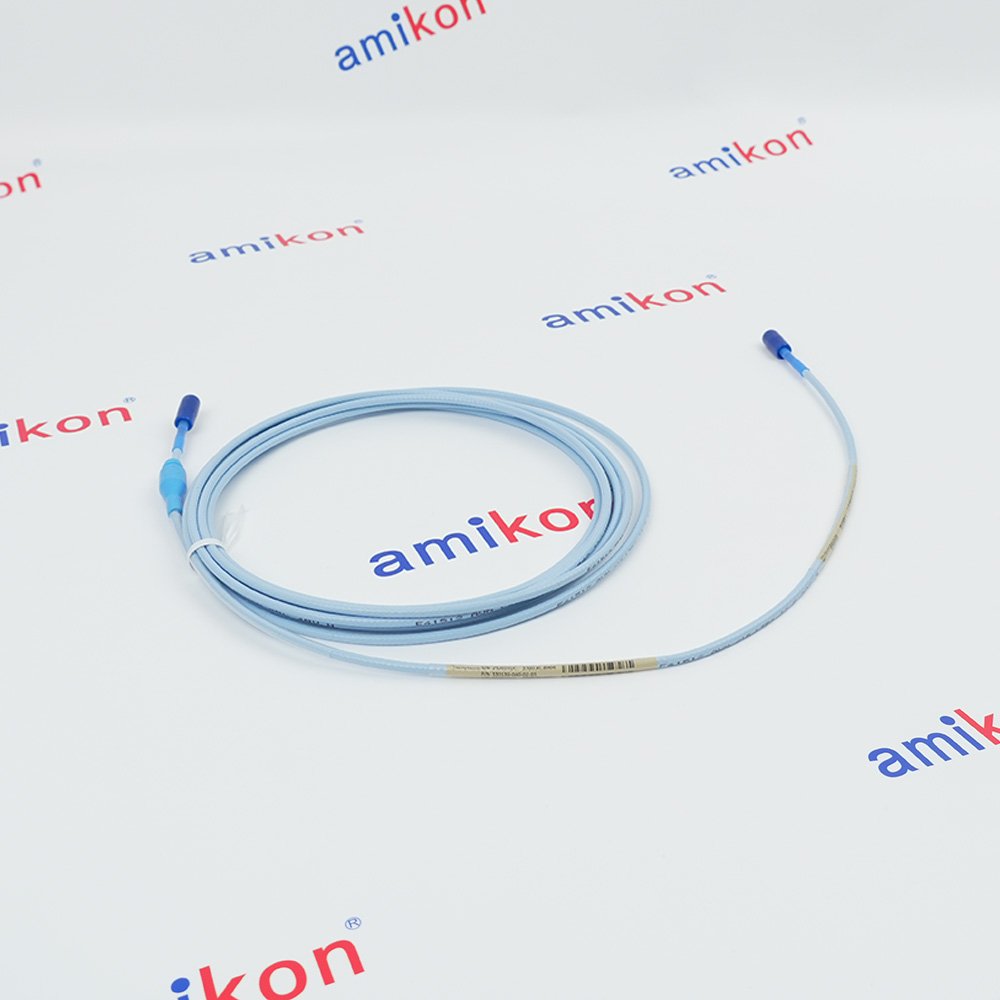

The Bently Nevada 330130-040-02-05 is a 3300 XL Standard Extension Cable designed for use with the 3300 XL 8 mm Proximity Transducer System. The cable provides the electrical connection between the proximity probe and the Proximitor® sensor, maintaining the calibrated electrical characteristics required for accurate shaft vibration, radial displacement, axial position, eccentricity, and speed measurements.
As an integral component of the 3300 XL transducer system, the extension cable is manufactured using high-quality triaxial cable construction to ensure stable signal transmission and high immunity to electromagnetic interference. The cable is suitable for installation in steam turbines, gas turbines, compressors, pumps, motors, generators, and other critical rotating machinery applications.
As an integral component of the 3300 XL transducer system, the extension cable is manufactured using high-quality triaxial cable construction to ensure stable signal transmission and high immunity to electromagnetic interference. The cable is suitable for installation in steam turbines, gas turbines, compressors, pumps, motors, generators, and other critical rotating machinery applications.
Alternative Names
33O13O-O4O-O2-O5
330130 040 02 05
330I30-040-02-05
330I30-040-02-O5
330I3O-O4O-O2-O5
330130-040-02-00
330130-040-02-CN
330130-040-02-BR
Information
Overview
Manuals
Application Notes
Product Applications
Mechanical Installation
Features:
- Ideal for Compression Systems, Speed Measurements, and Fluid-Film Bearing Machines
- Extended Temperature Range Applications
- Complete Interchangeability of Units and Cabling
- Backwards Compatible with Other Non-3300 XL Series Transducer System Components
The 330130-040-02-05 Bently Nevada 3300 XL Standard Extension Cable may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330130-040-02-05 3300 XL Standard Extension Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL probe and extension cable alsoreflect improvements over previous designs. Apatented TipLoc molding method provides amore robust bond between the probe tip andthe probe body. The probe’s cable incorporatesa patented CableLoc design that provides 330N (75 lbf) pull strength to more securely attachthe probe cable and probe tip.
- Gas Turbines: Used in large units (200MW+) to monitor shaft vibration and thrust
- Steam Turbines: Monitors differential expansion and bearing housing performance
- Hydroelectric Plants: Tracks rotor movement and vibration in turbine generators
- Centrifugal & Process Gas Compressors: Ideal for high-speed compressors in refinery and pipeline operations
- Pumps: Monitors critical feed and process pumps to prevent mechanical seal or bearing failure
- Electric Motors: Large industrial motors used in mining, pulp and paper, or water treatment
- Gearboxes: Monitors shaft alignment and vibration in heavy-duty gear systems
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Target Material: Calibrated for AISI 4140 steel. Other materials require a custom scale factor.
Probe Gapping:
Set the gap to 1.27 mm (50 mils) for standard radial vibration.
This should result in a DC output of -9.0 Vdc at the Proximitor.
Clearance: Maintain a minimum 13 mm (0.5 in) diameter clearance around the probe tip to avoid interference with the machine housing.
Technical notes
This extension cable is constructed with 75 Ω triaxial cable using fluoroethylene propylene (FEP) insulation, providing excellent chemical resistance and high-temperature performance. The standard cable design is suitable for general industrial environments where extreme moisture resistance is not required. The cable features a typical capacitance of 69.9 pF/m (21.3 pF/ft) and a DC resistance of 0.6 ± 0.2 Ω for the 4.0 metre length.
FAQs
-
What is 330130-040-02-05?
+The Bently Nevada 330130-040-02-05 is a 3300 XL Standard Extension Cable used in proximity transducer systems to measure vibration and position on machinery, such as turbines and compressors. It is commonly part of a 3300 XL 8 mm transducer system. -
What does the model number 330130-040-02-05 represent?
+It is a 3300 XL standard extension cable, 4.0 meters (13.1 feet) long, with FluidLoc leak protection (preventing oil/liquid leaks), and certified to standards such as CSA, ATEX, and IECEx. -
What are the ratings of 330130-040-02-05?
+This extension cable has an operating temperature range of -51 °C to +177 °C (-60 °F to +351 °F), a tensile strength of 330 N (75 psi), and a capacitance of 69.9 pF/m (21.3 pF/ft). -
Is it compatible with older systems?
+Yes, it is backward-compatible with 3300 5 mm and 8 mm non-XL components, although using 5 mm probes limits performance to non-XL specs. -
What is the maximum installation distance for 330130-040-02-05?
+The maximum installation distance from sensor to display is 305 meters (1000 feet).
