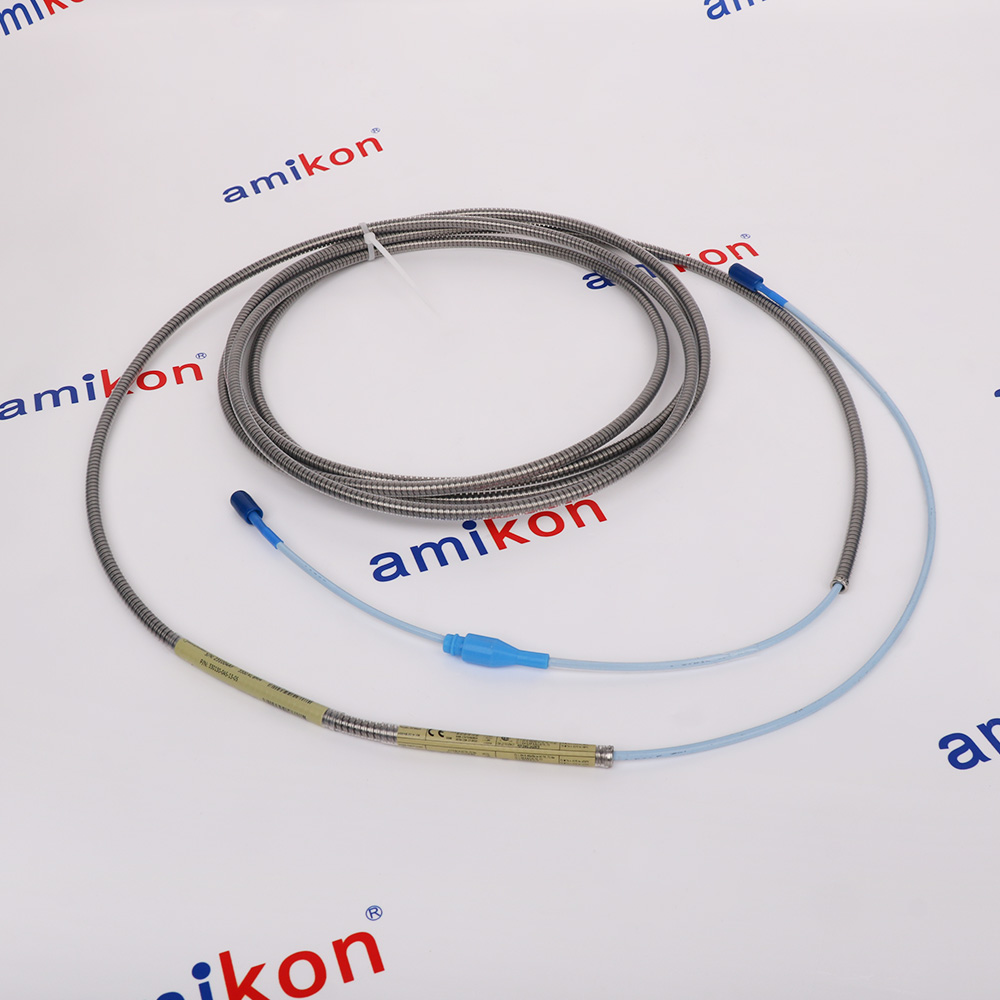

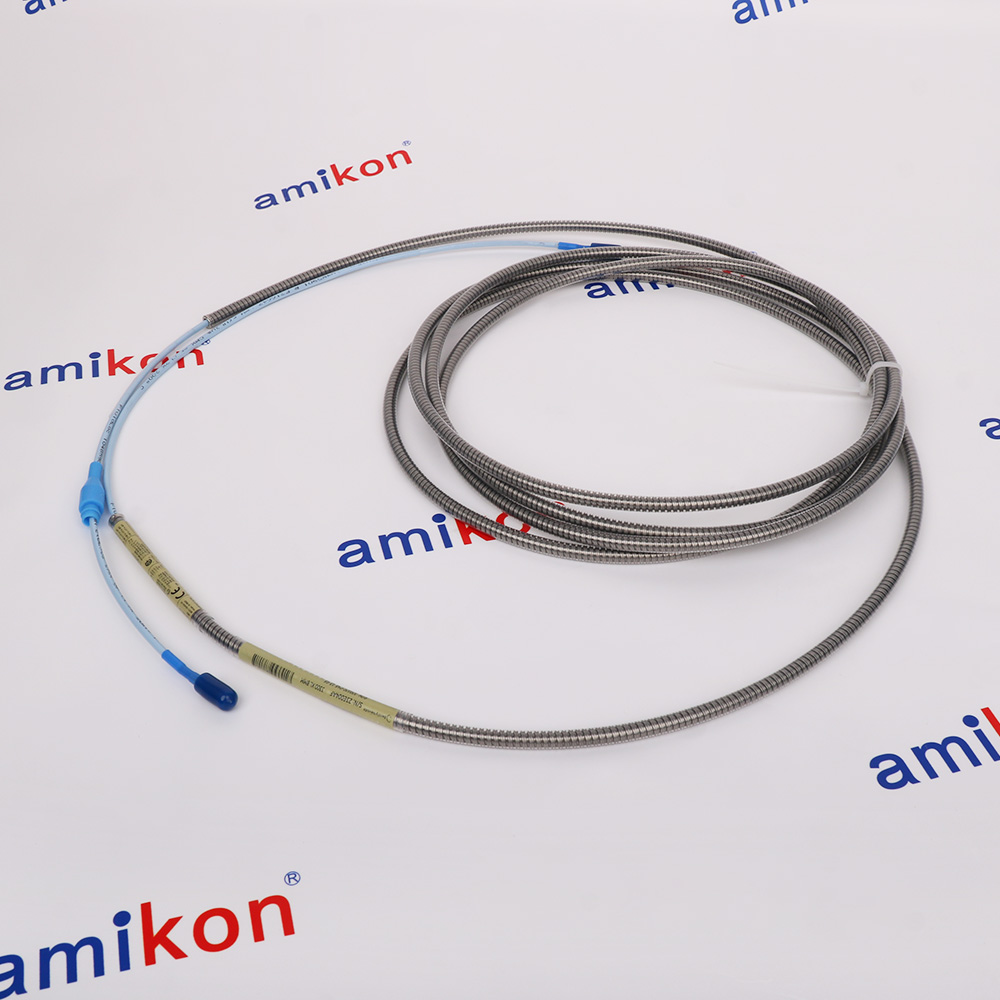

Technical specifications for 330130-045-13-05
-
Product Model330130-045-13-05
-
Product Parameters3300 XL Standard Extension Cable
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size28x28x3cm
-
ManufacturerBently Nevada
-
Weight0.45 kg
-
Length45 feet (14.8 feet)
-
Operating Temperature-40°C to +85°C (-40°F to +185°F)
-
Storage Temperature-50°C to +90°C (-58°F to +194°F)
-
Cable Length Option4.5 meters (14.8 feet)
-
Connector Protector and Cable OptionArmored FluidLoc cable withconnector protector
-
Agency Approval OptionCSA, ATEX, IECEx Approvals
-
Output Resistance50 W
-
Frequency Response0 to 10 kHz: +0, -3 dB, withup to 305 meters (1000feet) of field wiring.
Description
The Bently Nevada 330130-045-13-05 is a 3300XL Standard Extension Cable designed as an integral component of the 3300 5mm Proximity Transducer System. The 330130 connects between a 3300 5mm probe and a 3300XL Proximitor Sensor to form a complete transducer system for vibration and position measurement applications on fluid-film bearing machines, as well as Keyphasor measurement and speed measurement.
The Bently Nevada 330130-045-13-05 features corrosion-resistant, gold-plated brass ClickLoc connectors that require only finger-tight torque. The 330130 connectors include a specially engineered locking mechanism that prevents the connectors from loosening, and they require no special tools for installation or removal. The 330130 can be ordered with connector protectors already installed, or connector protectors can be supplied separately for field installations such as when the cable must be run through restrictive conduit.
The Bently Nevada 330130-045-13-05 features corrosion-resistant, gold-plated brass ClickLoc connectors that require only finger-tight torque. The 330130 connectors include a specially engineered locking mechanism that prevents the connectors from loosening, and they require no special tools for installation or removal. The 330130 can be ordered with connector protectors already installed, or connector protectors can be supplied separately for field installations such as when the cable must be run through restrictive conduit.
Alternative Names
330130-045-13-O5
330130-045-I3-05
330130-O45-13-05
33013O-045-13-05
330I30-045-13-05
33O130-045-13-05
330130 045 13 05
330130 045 13 O5
330130 045 I3 05
330130 O45 13 05
33013O 045 13 05
330I30 045 13 05
33O130 045 13 05
330130-045-13-00
330130-045-13-CN
Information
Overview
Manuals
Application Notes
Product Applications
Insertion & Routing Best Practices
Features:
- Part of the 3300XL Proximity Transducer System
- Corrosion-Resistant Gold-Plated Brass ClickLoc Connectors
- Wide Temperature Range (-51°C to +177°C)
- Complete Interchangeability with 3300XL System Components
The Bently Nevada 330130-045-13-05 features corrosion-resistant, gold-plated brass ClickLoc connectors that require only finger-tight torque. The 330130 connectors include a specially engineered locking mechanism that prevents the connectors from loosening, and they require no special tools for installation or removal. The 330130 can be ordered with connector protectors already installed, or connector protectors can be supplied separately for field installations such as when the cable must be run through restrictive conduit.
The 330130-045-13-05 Bently Nevada 3300 XL Standard Extension Cable may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330130-045-13-05 3300 XL Standard Extension Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The cable features patented CableLoc design providing 330 N (75 lbf) pull strength to securely attach the probe cable and probe tip. A Viton® O-ring seal withstands 93 % humidity per IEC 68-2-3 with less than 3 % change in Average Scale Factor over 56 days. Capacitance is 69.9 pF/m (21.3 pF/ft). DC resistance at 4.5 m is 0.99 Ω ± 0.15 Ω core-to-core and 0.30 Ω ± 0.06 Ω jacket-to-jacket. Insulation resistance exceeds 100 MΩ at 500 VDC.
Each 3300 XL extension cable includes silicone tape that can be used instead of connector protectors. Silicone tape is not recommended for applications where the probe-to-extension cable connection will be exposed to turbine oil. The FluidLoc option is the preferred solution for oil-exposed installations.
- Power Generation: Monitors shaft vibration on steam, gas, and hydro turbines to prevent breakdowns
- Oil & Gas: Linked to compressors, pumps, and offshore equipment in volatile chemical/oil environments
- Refining/Petrochemical: Provides uninterrupted condition data from motors/fans to plant control systems
- Heavy Industry: Shields analog signals in pulp mills, mining, and wastewater pumps from harsh factory conditions
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Clearance: Always route the cable well away from AC power lines and motor leads. Maintain a minimum separation of 300 mm (12 inches) from high-voltage wiring.
Conduit: Do not run sensor extension cables in the same conduit as high-voltage lines. Use standard high-temperature cable ties or mounting clamps to secure the cable and remove strain from the connections.
System Matching: Note that Bently Nevada transducer systems are tuned together. Ensure the electrical length of the system components is consistent.
Technical notes
The Bently Nevada 330130-045-13-05 operates over a wide temperature range of -51°C to +177°C (-60°F to +351°F) for standard extension cables. The 330130 ensures accurate, stable signal output over this temperature range when combined with a 3300 5mm probe and 3300XL Proximitor Sensor. The 330130 supports complete interchangeability of probe, extension cable, and Proximitor sensor, eliminating the need for individual component matching or bench calibration.
FAQs
-
What is 330130-045-13-05?
+The Bently Nevada 330130-045-13-05 is a 3300 XL Standard Extension Cable used in proximity transducer systems -
What components make up the transducer system?
+This extension cable is one of three core components, which also include a 3300 XL probe and a 3300 XL Proximitor Sensor. -
Does it work with older systems?
+Yes, the 3300 XL series features complete interchangeability of units and is backwards compatible with other non-3300 XL series transducer components. -
Does the cable have any special protective features?
+Yes, this series features an armored construction. This offers robust protection against physical damage and harsh industrial environments.
