PRODUCT DESCRIPTION

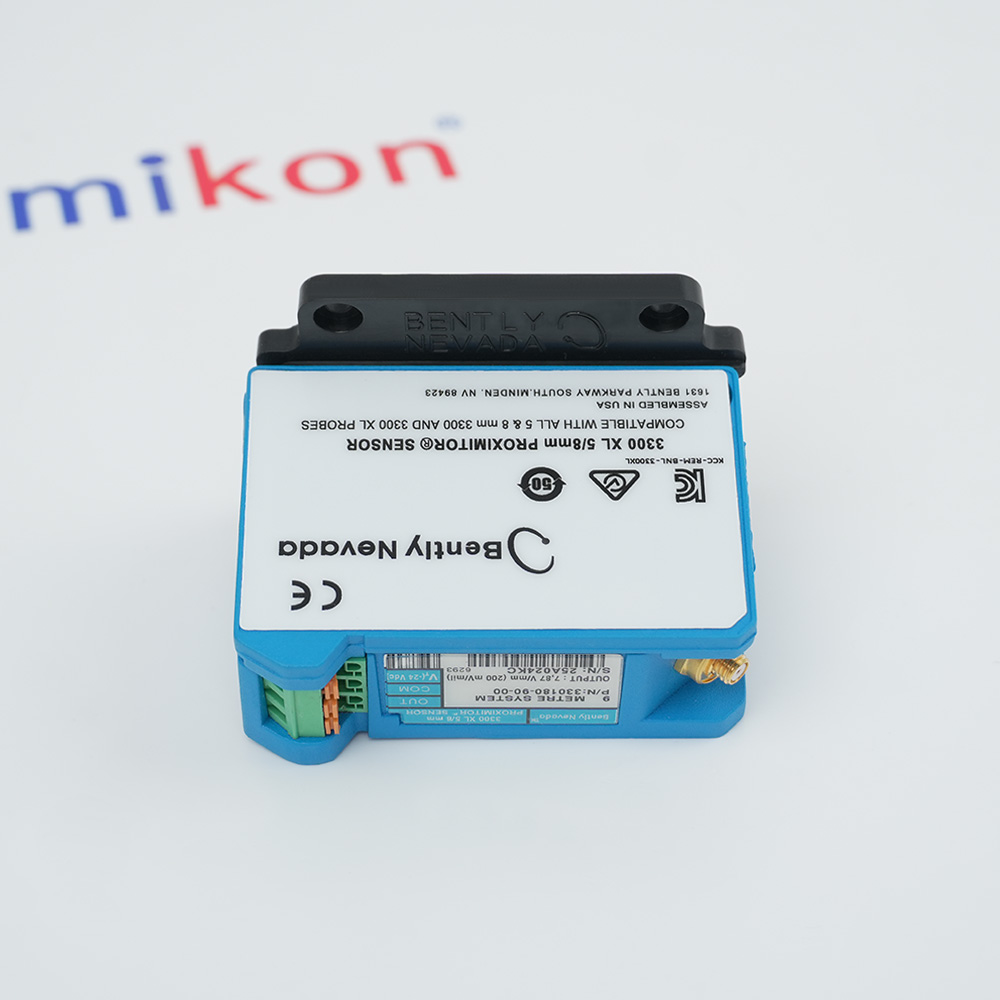

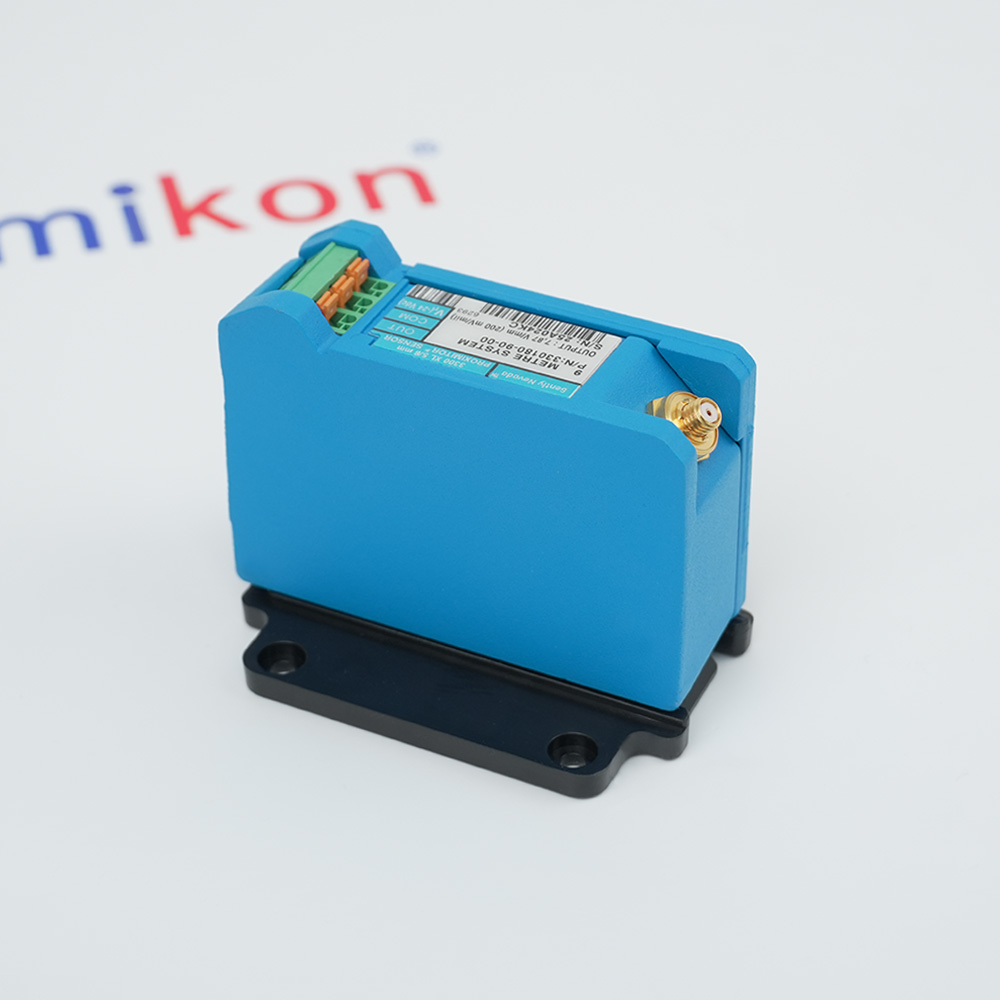

330180-90-00 Proximity signal conditioning sensor
Bently Nevada 330180-90-00 is a Proximity signal conditioning sensor documented for 3300 XL 8 mm proximity transducer systems. It performs its assigned input, processing, operator-interface, control or cooling function through the manufacturer-specified electrical and mechanical interfaces. Verify the complete article identity and installed system configuration before replacement or commissioning.
BEFORE YOU BUY
Confirm the complete Proximity signal conditioning sensor
ACTUAL APPLICATIONS
Where 330180-90-00 Fits Across Industrial Application Areas
Applications span the industries below, with suitability determined by operating requirements and the selected equipment configuration.
-
01 · OIL & GAS / PETROCHEMICAL
Oil and Gas Production, Refining and Transportation
Offshore production platforms and compressor stations along gas pipelines.Refinery compressors and process pumps serving downstream petroleum production. -
02 · METALLURGY & HEAVY INDUSTRY
Metallurgical Production and Industrial Plant Utilities
Blast furnace blowers and rolling mills in steel plants.Steam turbine generators supplying electricity for aluminum smelting operations. -
03 · MARINE
Marine Propulsion and Onboard Power
Propulsion turbines and diesel engines aboard commercial marine vessels.Onboard turbine generators supplying electrical power for shipboard operations.
Technical specifications for 330180-90-00
-
Product Model330180-90-00
-
Product ParametersProximity signal conditioning sensor
-
In stock1 unit
-
ManufacturerBently Nevada
-
Calibrated system length9 m
-
Mounting optionPanel mounting
-
Agency approval optionNot required
-
Compatible probe input3300 5 mm or 3300 XL 8 mm probe and extension cable
-
Supply without barriers-17.5 to -26 Vdc; see controlled installation drawing
-
Supply with barriers-23 to -26 Vdc
-
Maximum current consumption12 mA
-
Output resistance50 ohm
-
Sensitivity to supply changeLess than 2 mV/V
-
Sensor housing materialA308 aluminum
-
Sensor operating temperature-52 to +100 deg C
-
Sensor storage temperature-52 to +105 deg C
-
Field terminalsSpringLoc terminal strips
View all additional
Alternative Names
330180-90-00 Proximitor Sensor
3300 XL 8 mm proximity transducer system 330180-90-00
Bently Nevada 330180 90 00
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Match 330180-90-00 to the installed 3300 XL 8 mm proximity transducer systems
Bently Nevada 330180-90-00 is a Proximity signal conditioning sensor for the 3300 XL 8 mm proximity transducer systems. Its exact article suffix determines the supported interface, signal or communication function and the approved companion equipment.
Engineering should compare compatible probe input (3300 5 mm or 3300 XL 8 mm probe and extension cable), supply without barriers (-17.5 to -26 Vdc; see controlled installation drawing) and supply with barriers (-23 to -26 Vdc) with the installed system design. Confirm connector keying, addressing and configuration-tool support before connection.
Use the manufacturer documentation for the complete wiring and configuration sequence. Validate communication, signal conversion or control response with the connected equipment, then archive measured results and the final configuration with the asset record.
Features:
- Exact identity: 330180-90-00
- Product class: Proximity signal conditioning sensor
- Family: 3300 XL 8 mm proximity transducer systems
The Bently Nevada 330180-90-00 requires documented system integration before energising the equipment.
REPLACEMENT CONTROL
Verify the complete 330180-90-00 identity before exchange
Replace 330180-90-00 only after matching the complete article code, Proximity signal conditioning sensor, installed 3300 XL 8 mm proximity transducer systems role and documented hardware or firmware revision. Similar housings and related family numbers do not establish functional interchangeability.
Photograph the nameplate, keyed connectors, terminal numbering, cable routing, shields, earth points and adjacent modules. Export the applicable controller, HMI, drive or network configuration and record addresses, parameters and diagnostic messages before removal.
After fitting the verified article, restore the controlled configuration and check every affected signal or communication path. Review status indications and diagnostic buffers, run the documented functional test at a safe operating point and retain the final acceptance record.
Features:
- Exact identity: 330180-90-00
- Product class: Proximity signal conditioning sensor
- Family check: 3300 XL 8 mm proximity transducer systems
The Bently Nevada 330180-90-00 requires documented replacement verification before energising the equipment.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software and certificates are included only when listed in the quotation.Features:
- Technical values prepared for 330180-90-00
- Bently Nevada 3300 XL 8 mm proximity transducer systems references reviewed
- Exact Bently Nevada identity required before service
Documentation for Bently Nevada 330180-90-00 must match the installed equipment; confirm document applicability before service.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size7.8x6x5.8cm
-
Shipping weight0.2 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference9031809090
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 330180-90-00
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
How is 330180-90-00 identified?
330180-90-00 is a Proximitor Sensor. The 90 option selects 9 m calibration and panel mounting. Match the selected mounting and calibrated length to the installed probe and extension cable. Approval markings and any factory modification require separate confirmation; neither a similar enclosure nor a shared base number establishes interchangeability. -
What is the function of this Proximitor Sensor?
The sensor conditions the signal from a matched proximity probe and cable. Together, the calibrated sensing chain provides a voltage related to conductive-target position for static measurements and dynamic vibration monitoring; probe family and total electrical length must agree. -
Which components are compatible with 330180-90-00?
The input accepts the documented 3300 5 mm or 3300 XL 8 mm probe/cable combination. Mixed XL/non-XL systems are limited to non-XL specifications. A one-metre configuration uses a one-metre probe with no extension cable. -
Where is this product family used?
The complete sensing chain produces a voltage related to the conductive-target gap. The sensor interfaces that measurement with the configured position monitor; it is not interchangeable with a different probe-family conditioner. -
What power-supply and mounting checks are needed for this Proximitor Sensor?
Use the correct insulating mounting arrangement and controlled field-wiring instructions. Observe the sensor temperature limits rather than the hotter probe rating. A supply more positive than -23.5 Vdc may reduce the published linear range; barrier installations require their specified supply range. -
Can the hotter probe temperature rating be used for the sensor?
No. The Proximitor Sensor operating range is -52 to +100 deg C, with storage from -52 to +105 deg C. Probe and cable limits are published separately and must not be substituted for the sensor rating. -
What happens if the supply is more positive than -23.5 Vdc?
The manufacturer warns that this can reduce the linear range. Observe the applicable non-incendive installation drawing and the separate -23 to -26 Vdc supply requirement for barrier installations.
