PRODUCT DESCRIPTION

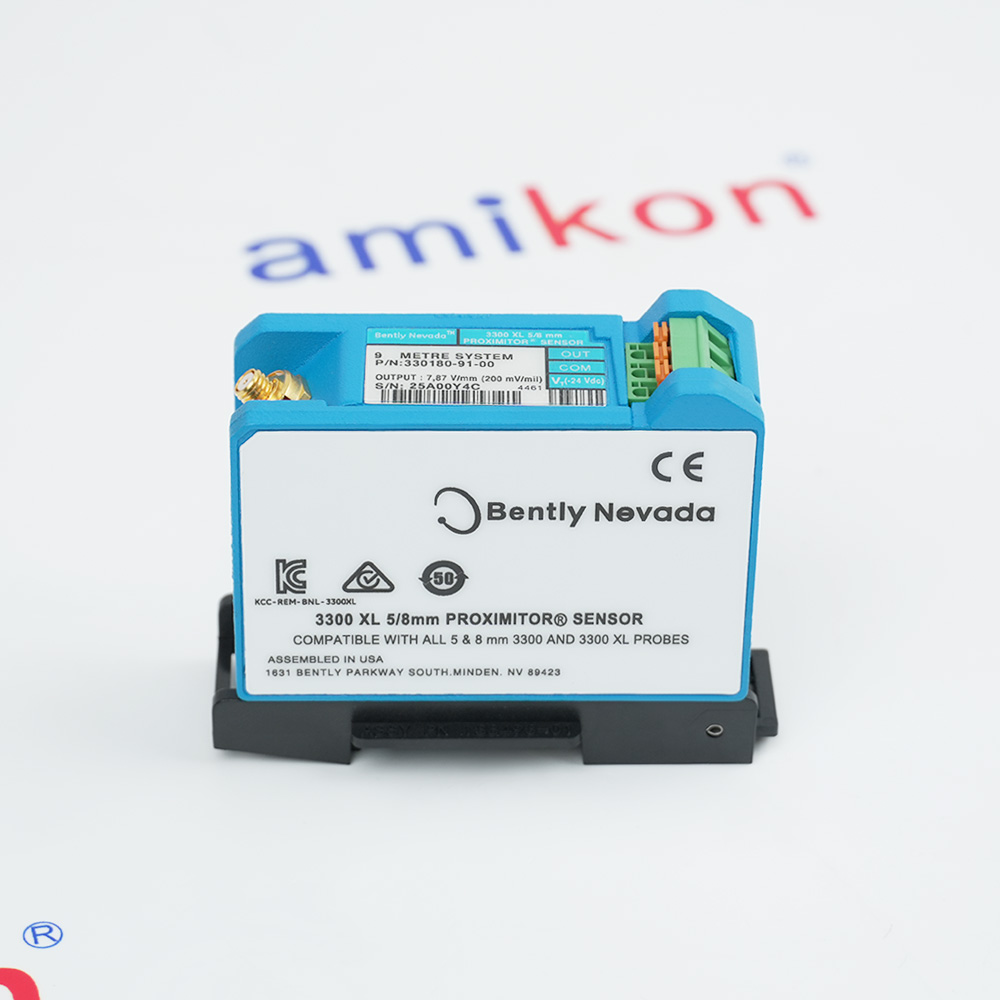

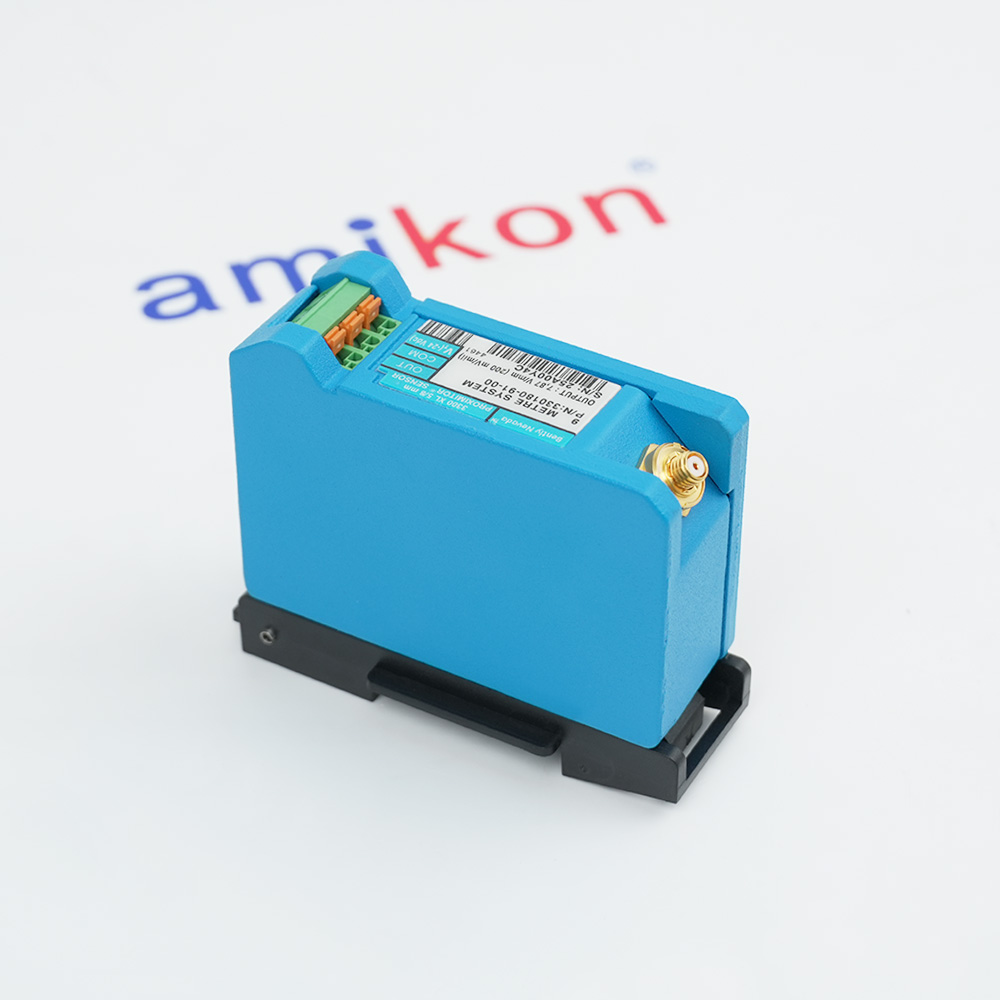

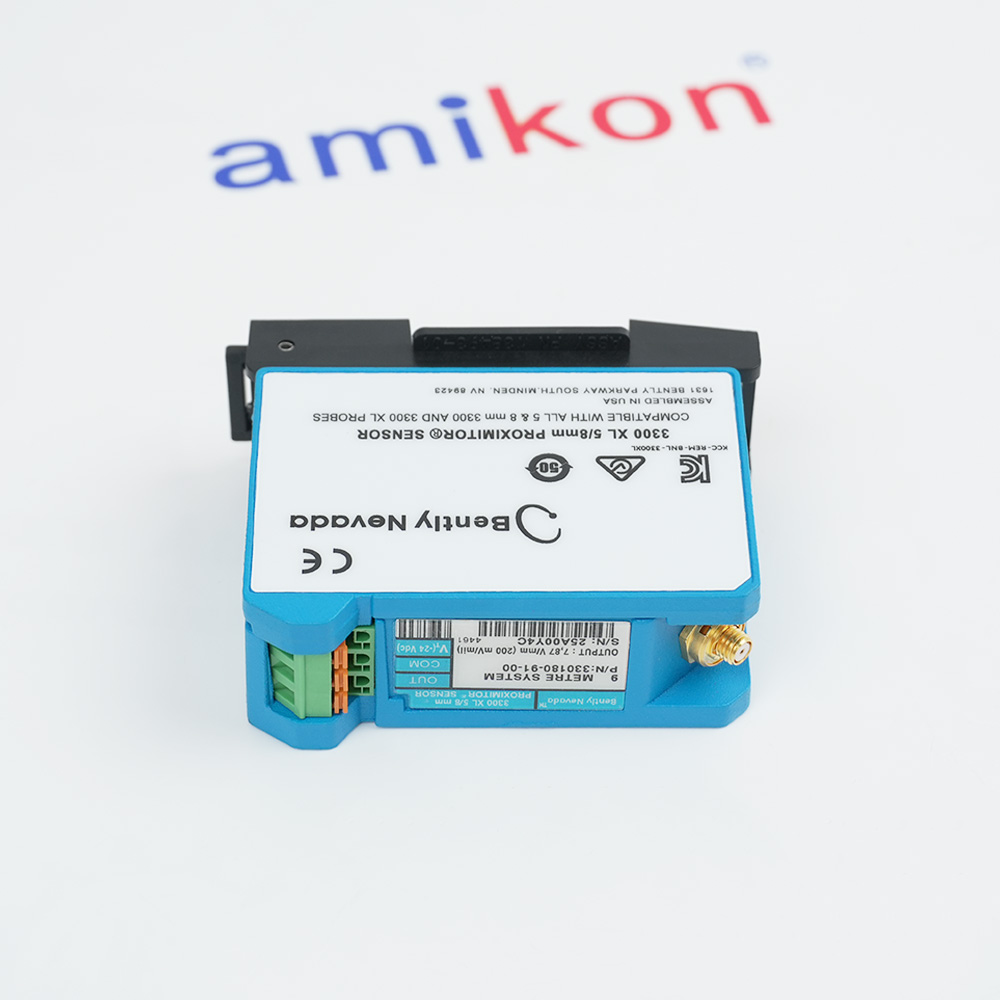

330180-91-00 3300 XL Proximitor sensor
Bently Nevada 330180-91-00 3300 XL Proximitor sensor supports 3300 XL 8 mm proximity transducer systems. The assembly combines the documented electrical, signal and mechanical interfaces for its assigned system position. It processes or transfers the defined operating signals through the configured equipment path. The resulting interface supports repeatable control, protection or measurement performance within the approved installation.
BEFORE YOU BUY
Confirm the complete 3300 XL Proximitor sensor
ACTUAL APPLICATIONS
Verified application context for 330180-91-00
Manufacturer documentation supports these equipment applications when the complete system configuration and interfaces are verified.
-
01 · MINING & METALS
Grinding and Crushing Standard Signal Monitoring Panels
Mineral Processing Machinery Signal Interface SystemsGrinding mill pinion bearings signal convertersPrimary crusher drive shafts shaft position output modules -
02 · GENERAL MANUFACTURING
Machine Test and Precision Spindle Standard Signal Monitoring Panels
Factory Production Equipment Signal Interface SystemsDynamometer test stand shafts signal convertersMachining spindle bearing assemblies shaft position output modules -
03 · AUTOMOTIVE
Powertrain Test and Machining Standard Signal Monitoring Panels
Automotive Production Equipment Signal Interface SystemsEngine dynamometer shafts signal convertersTransmission machining spindles shaft position output modules
Technical specifications for 330180-91-00
-
Product Model330180-91-00
-
Product Parameters3300 XL Proximitor sensor
-
In stock1 unit
-
ManufacturerBently Nevada
-
Calibrated system length9 m
-
Mounting optionDIN mounting
-
Agency approval optionNot required
-
Compatible probe input3300 5 mm or 3300 XL 8 mm probe and extension cable
-
Supply without barriers-17.5 to -26 Vdc; see controlled installation drawing
-
Supply with barriers-23 to -26 Vdc
-
Maximum current consumption12 mA
-
Output resistance50 ohm
-
Sensitivity to supply changeLess than 2 mV/V
-
Sensor housing materialA308 aluminum
-
Sensor operating temperature-52 to +100 deg C
-
Sensor storage temperature-52 to +105 deg C
-
Field terminalsSpringLoc terminal strips
View all additional
Alternative Names
330180 91 00
Bently Nevada 3300 XL Proximitor sensor
3300 XL 8 mm proximity transducer systems 3300 XL Proximitor sensor
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
PROXIMITY SIGNAL CONDITIONING SENSOR
Integrating 330180-91-00
The sensor conditions the signal from a matched proximity probe and cable. Together, the calibrated sensing chain provides a voltage related to conductive-target position for static measurements and dynamic vibration monitoring; probe family and total electrical length must agree.
The input accepts the documented 3300 5 mm or 3300 XL 8 mm probe/cable combination. Mixed XL/non-XL systems are limited to non-XL specifications. A one-metre configuration uses a one-metre probe with no extension cable.
Use the correct insulating mounting arrangement and controlled field-wiring instructions. Observe the sensor temperature limits rather than the hotter probe rating. A supply more positive than -23.5 Vdc may reduce the published linear range; barrier installations require their specified supply range.
Features:
- Match complete ordering options, electrical length, mounting and the installed measuring chain
- Follow the applicable installation instructions
- Confirm unverified configuration details
The 330180-91-00 Proximitor Sensor requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Replacement of 330180-91-00 requires comparing complete ordering options, electrical length, mounting and the installed measuring chain. A shared base family or similar appearance does not establish a drop-in replacement for the complete ordered assembly.
The input accepts the documented 3300 5 mm or 3300 XL 8 mm probe/cable combination. Mixed XL/non-XL systems are limited to non-XL specifications. A one-metre configuration uses a one-metre probe with no extension cable.
No verified exact-order discontinuation date, product revision or designated successor is asserted. Document revisions identify the reference literature, not hardware changes to the supplied product. Unconfirmed replacement options must be resolved before substitution.
Features:
- Preserve the complete ordering identity
- Compare the installed electrical and mechanical interfaces
- Do not infer hardware revisions or successor models
The 330180-91-00 Proximitor Sensor requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 330180-91-00 Proximitor Sensor must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size8.8x3.5x7cm
-
Shipping weight0.2 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference9031809090
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 330180-91-00
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Which identifier should be quoted for 330180-91-00?
Use the complete 330180-91-00 identifier, 3300 XL Proximitor sensor, quantity and clear nameplate photographs. -
What should be matched before installing 330180-91-00?
Match the documented ratings, connections, revision and assigned role in 3300 XL 8 mm proximity transducer systems. -
What should incoming inspection cover for 330180-91-00?
Inspect the label, housing, connectors, terminals and transport condition before use. -
Can a related 3300 XL 8 mm proximity transducer systems article replace 330180-91-00?
Do not assume interchangeability; compare the full identity, ratings, interfaces and configured role. -
Which records should be captured before removing 330180-91-00?
Record connector positions, wire labels, cabinet location, adjacent hardware and current diagnostics. -
Which configuration should be retained for 330180-91-00?
Archive the applicable controller or monitoring configuration, addresses and diagnostic records. -
How should 330180-91-00 be commissioned after installation?
Restore verified wiring and configuration, then test the affected 3300 XL Proximitor sensor function under controlled conditions. -
Which documents should remain with the 330180-91-00 asset record?
Retain receiving inspection, nameplate images, connection records, test results and final acceptance evidence.
